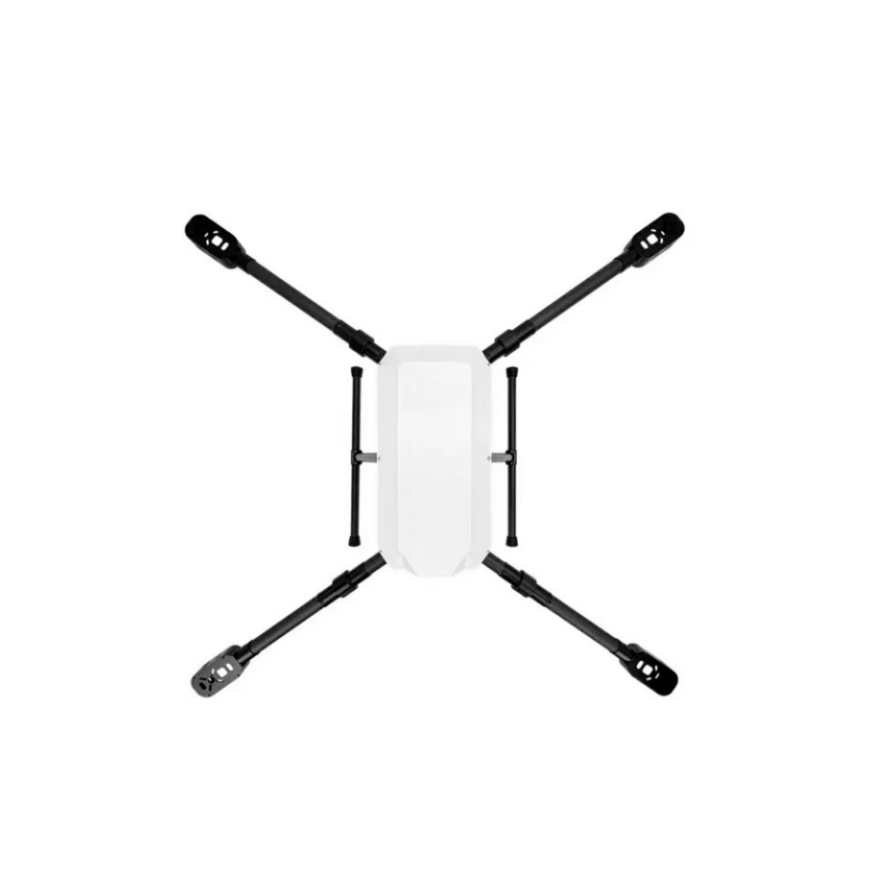

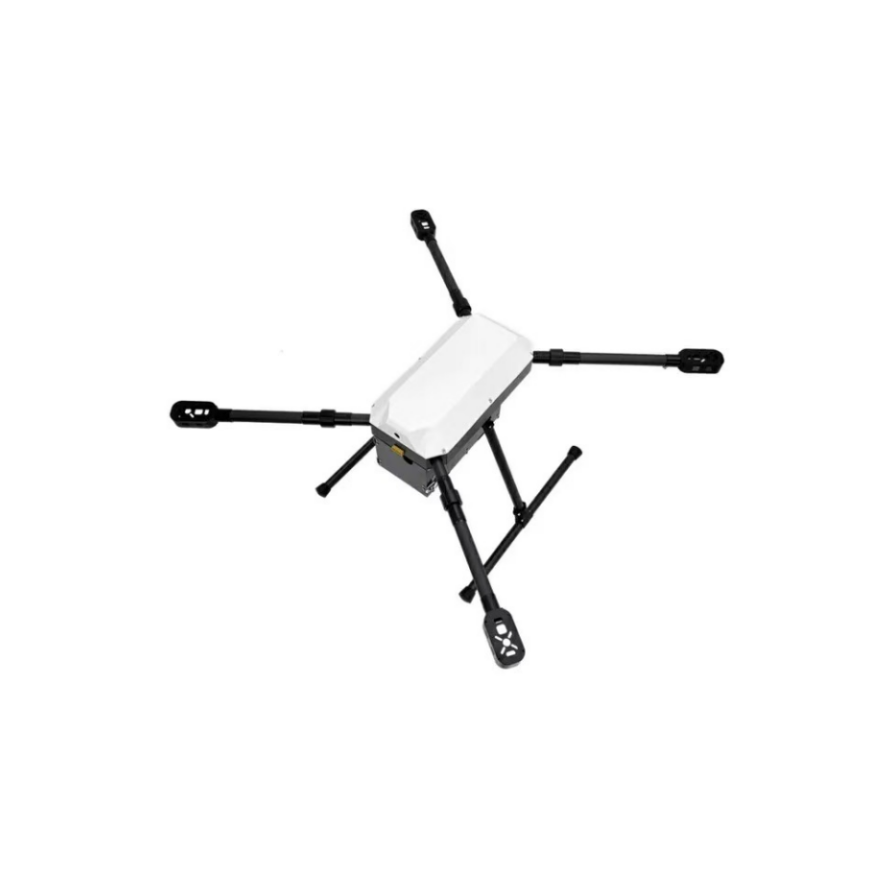

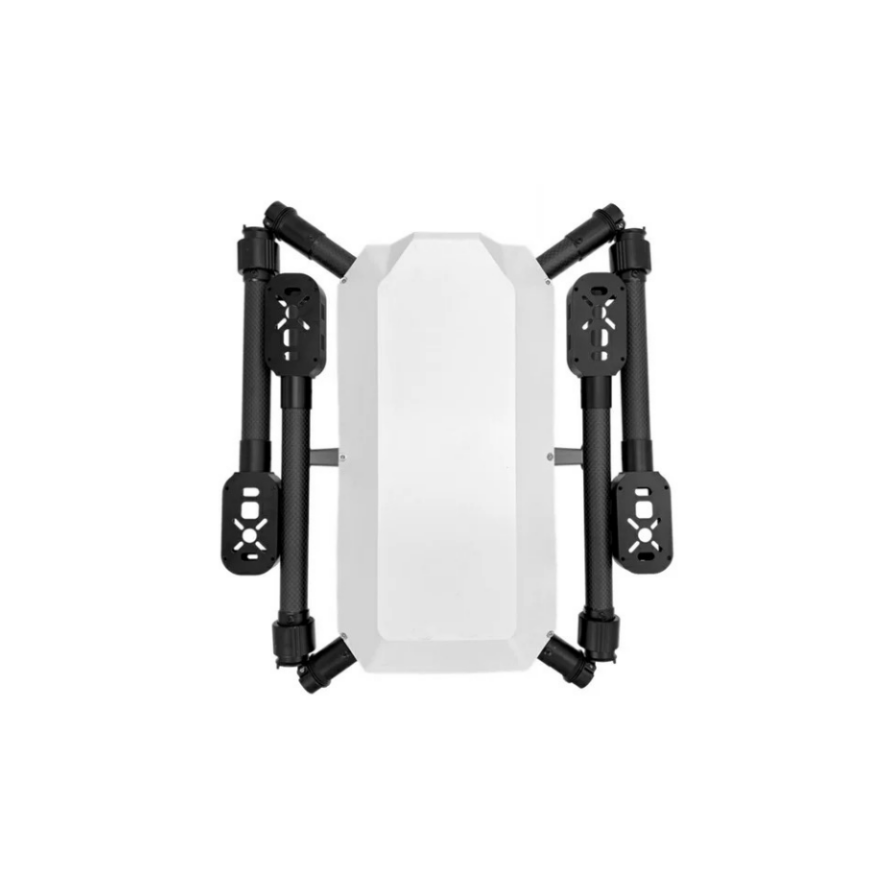

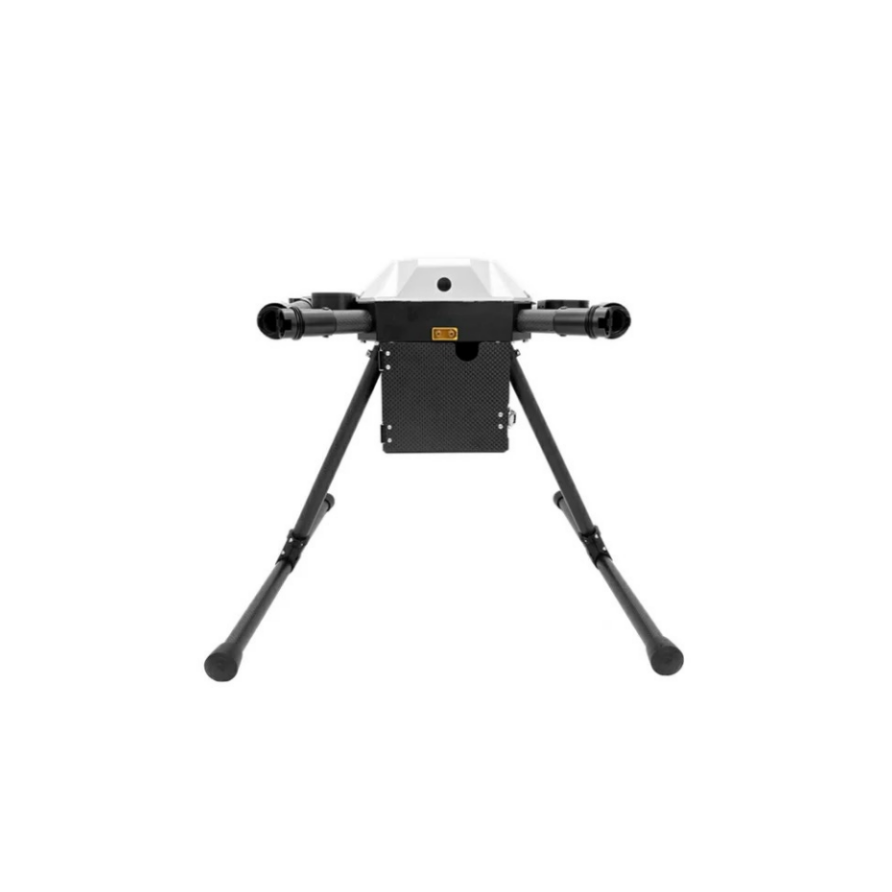

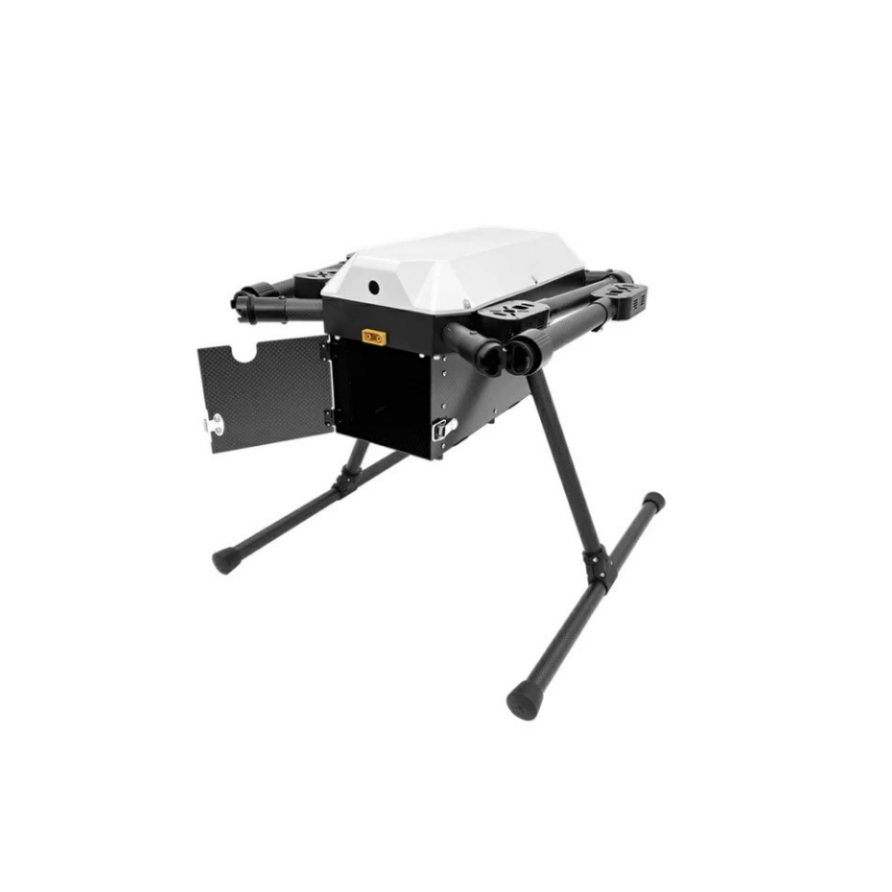

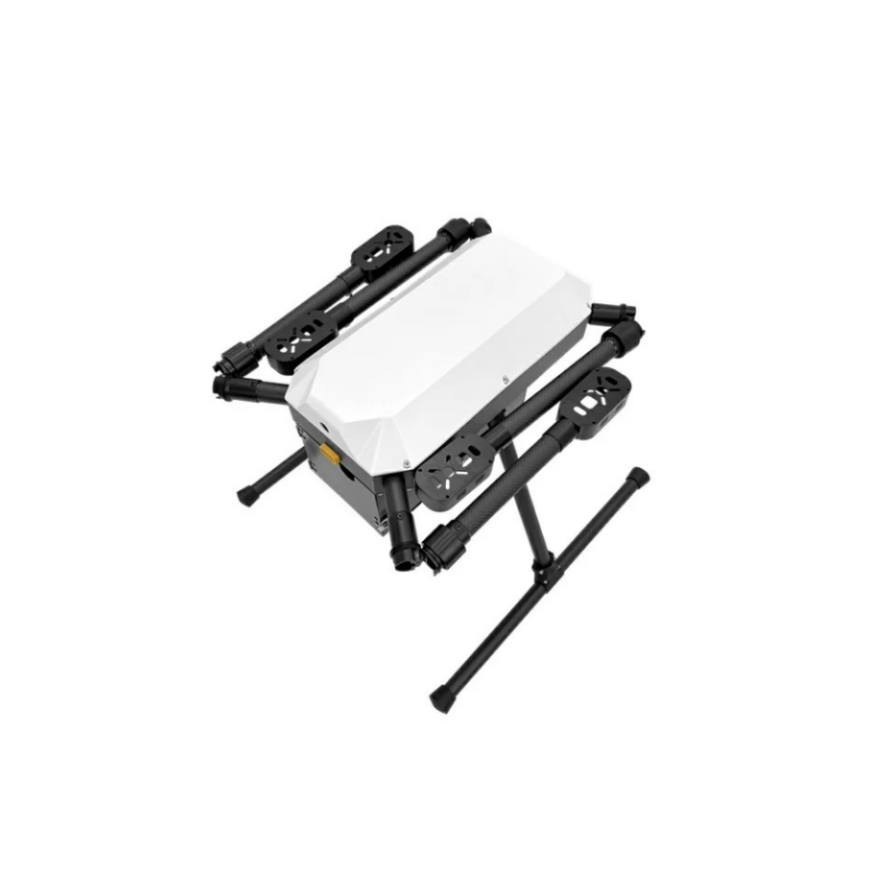

UnmannedRC X870 is a lightweight 870mm size quadcopter, the frame weighs only 1.37kg, it has foldable arm design, and max payload capacity is 2kg, MTOW is 8kg.
It can carry dual sensor gimbal camera ( 10X RGB zoom, 1080P video with 640*480px thermal sensor), with skydroid H16 PRO it can reach over 30km data/video range, also it can carry ADTi mapping camera for photogrammetric mapping, with our adti 26MP Ultra lightweight camera, it can reach 30-40 mins endurance, with 2kg lidar payload system.
UnmannedRC X870 works with Solid State Lipo Battery 6S 30000mAh.
Specifications:
Diagonal Wheelbase: 870mm
Weight: 8kg with 30Ah 6S battery
Max takeoff weight: 8kg
Max Payload: 2kg
Operating Frequency: 2.4000-2.4835 GHz; 5.725-5.850 GHz
Hovering Accuracy (Loiter ): ± 0.5m
Max Angular Velocity: Pitch: 300°/s, Yaw: 120°/s
Max Pitch Angle: 40°
Max Ascent Speed: 16.4 ft/s (5 m/s)
Max Descent Speed (vertical): 9.8 ft/s (3 m/s)
Max Wind Resistance: 39.4 ft/s (12 m/s)
Max Service Ceiling Above Sea Level: 9842 feet (3000 m)
Max Flight Time: 60 min (no payload)
Ingress Protection Rating: IP65
GNSS: GPS+GLONASS
Operational Temperature: -4° to 122° F (-20° to 50° C)
Recommand to use following:
6S 30000mAh Lipo or solid state battery
H16 Skydroid Controller OR SIYI UniRC 7 Controller
