120MP V3 Oblique Camera for DJI M350RTK OR SDK Aerial Mapping

Advanced Stability and Multi-Angle Imaging

The intelligent 3-axis gimbal can guarantee the stability of camera, realizing the high overlap between original data and the calculated aerial triangulation. The pitching angle can be freely adjusted within 180 degree , enables users to view more details of oblique photography.

User-Friendly Camera Control with High-Resolution Imaging

The S-OPG system allows easy adjustment of camera settings in varying conditions, with a 9-hour operational capability and five 25.16MP image sensors for superior image quality.

S-GS Global Shutter for Enhanced Durability and Efficiency

ncorporates a KIMOTO high-speed shading blade, reducing friction, tripling lifespan, and allowing rapid shooting at 0.5s intervals.

Exceptional Optical Quality for Ultra-High Resolution

Utilizes multi-layer nano-coating and LD low-dispersion lenses to correct aberration, with a fluorine compound coating for lens protection.

Intuitive OLED Screen Display with Comprehensive Camera Info

Equipped with an upgraded OLED HD screen for real-time status including temperature, RAM, and shutter life, ensuring ease of use and efficiency.

Innovative TimeSync 2.0 for Accurate Data Integration

Synchronizes time at the microsecond level, accurately records position information, and instantly writes POS data into photos.

Versatile and Compatible with Various UAV Platforms

Supports 12-50V power supply for synchronous operation and offers quick disassembly for compatibility with different UAVs.

Terrain-Following Flight for Optimal Oblique Photography

The gimbal adjusts camera attitude based on terrain, ensuring vertical alignment with the ground for efficient operation.

Macro-Photogrammetry for Precision in Elevation and Slope Modeling

The S-ML lens enables a minimum focus distance of 10 meters and a 2mm resolution for high-precision tasks on elevation or inclined surfaces.

Specifications

• Dimensions & Weight: 193 x 172 x 180 mm; 1041g

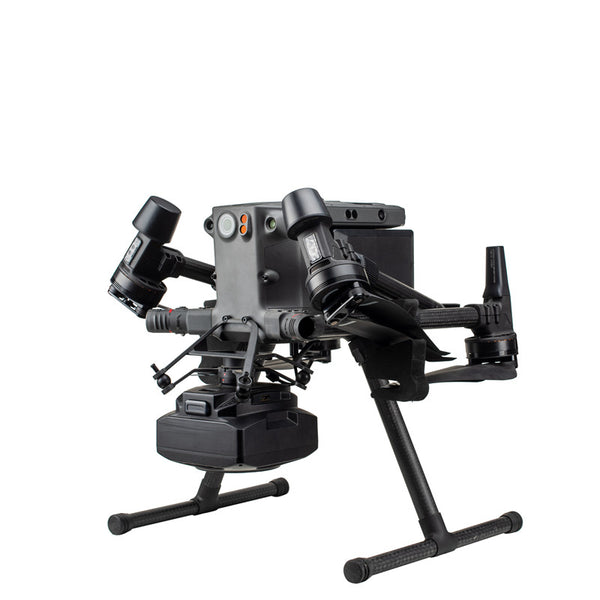

• Supported Aircraft: Compatible with DJI M350 RTK and various rotary and fixed-wing drones from different manufacturers

• Camera Interface: DJI Skyport Interface & Universal Aviation Plug Interface

• Effective Pixels: Over 25 million pixels single lens; totalling exceeding 125 Million Pixels

• Sensor Specifications: Size - 23.1 x 15.4 mm, Pixel Size - 3.76um

• Lens Focal Length: Oblique - 35mm, Orthophoto - 25mm

• Storage Capacity: 1280 GB

• Parameter Adjustment: Features adjustable ISO, white balance, color mode, and shutter speed settings; Bluetooth parameter adjustment capability

• Data Speed: Up to 600MB/s
