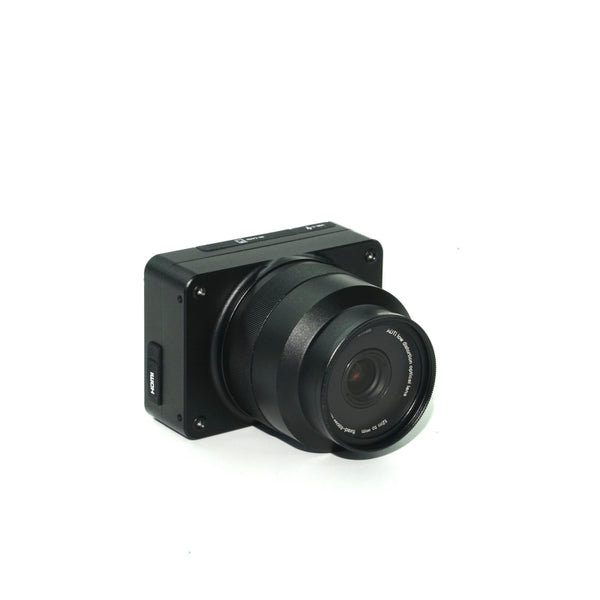

The ADTi 26S V2 camera module is an ADTI self-developed 26MP APS-C camera module, it adopts the Sony IMX 571 back-illuminated 26MP image sensor , also drive control circuit and image processing algorithm. It can open the SDK control protocol to users. ADTi customize and develop surveying and mapping lenses of various focal lengths, and customized the mechanical global intermirror shutter with higher reliability. also features:
- APS-C Sony CMOS back-illuminated sensor.
- mechanical shutter combined with fixed focus lenses.
- Built-in Multi-Interface hot shoe output for PPK
- Directly Geo-tagging function
- full aluminum structure
Image Sensor
Sensor Type:CMOS
Sensor Manufacturer:Sony
Sensor model: Sony IMX 571 back-illuminated
Effective Megapixels:26.1
Sensor Format:APS-C
Sensor size:368.95mm2 (23.5*15.7mm) Diagonal 28.3 mm (Type1.8)
Pixel Type:3.76 μm (H) × 3.76 μm (V)
Aspect Ratio:3:2
Anti Aliasing Filter:None
Color Depth （bits):25.6
Maximum Effective ISO:2,749
Image Capture
Image Resolution:
6252 x 4168(26 MP, 3:2)
4800 x 3200 (15.4 MP, 3:2)
3680 x 2456 (9.0 MP, 3:2)
4800 x 3200 (15.4 MP, 3:2)
3680 x 2456 (9.0 MP, 3:2)
2400 x 1600 (3.8 MP, 3:2)
Image File Format:JPEG
Shutter:
Shutter Type: Lightweight inter-mirror mechanical, replaceable
Shutter speed: 1/100 to 1/10000
Continuous-mode frames/second:2.0
Expo interval: ≥0.5s
Video Capture
Video Resolution:
1920x1080 (60p(28Mbps)
640x480 (30p(3Mbps))
Video File Format: MP4
HD Video Out:Yes
HD Video Connection:HDMI
Lens & Optics
25mm fixed lens:
Manual fixed focus (ortho)NON-interchangeable
37.5mm equivalent Focal Length
FOV: D 58.7° H 50.0° V 34.4°
distortion<0.5%
Auto Focus No
Manual Focus Yes
Focusing range: 20 meters to infinity
Aperture fixed F5.6
35mm fixed lens:
Manual fixed focus (ortho)NON-interchangeable
52mm equivalent Focal Length
FOV: D 44.1° H 37.2° V 25.3°
distortion<0.02%
Auto Focus No
Manual Focus Yes
Focusing range: 20 meters to infinity
Aperture fixed F5.6
16mm fixed lens:
Manual fixed focus (ortho)NON-interchangeable
24.5mm equivalent Focal Length
FOV: D 83.0° H 73.0° V 52.0°
distortion<0.01%
Auto Focus No
Manual Focus Yes
Focusing range: 20 meters to infinity
Aperture fixed F5.6
Camera
Camera Size: 6.88*4.85*6.25 cm
Weight with lens: 110 g (Aluminum case)
Package Size: 14.5*10*6 cm
Package Weight: 500 g
Power: 12-28V DC Lipo or Liion
Operating Temperature: -10 to 40°C
