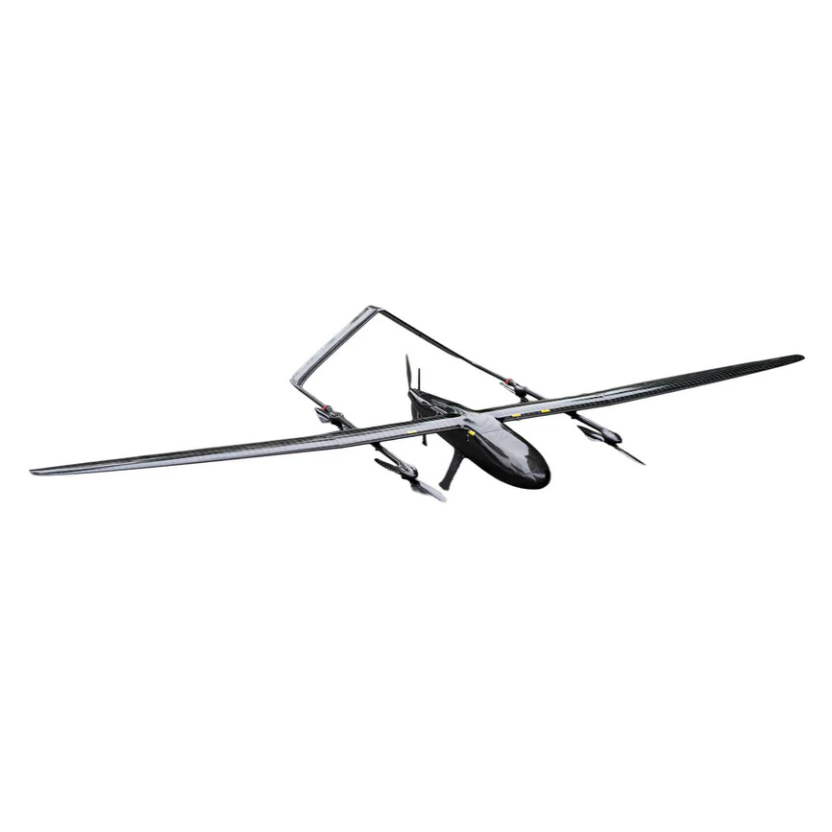

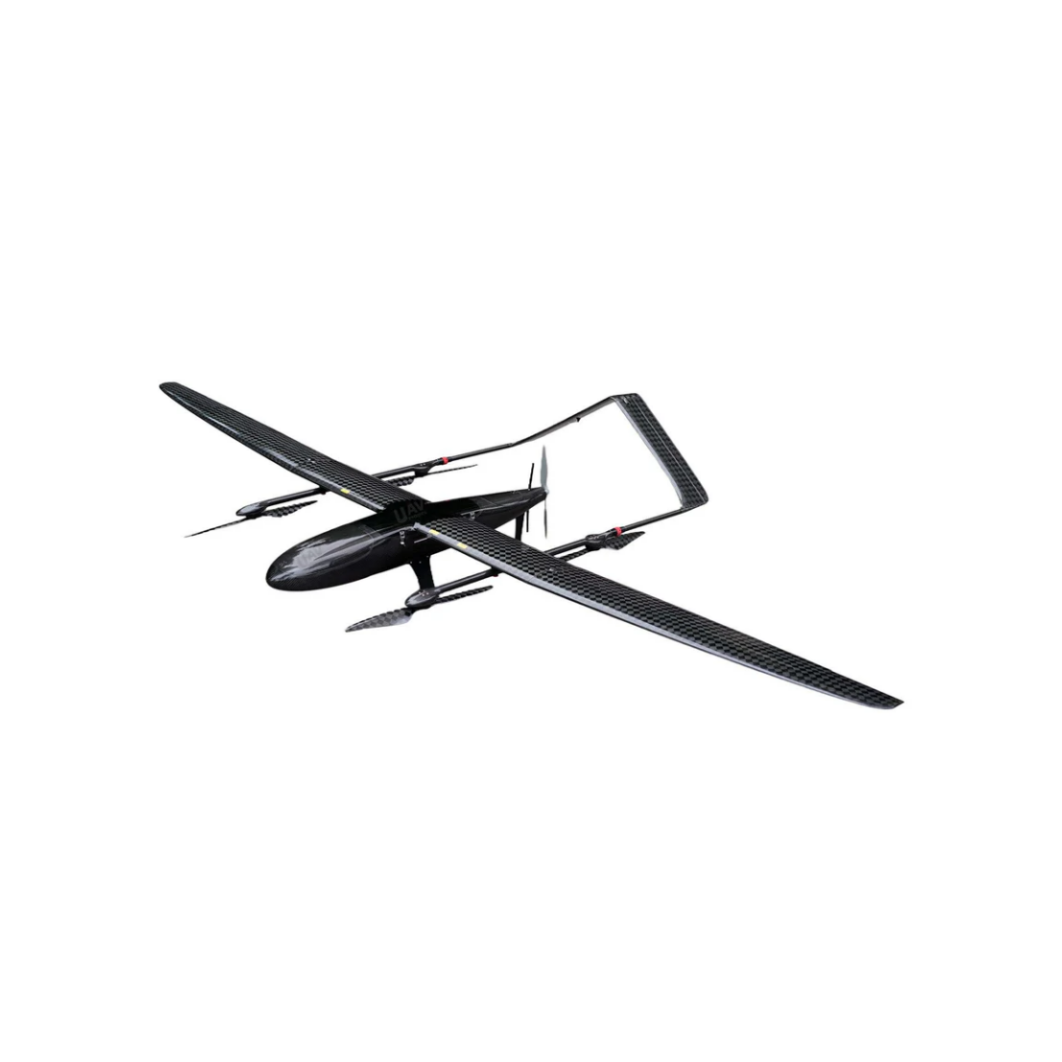

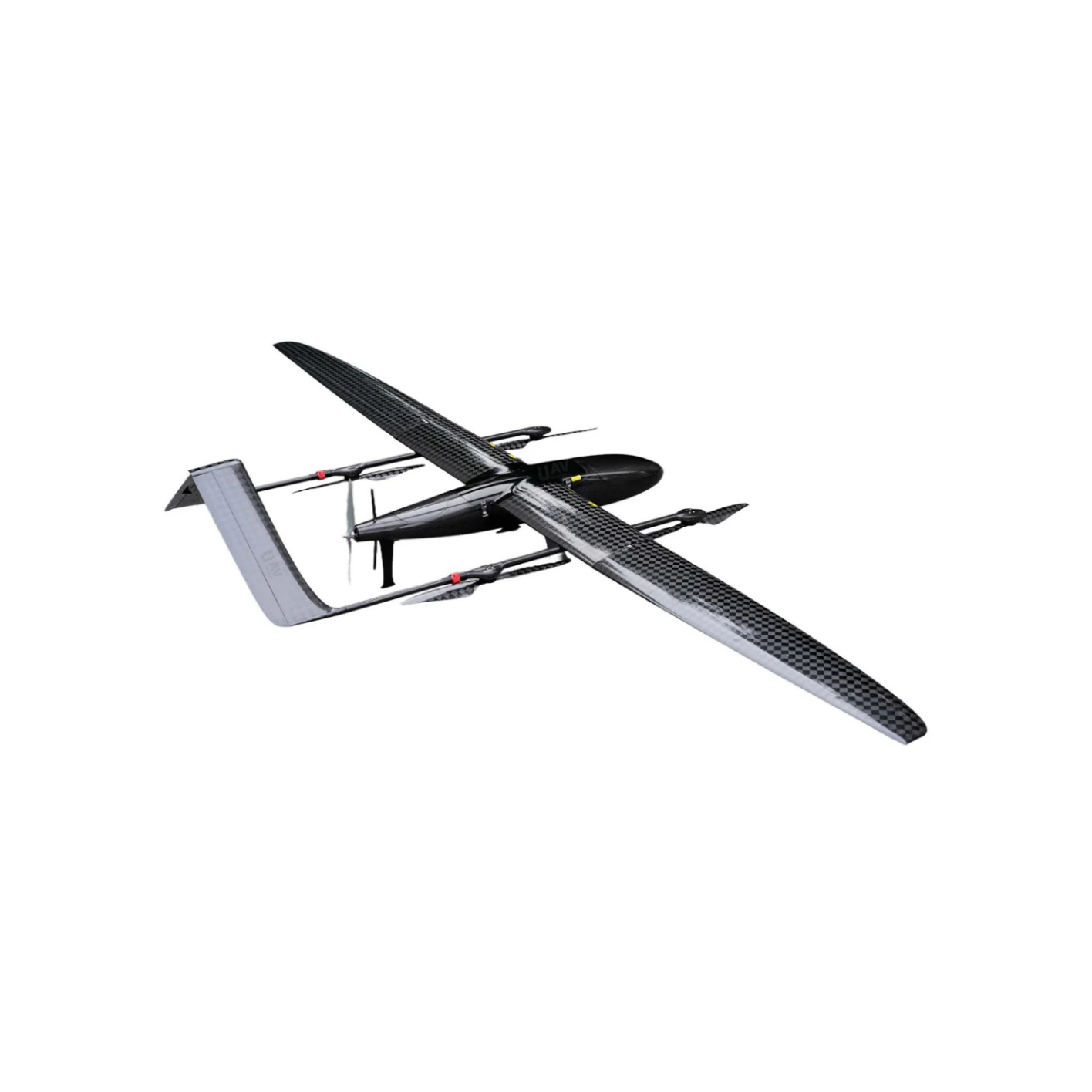

The UnmannedRC V3700 VTOL UAV is made of composite material with majorly carbon fiber , it equips 12S 60000mah for fixed-wing battery and use 12S 4500mah for VTOL battery(takeoff and landing), in this configuration, it can reach its endurance of 4.5 hours with 4kg payload, and endurance of 8 hours with 1kg payload.
Specification
Body material: carbon fiber, composite material, etc.
Body length: 1750mm
Wingspan: 3000m
Payload compartment size: 170mm*170mm*120mm
Mission compartment position: Front of the fuselage
Maximum take-off weight: less than160kg
Maximum payload: 4kg (standard load: 1kg)
Endurance: 8 hours with1KG payload(flight speed 20m/s)
Maximum control distance: manual control by remote control/3km, ground station/standard 30km (up to 100km with numerical control)
Flight speed: economic cruise speed 65-80 km/h
Maximum flight speed: 30 m/s
Stall speed: 15m/s
Minimum circling radius: 200m
Braking distance: more than 400m
Maximum horizontal lift limit: 4000m above sea level
Wind resistance in fixed-wing mode: no less than 7 wind (17.1m/s)
Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)
Operating environment: -20℃~45℃; can fly in light rain
VTOL Battery: 1x 5500mah 8S
Push Battery 1x 60000mah 8S
