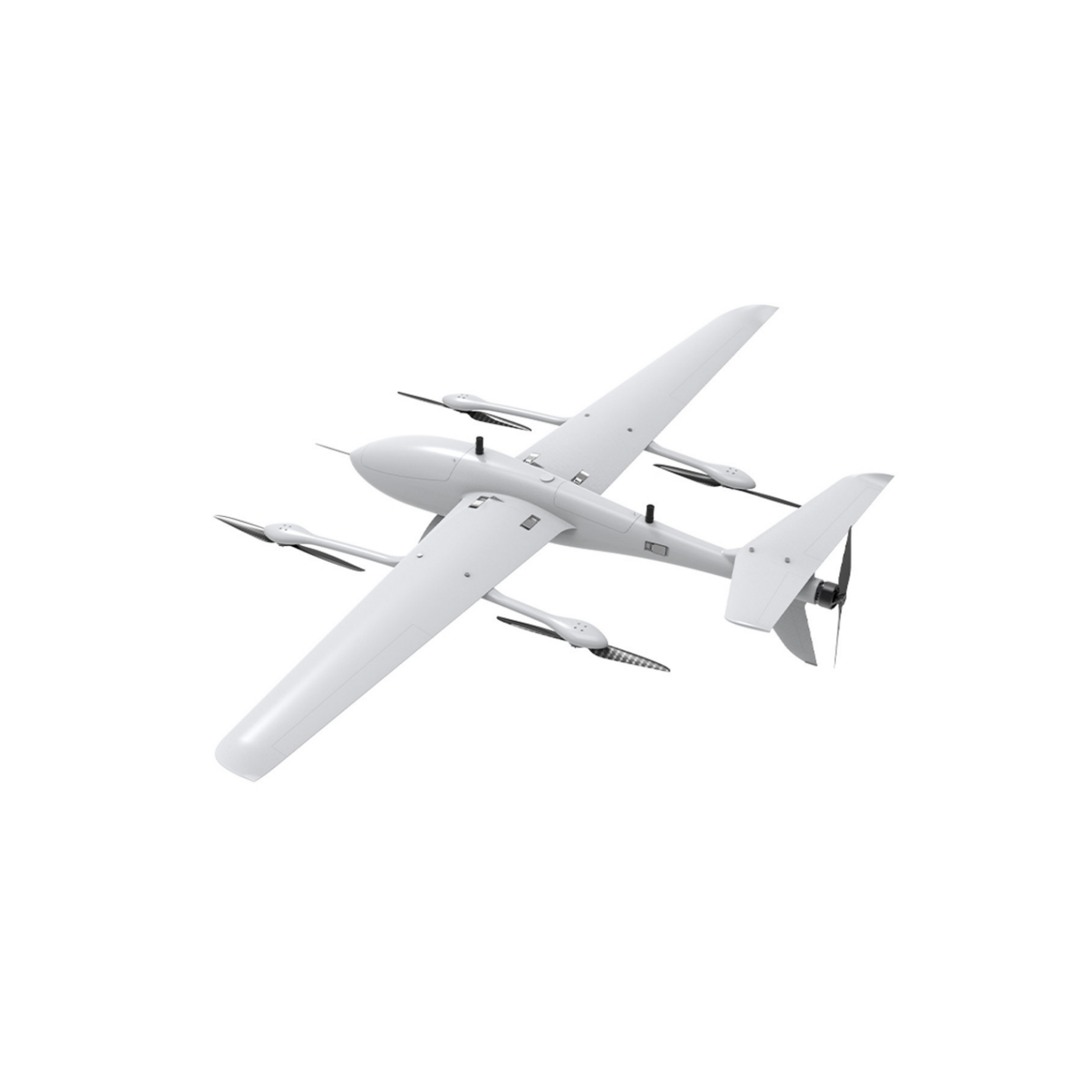

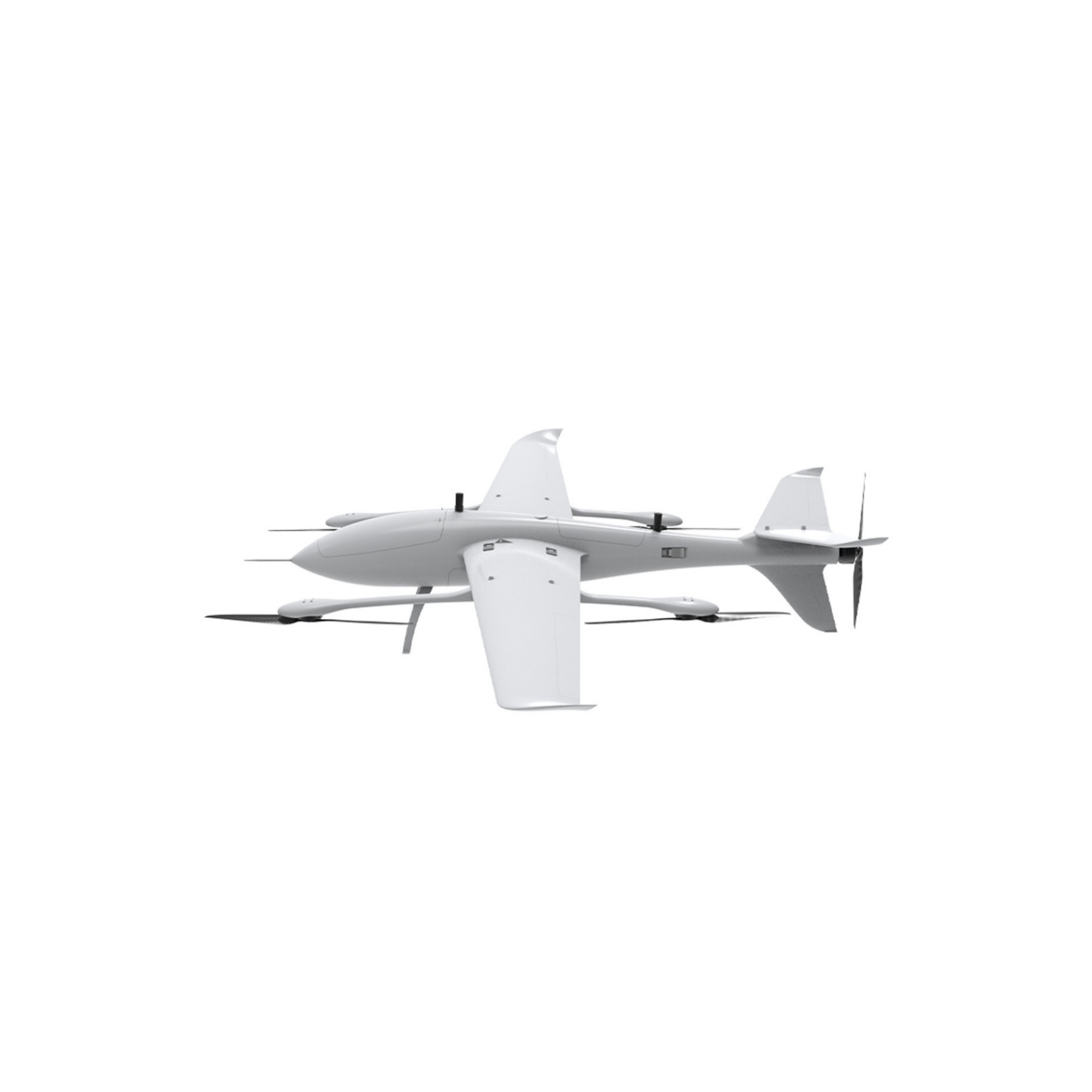

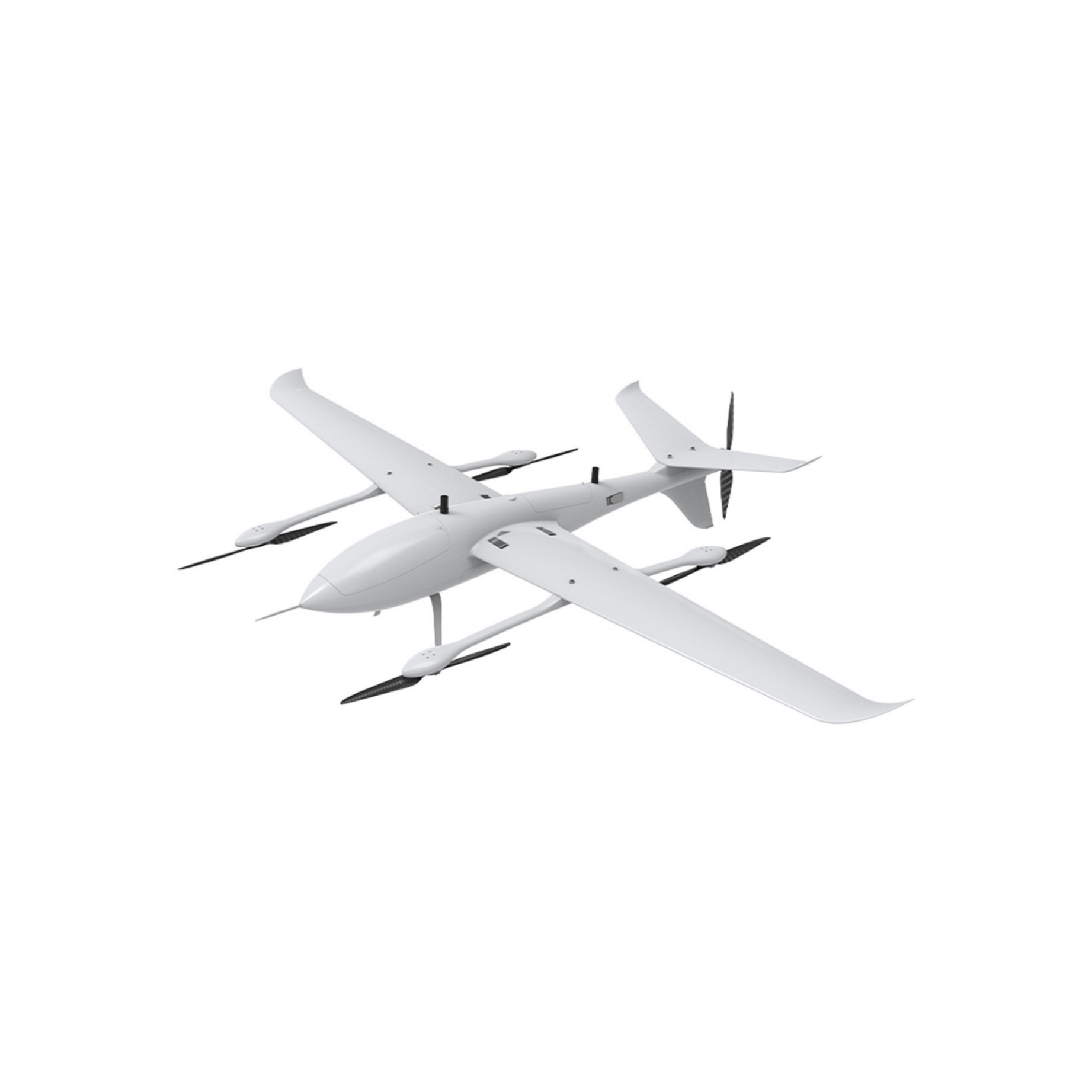

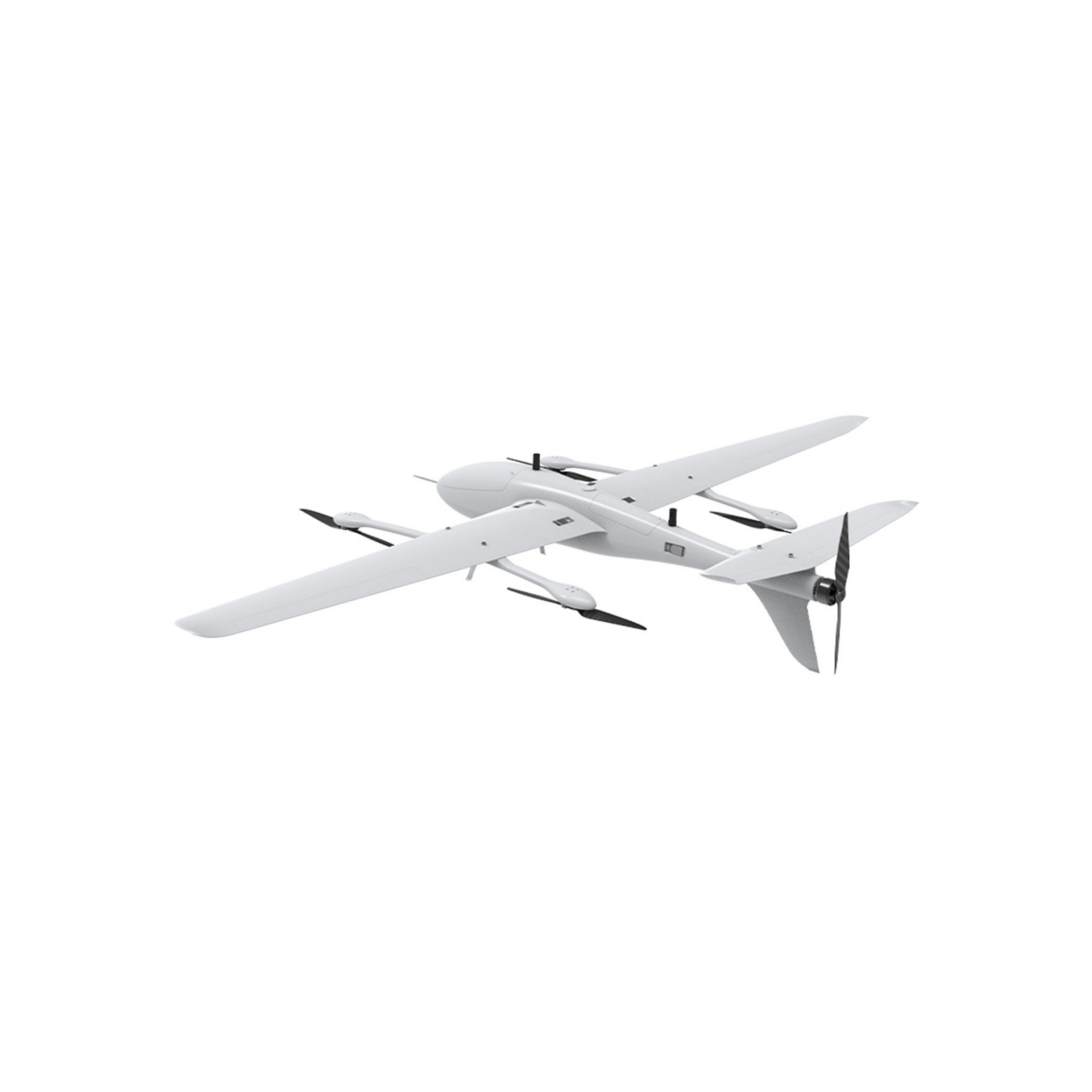

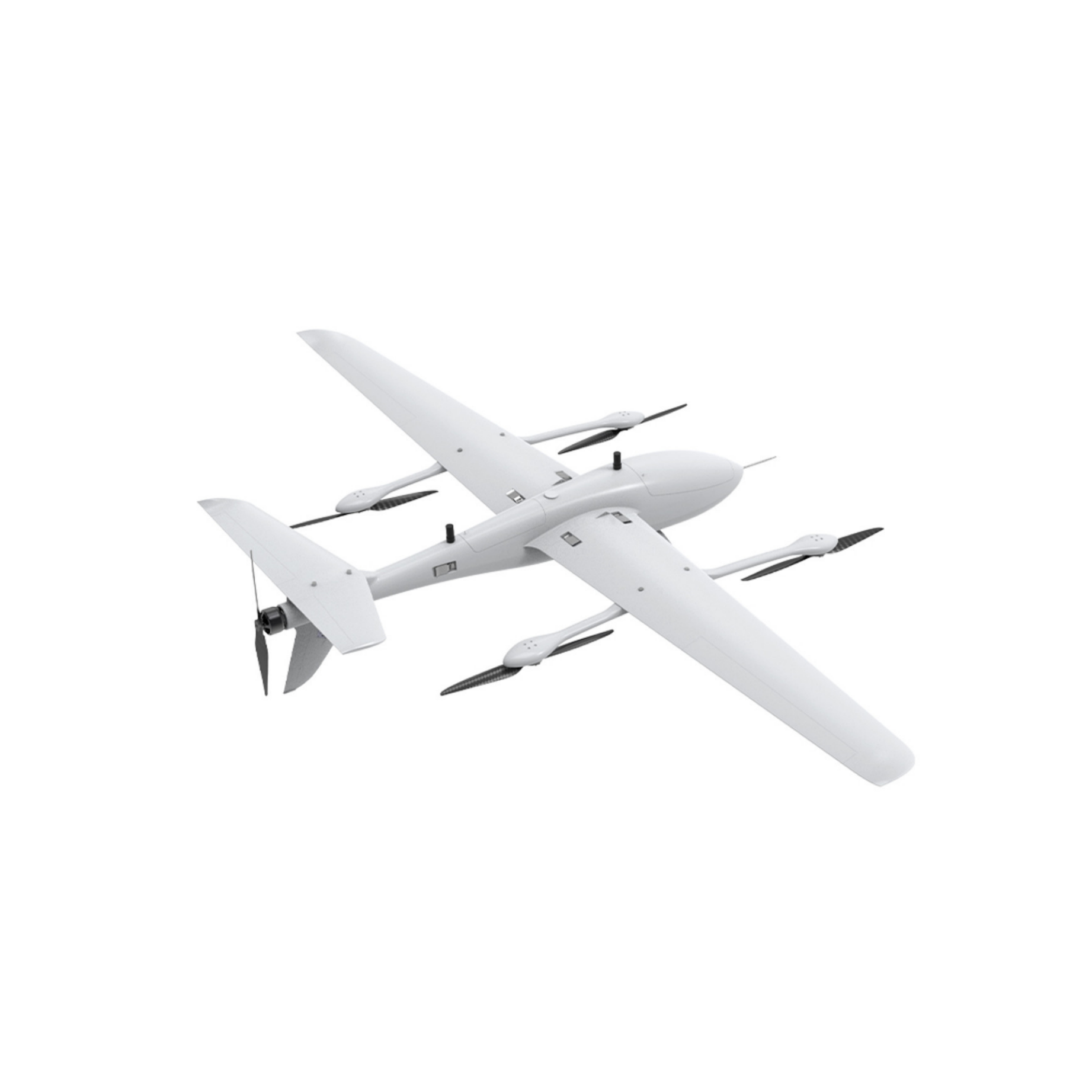

The UnmannedRC V3200 VTOL UAV is made of composite materia , it equips two12S 30000mah for fixed-wing battery and use 12S 5500mah for VTOL battery(takeoff and landing), in this configuration, it can reach its endurance of 2.5 hours with 2.5kg payload,  and endurance of 3.8 hours with 1kg payload.

Specification

Body material: carbon fiber, composite material, etc.

Body length: 1260mm

Wingspan: 3200m

Mission compartment position: Front of the fuselage  or inside of fuselage

Maximum take-off weight: less than 24kg

Maximum payload: 5kg (standard load: 3kg)

Endurance: 3.8 hours with 1KG payload (flight speed 20-21m/s)

Flight speed: economic cruise speed 74-110 km/h

Maximum flight speed: 34 m/s

Stall speed: 17 m/s

Minimum circling radius: 150m@20 m/s

Maximum horizontal lift limit: 4000m above sea level

Wind resistance in fixed-wing mode: no less than 7 wind (17.1m/s)

Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (7.9m/s)

Operating environment: -20℃~45℃; can fly in light rain

VTOL Battery: 1x 5500mah 12S

Push Battery 2x 30000mah 12S
