Specs
Overall
| Max Thrust |
6.5 kg / axis |
| Recommended Take-off Weight |
2 to 2.5 kg / axis |
| Recommended Battery |
12~14S LiPo |
| Cable Length |
Power Cable: 710 mm Signal Cable: 780 mm |
| Protection Class |
IPX5 |
| Compatible Arm Tube Diameter |
30 mm |
| Product Weight |
429 g |
ESC
| Model |
55 A FOC |
| PWM Voltage Input |
3.3 / 5 V |
| PWM Pulse Width |
1100 ~ 1940 μs |
| PWM Working Frequency |
50 ~ 500 Hz |
| Max Voltage |
60 V |
| Continuous Current |
23 A |
| Max Current |
55 A |
| Communication Protocol |
CAN |
| Firmware Upgrade |
Supported |
| Digital Throttle |
CAN Throttle |

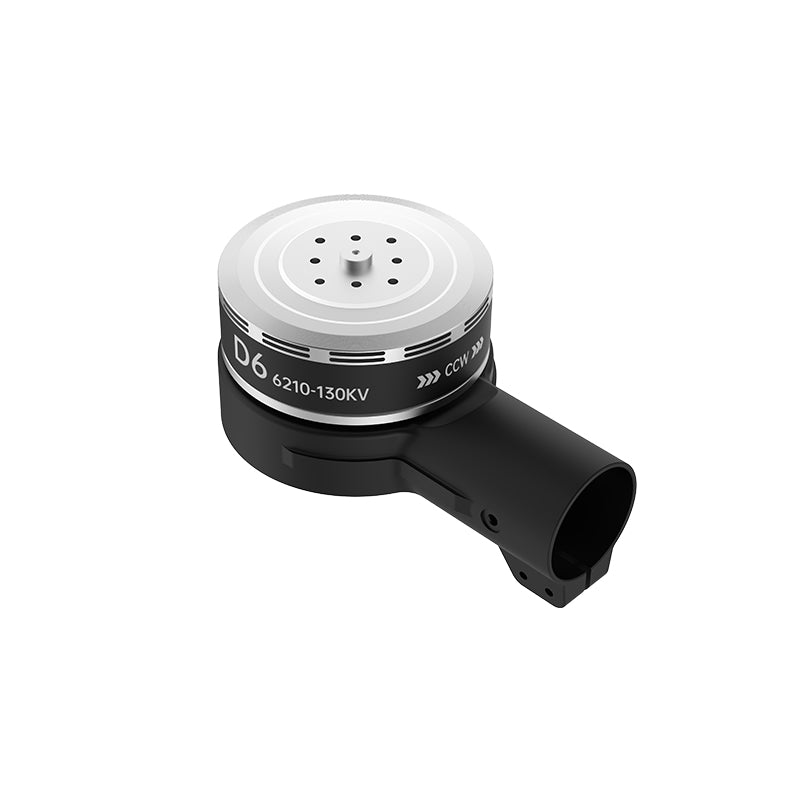

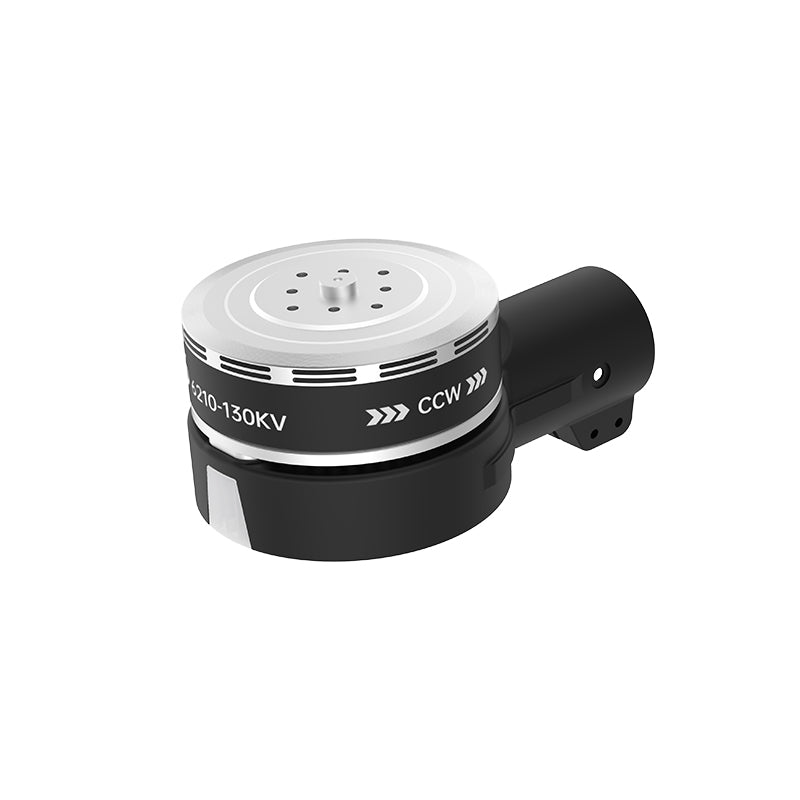

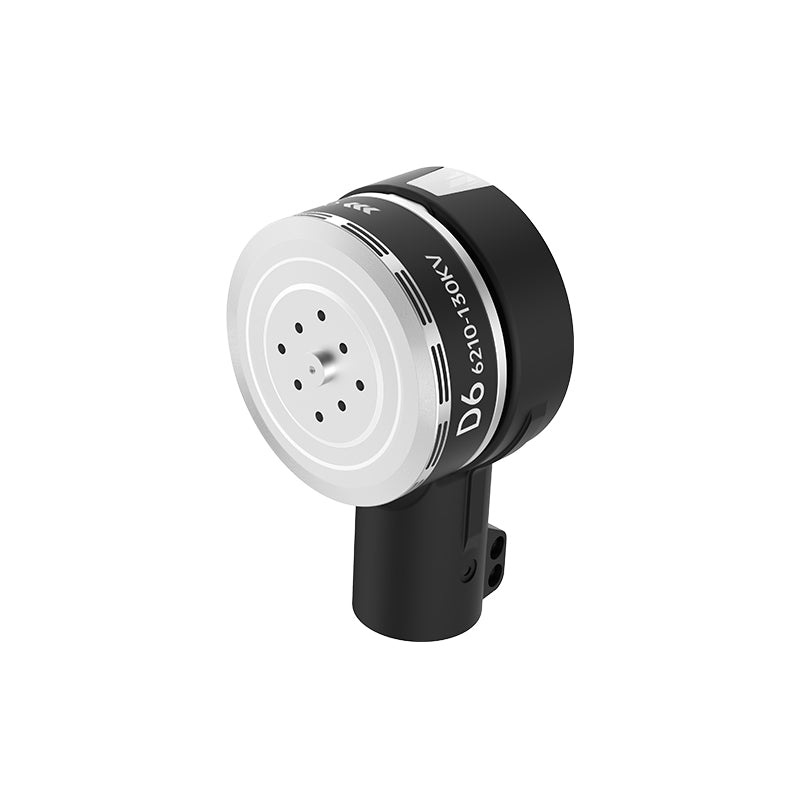

Motor
| KV |
130 KV |
| Motor Size |
Φ67.7 * 23.1 mm |
| Poles & Magnets |
24N28P |
| Product Weight |
240 g |

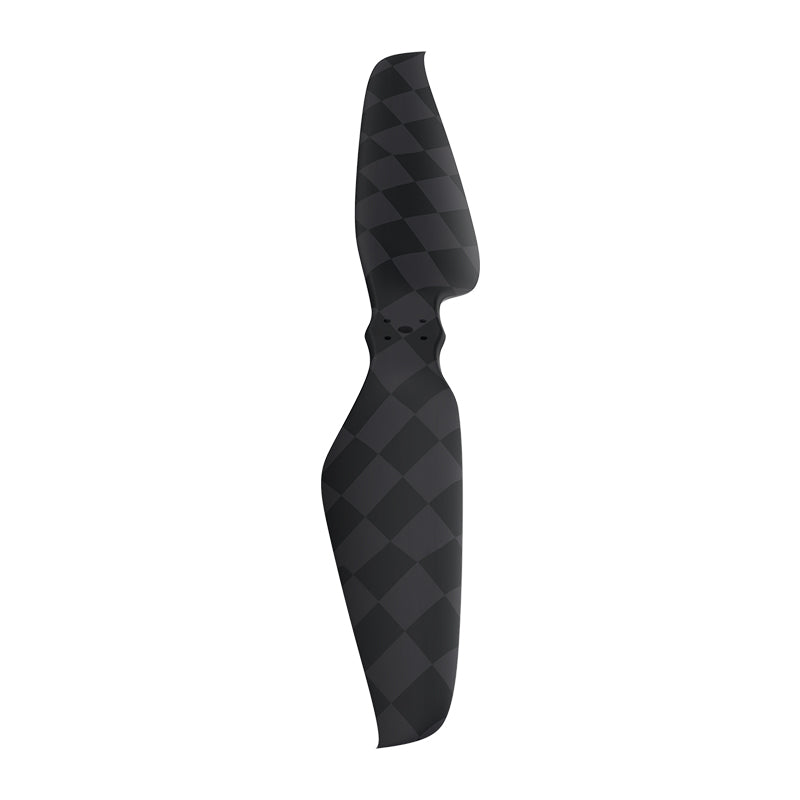

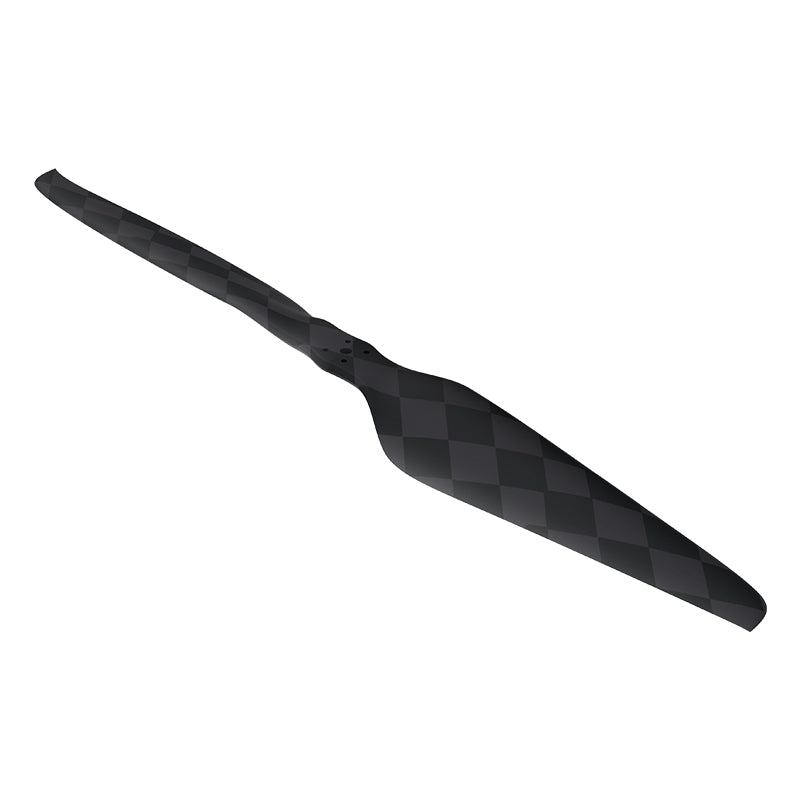

Propeller (Straight)
| Diameter x Pitch |
22 x 7.8 Inch |
| Product Weight |
35.7 g |

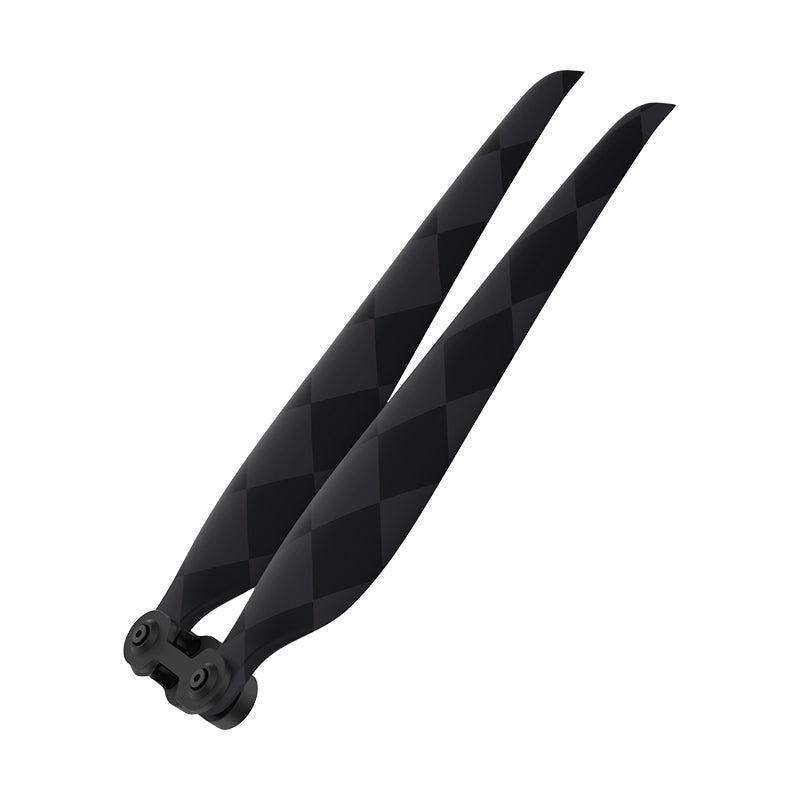

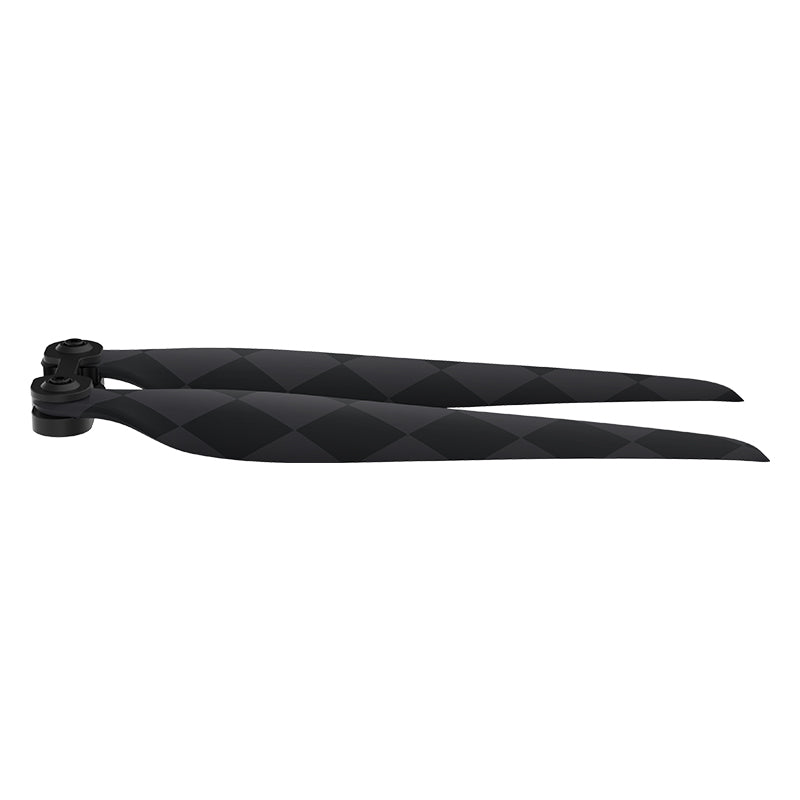

Propeller (Foldable)
| Diameter x Pitch |
22 x 9 Inch |
| Product Weight |
61.2 g |
Foldable Propeller Performance
Straight Propeller Performance
