KST X20-7.4-M-830 HV Brushless HLS 6BB Servo 38Kgf.cm 0.13sec for RC Helicopters

In stock
No reviews
Usually ships within 24 hours
$220.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

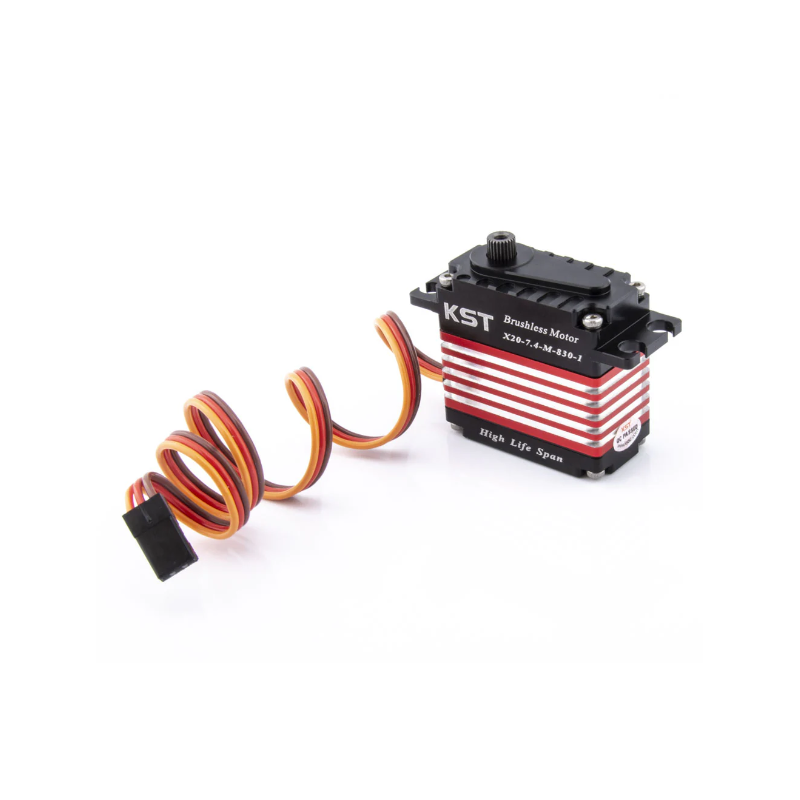

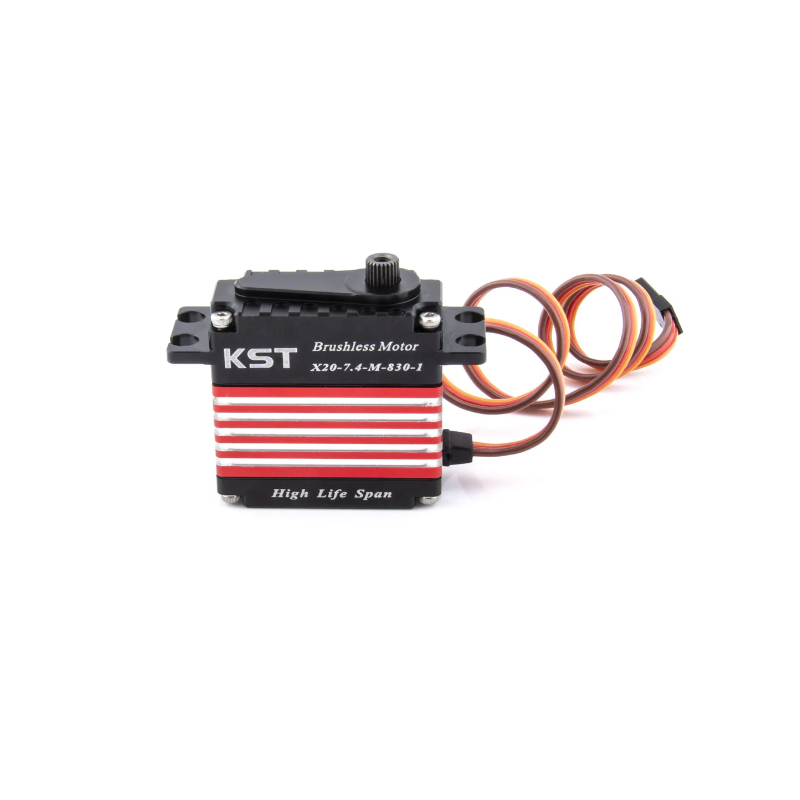

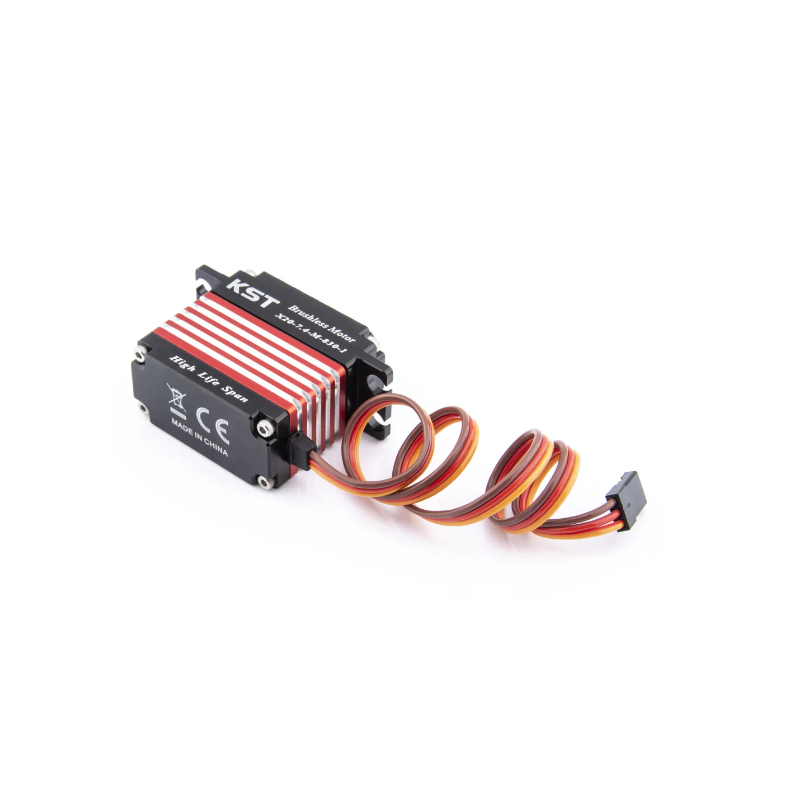

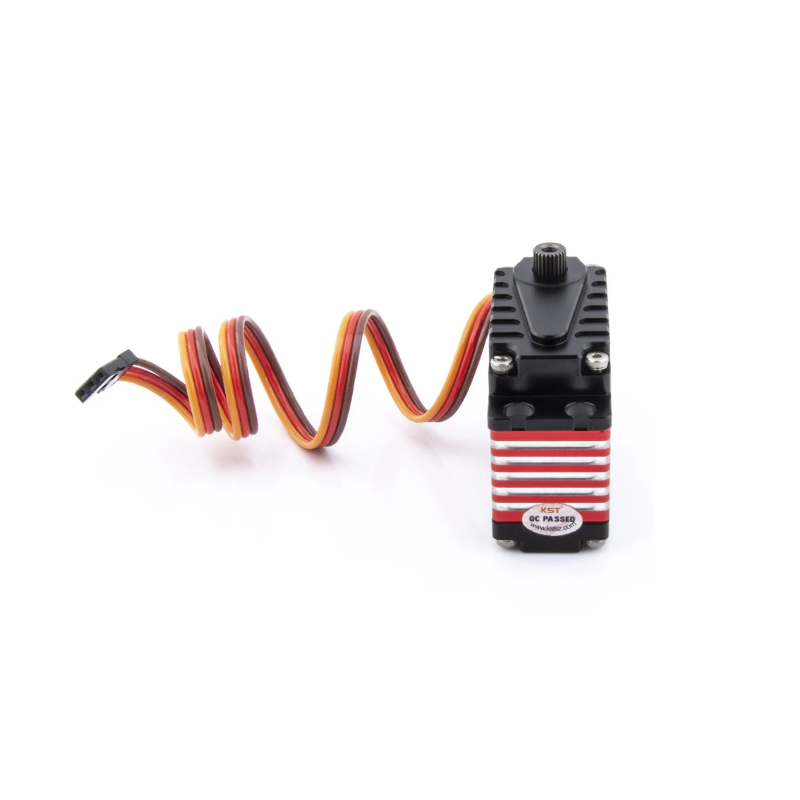

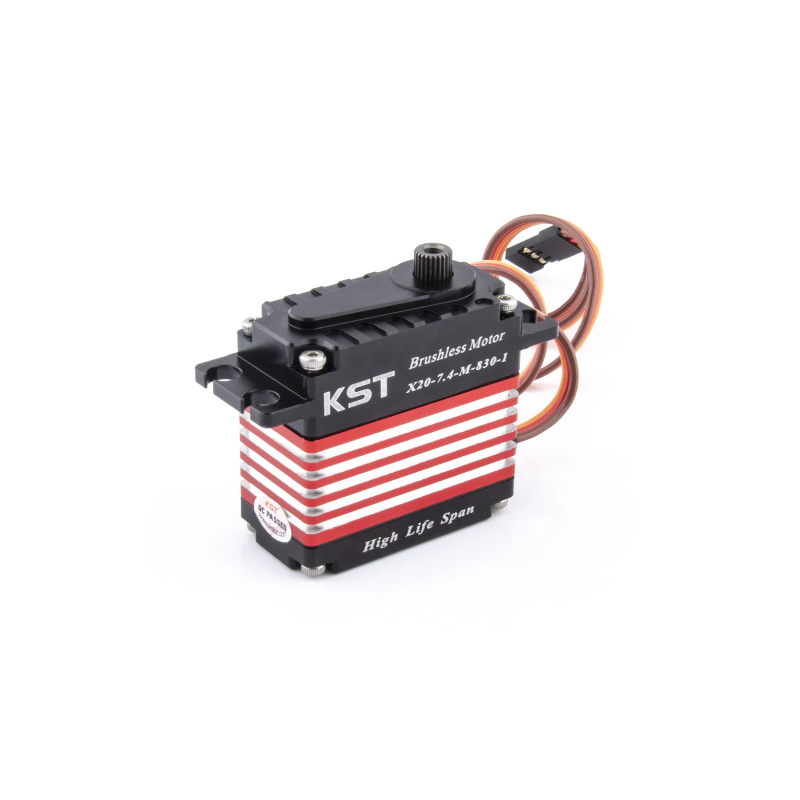

The X20-7.4-M-830 servo features a brushless motor, a full CNC aluminum case, and a complete set of hardened steel gears throughout each servo. The cyclic servos boast an incredible 38Kgf.cm of torque at 7.4V, and a crisp 0.13 second speed which is perfect for RC helicopter.

Features

  • Brushless DC Motor
  • Hardened Steel Gears
  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • 6 Ball Bearings
  • Contactless Sensor

Specification

  • Item: KST X20-7.4-M-830-1 HLS / PWM
  • Signal: PWM
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Stalling Torque: 38Kgf.cm@7.4V
  • Rated Torque: 9Kgf.cm@7.4V
  • Stalling Current: 4.95A
  • Rated Current: 1.25A
  • No-load Speed: 0.13sec/60°@7.4V
  • Rated Speed: 0.22sec/60°@7.4V
  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±100°=200° Total When 500μs-2500μs
  • Temperature Range: -10℃……+65℃
  • Case Material: Aluminium Alloy
  • Motor Type: Brushless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Contactless
  • Case Dimensions: 40mm*20mm*40mm±0.2mm
  • Weight: 80g±10%
  • Ball Bearing: 6BB
