KST X20-2208 V8.0 Brushless HV Metal 6BB Servo 25Kgf.cm 0.07sec for RC Helicopter
Usually ships within 24 hours
Regular price
$159.50
Couldn't load pickup availability
The X20-2208 Servo features a brushless motor, a full CNC aluminum case, and a complete set of hardened steel gears throughout each servo. The cyclic servos boast an incredible 25Kgf.cm of torque at 8.4V and a crisp 0.07 second speed.
We also provide the new X20 Combo set, including three X20-2208 V8.0 Cyclic Servos and one X20-1035 V3.0 Tail Servo.
Features
- Brushless DC motor
- Extreme torque and Excellent speed
- Hardened steel gears
- 6 Ball bearings
- Ideal for 500 to 800 Class EP/GP Helicopters
Specification
- Item: X20-2208 Brushless Servo
-
Operation Voltage(rated): DC7.4V
-
Operation Voltage Range: DC6.0-8.4V
-
Torque：18Kgf.cm@6.0V, 22Kgf.cm@7.4V, 25Kgf.cm@8.4V
-
Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz

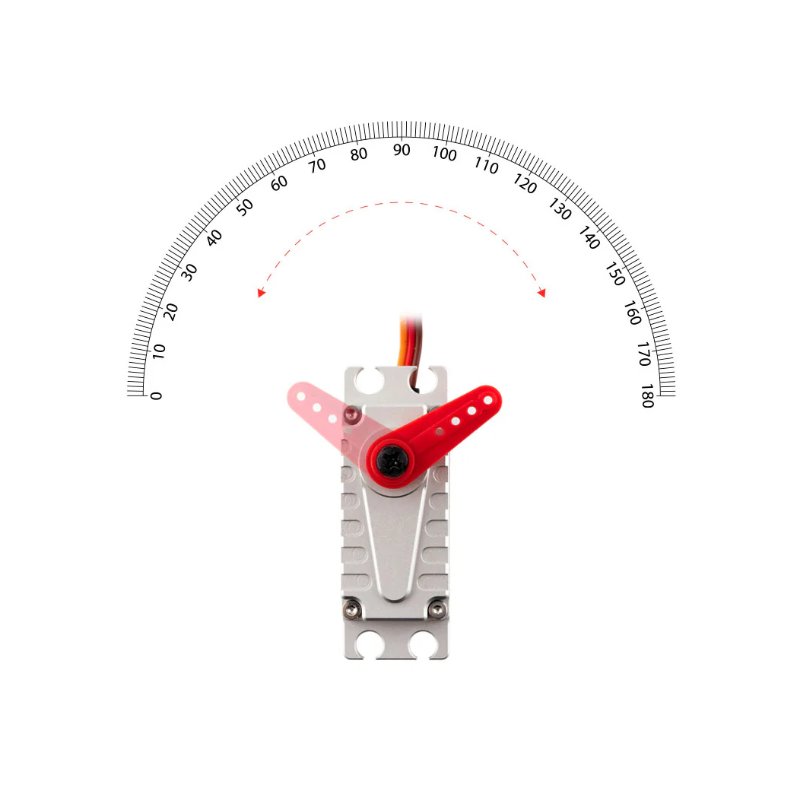

- Default Travel Angle: ±50°=100° Total
- Total Temperature Range: -10°C.......+65℃
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel (HLS)
- Position Sensor: Potentiometer
- Dimensions: 40mm*20mm*40mm±0.2mm
- Weight: 72g±10%
- Ball Bearing: 6BB

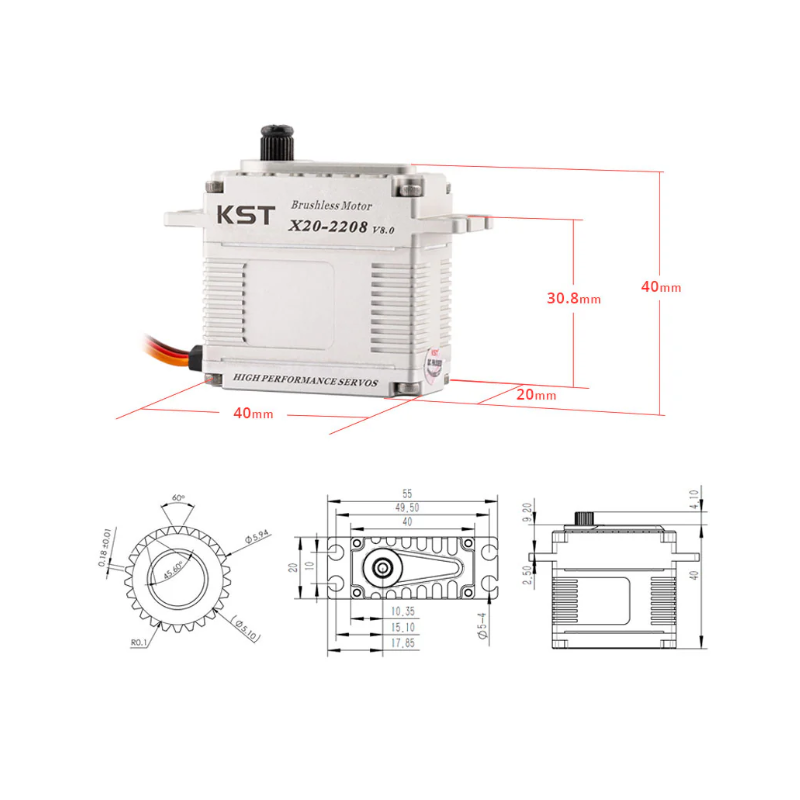

Size
Package Contents
- 1 * X20-2208 V8.0 Brushless HV Metal Servo
- 1 * CNC Servo Horn
- 2 * Plastic Servo Horn
- 4 * Grommets
- 4 * Rubber Bushings
- 5 * Screws
