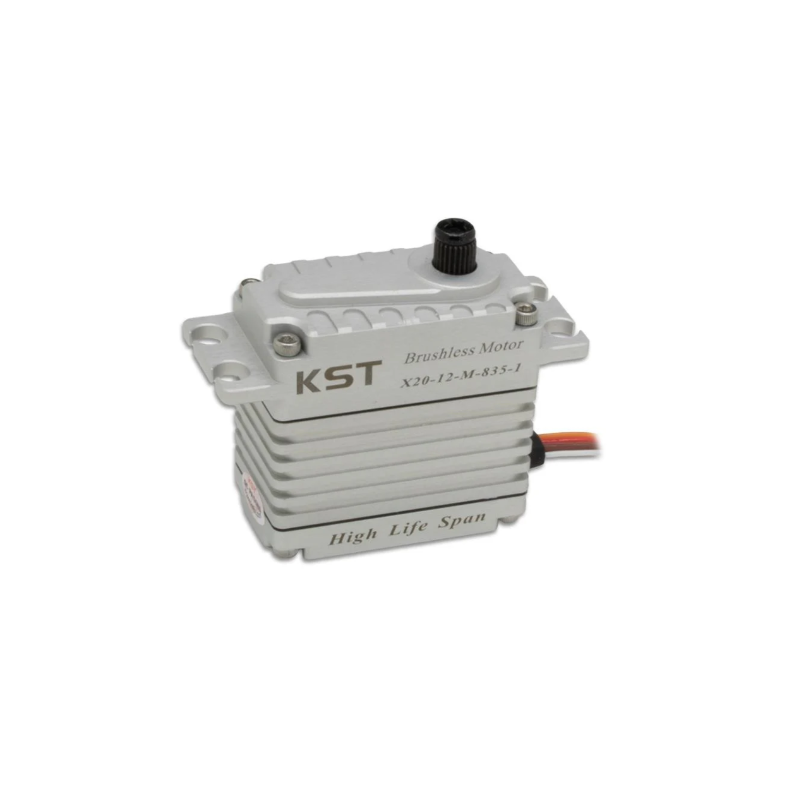

The X20-12-M-835 Servo features a brushless motor, a full CNC aluminum case, and a complete set of hardened steel gears throughout each servo. The servo boasts an incredible 48Kgf.cm of torque at 12V and a crisp 0.14 second speed.
Features
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- 6 Ball Bearings
- Brushless DC Motor
- Ideal for RC Helicopters
Specification
- Item: X20-12-M-835 Servo
- Rated Voltage: DC12V
- Voltage Range: DC9V-13V
- Stalling Torque: 48Kg.cm@12V
- Rated Torque: 12Kg.cm@12V
- Stalling Current: 3.25A
- Rated Current: 0.85A
- No-load Speed: 0.14sec/60°@12V
- Rated Speed: 0.25sec/60°@12V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ± 100°=200°Total When 500μs-2500μs
- Temperature Range: -10℃……+65℃
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Contactless
- Case Dimensions: 40mm*20mm*40mm±0.2mm
- Weight: 80g±10%
- Ball Bearing: 6BB
