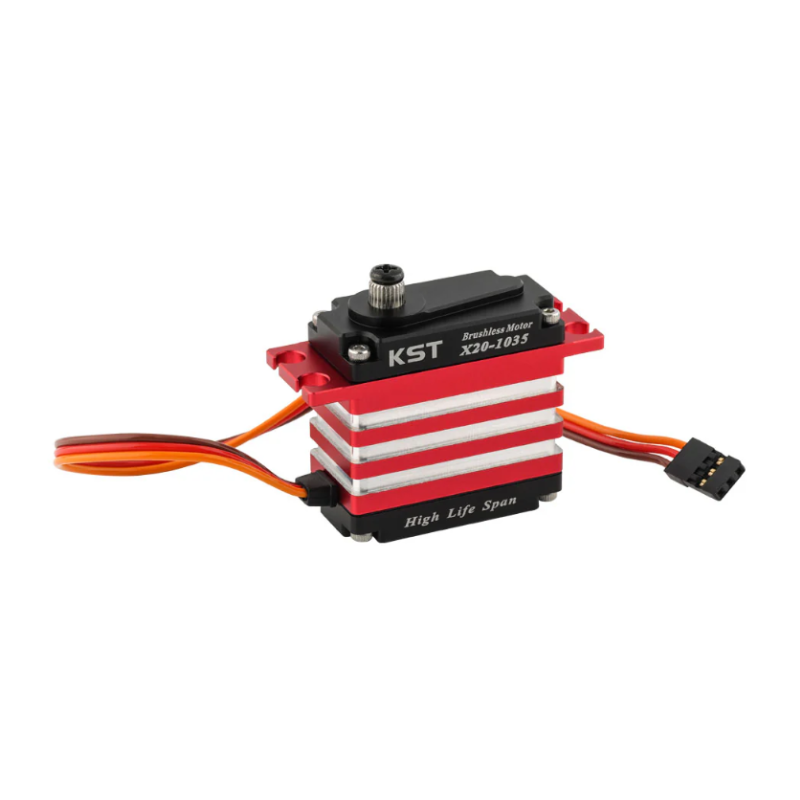

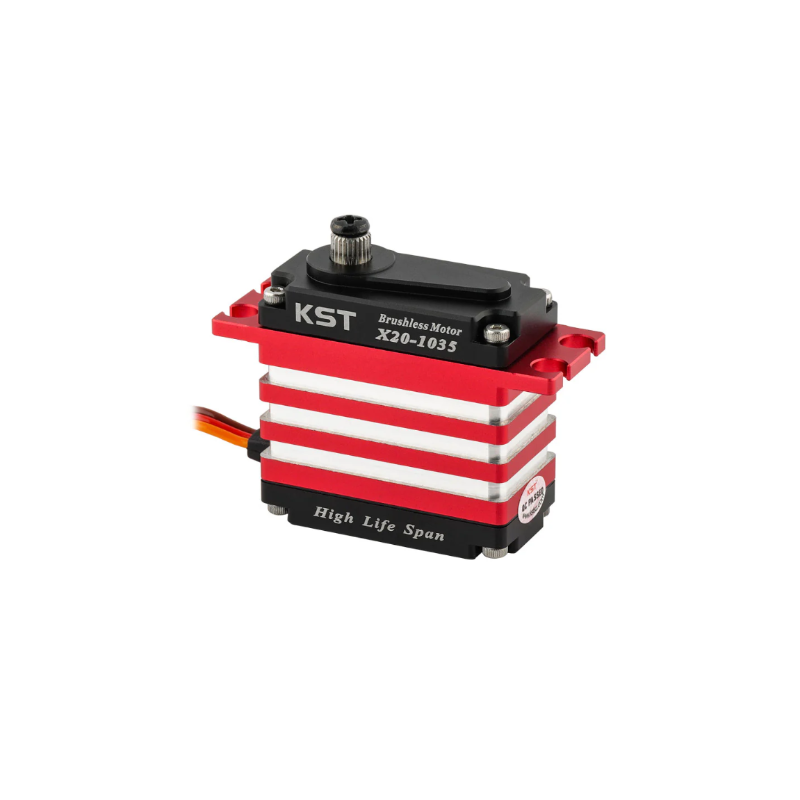

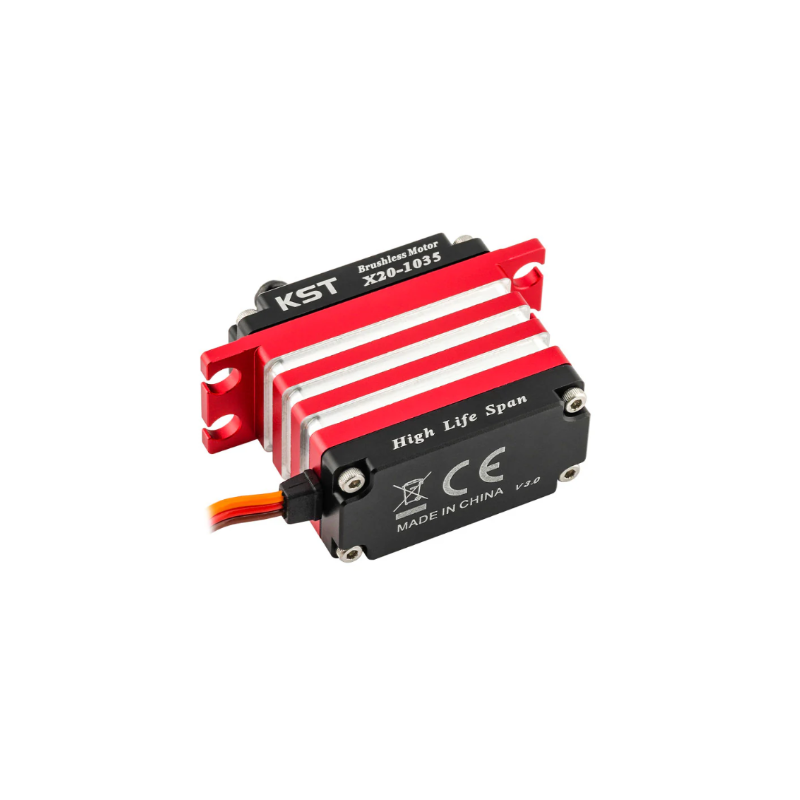

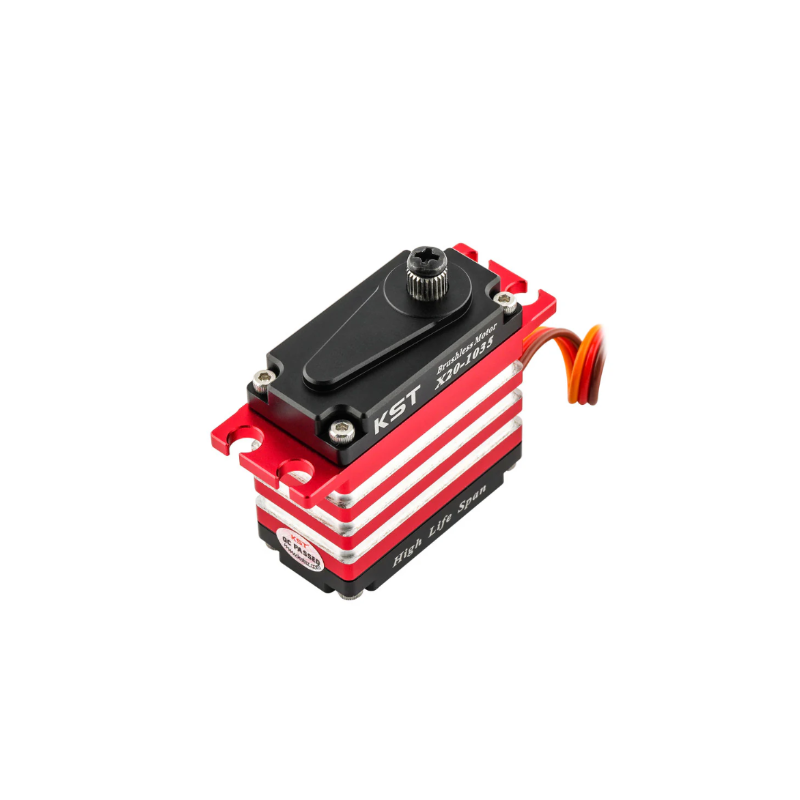

KST X20-1035 V3.0 Brushless Tail Servo 12Kgf.cm 0.030sec for 500 to 800 Class RC Helicopter

In stock
No reviews
Usually ships within 24 hours
$165.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

The X20-1035 V3.0 Servos feature brushless motors, full CNC aluminum cases, and a complete set of hardened steel High Life Span (HLS) gears throughout each servo. It offers 12Kgf.cm of torque at a blistering fast 0.03 second speed at 8.4V.

We also provide the new X20 Combo set, including three X20-2208 V8.0 Cyclic Servos and one X20-1035 V3.0 Tail Servo.

Features

  • Brushless DC motor
  • Extreme torque and Excellent speed
  • Hardened steel gears
  • 6 Ball bearings
  • Ideal for 500 to 800 Class EP/GP Helicopters

Specification

  • Item: X20-1035 V3.0 Brushless Tail Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 9Kgf.cm@6.0V, 11Kgf.cm@7.4V, 12Kgf.cm@8.4V
  • Speed: 0.040sec/60°@6.0V, 0.035sec/60°@7.4V, 0.030sec/60°@8.4V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃……+65℃
  • Case Material: Aluminum Alloy
  • Motor Type: Brushless DC Motor
  • Gear Set Material: Hardened Steel (HLS)
  • Position Sensor: Potentiometer
  • Case Dimensions: 40mm*20mm*40mm±0.2mm
  • Weight: 72g±10%
