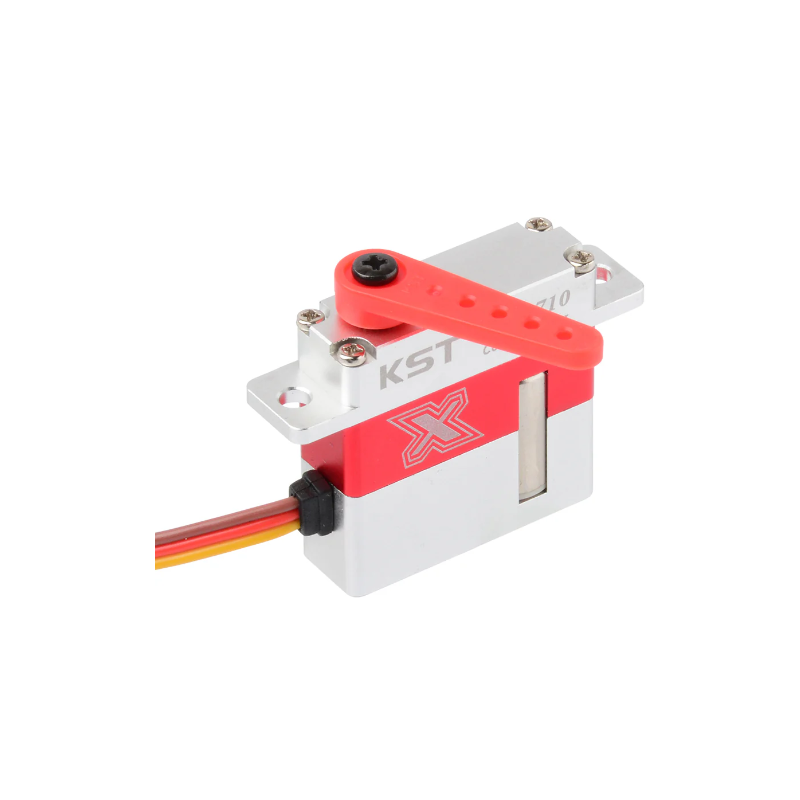

X10-710 V8.0 servo is a high and medium-voltage version of the KST DS145MG-sized servo. It has normal mounting lugs making it ideal for mounting in a fuselage. With only slightly less torque than the larger MKS HV6130H it is excellent value for money. Features with a brilliant 7.5kgf.cm torque and fast 0.10sec/60° speed at 8.4V with fantastic precision and reliability.
The KST X10-710 V8 has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric-powered models (most ESCs output 5.5V) as well as most gliders.
Features
- Compact and Lightweight Design
- Extreme Torque and Excellent Speed
- Programmable
- Excellent Heat Dissipation
- CNC Aluminum Case
Specification
- Item: X10-710 V8.0 Mini Servo
-
Operation Voltage(rated): DC7.4V
- Operation Voltage Range: DC4.8V-8.4V
- Torque: 4.5Kg.cm@4.8V / 5.5Kg.cm@6.0V / 6.8Kg.cm@7.4V / 7.5Kg.cm@8.4V
-
Speed: 0.16sec/60°@4.8V / 0.14sec/60°@6.0V / 0.12sec/60°@7.4V / 0.10sec/60°@8.4V
- Working Frequency 1520μs/333Hz
-
Travel Angle: ±50° = 100° Total
- Operating Temperature Range: -10℃ to +65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer

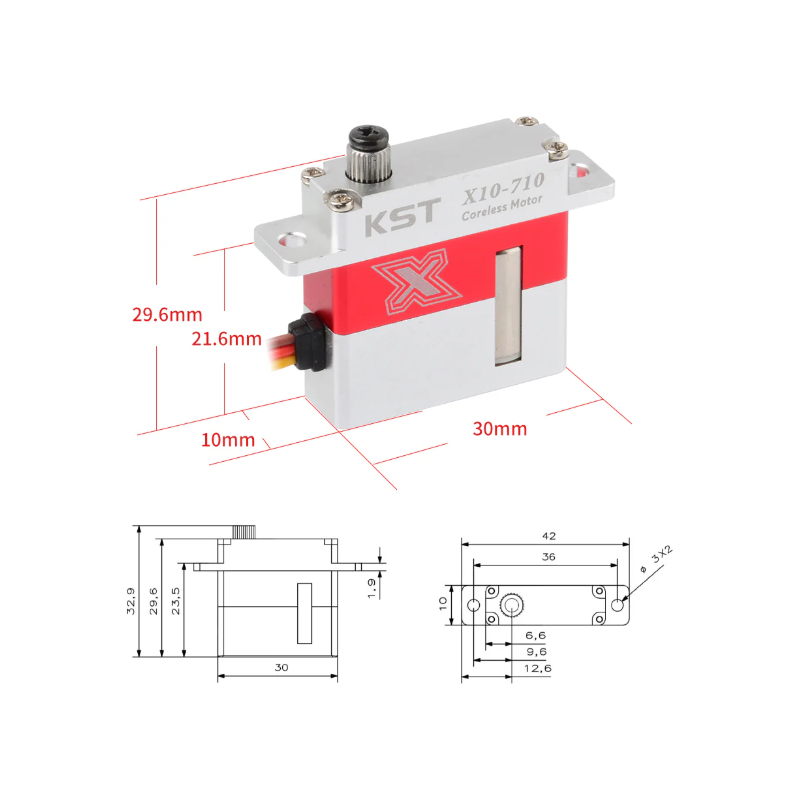

- Case Dimensions: 30mm*10mm*29.6mm±0.2mm
- Bearing: 2BB
- Weight: 23g±10%
