X06H is with the horizontal mount tabs. Perfect for installations where the servos are mounted laying flat, such as in wings and certain fuselages.
KST delivers once again with the X06 series competition servos for glider pilots and soaring enthusiasts who demand the best! The brand new X06 is super compact and ideal for F3K and F5K gliders. Featuring a slim 7mm wide casing crafted from 6061 Alloy and sporting the famous KST red midsection not only do these servos look fantastic but they also offer the competition winning performance you would expect from KST.
Features
-
Compact and Lightweight Design
-
Excellent Torque and Speed
-
Designed for High Performance RC Gliders
-
Excellent Heat Dissipation
- Ultra-slim 7mm Body
Specification

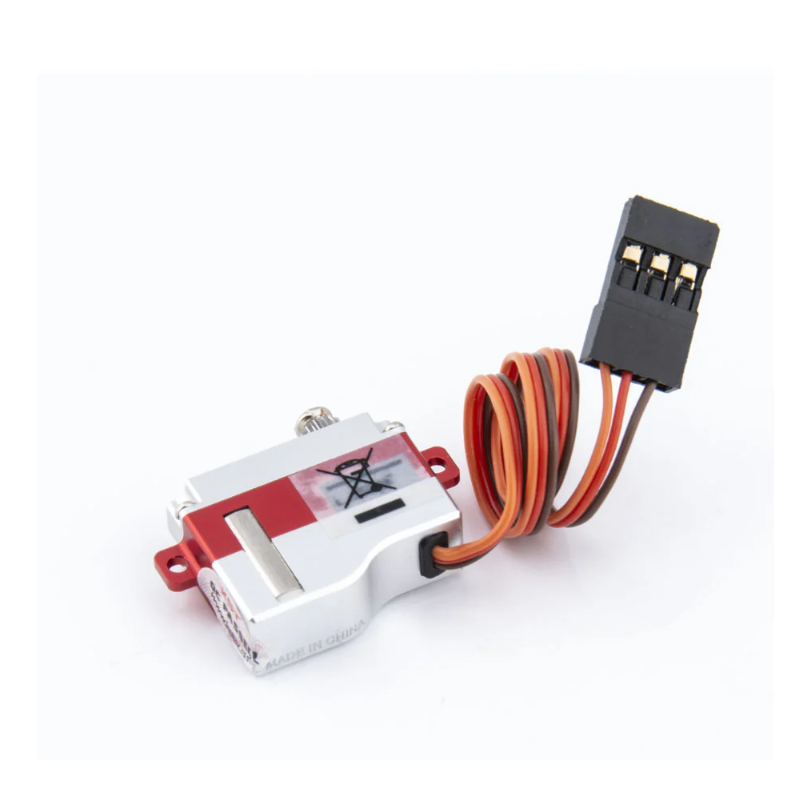

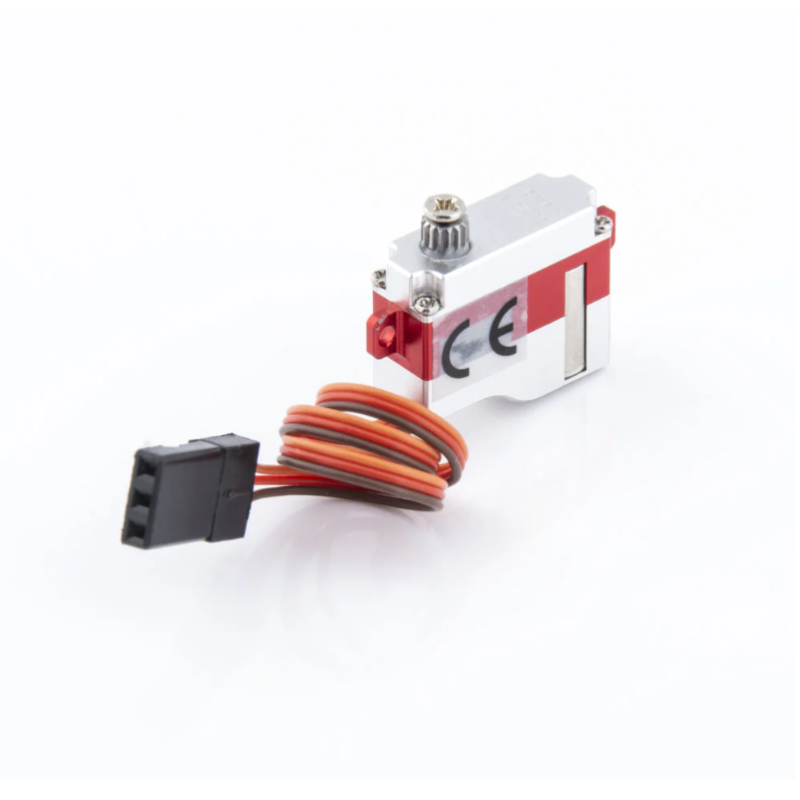

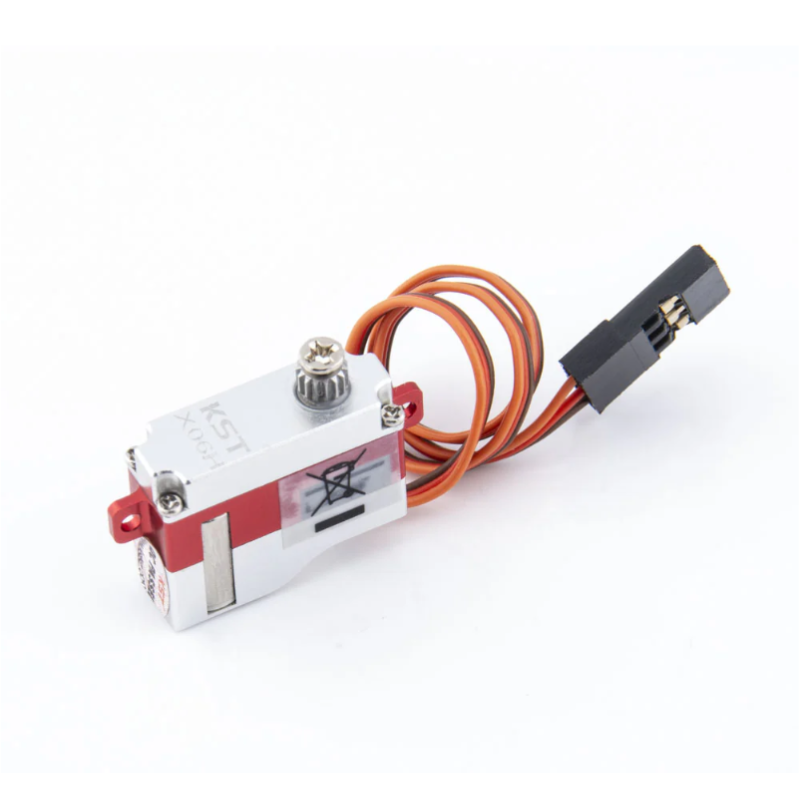

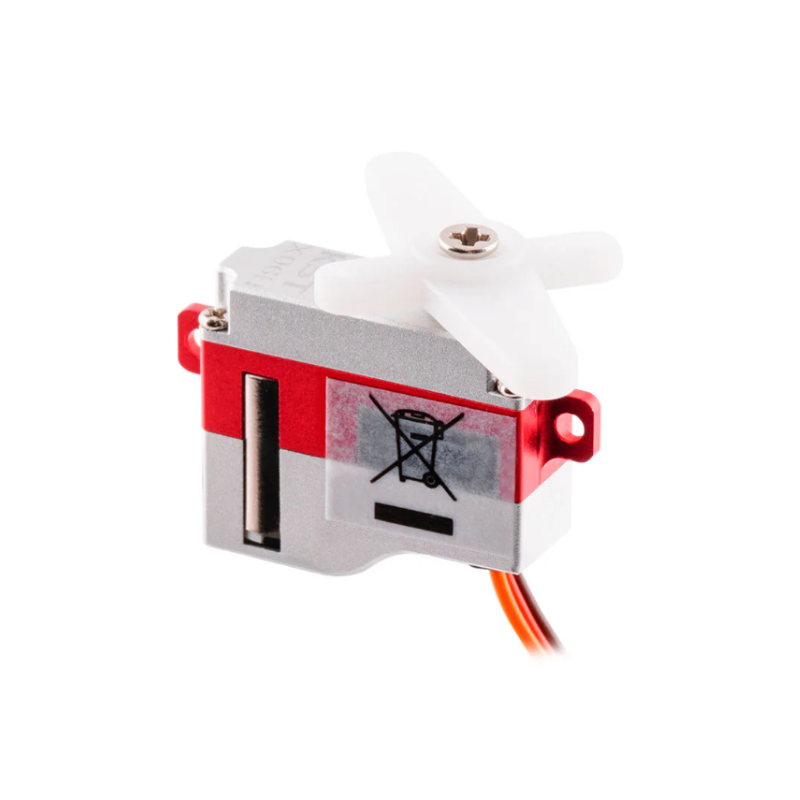

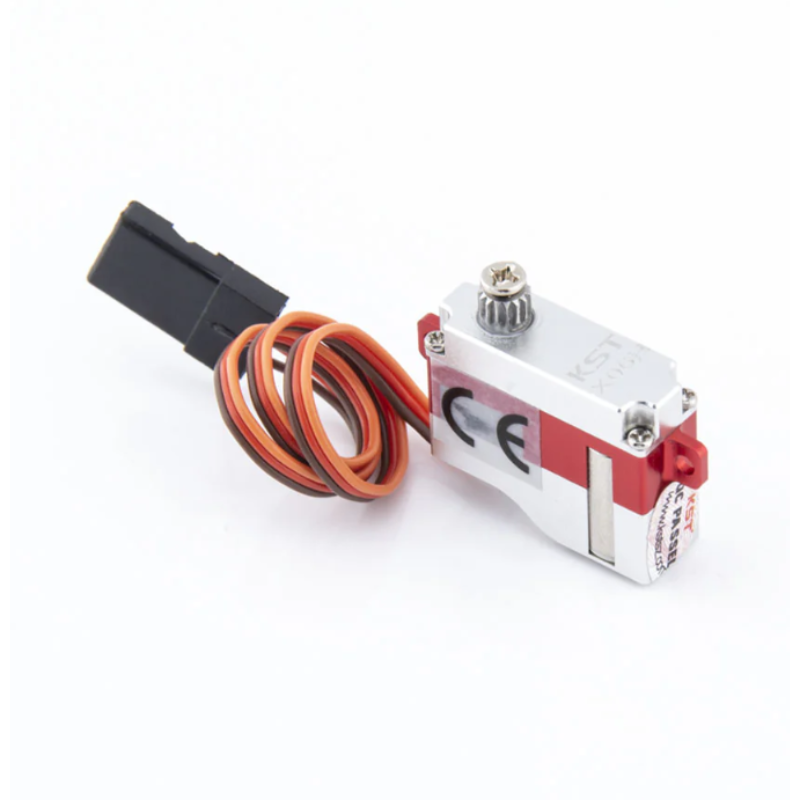

- Item: X06H Micro Servo
- Voltage Range: DC6.0V
- Rated Voltage: DC3.8V-8.4V
- Torque: 0.8Kgf.cm@3.8V, 1.5Kgf.cm@6.0V, 1.8Kgf.cm@8.4V
- Rated Torque: 4N.cm@6.0V
- Stalling Current 0.58A@6.0V
- Rated Current 0.22A@6.0V
- Speed: 0.12sec/60°@3.8V, 0.08sec/60°@6.0V, 0.07sec/60°@8.4V
- Rated Speed: 0.20sec/60°@6.0V

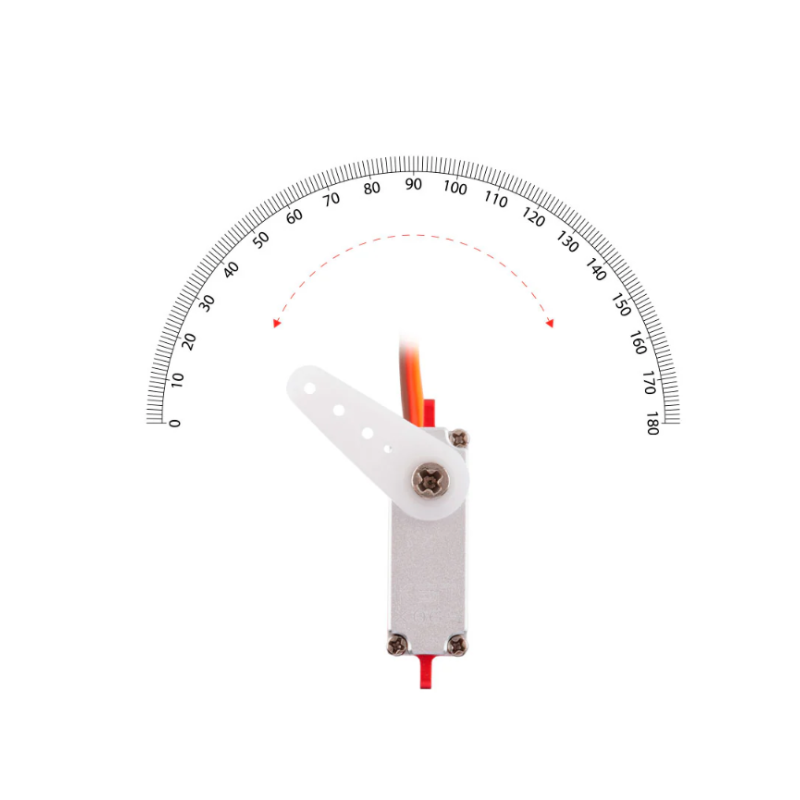

- Default Travel Angle: ±60° = 120° Total
- Operating Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor: Coreless DC Motor
- Gear Set Material: Hardened Steel

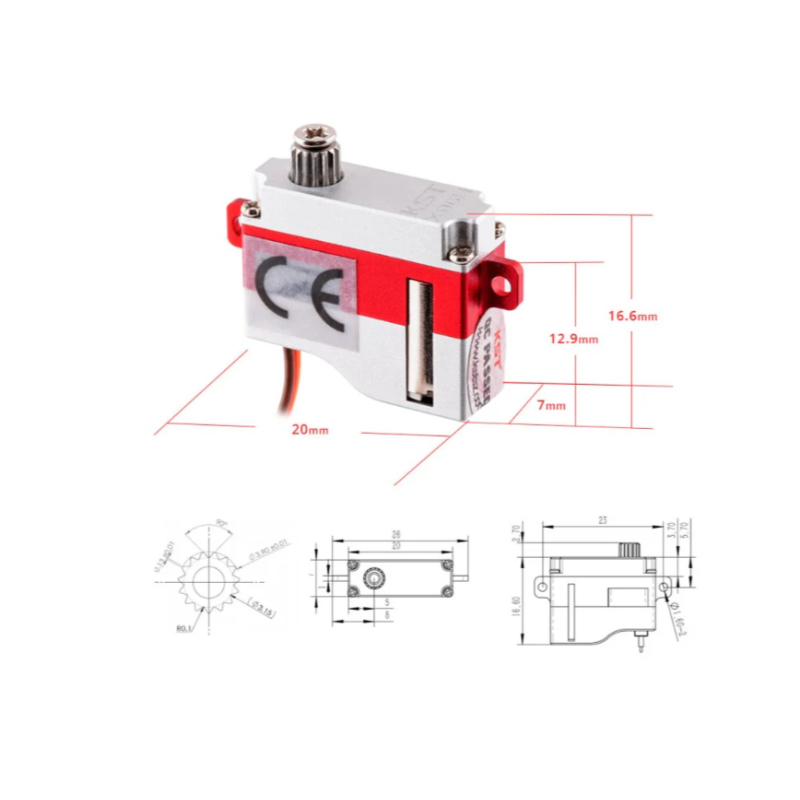

- Case Dimensions: 20mm*7mm*16.6mm±0.2mm
- Weight: 6g±10%
- Ball Bearing: 1BB
