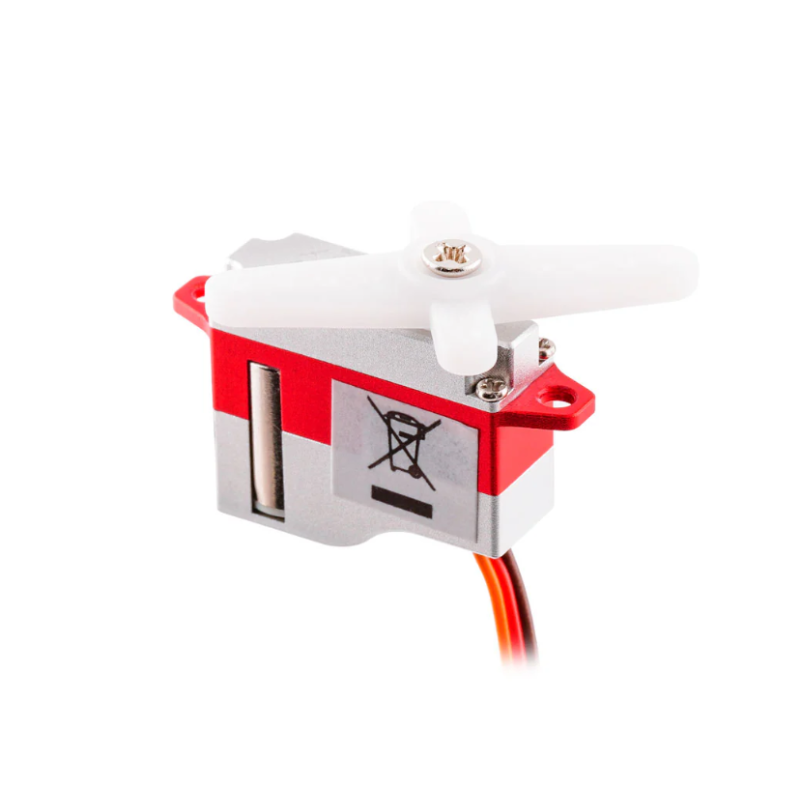

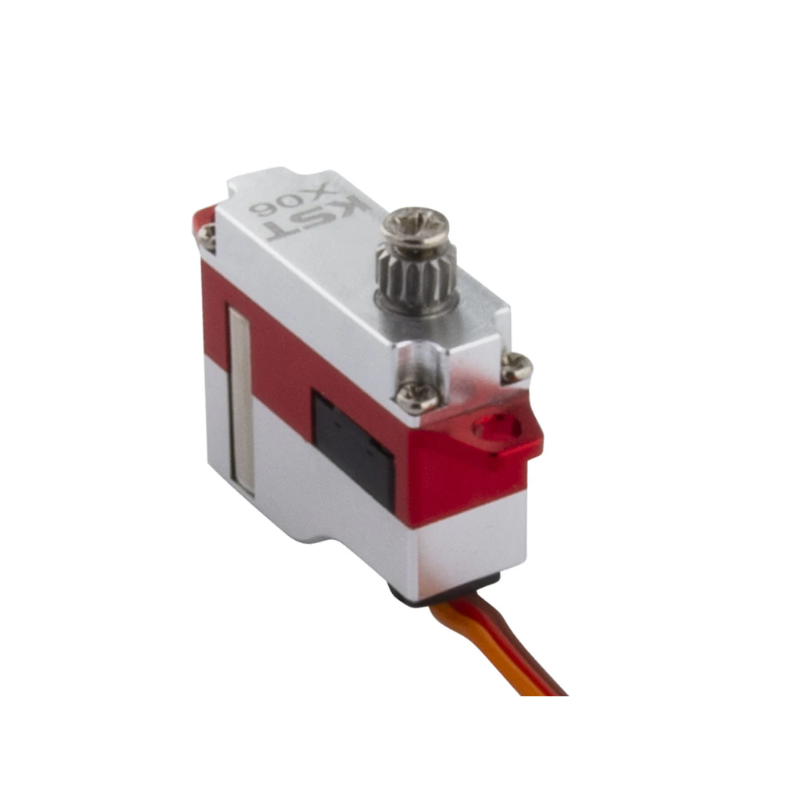

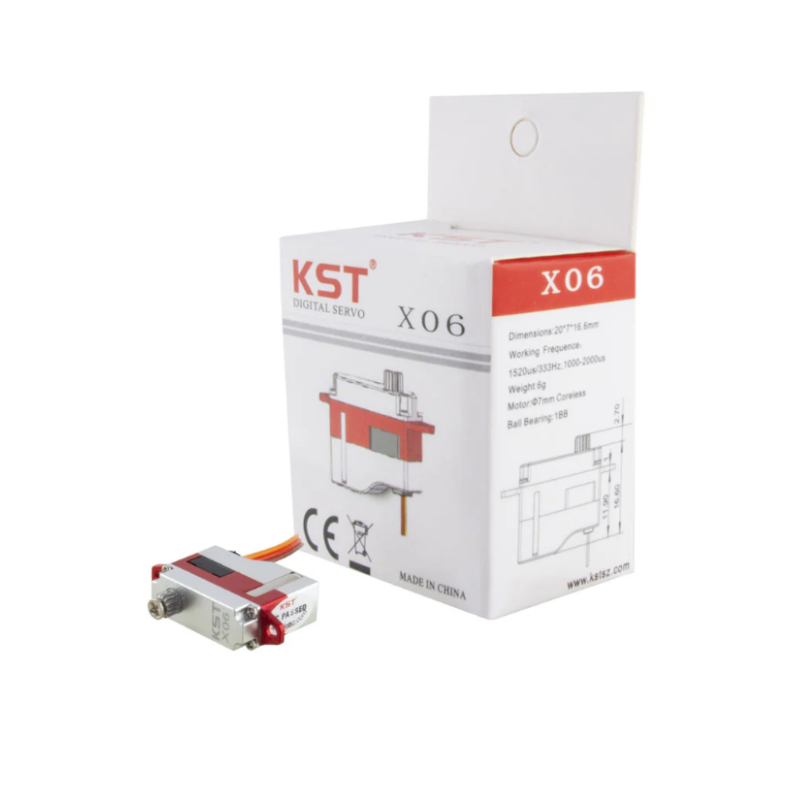

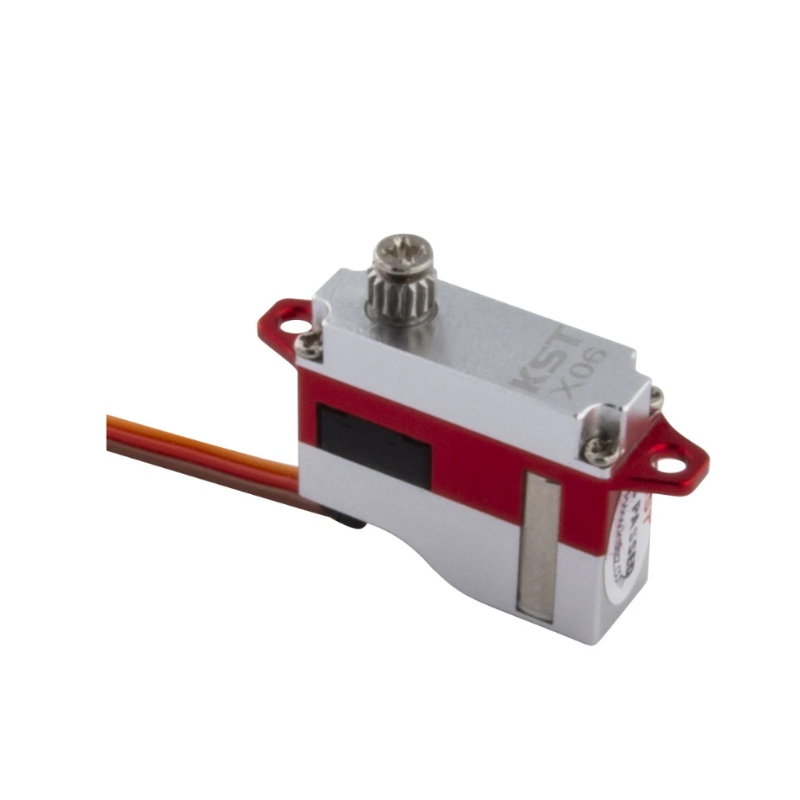

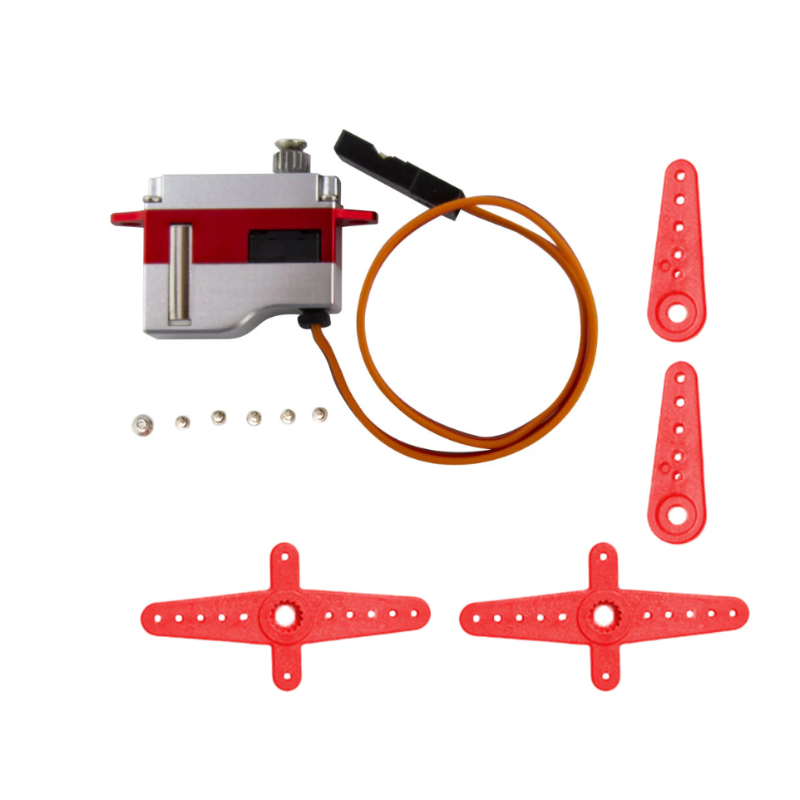

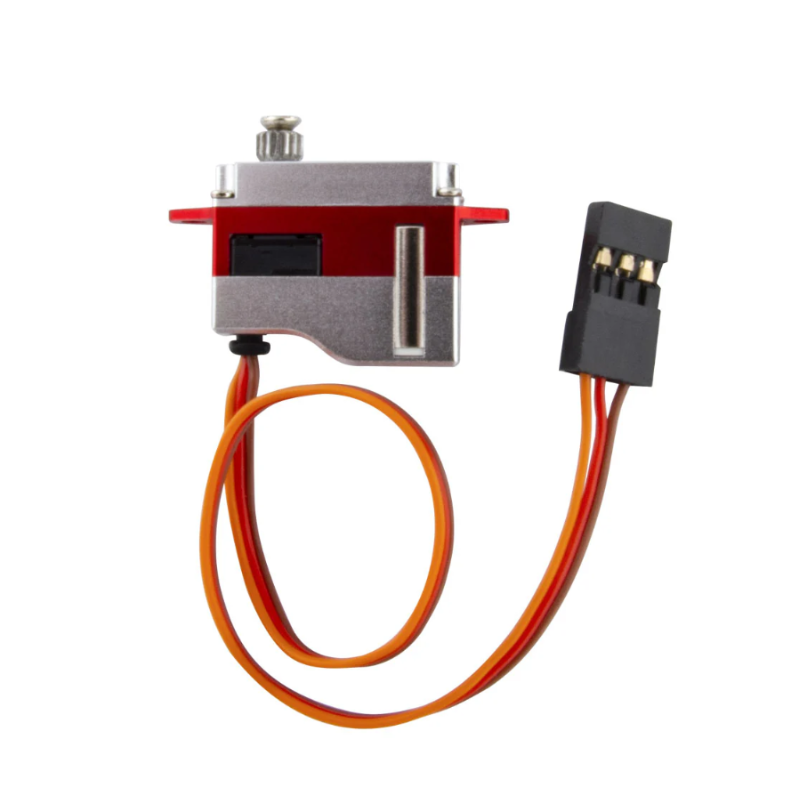

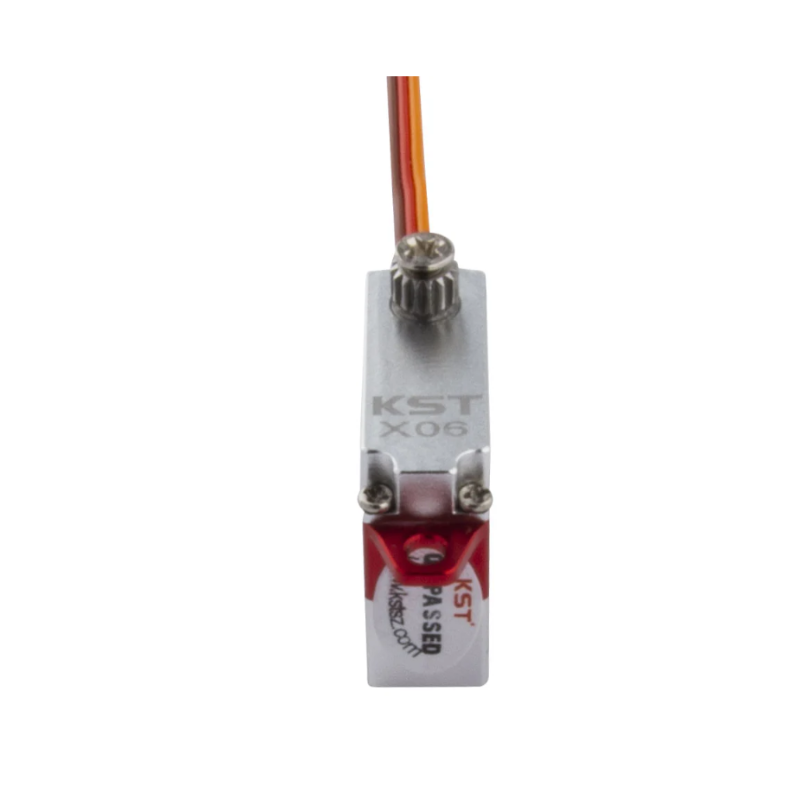

KST X06 V6.0 HV Digital Metal Gear Micro Servo 1.8Kgf.cm 0.07sec for RC Gliders

The X06 V6.0 servo is the option for regular mounting tabs - most suitable for fuselage or other installations where the servo is upright.

Performance in a tiny package. The V6.0 is now fully programmable with the KST Tool #1 and sports a new custom chip similar to the A08 V6 servos for higher accuracy.

The X06 V6.0 servo has been years in the making, leading the market in ultra-small high performance servos. At 7mm thick and a tiny footprint, the X06 V6.0 servo is the perfect fit for 1-meter DLGs and other small gliders.

Complete metal construction sets the X06 v6.0 servo apart from its competitors with plastic mechanicals that flex under pressure. The high torque and precision of the X06 allow you to set up your model to its highest performance potential.

Features

• Compact and Lightweight Design

• Excellent Torque and Speed

• Designed for High Performance RC Gliders

• Excellent Heat Dissipation

• Ultra Slim 7mm Body

Specification

• Item: X06 Micro Servo
• Rated Voltage: DC3.8V-8.4V

• Voltage Range: DC6.0V

• Rated Torque: 4N.cm @ 6.0V
• Rated Speed: 0.20sec/60° @ 6.0V
• Rated Current 0.22A @ 6.0V
• Torque: 0.8Kgf.cm@3.8V, 1.5Kgf.cm@ 6.0V, 1.8Kgf.cm@8.4V
• Speed: 0.12sec/60°@3.8V, 0.08sec/60°@6.0V, 0.07sec/60°@8.4V
• Stalling Current: 0.58A@ 6.0V

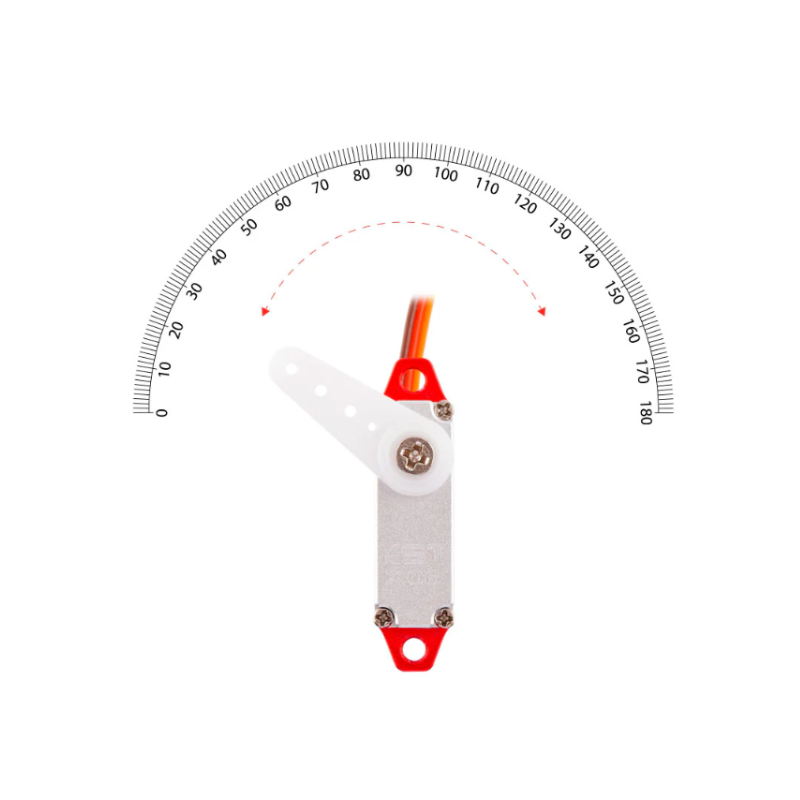

• Default Travel Angle: ±60° = 120° total travel

• Operating Temperature Range: -10℃……+65℃

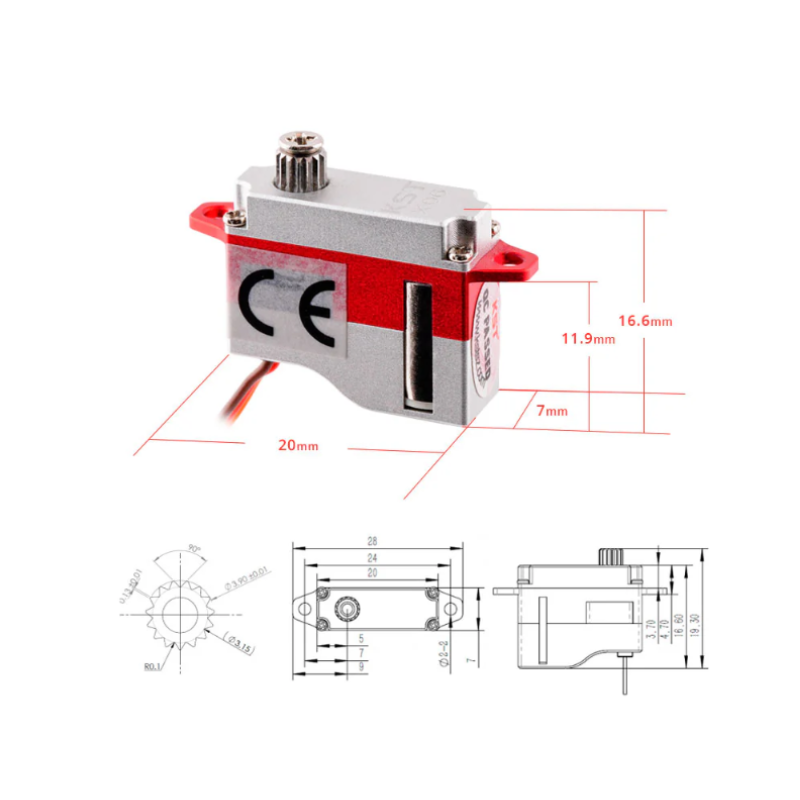

• Case Dimensions: 20mm*7mm*16.6mm±0.1mm

• Weight: 6g±10%

• Motor Type: Coreless DC Motor

• Case Material: Aluminum Alloy
• Gear Set Material: Steel Gear
• Position Sensor: Potentiometer
• Ball Bearing: 1BB
