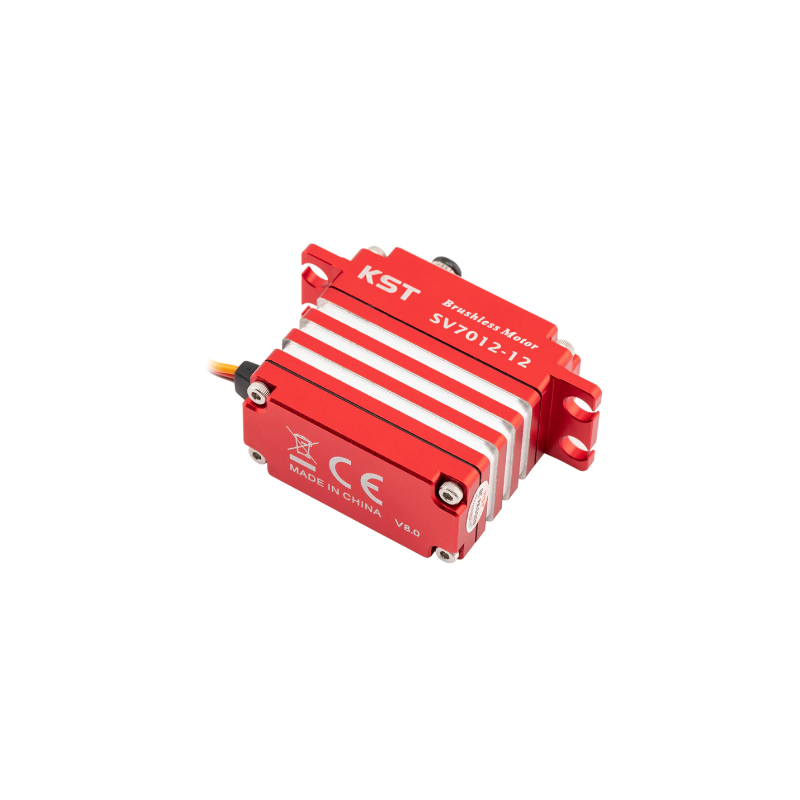

The KST SV7012-12 is a high-torque digital servo designed for precision motion control, featuring a 4 pole brushless motor and hardened steel gears to deliver 75.0Kgf.cm torque and ultra-fast 0.10sec/60° response at 13V. Engineered for multi-role purposes, it supports DC 8.4-13V wide voltage input and PWM control (500-2500μs for ±100° rotation).
Built with an aluminium alloy housing, 6-ball bearings, and a contactless sensor, this durable servo ensures reliability in demanding applications like Large Scale RC Planes, Industrial UAVs & Robotics. Ideal for engineers and hobbyists seeking high-performance, long-lasting motion control solutions.
Features
- SHV (Super High Voltage) DC 12V or Up to 3S LiPo Battery Direct Drive
- Supports 8.4-13.0V High Voltage
- High Torque & Exceptional Speed
- 4 Pole Brushless Motor
- Large Default Travel Angle (Programmable)
- 6 Ball Bearings
- Contactless Hall Sensor
- Hardened Steel Gear
- Programmable
- Ideal for Large Scale RC Planes, Industrial UAVs & Robotics
Specification
- Item: SV7012-12 Servo
- Rated Voltage: DC12.0V
- Voltage Range: DC8.4V-13.0V
- Torque: 55.0Kgf.cm@8.4V / 70.0Kgf.cm@12.0V / 75.0Kgf.cm@13.0V
- Speed: 0.16sec/60°@8.4V / 0.12sec/60°@12.0V / 0.10sec/60°@13.0V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±100° =200° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: 4 Pole Brushless Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Contactless
- Ball Bearing: 6BB
- Case Dimensions: 40*20*40mm±0.2mm
- Weight: 75g±10%
