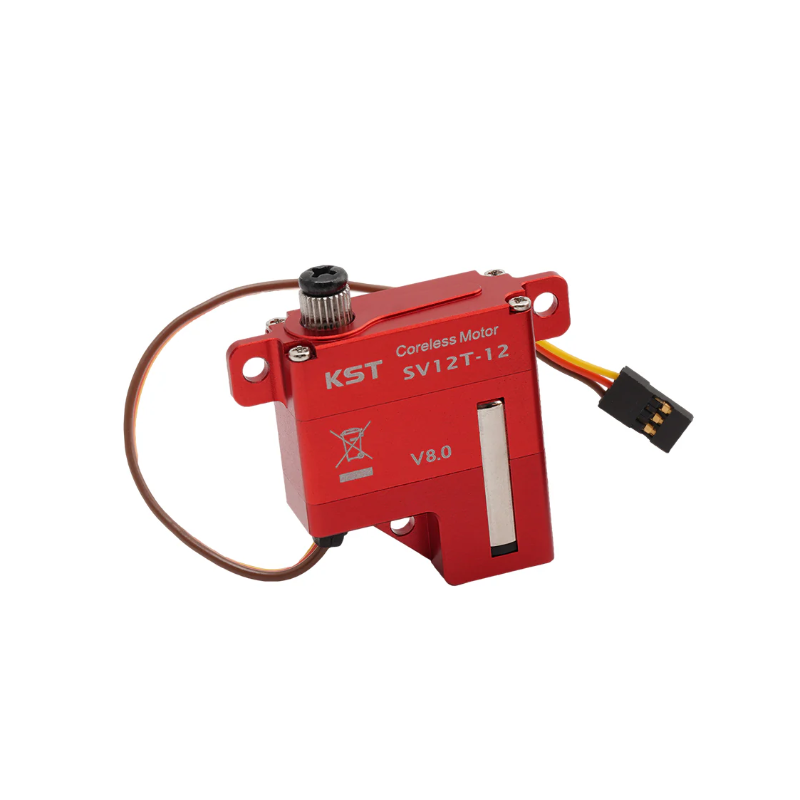

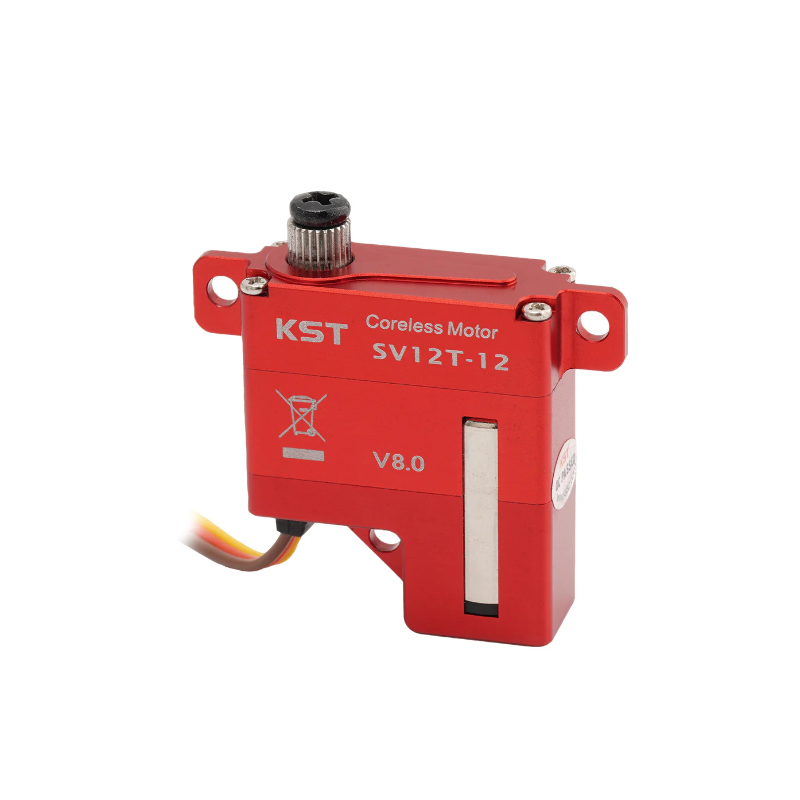

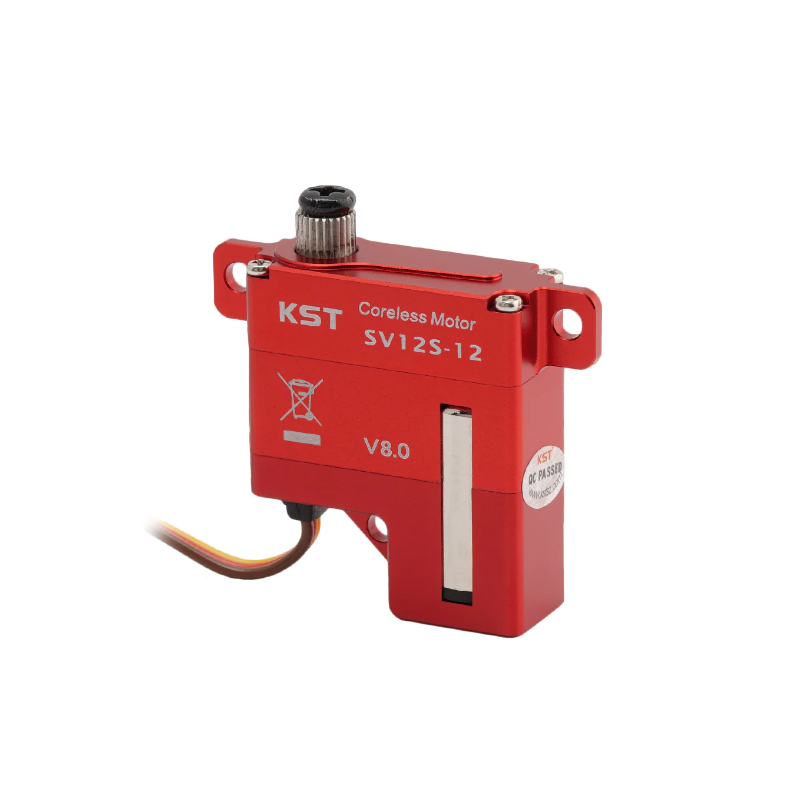

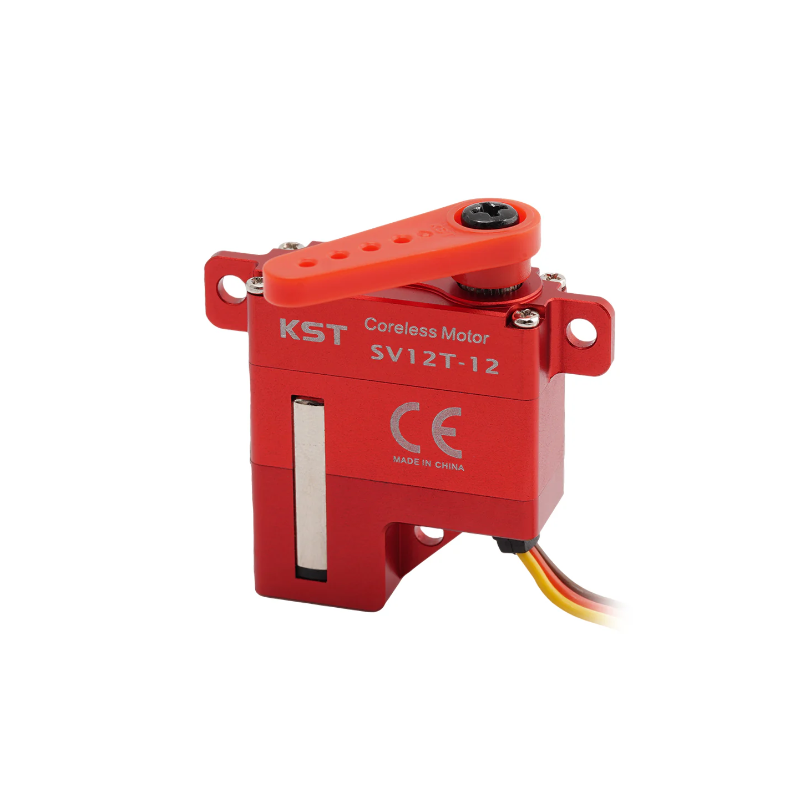

The SV12T-12 & SV12S-12 Super High Voltage (SHV) coreless wing servo redefines motion control standards for high-performance RC models (gliders/jets) and industrial UAVs. The SV12 series delivers precision-engineered performance: The SV12T-12 variant provides 22.0Kgf.cm torque (13V) for high-load applications, while the SV12S-12 achieves 0.07sec/60° movement speed (13V) optimized for rapid response scenarios.
Compatible with DC 12V or 3S LiPo direct drive, this servo guarantees stable power delivery in high-stress environments, while its 12mm ultra-thin profile maximizes space efficiency for compact installations. Featuring dual ball bearings and hardened steel gears that form a robust gear transmission system, the SV12T-12 & SV12S-12 ensures precise operation and exceptional durability. Engineered specifically for 12V or 3s Lipo powered applications, it delivers unparalleled power, precision, and rugged construction, making it the top choice for both hobbyists and professionals.
Features
- SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive
- Supports 8.4-13.0V
- High Torque & Exceptional Speed
- Programmable
- Large Default Travel Angle (programmable)
- High Performance Coreless DC Motor
- Hardened Steel Gear
- Dual Ball Bearings
- Ideal for RC Gliders, RC Jets, and Industrial UAVs
Specification
- Item: SV12T-12 Servo / SV12S-12 Servo
- Rated Voltage: DC 12.0V
- Voltage Range: DC 8.4V-13.0V
- Torque:
-
SV12T-12: 16.0Kgf.cm@8.4V / 20.0Kgf.cm@12.0V / 22.0Kgf.cm@13.0V
-
SV12S-12: 11.0Kgf.cm@8.4V / 13.8Kgf.cm@12.0V / 14.5Kgf.cm@13.0V
- Speed:
-
SV12T-12: 0.16sec/60°@8.4V / 0.12sec/60°@12.0V / 0.11sec/60°@13.0V
-
SV12S-12: 0.10sec/60°@8.4V / 0.08sec/60°@12.0V / 0.07sec/60°@13.0V
- Working Frequency: 1520μs/333Hz

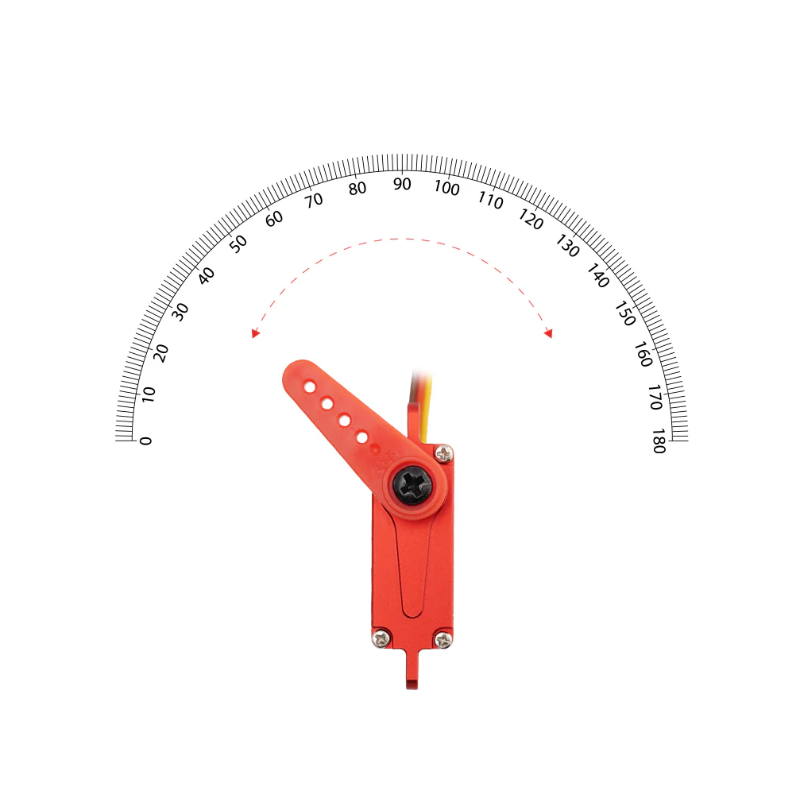

- Default Travel Angle: ±60° = 120° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Yes
- Programmable: Yes
- Case Material: Aluminium Alloy
-
Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

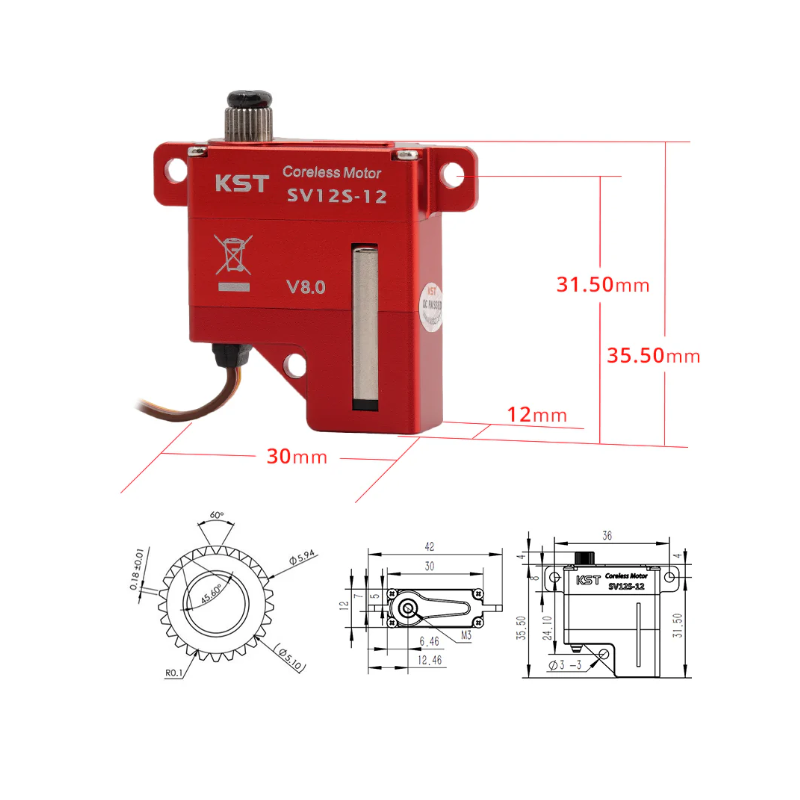

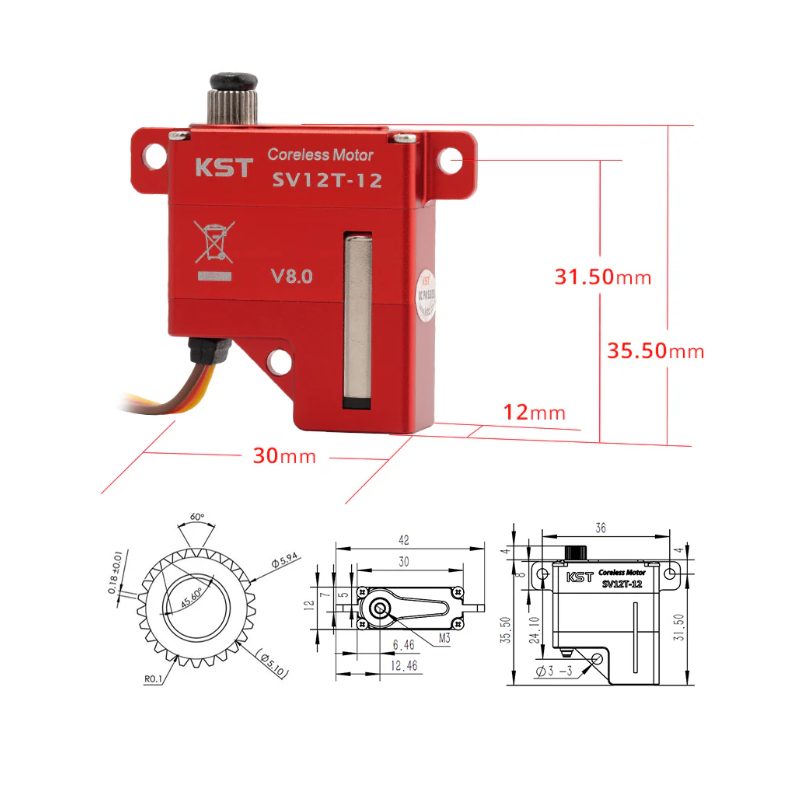

- Case Dimensions: 30*12*35.5±0.2mm
- Weight: 32g±10%
