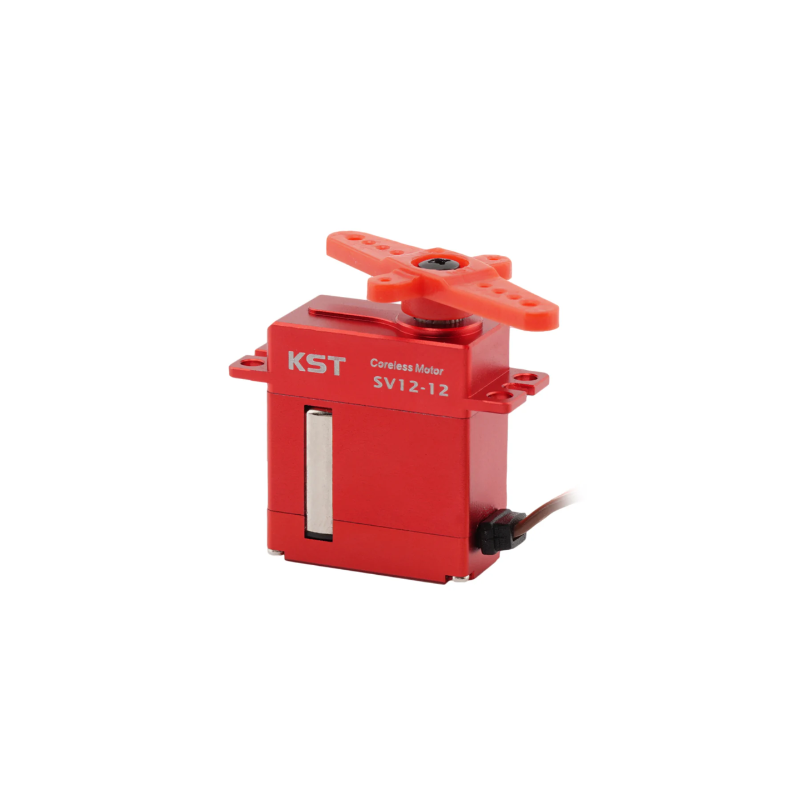

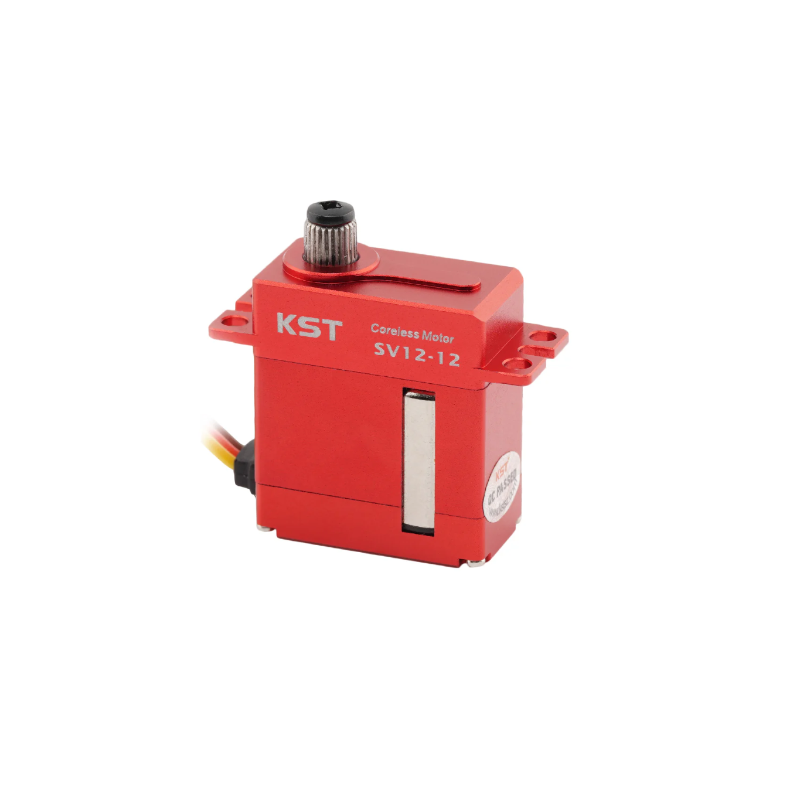

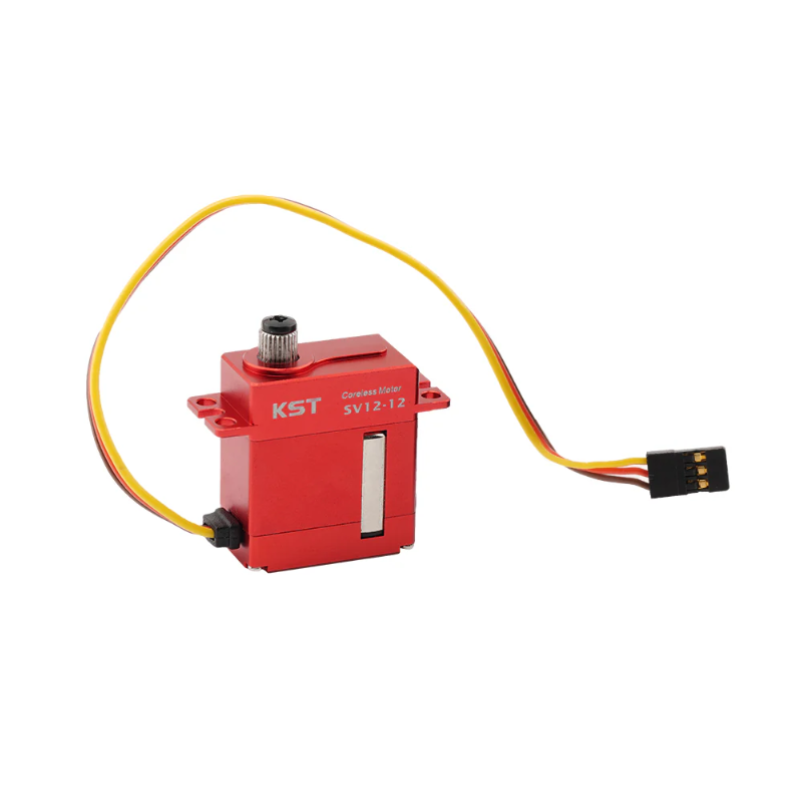

The SV12-12 Super High Voltage (SHV) micro servo is designed for demanding applications, making it ideal for RC helicopters, robotics, and other high-performance scenarios. Its standout features include support for 3S LiPo direct drive and high-voltage operation from 8.4V to 12V, delivering a powerful torque of 9.0Kgf.cm at 13.0V and a rapid no-load speed of 0.10sec/60°. This ensures quick response times and robust performance across a wide voltage range.
The SV12-12 supports soft-start and programmable travel angle functions, featuring an increased default travel angle of ±70° (140° total). Whether for RC helicopters, robotic joints, or other precision applications, the SV12-12 delivers exceptional performance and reliability, making it the ultimate choice for high-performance motion control.
Features
- SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive
- Supports 8.4-13.0V High Voltage
- High Torque & Exceptional Speed
- Programmable
- Large Default Travel Angle (programmable)
- High Performance Coreless DC Motor
- Hardened Steel Gear
- Dual Ball Bearings
- Ideal for RC Helicopters & Robotics
Specification
- Item: SV12-12 Servo
- Rated Voltage: DC 12.0V
- Voltage Range: DC8.4V-13.0V
- Torque: 6.5Kgf.cm@8.4V / 8.0Kgf.cm@12.0V / 9.0Kgf.cm@13.0V
- Speed: 0.15sec/60°@8.4V / 0.11sec/60°@12.0V / 0.10sec/60°@13.0V
- Working Frequency: 1520μs/333Hz

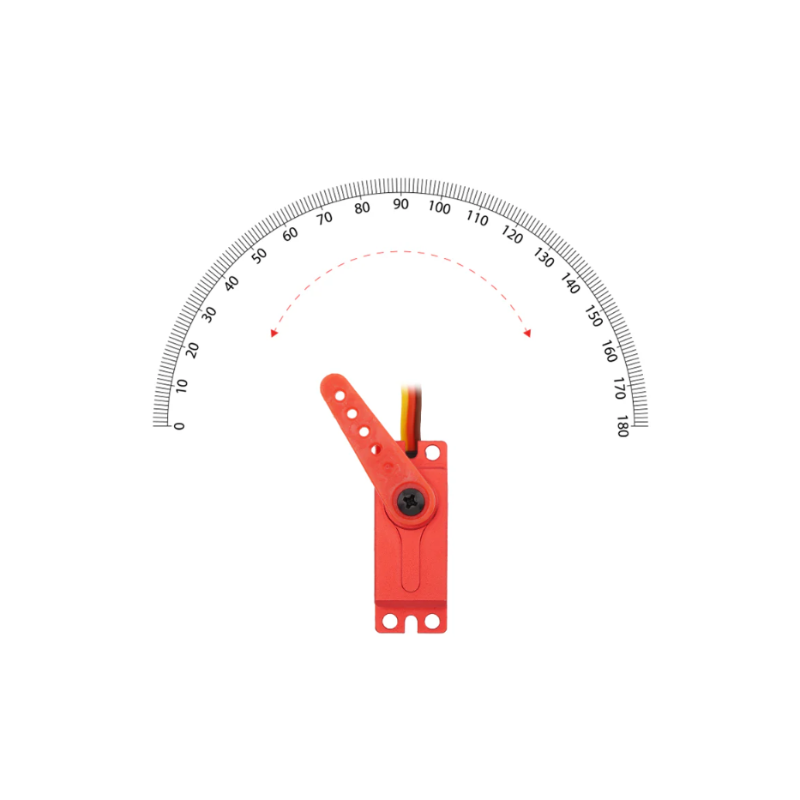

- Default Travel Angle: ±70° = 140° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 23*12*27±0.2mm
- Weight: 20g±10%
