Discover the SV10M-12A & SV10M-12B, the SHV high-performance coreless servo designed for RC Gliders, and Industrial UAVs. The SV10M-12 excels with higher torque (14.0Kgf.cm at 13V) and faster response (0.10sec/60°), making it perfect for high-load applications. It features hardened steel gears, aluminium alloy casing, and programmable soft start, operating at 1520μs/333Hz with a default travel of ±60°. Choose the SV10M-12 for lightweight, compact solutions, or the SV10-12for higher performance tailored to your needs.

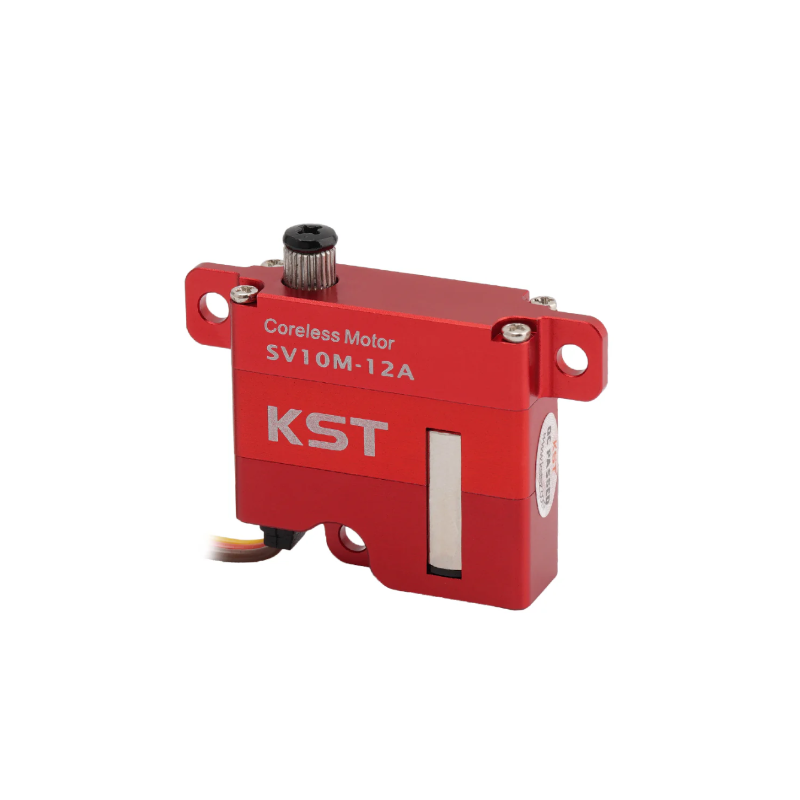

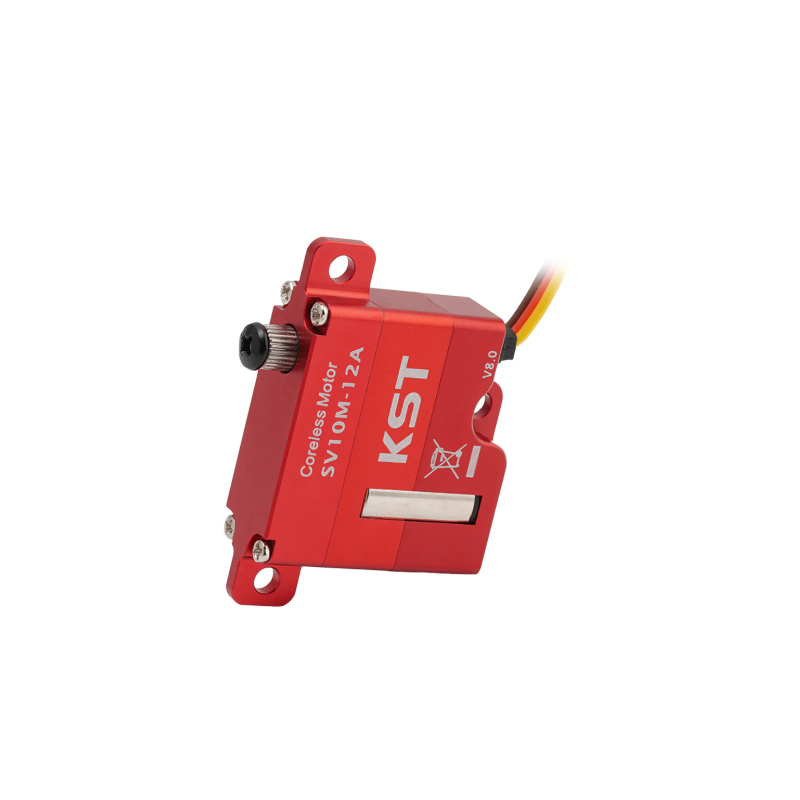

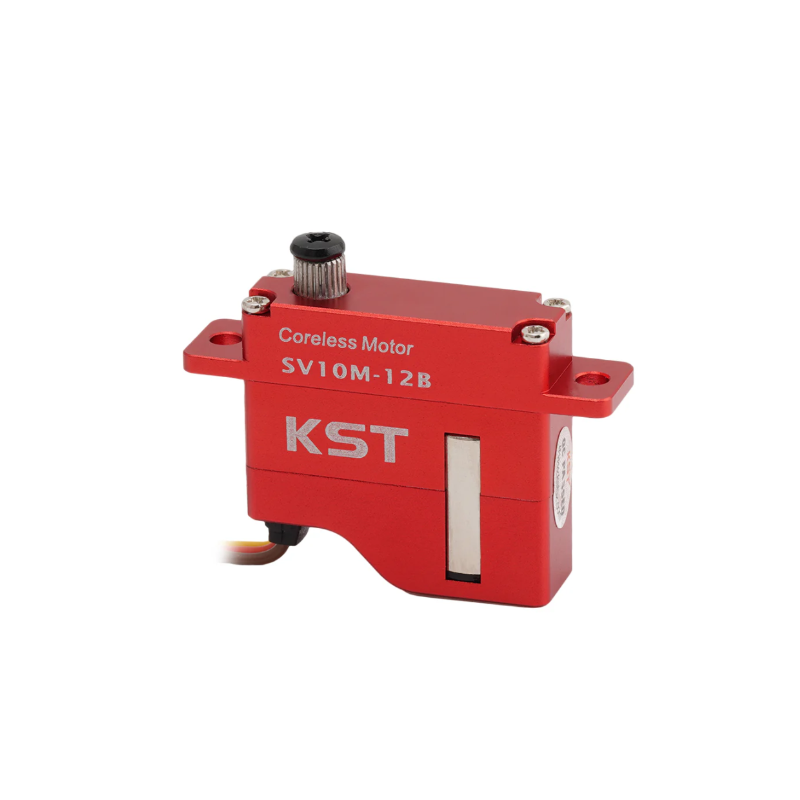

The SV10M-12 servo is available in two different mounting tab options: SV10M-12A (Horizontal) / SV10M-12B (Standard), ensures flexibility to meet your installation preferences and requirements.
Features
- Rated DC 12V High Voltage or Up to 3S LiPo Battery Direct Drive
- Supports 8.0-13.0V High Voltage
- High Torque & Exceptional Speed
- Programmable
- Large Default Travel Angle（programmable）
- High Performance Coreless DC Motor
- Hardened Steel Gear
- Ideal RC Gliders, and Industrial UAVs
Specification
- Item: SV10M-12 Servo
- Rated Voltage: DC12.0V
- Voltage Range: DC8.4V-12.0V
- Torque: 6.5Kgf.cm@8.4V / 8.0Kgf.cm@12.0V / 9.0Kgf.cm@13.0V
- Speed: 0.15sec/60°@8.40V / 0.12sec/60°@12.0V / 0.11sec/60°@13.0V
- Working Frequency: 1520μs/333Hz

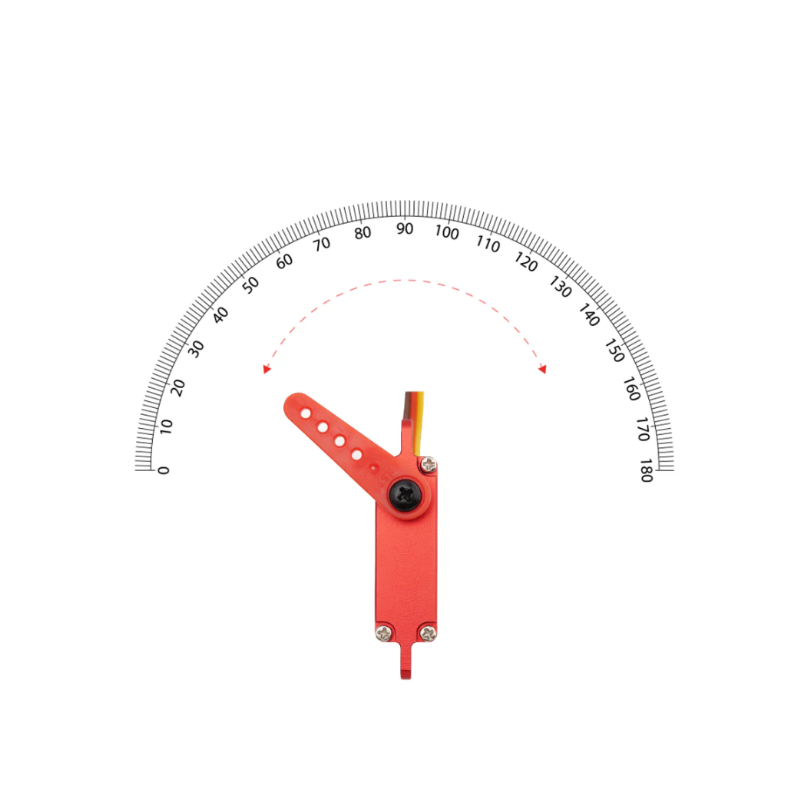

- Default Travel Angle: ±60° = 120° Total
- Temperature Range: -10℃.......+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer

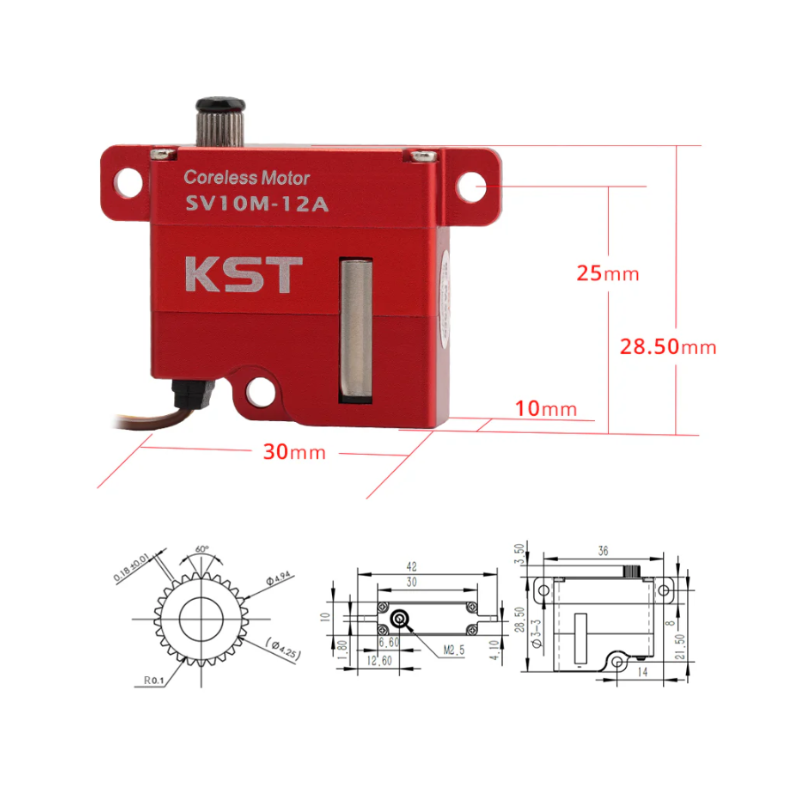

- Case Dimensions: 30*10*28mm±0.2mm
- Weight: 20g±10%
