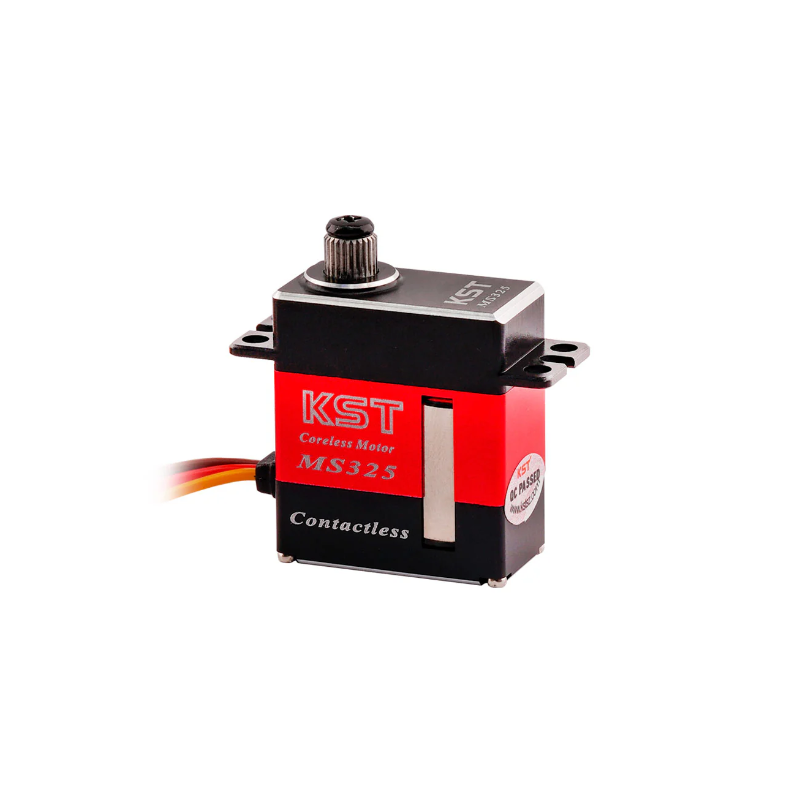

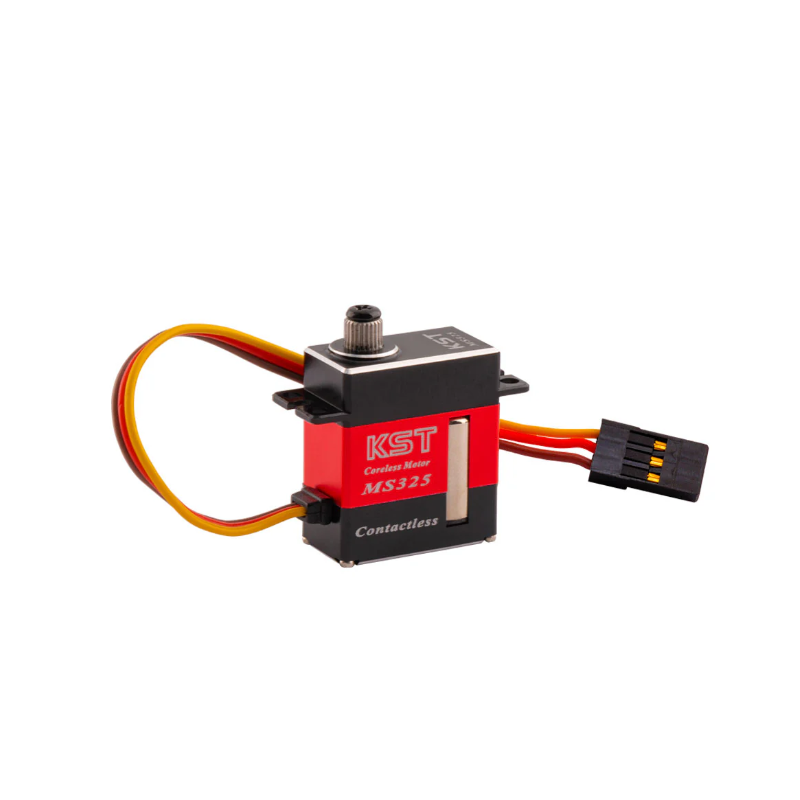

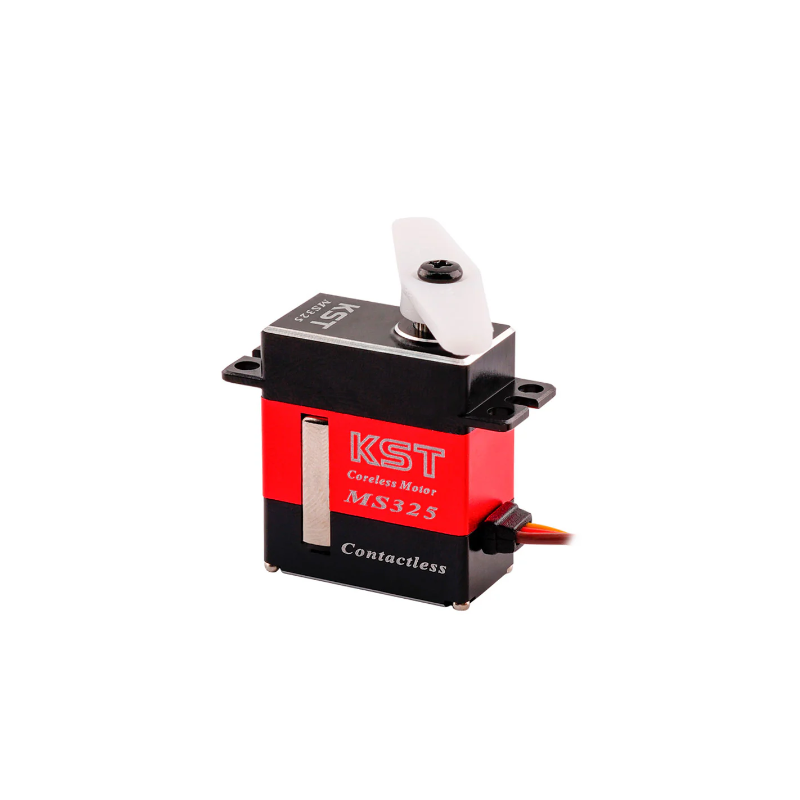

KST MS325 HV Coreless Micro Contactless Magnetic Sensors Servo 5.2Kgf.cm 0.07sec for RC Helicopters

The majority of RC gear uses potentiometers for proportional control. While it works well, there are some limitations, such as the component becoming dirty, worn out, and even thermal drift affecting accuracy and reliability. KST's new MS series uses contact-less magnetic sensors (or, hall effect sensors) to improve accuracy, repeatability and reliability.

The servos are made with milled alloy cases for maximum strength to weight, and powered by a digital core-less motor and hardened steel gears.

Great for use in sailplane fuselages to run the tails, and also as a cyclic servo for 450-480 class helicopters.

Features

• CNC aluminium case
• Hardened steel gear
• Using magnetic sensors, high smoothness, long life span
• Wide working voltage
• Dual Ball Bearings
• Ideal for 450-480 RC Helicopter

Specification

• Item: MS325 Micro Servo
• Rated Voltage: DC6.0V
• Voltage Range: DC6.0V-8.4V
• No-load Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
• Stalling Torque: 3.8Kgf.cm@6.0V, 4.6Kgf.cm@7.4V, 5.2Kgf.cm@8.4V
• Working Frequency: 1520us/333Hz

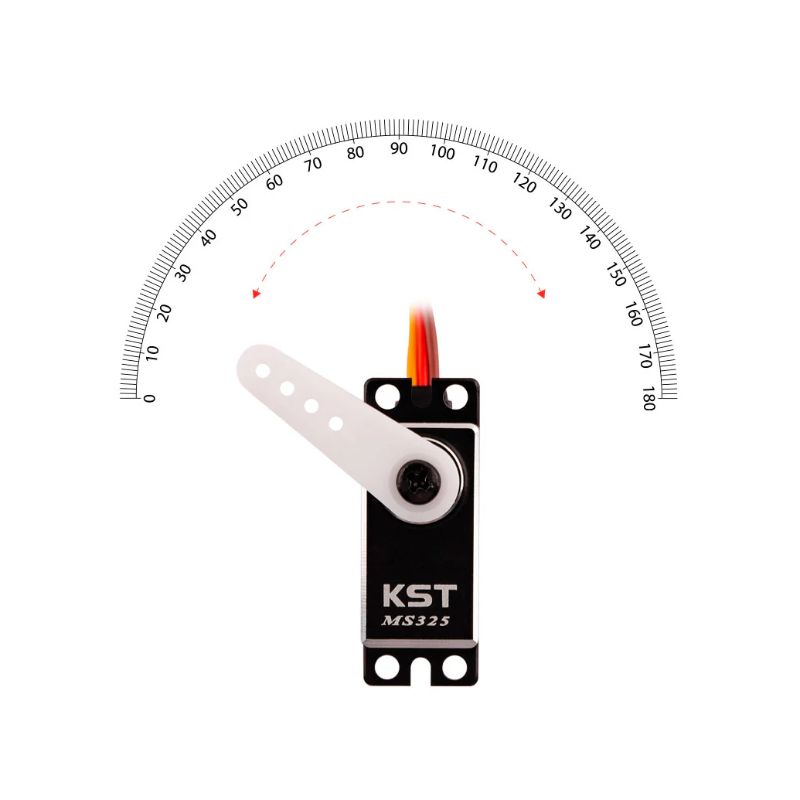

• Default Travel Angle: ±100°=200° Total
• Temperature Range: -20℃……+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position sensor: Contactless
• Case Dimensions: 23mm*12mm*27.5mm±0.2mm
• Weight: 20g±10%
• Ball Bearing: 2BB
