KST HA20-9015 Extreme-High-Torque Contactless Brushless Standard Servo 90Kgf.cm 0.15sec/60° For Large Scale RC Planes, Competition RC Planes & Industrial UAVs

In stock
No reviews
Usually ships within 24 hours
$176.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

The HA20-9015 is a High-Performance Standard Brushless Servo Designed for Large Scale RC Planes, Competition RC Planes, and Industrial UAVs. It delivers up to 90Kgf·cm torque at 8.4V and 0.15sec/60° speed at 8.4V, offering outstanding performance under demanding conditions.

Powered by a high-efficiency brushless DC motor, hardened steel gear, and a CNC-machined aluminium case, the servo ensures powerful output, precise control, and long-term reliability.

It has an industrial-grade locking plug interface (A2509HFA-3P) for secure, vibration-resistant connections suitable for professional radio control systems.

Features

  • DC Brushless motor
  • High Torque Output & Fast Response
  • Dual Ball Bearings
  • Hardened Steel Gear & CNC Aluminium Case
  • A2509HFA-3P Locking Plug Interface
  • Contactless Hall Sensor
  • Hardened Steel Gear
  • Programmable
  • Ideal for Large Scale RC Planes, Competition RC Planes & Industrial UAVs

Specification

  • Item: HA20-9015
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 70Kgf.cm@6.0V, 80Kgf.cm@7.4V, 90Kgf.cm@8.4V
  • Speed: 0.17sec/60°@6.0V, 0.16sec/60°@7.4V, 0.15sec/60°@8.4V
  • Stalling Current: 9.8A@6.0V, 11.8A@7.4V, 13.5A@8.4V
  • Working Frequency: 1520μs/333Hz

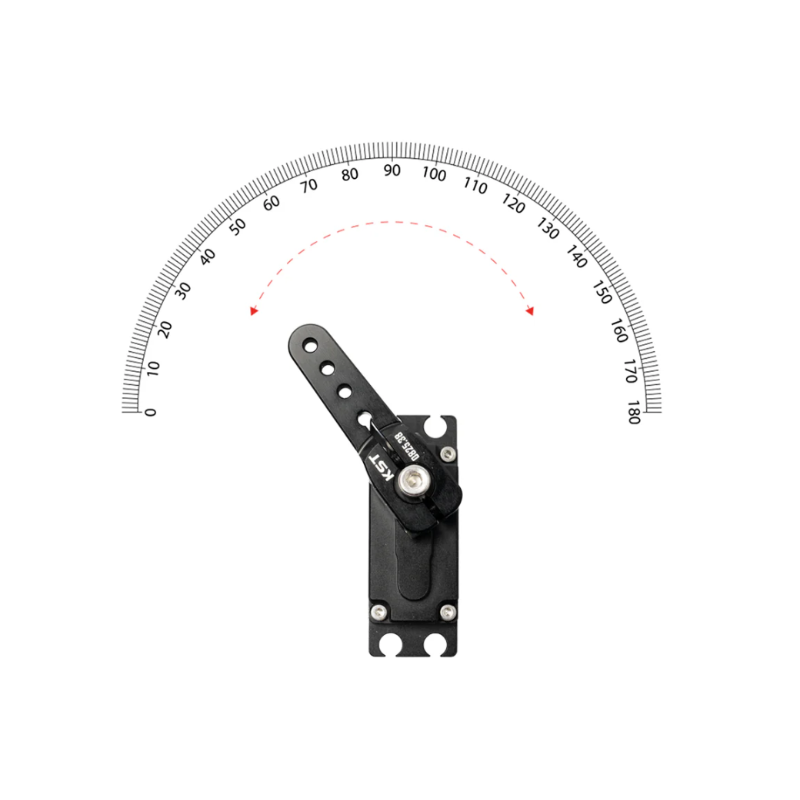

  • Default Travel Angle: ±100° =200° Total
  • Temperature Range: -10℃……+65℃
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Brushless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Contactless
  • Ball Bearing: 2BB

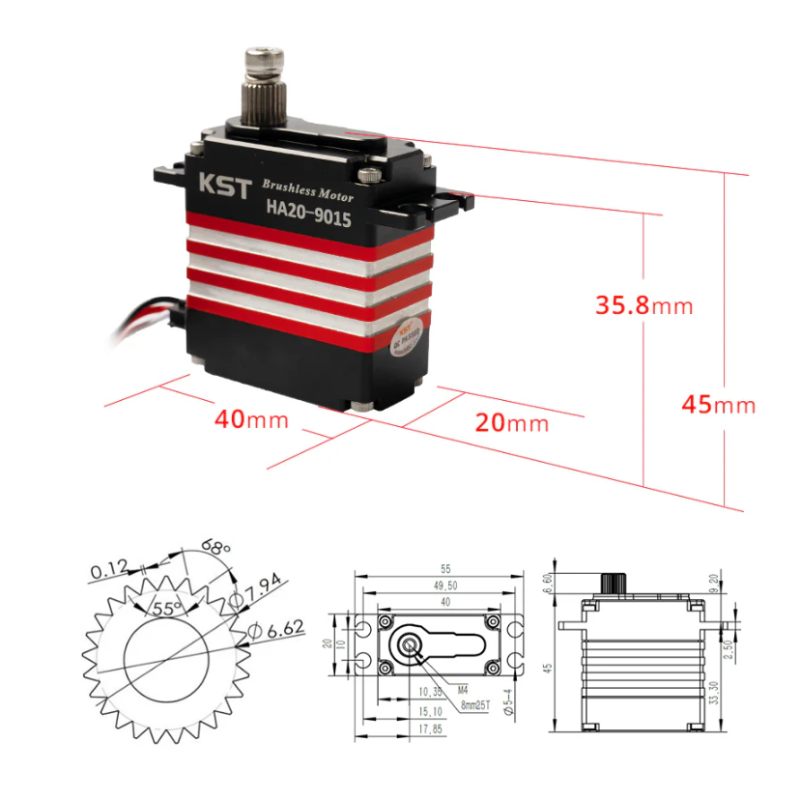

  • Case Dimensions: 40*20*45mm±0.2mm
  • Weight: 90g±10%
