The HA20-7015 is a High-Performance Standard Brushless Servo Designed for Large Scale RC Planes, Competition RC Planes, and Industrial UAVs. It delivers up to 82 Kgf ·cm torque at 8.4V and 0.11sec/60° speed at 8.4V, offering outstanding performance under demanding conditions.
Powered by a high-efficiency brushless DC motor, hardened steel gear, and a CNC-machined aluminium case, the servo ensures powerful output, precise control, and long-term reliability.

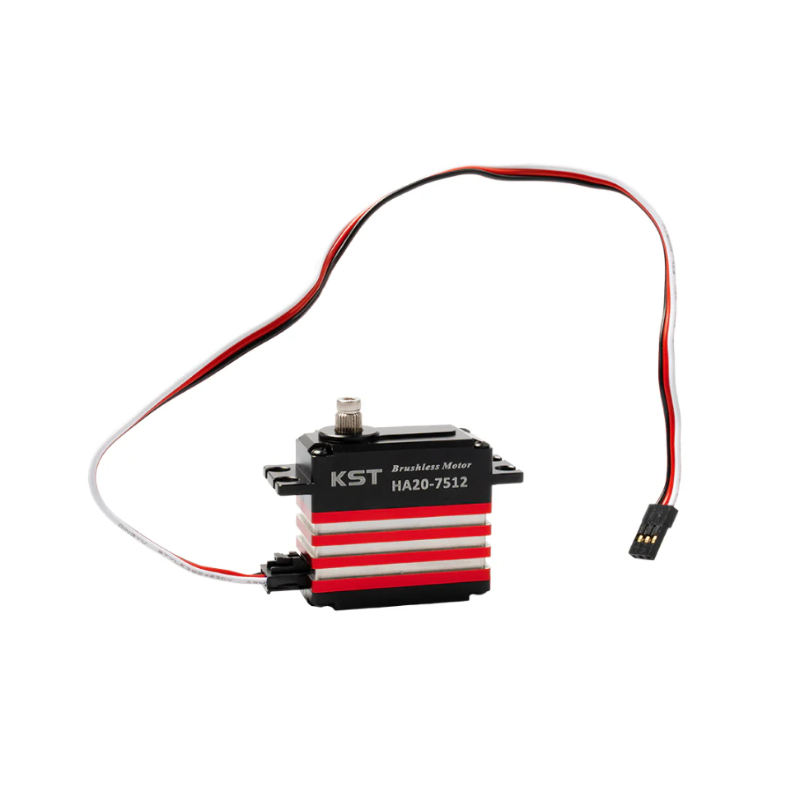

It has an industrial-grade locking plug interface (A2509HFA-3P) for secure, vibration-resistant connections suitable for professional radio control systems.
Features
- DC Brushless motor
- High Torque Output & Fast Response
- Dual Ball Bearings
- Hardened Steel Gear & CNC aluminium Case
- A2509HFA-3P Locking Plug Interface
- Hardened Steel Gear
- Programmable
- Ideal for Large Scale RC Planes, Competition RC Planes & Industrial UAVs
Specification
- Item: HA20-7512
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 65Kgf.cm@6.0V, 75Kgf.cm@7.4V, 82Kgf.cm@8.4V
- Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.11sec/60°@8.4V
- Stalling Current: 8.8A@6.0V, 10.8A@7.4V, 12.3A@8.4V
- Working Frequency: 1520μs/333Hz

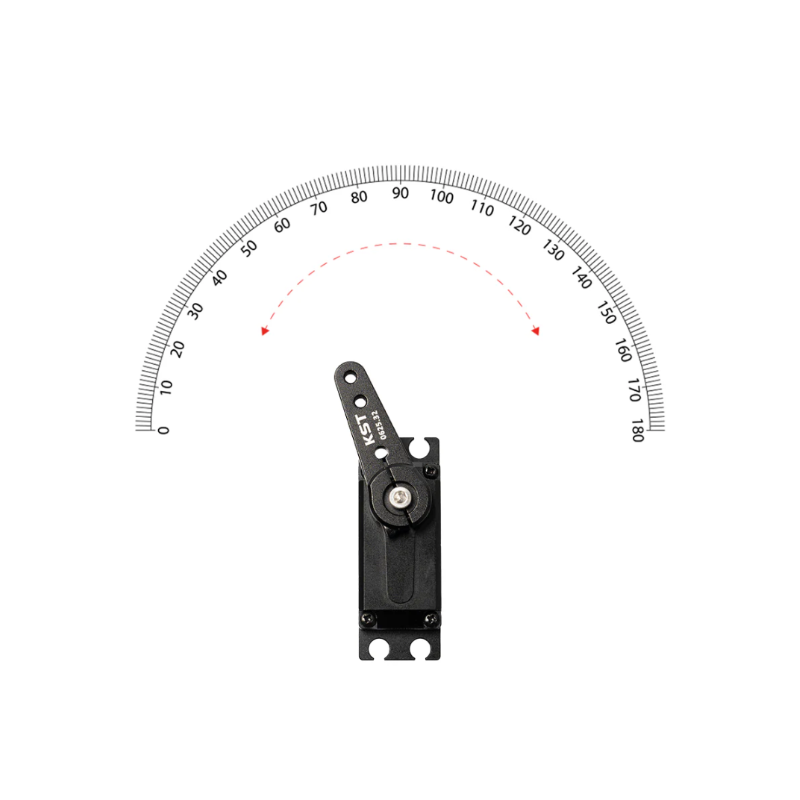

- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃……+65℃
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

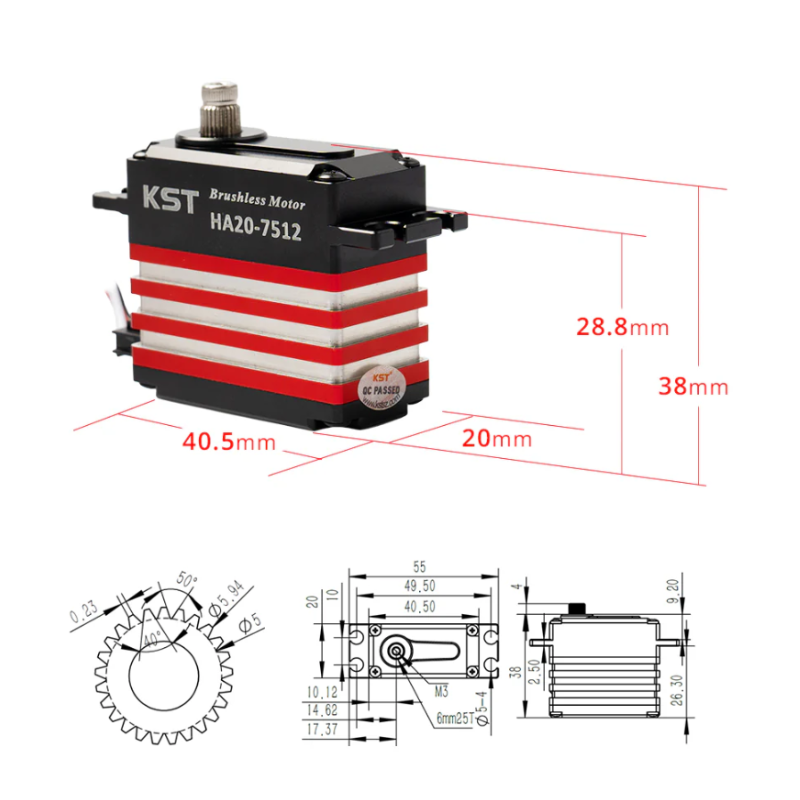

- Case Dimensions: 40.5*20*38mm±0.2mm
- Weight: 70g±10%
