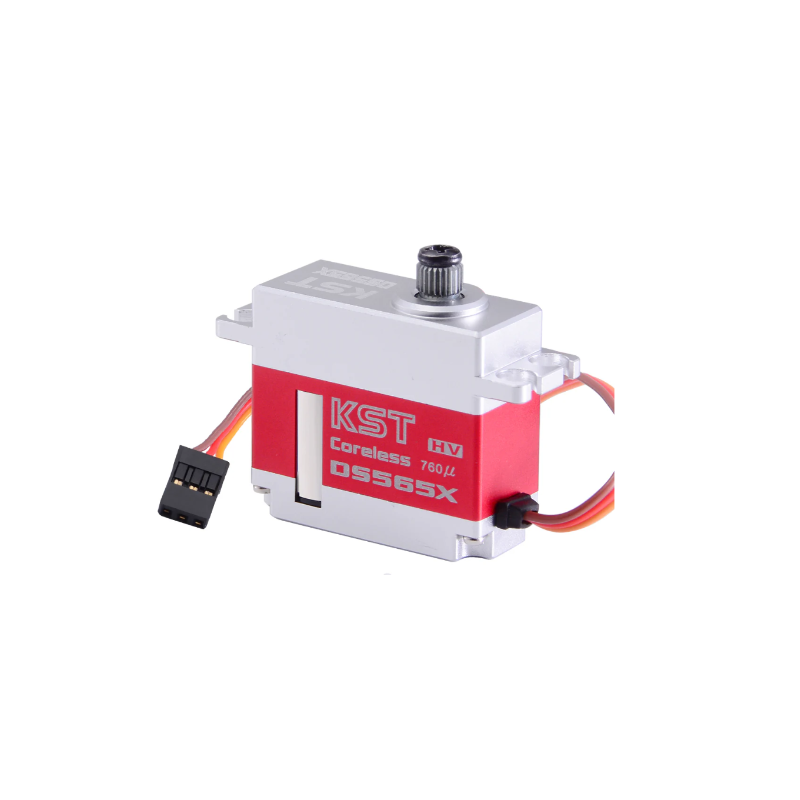

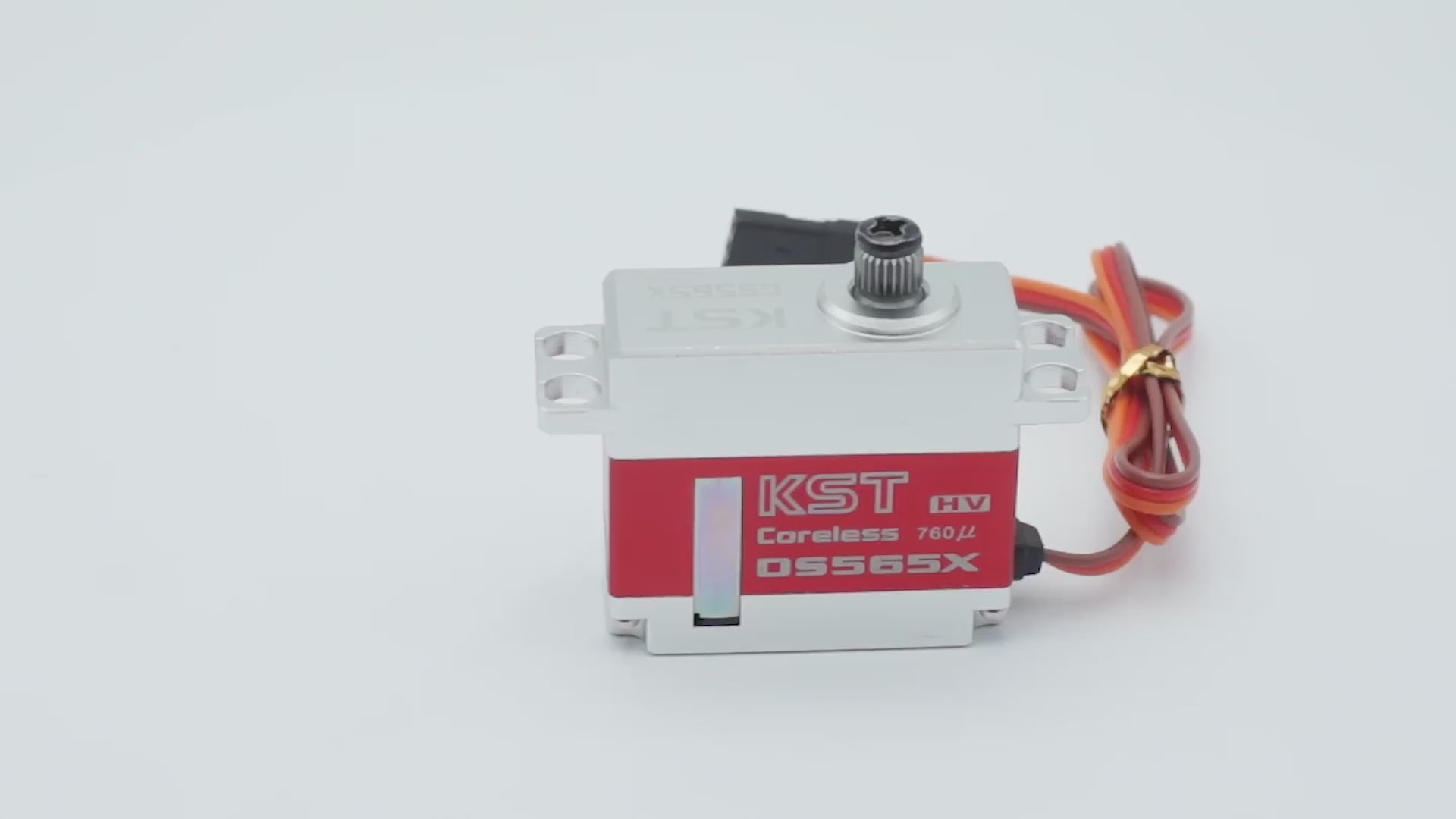

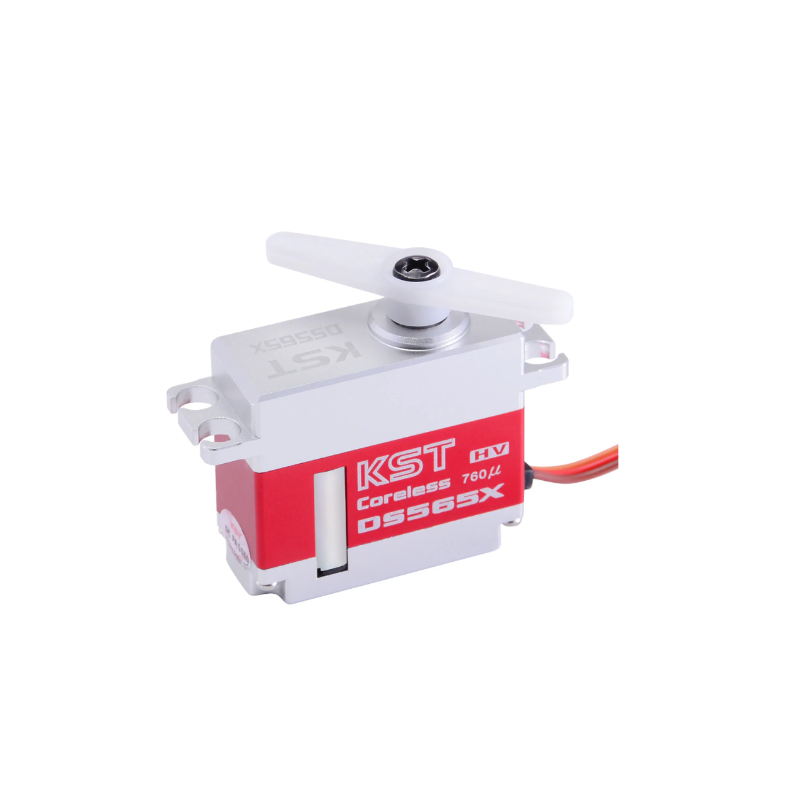

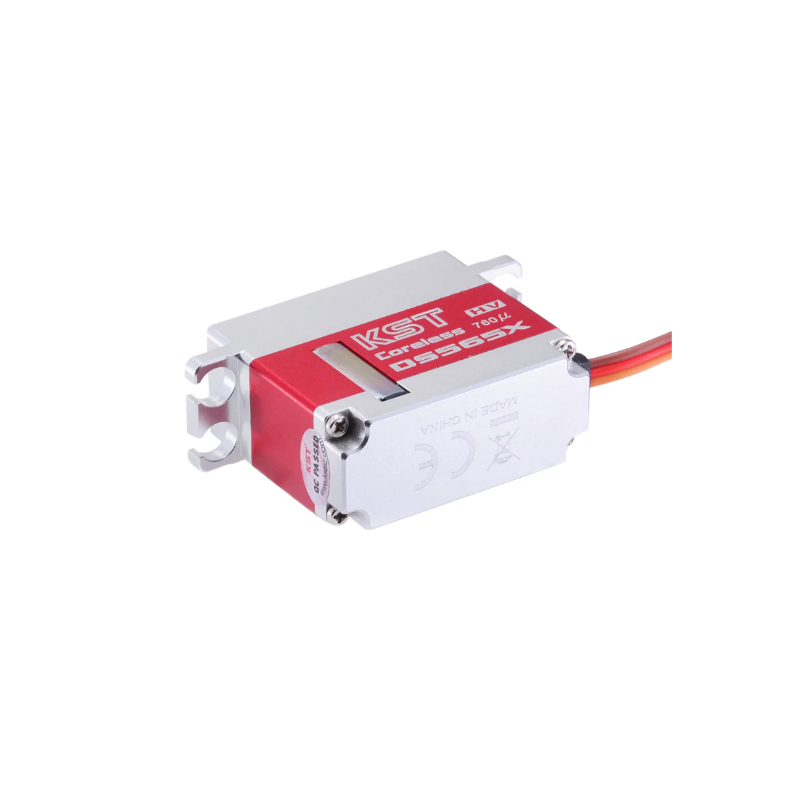

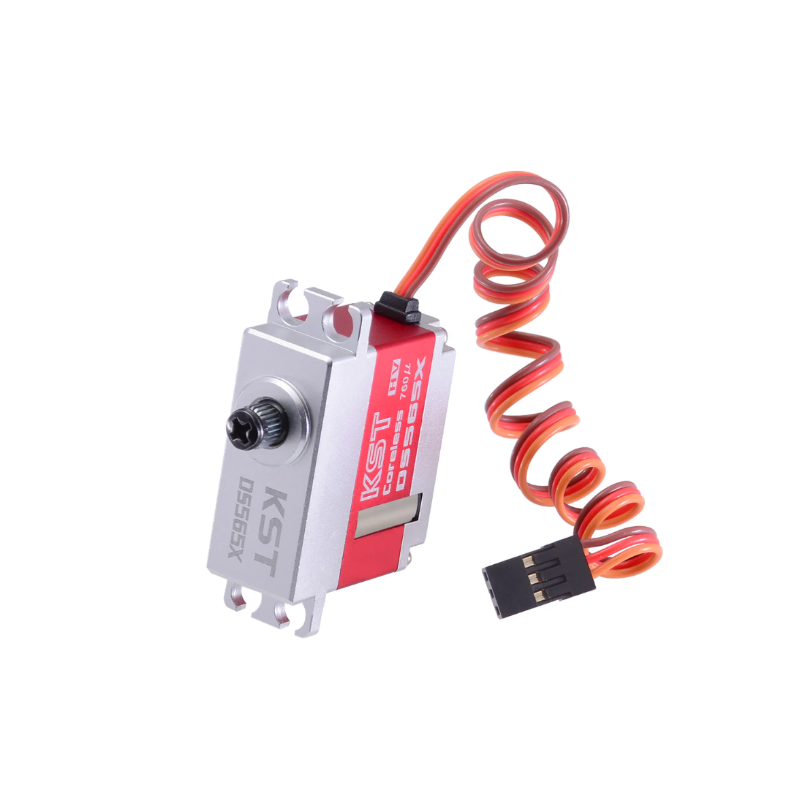

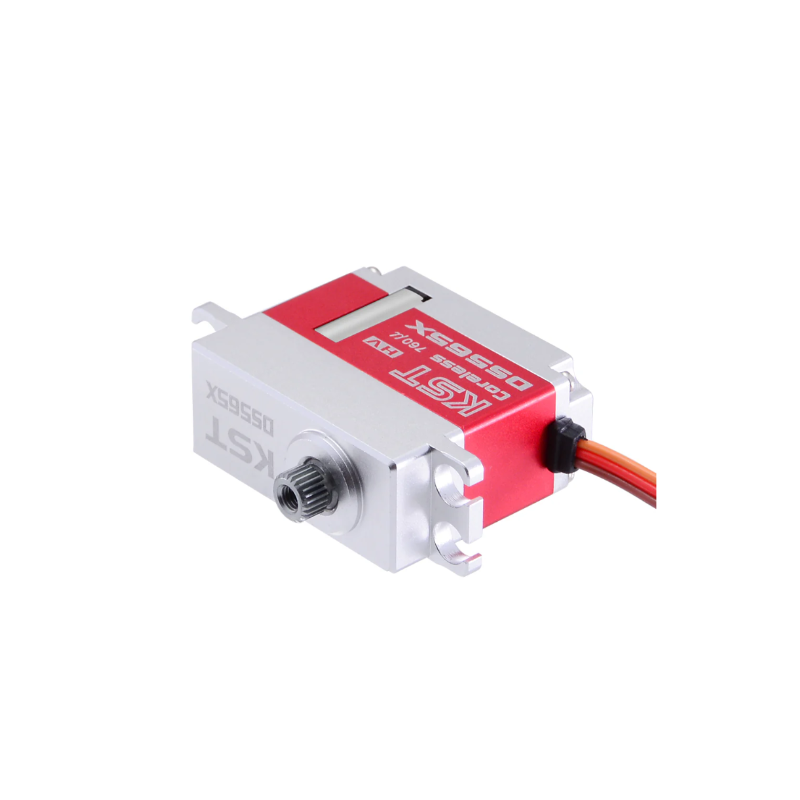

DS565X mini digital tail servo is a great choice for helicopters ranging from 325mm-425mm rotor blade size requiring mini servos! It's critical to ensure your gyro has the capability to operate 760μs Tail Servos, ensuring that the KST 565X operates correctly.
Features
- Extreme Torque and Excellent Speed
- Programmable
- Dual Ball Bearings
- CNC Aluminium Case
Specification
- Item: DS565X Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Stalling Torque:
4.0Kgf.cm@6.0V
5.0Kgf.cm@7.4V
6.0Kgf.cm@8.4V
- No-load Speed:
0.06sec/60°@6.0V
0.05sec/60°@7.4V
0.04sec/60°@8.4V
- Working Frequency:760μs/560Hz
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
- Weight: 40g±10%
