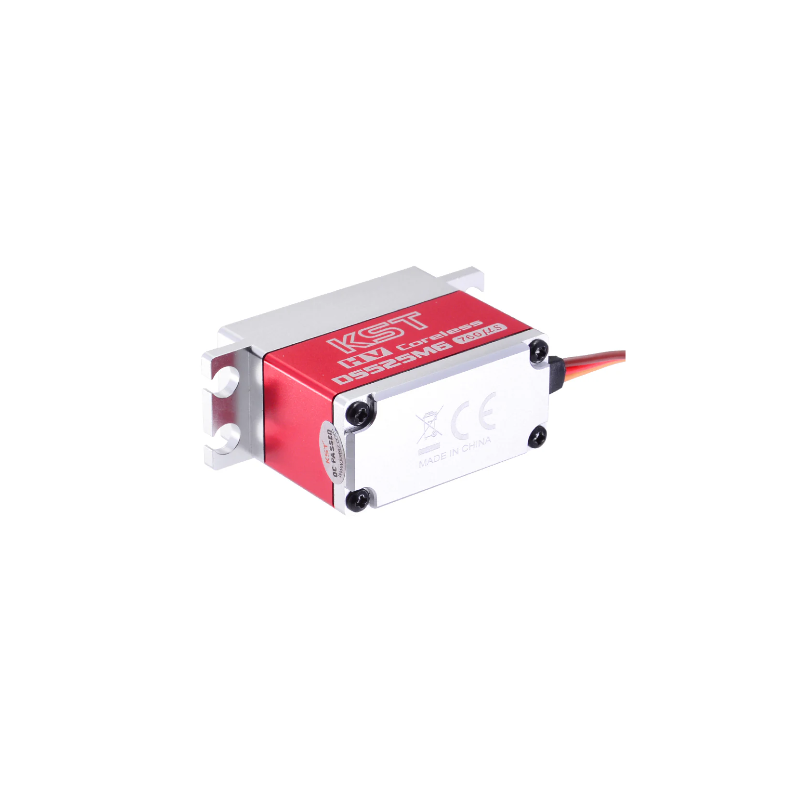

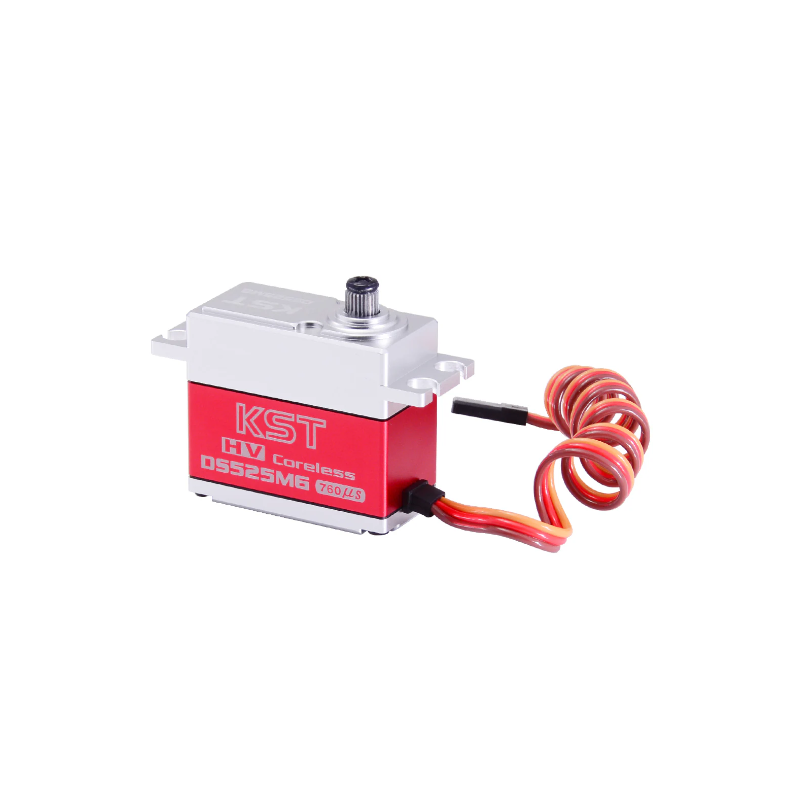

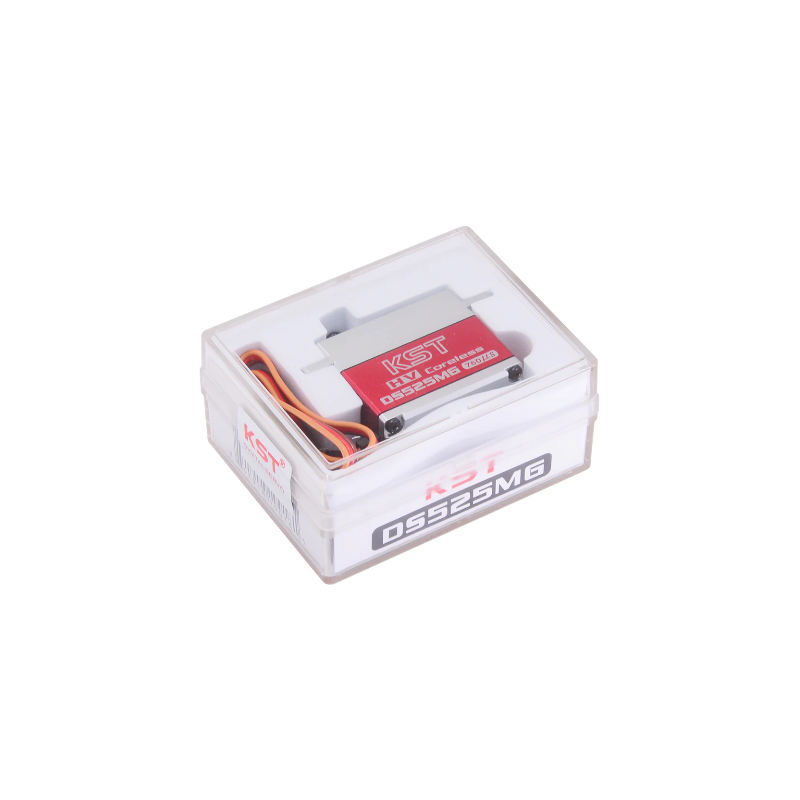

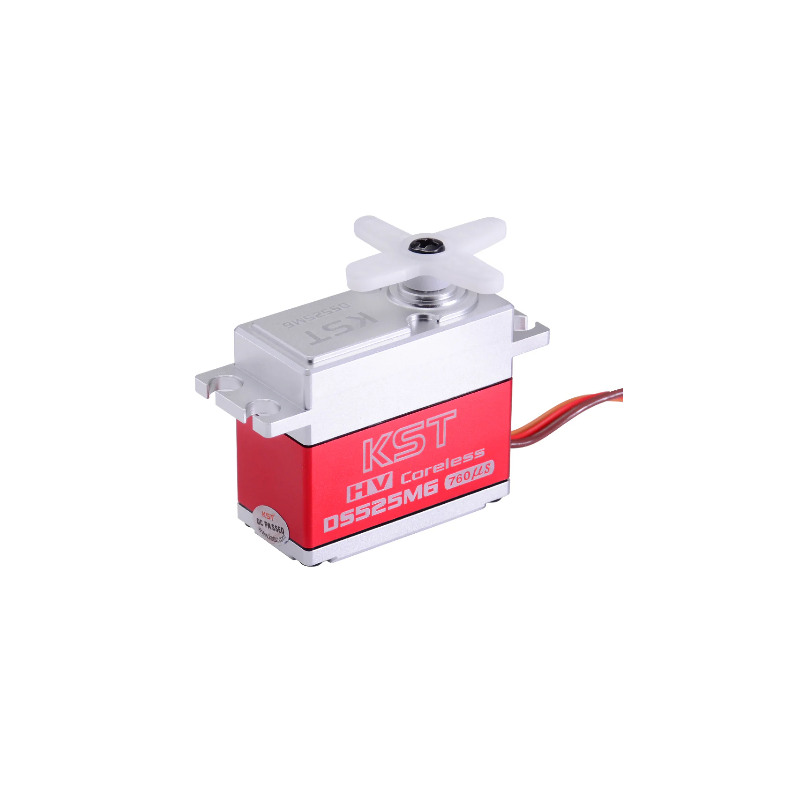

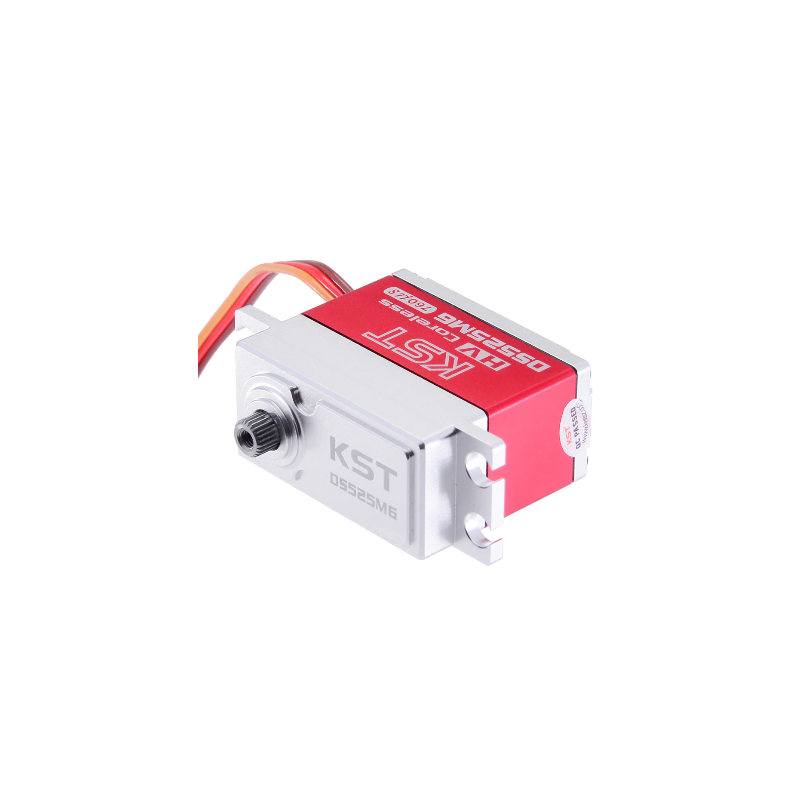

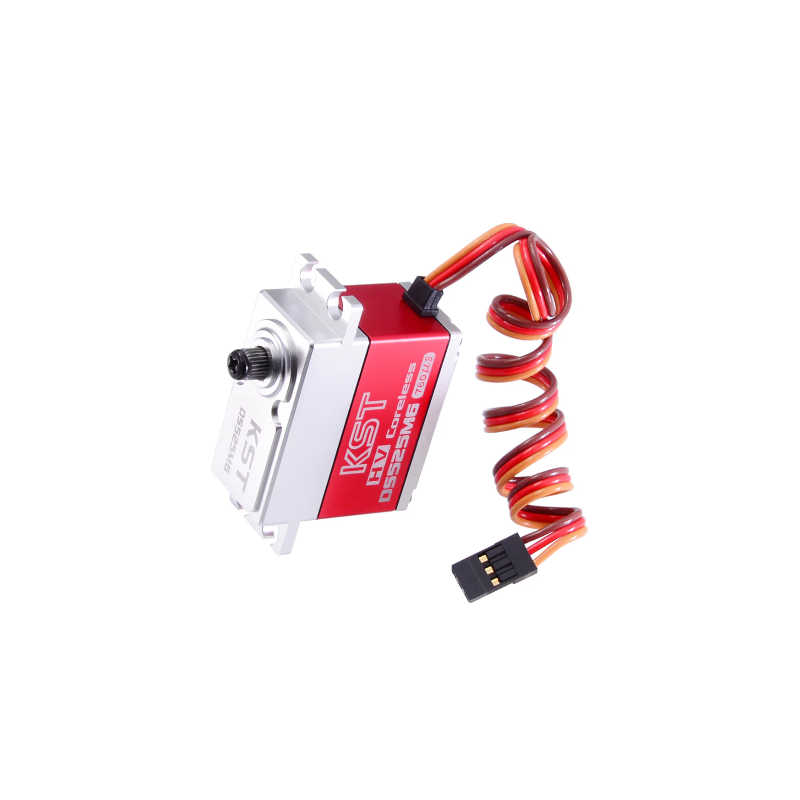

DS525MG features with 0.04sec extremely fast speed and robust aluminum housing. Precise and backlash-free metal gear. Extremely accurate and therefore ideal for helicopter tail rotors in the 550-700 class.
Features
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
Specification
- Item: DS525MG Metal Gear Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
-
Torque:
7.5Kgf.cm@8.4V
6.5Kgf.cm@7.4V
5.5Kgf.cm@6.0V
-
Speed:
0.040sec/60°@8.4V
0.045sec/60°@7.4V
0.050sec/60°@6.0V - Working Frequency: 760μs/560Hz
- Temperature Range: -10℃……+65℃
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Case Dimensions: 40.5mm*20mm*38mm±0.2mm
- Weight: 70g±10%
- Ball Bearing: 2 BB
