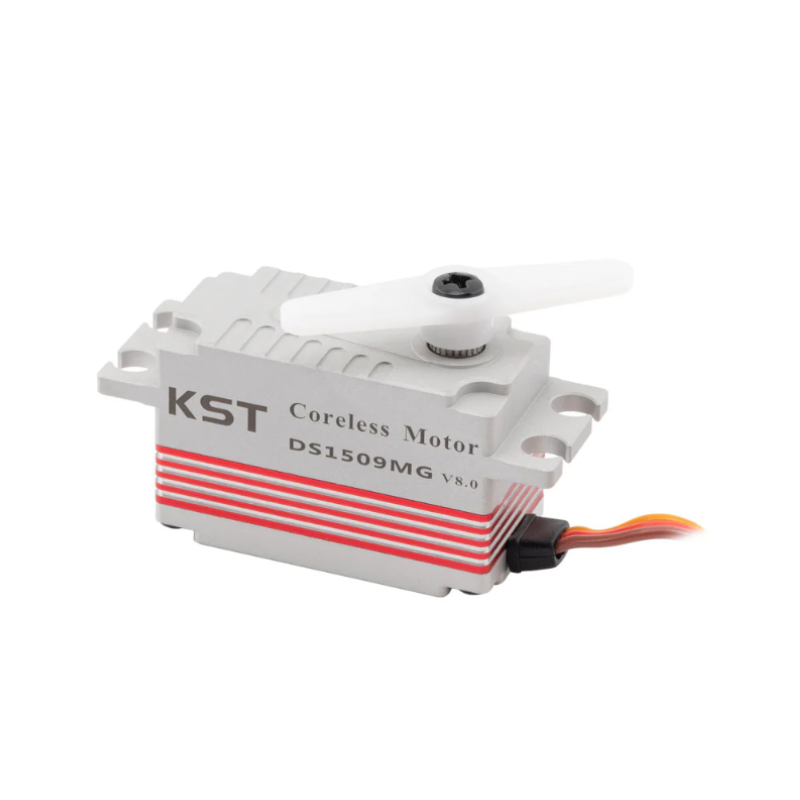

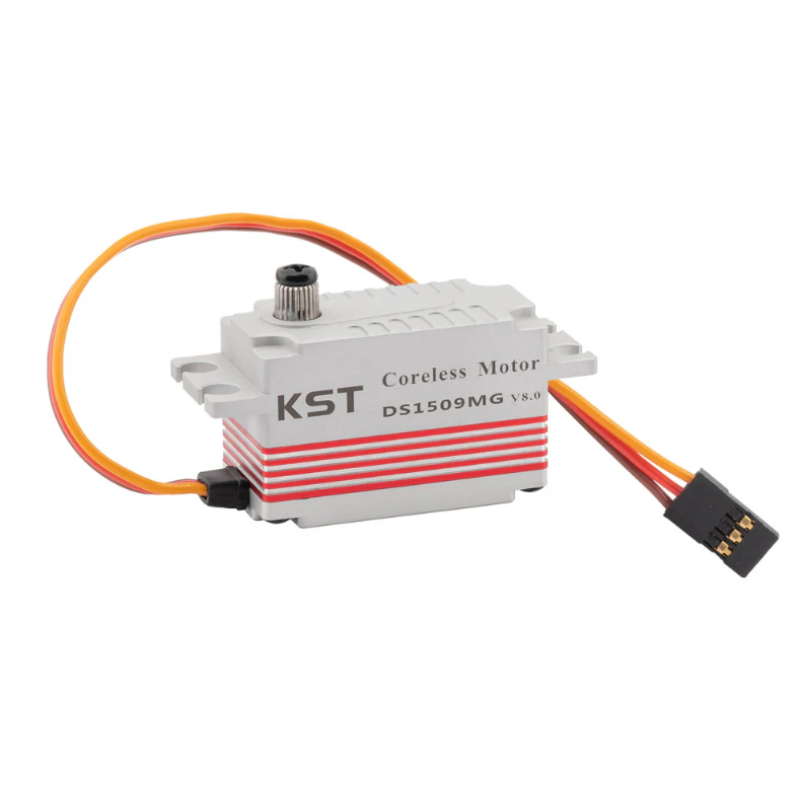

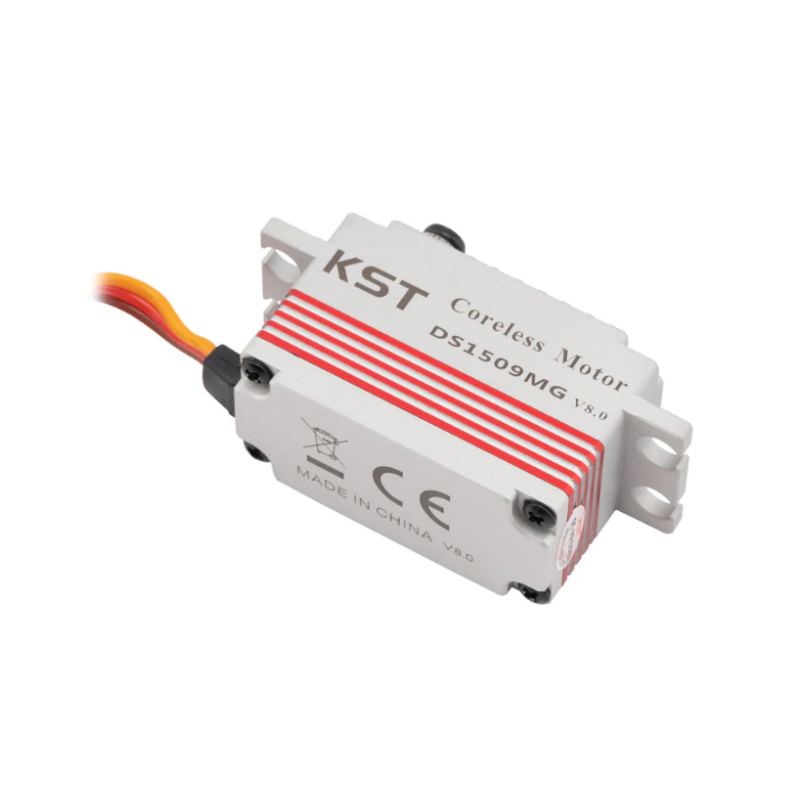

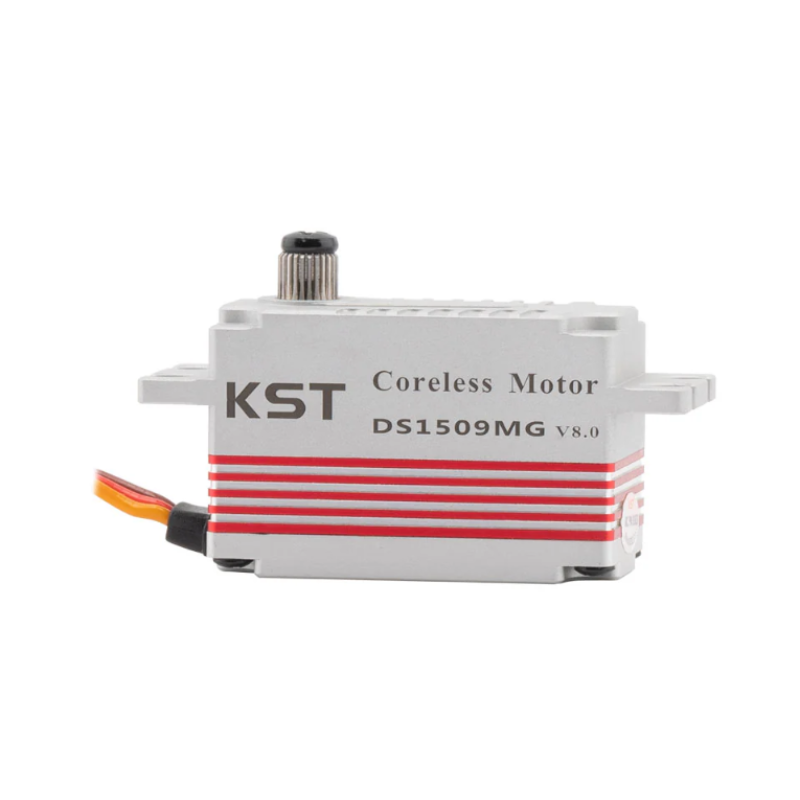

DS1509MG low profile digital Servo, featured with 12.8Kgf.cm high torque and 0.07sec fast positioning speed. It is a great choice of steering servo for RC cars and aircraft models. It offers a wide voltage range of 4.8 - 7.4 Volt and is therefore universally applicable due to the low profile construction.
Features
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
- Low Profile Size
- Programmable

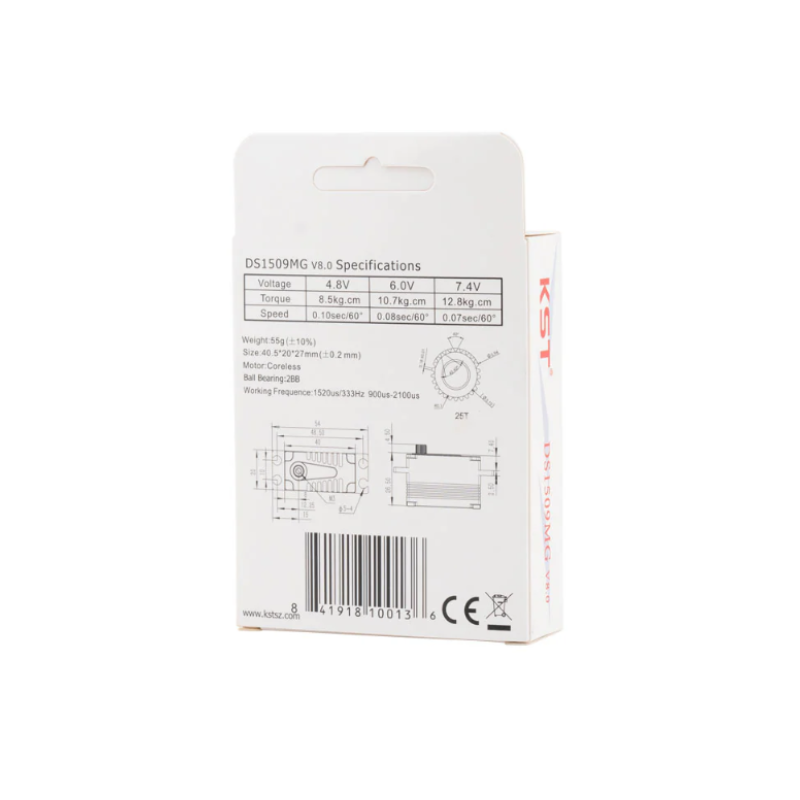

Specification
- Item: DS1509MG Coreless Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-7.4V
- Stalling Torque:
8.5Kgf.cm@4.8V
10.7Kgf.cm@6.0V
12.8Kgf.cm@7.4V
- No-load Speed:
0.10sec/60°@4.8V
0.08sec/60°@6.0V
0.07sec/60°@7.4V
- Working Frequency: 1520μs/333Hz

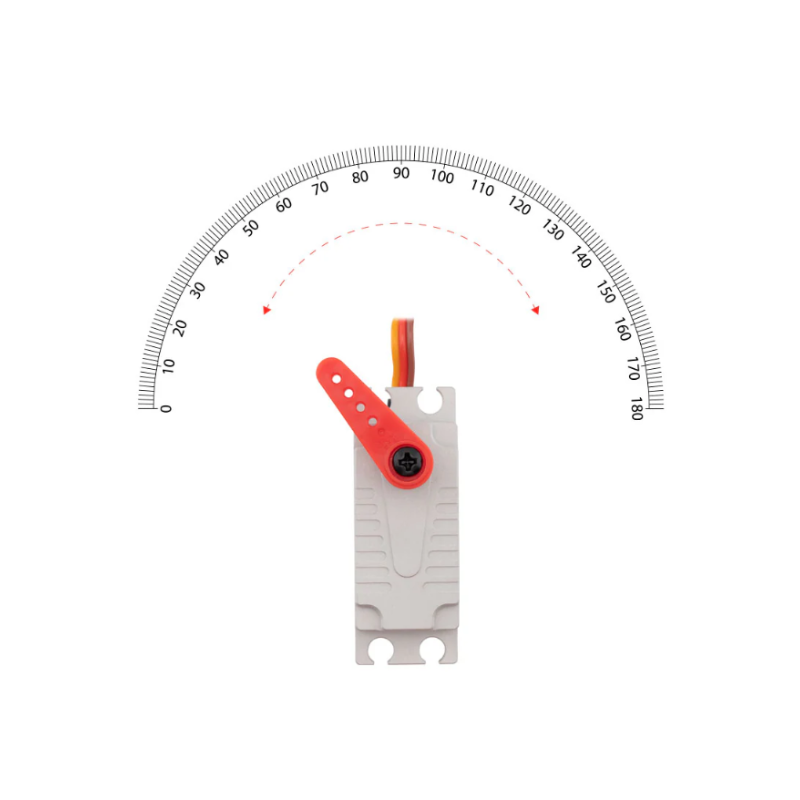

- Default Travel Angle: ±50°=100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

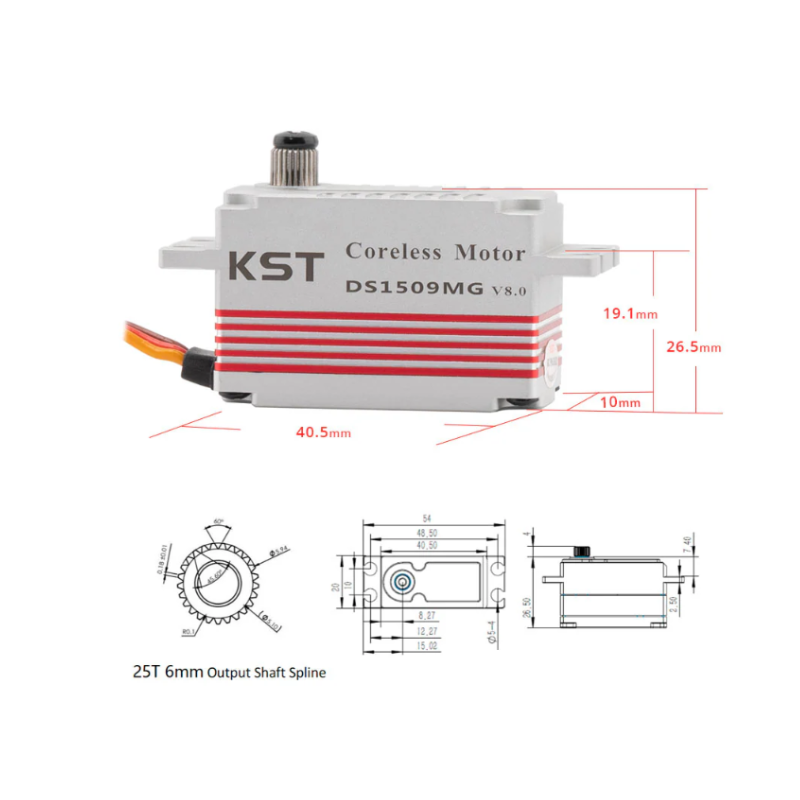

- Case Dimensions: 40.5mm*20mm*26.5mm±0.2mm
- Weight: 55g±10%

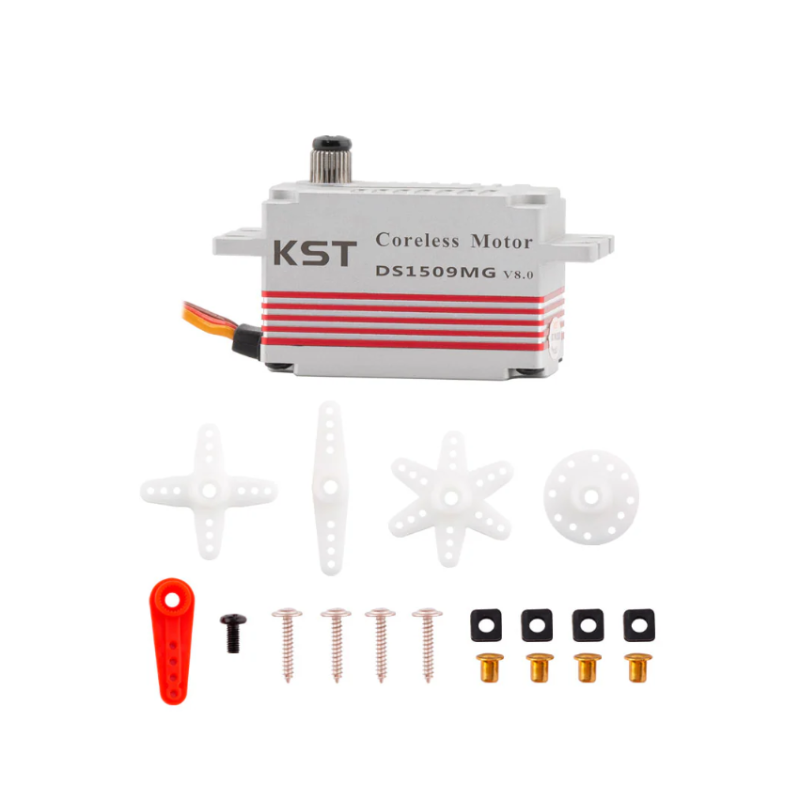

- Accessories: Metal Gear Set, 25T-6B Aluminum Servo Arm
