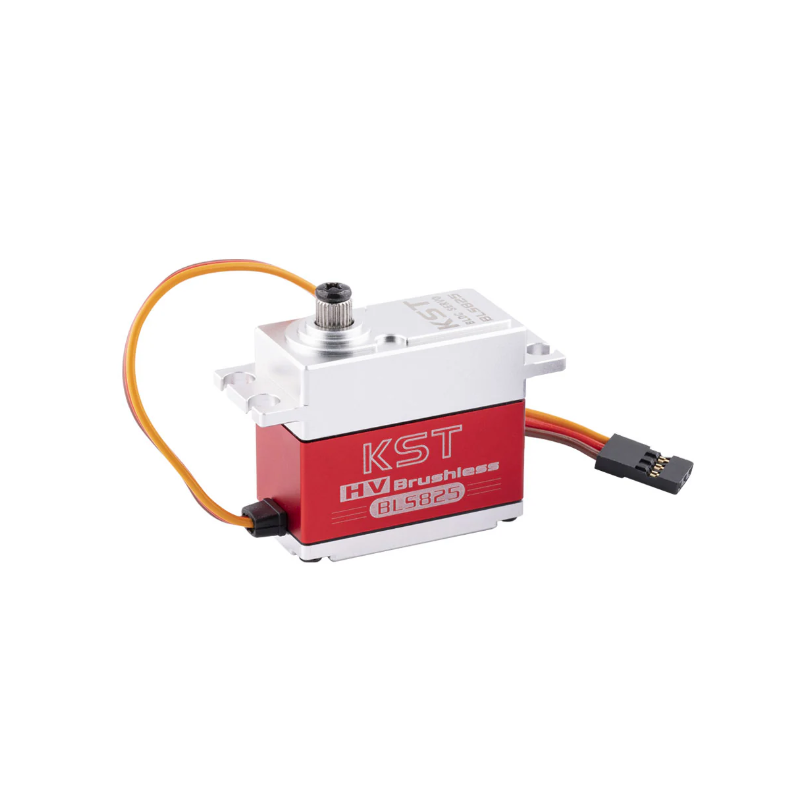

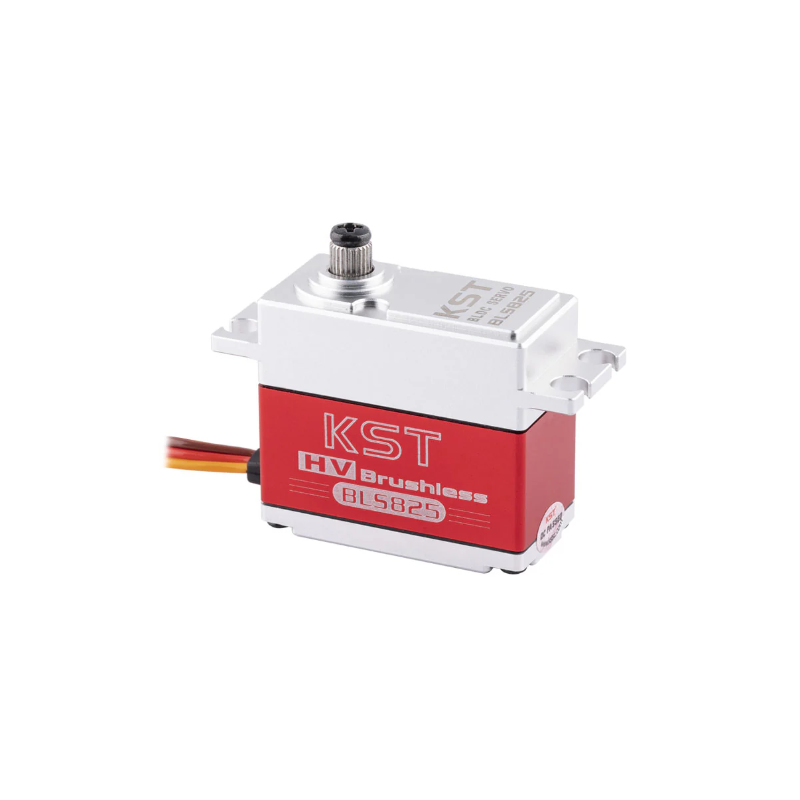

The KST BLS825 servo is equipped with a powerful brushless motor and was developed especially for surface models. Due to the high resetting accuracy, in conjunction with the very robust and backlash-free full metal gearbox, the KST BLS825 is ideal for scale and aerobatic models.
We also provide the BLS815 Brushless HV Servos.
Features
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Brushless DC Motor
- Two Ball Bearings
- Ideal for 550-700 Class Helicopters
Specification
- Item: BLS825 Brushless Servo
- Operation Voltage(rated): 7.4V
-
Operating Voltage: DC6.0V-8.4V
-
Size: 40.50*20*37mm
-
Torque: 35Kg.cm@8.4V, 30Kg.cm@7.4V, 25Kg.cm@6.0V
- Speed: 0.11sec/60°@8.4V, 0.13sec/60°@7.4V, 0.15sec/60°@6.0V

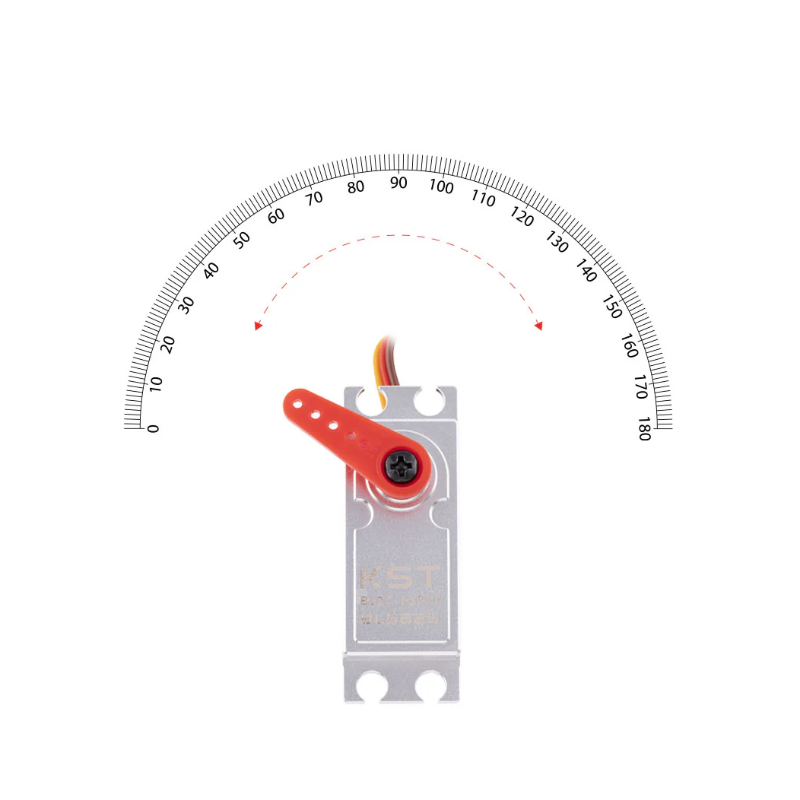

- Travel Angle: ±50°=100° Total
-
Weight: 70g
-
Working Frequence: 1520us/333Hz
-
Motor: Brushless
- Ball Bearing: 2BB
