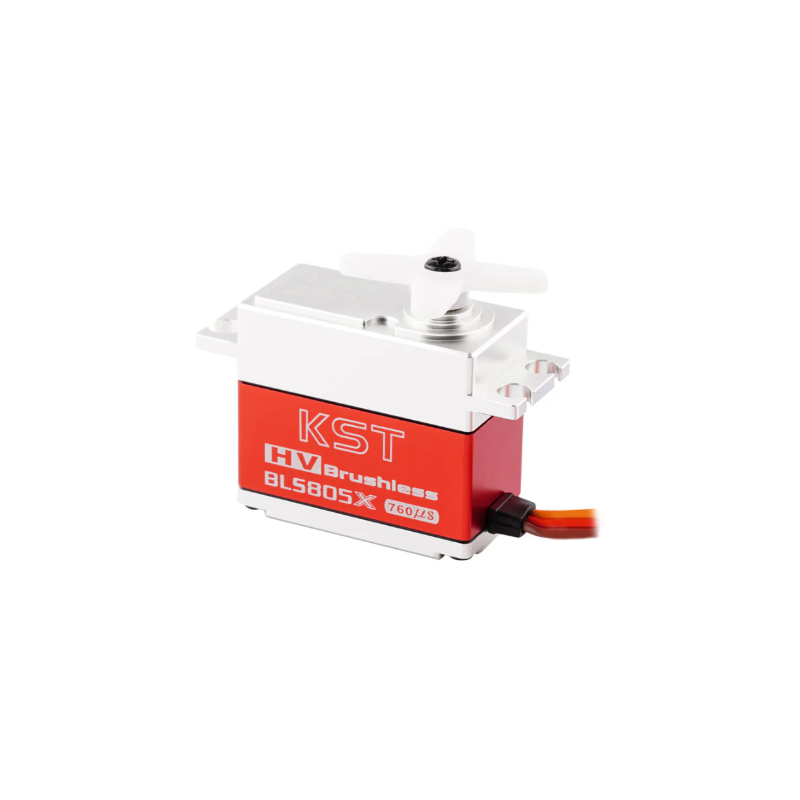

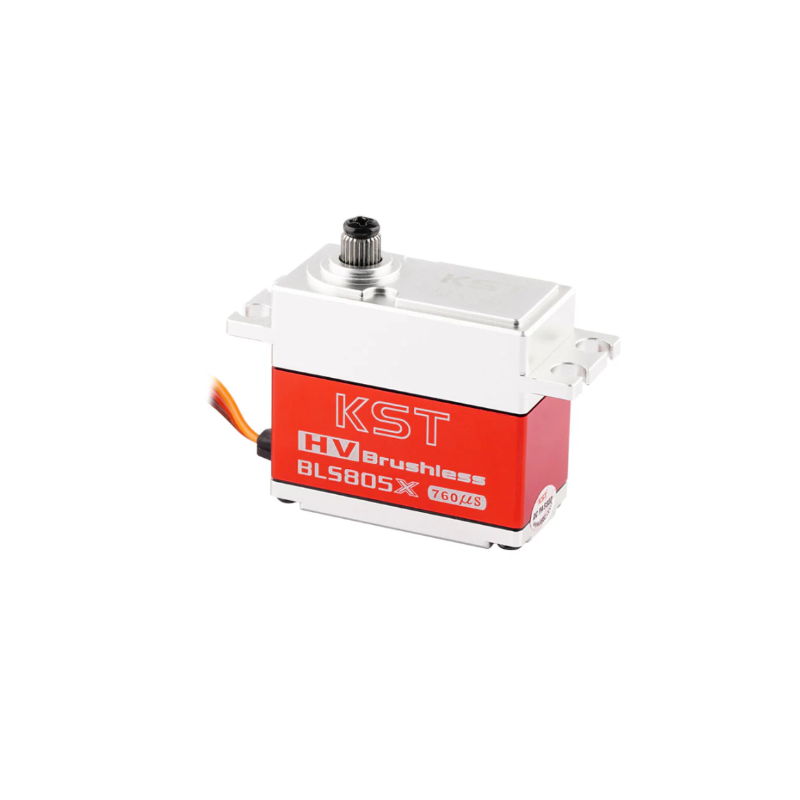

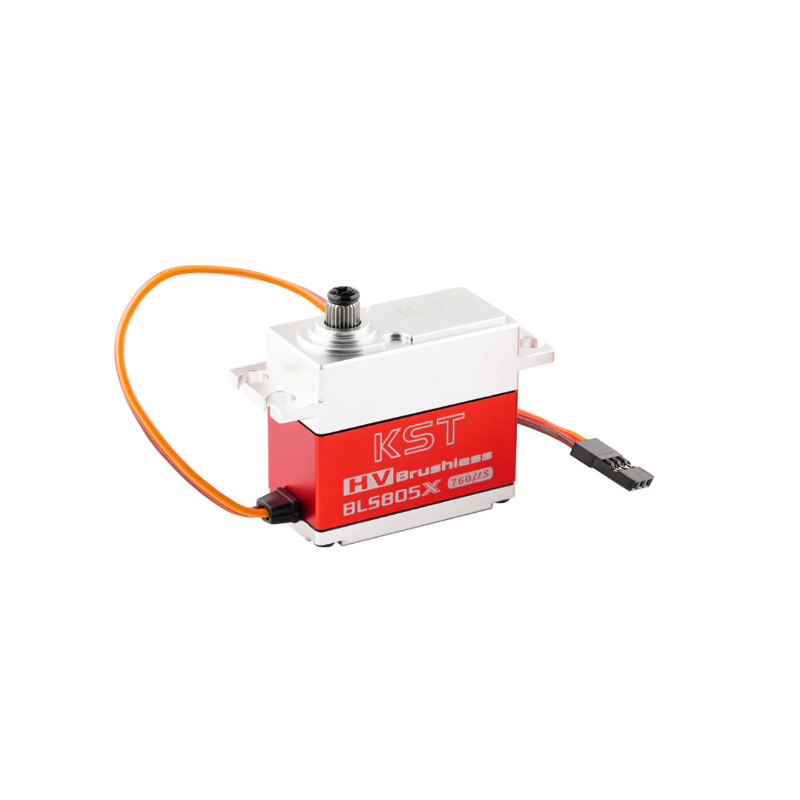

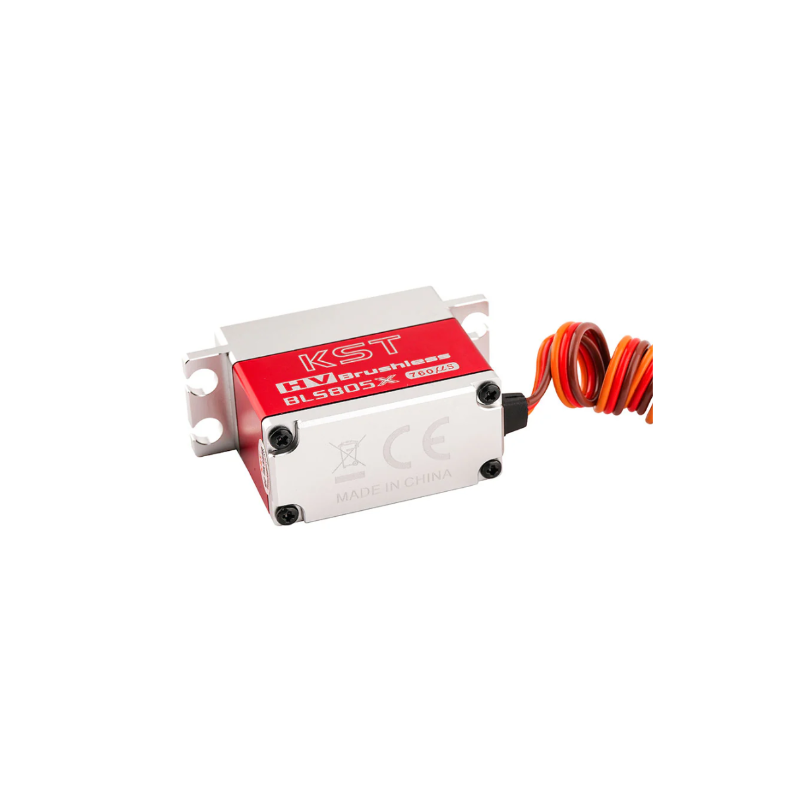

KST BLS805X HV Brushless Tail Servo 7.5Kgf.cm 0.039sec for Heli 550-700

In stock
No reviews
Usually ships within 24 hours
$88.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

KST BLS805X Servo is excellent due to the aluminum housing and the solid metal gear. The high positioning speed and the highly accurate setting back to the initial position allow optimal performance in 3D helicopter aerobatics. It is speedy because of the neutral impulse of 760µs and a possible frequency of  560Hz.

We also provide the BLS905X HV Brushless Tail servos.

Features

  • Extreme Torque and Excellent Speed
  • CNC Aluminium Case
  • Brushless DC Motor
  • Dual Ball Bearings
  • Ideal for Heli 550-700

Specification

  • Item: BLS805X HV Brushless Tail Servo
  • Operating Voltage: DC6.0V-8.4V
  • Dimension : 40.5mm*20mm*38mm±0.2mm
  • Torque: 5.5Kgf.cm@6.0V,  6.5Kgf.cm@7 .4V,  7. 5Kgf.cm@8.4V
  • Speed: 0.048sec/60° @6.0V,   0.042sec/60°@7.4V,   0.039sec/60°@8.4V
  • Temperature Range: -10℃……+65℃
  • Weight: 70g±10%
  • Working Frequency: 760μs/560Hz
  • Case Material: Aluminum Alloy
  • Motor Type: Brushless DC Motor
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB
