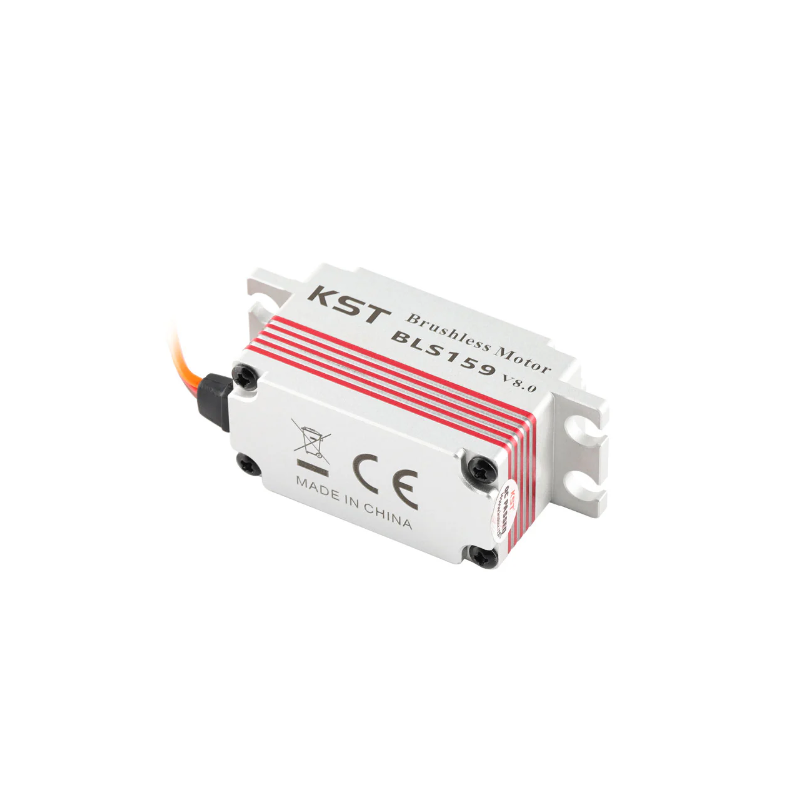

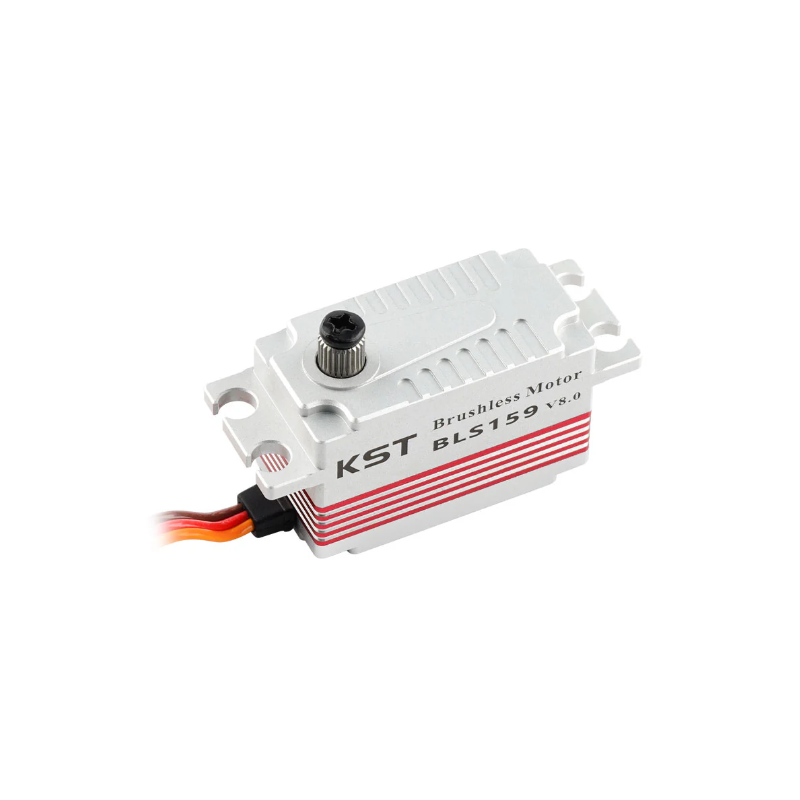

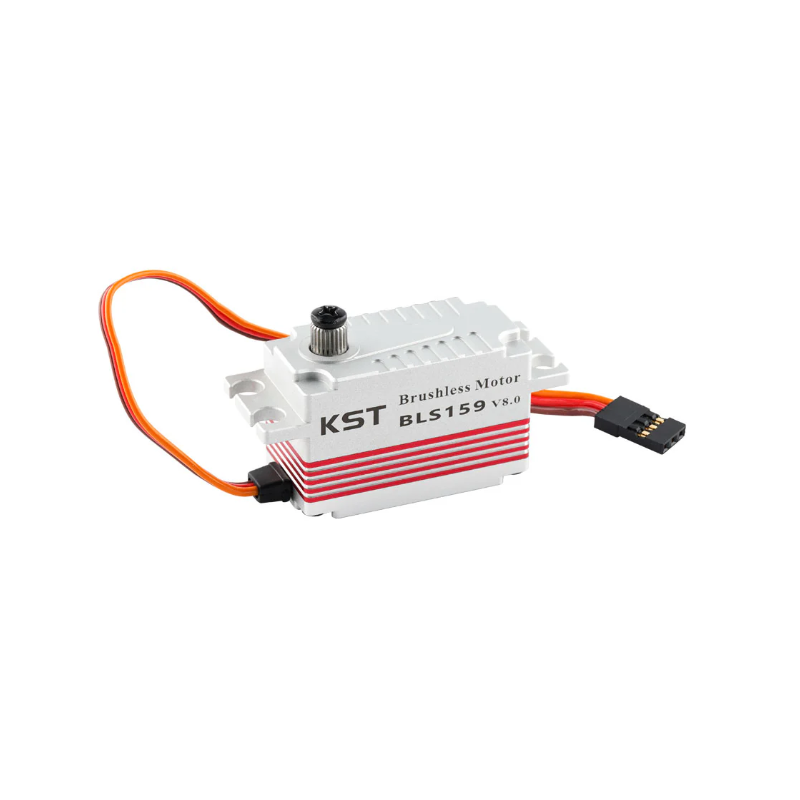

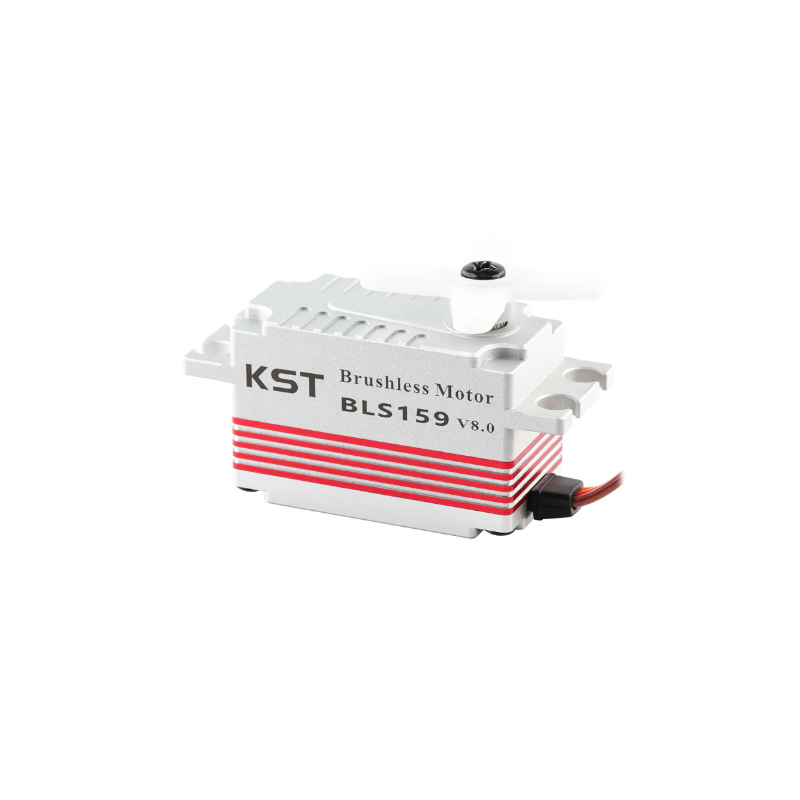

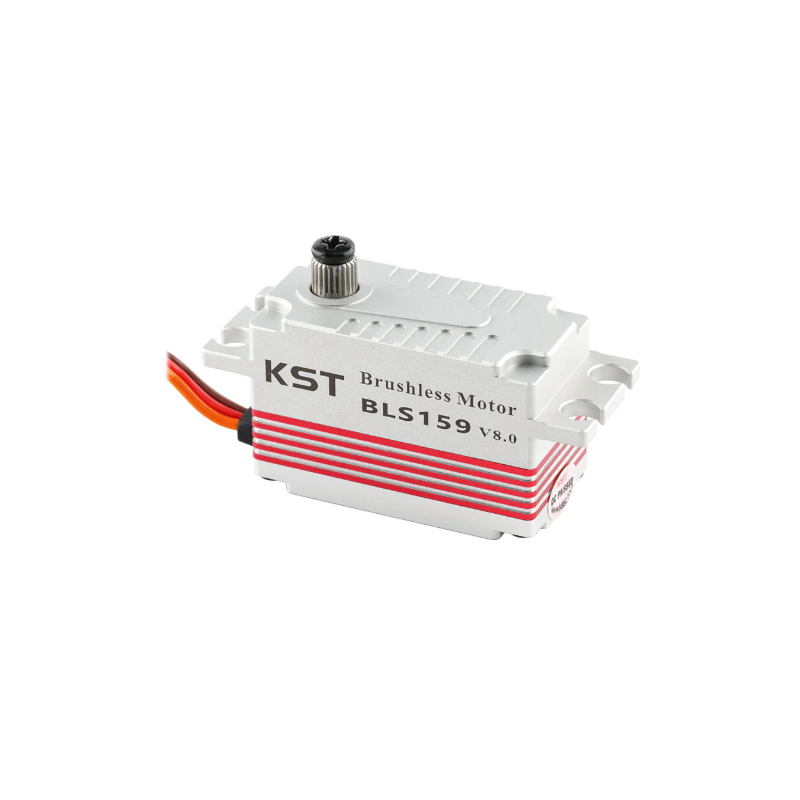

The KST BLS159 Low Profile Brushless Digital Servo HV features a CNC aluminum case, metal servo gears, and a wide input voltage from 6.0-8.4V making this the perfect choice for various RC Car applications from 1/10 scale 2wd Buggy or 4wd Buggy, 1/10 scale drift cars, or anything else where a Low Profile servo is required!
Features
- 2 Ball Bearings
- Brushless DC Motor
- Hardened Steel Gears
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Programmable
Specification
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Stalling Torque: 15Kgf.cm@7.4V
- Rated Torque: 4Kgf.cm@7.4V
- Stalling Current: 3.85A
- Rated Current: 0.65A
- No-load Speed: 0.11sec/60°@7.4V
- Rated Speed: 0.15sec/60°@7.4V
- Working Frequency: 1520us/333Hz

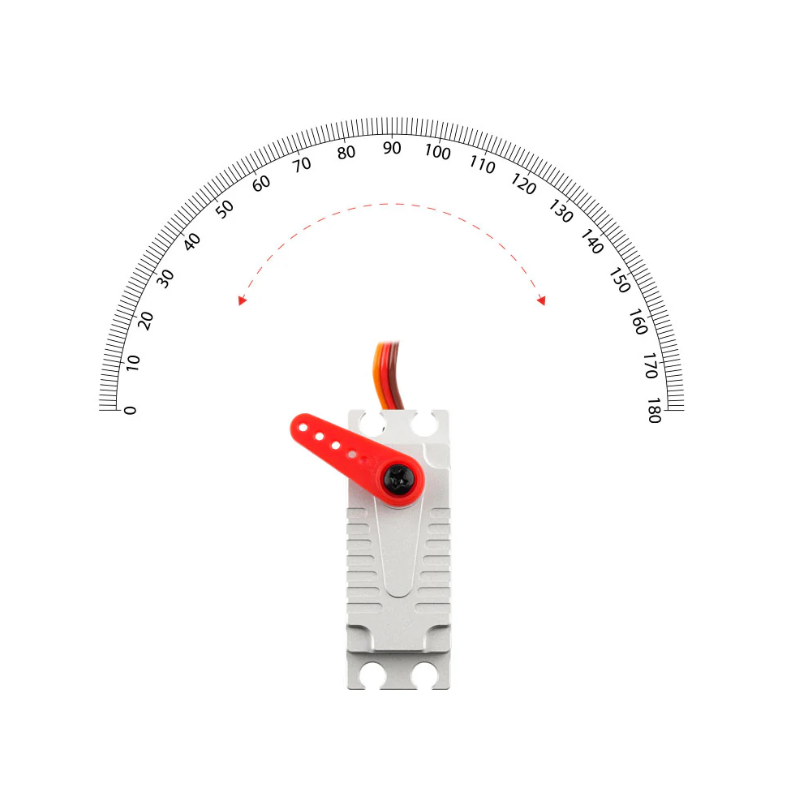

- Default Travel Angle: ±50°=100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

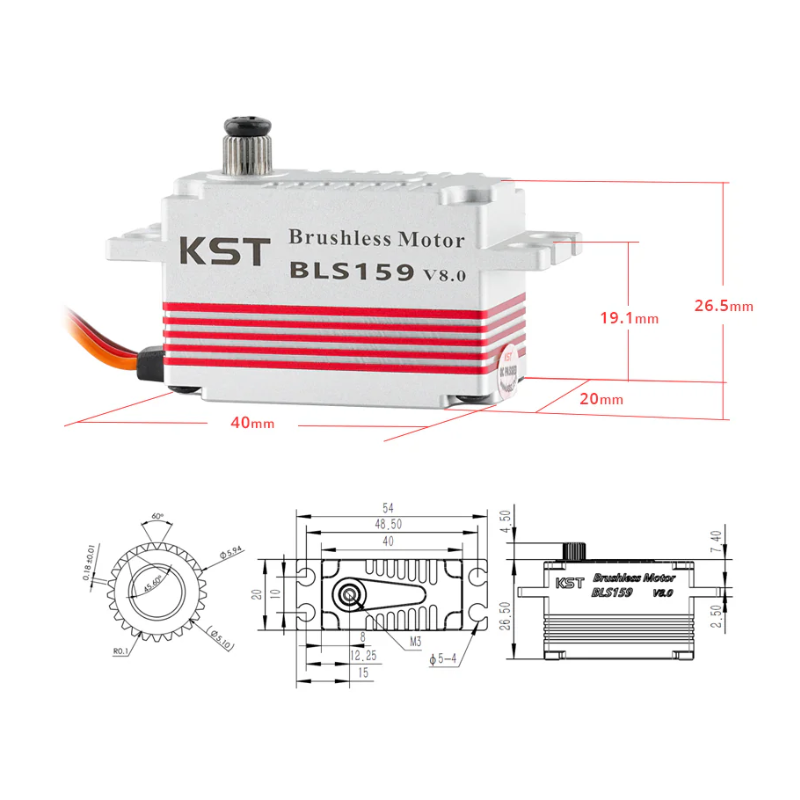

- Case Dimensions: 40mm*20mm*26.5mm±0.2mm
- Weight: 55g±10%
