KST A20-3813 V8.0 Brushless HV Phosphor Bronze & Hardened Steel Gear Servo 43Kgf.cm 0.12sec/60degree

Name: KST A20-3813 V8.0 Brushless HV Phosphor Bronze & Hardened Steel Gear Servo 43Kgf.cm 0.12sec/60degree
Brand: Unmanned RC
Price: 99.00 USD
Availability: InStock

In stock

No reviews

Usually ships within 24 hours

$99.00

Product details

Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

The KST A20-3813 V8 brushless HV servo. The digital brushless HV servo is very well suited for large "big scale" surface models of all kinds. The motor of the fast and extremely powerful KST servo can be loaded with up to 43Kgf.cm. The high-quality, all-aluminum housing can be mounted precisely and ensures good heat dissipation.

Features

Hardened steel gears
Extreme torque and excellent speed
CNC aluminium case
Brushless DC motor

Specification

Item: A20-3813 Brushless HV Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 30Kgf.cm@6.0V, 38Kgf.cm@7.4V, 43Kgf.cm@8.4V
Speed: 0.18sec/60°@6.0V@25℃, 0.13sec/60°@7.4V@25℃, 0.12sec/60°@8.4V@25℃
Working Frequency: 1520μs/333Hz

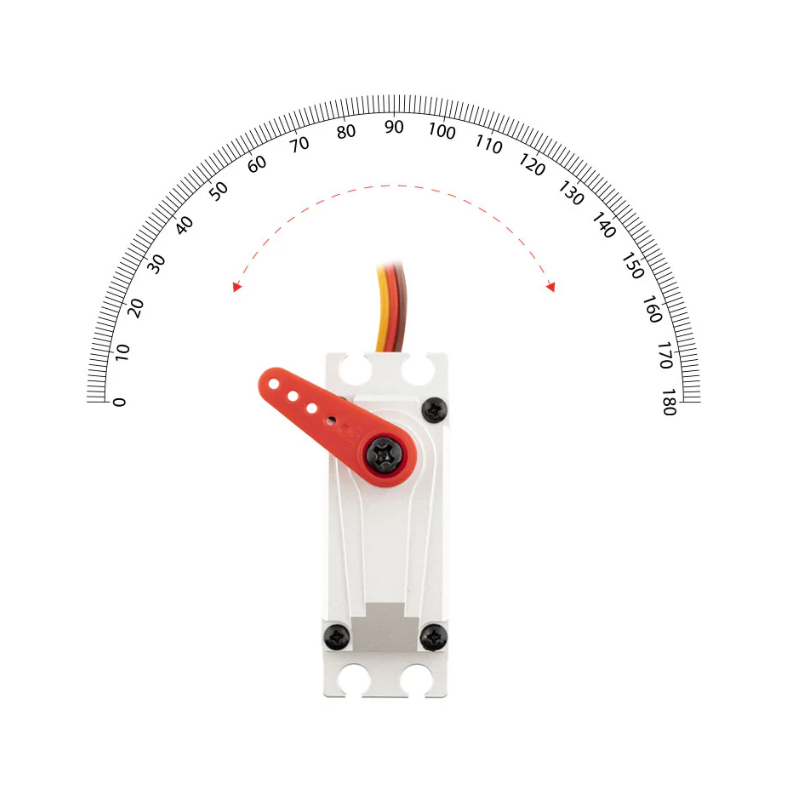

Default Travel Angle: ±50°=100°Total
Operating Temperature Range: -10℃...... +65℃
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB
Case Dimension: 40.5mm*20mm*38mm±0.2mm
Weight: 72g±10%
Shielded Connecting Cable: 22AWG

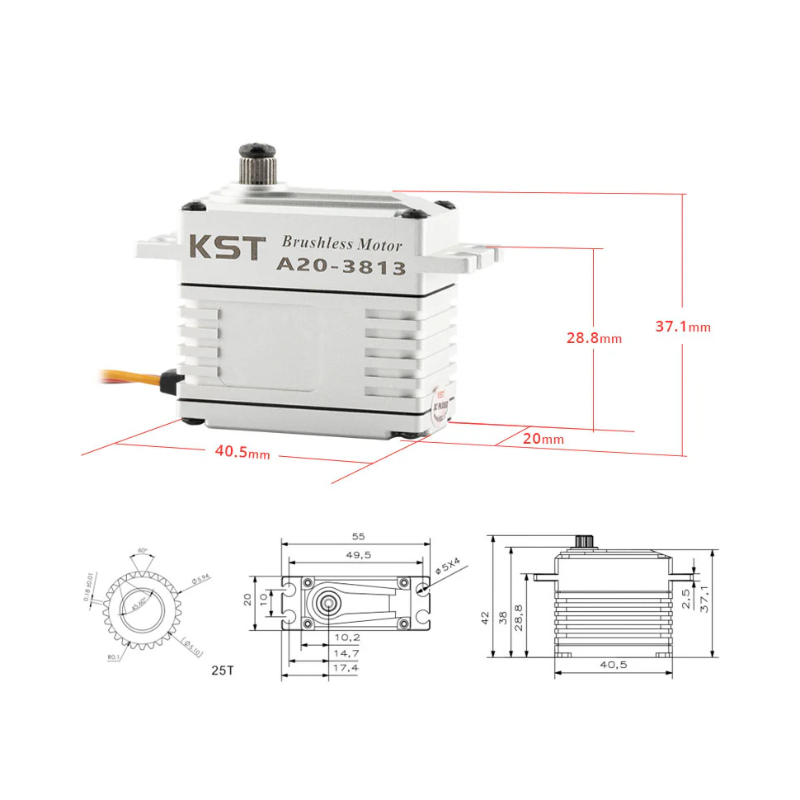

Size

A20-3813 Brushless HV Phosphor Bronze & Hardened Steel Gear Servo 43kg.cm 0.12sec/60degree

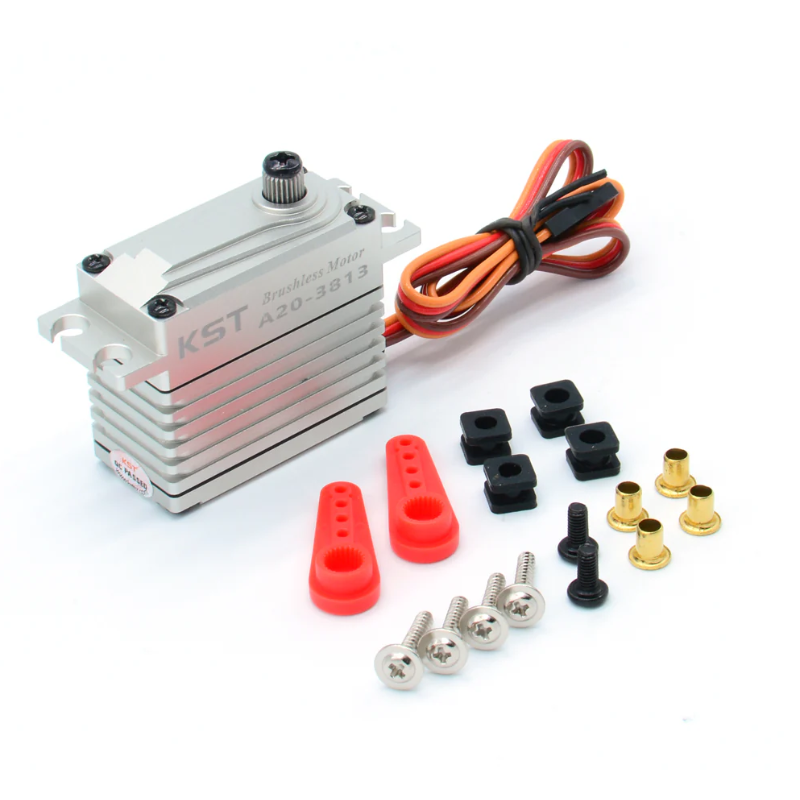

Package Including

1 * A20-3813 Brushless HV Servo
1 * Pack of Accessories
