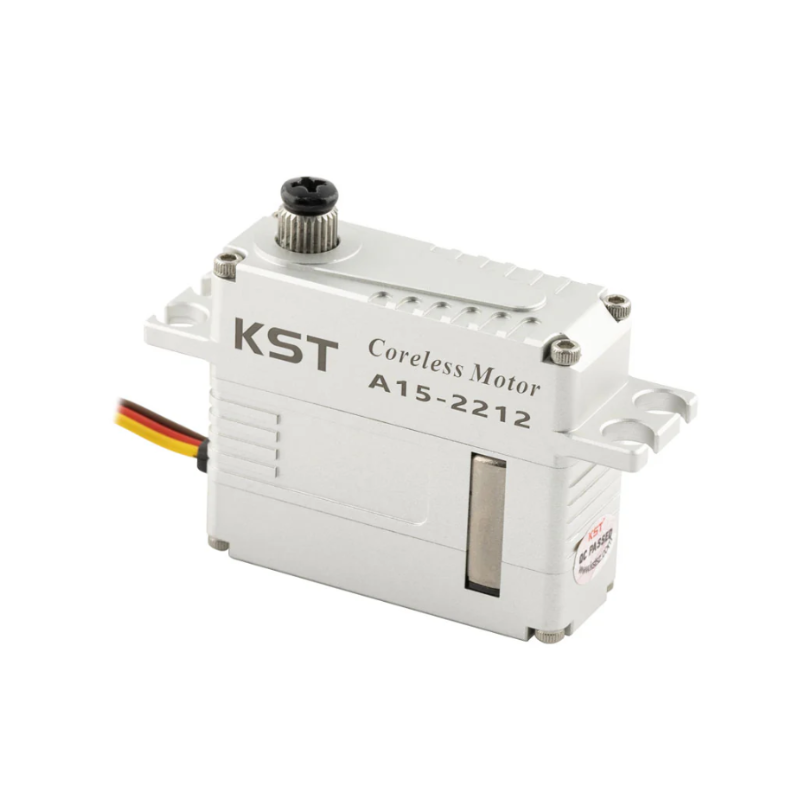

The KST A15-2212 has a thin thickness of 15mm with extremely high positioning force and good positioning time. It can be loaded up to 25Kgf.cm. The digital servo has precise, backlash-free carbide and phosphor bronze gearing and a high level of reset accuracy. The high-quality all-aluminum housing can be mounted precisely and ensures good heat dissipation.
Features
- Standard Servos
- Phosphor Bronze & Hardened Steel Gear
- Extreme torque and Excellent speed
- CNC aluminum case
- Programmable
Specification
- Item: A15-2212 HV Digital Servos
- Rated Voltage DC7.4V
- Voltage Range DC3.8V-8.4V
-
Torque: 18Kgf.cm@6.0V, 22Kgf.cm@7.4V, 25Kgf.cm@8.4V
-
Speed: 0.15sec/60°@6.0V, 0.12sec/60°@7.4V, 0.11sec/60°@8.4V

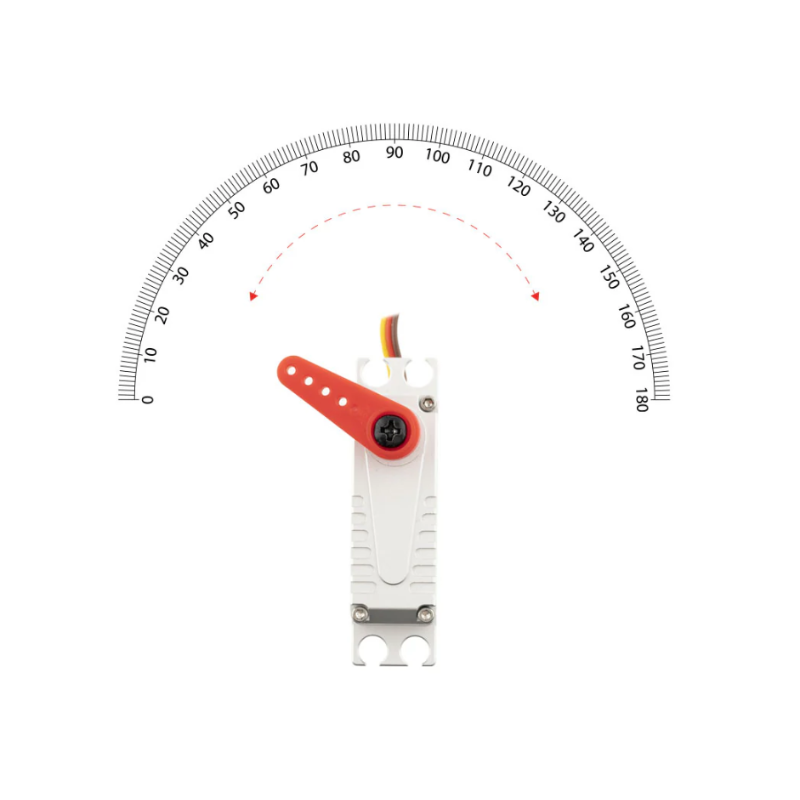

- Default Travel Angle: ±50° = 100° Total
-
Operating Temperature Range: -10℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
-
Case Material: Aluminum Alloy
-
Motor Type: Coreless DC Motor
- Gear Set Material Phosphor: Bronze & Hardened Steel
- Position Sensor Potentiometer
- Ball Bearing 2BB

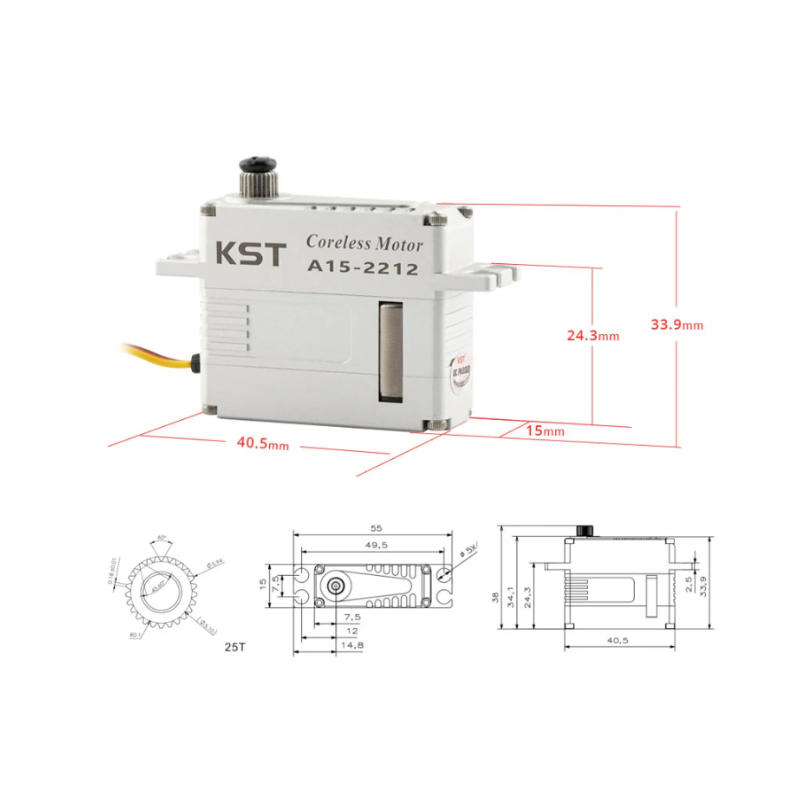

- Case Dimensions 40.5mm*15mm*34.1mm±0.2mm
- Weight 50g±10%

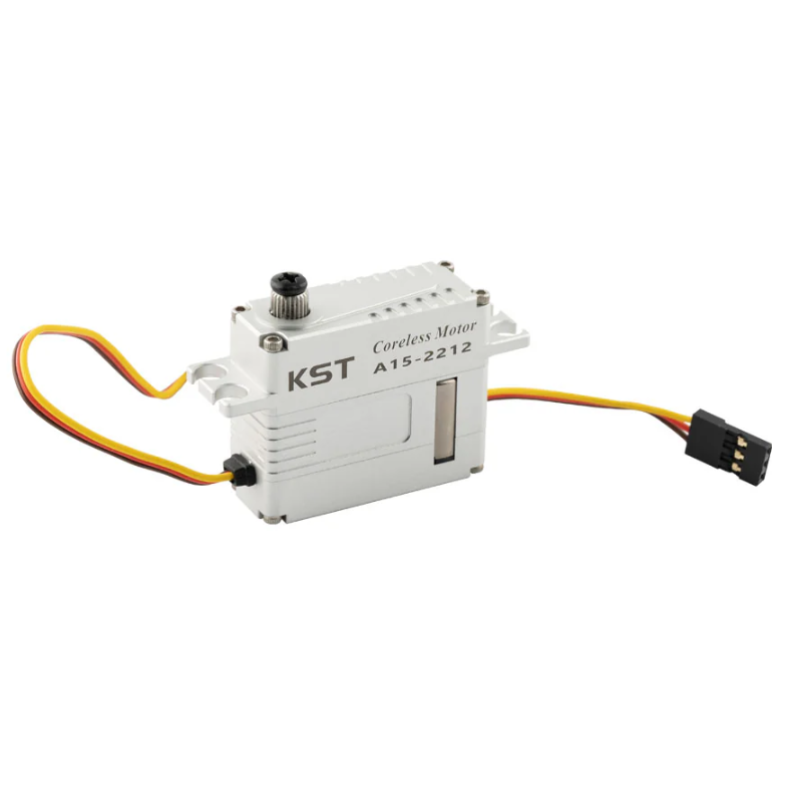

- Shielded Connecting Cable: 22AWG
