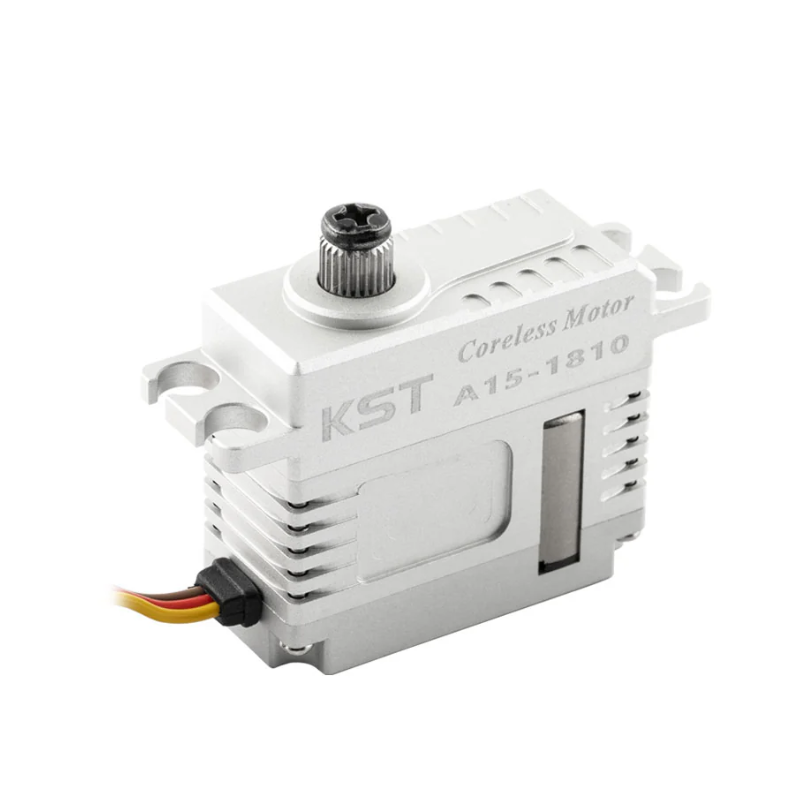

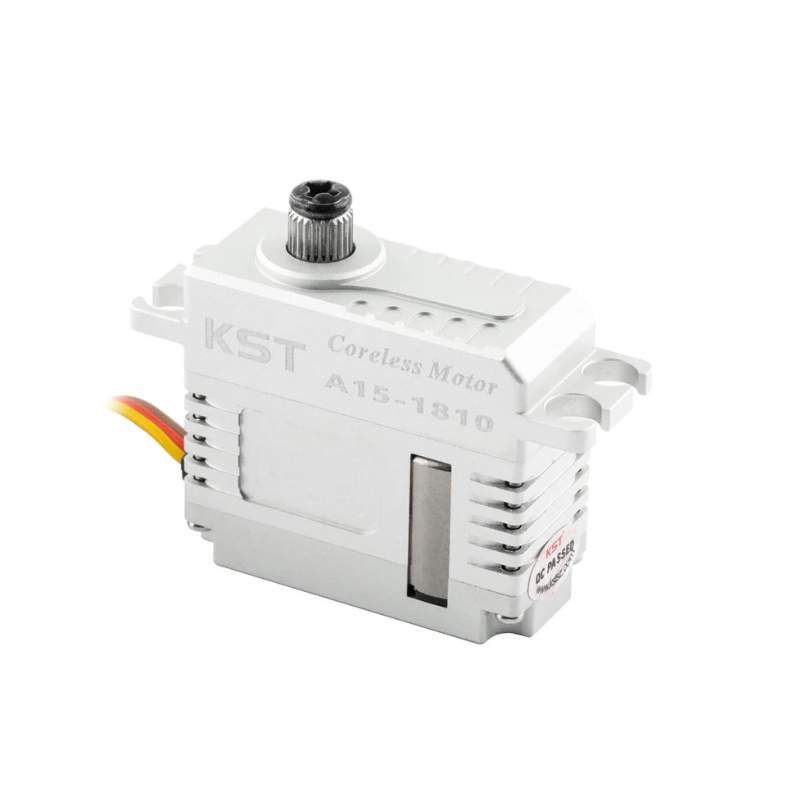

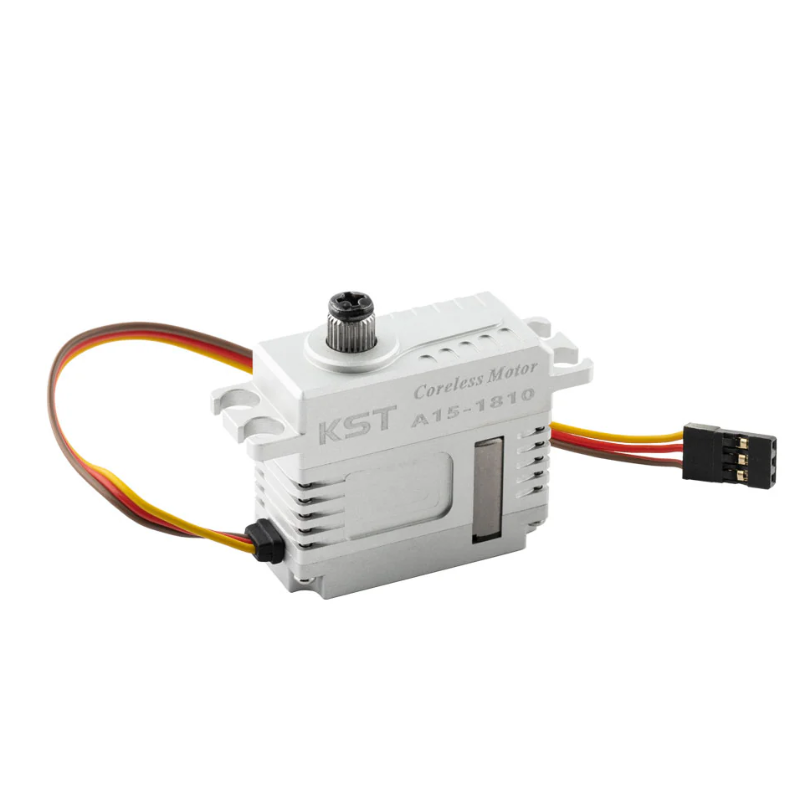

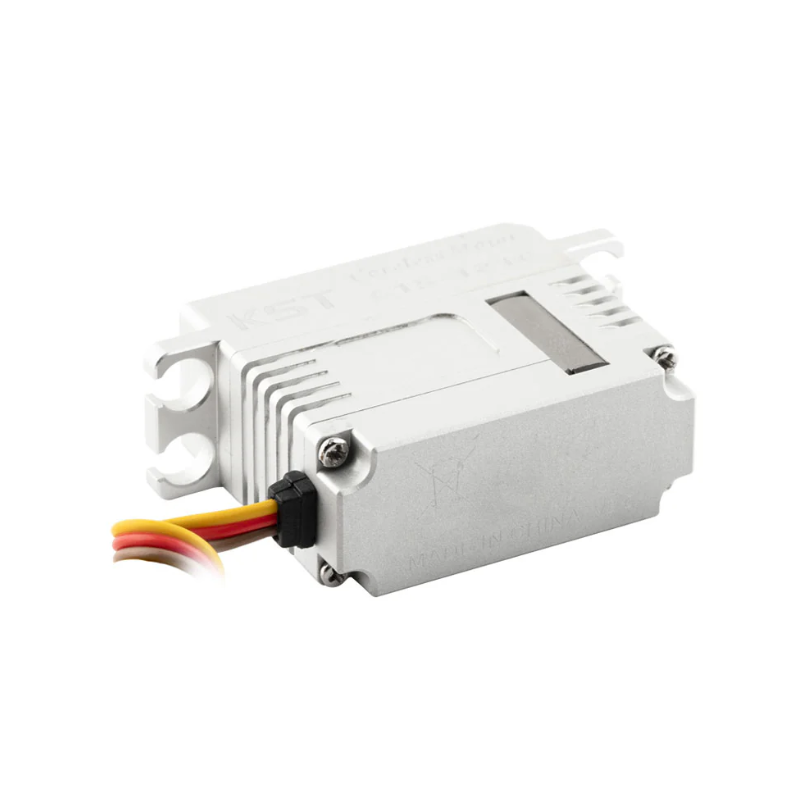

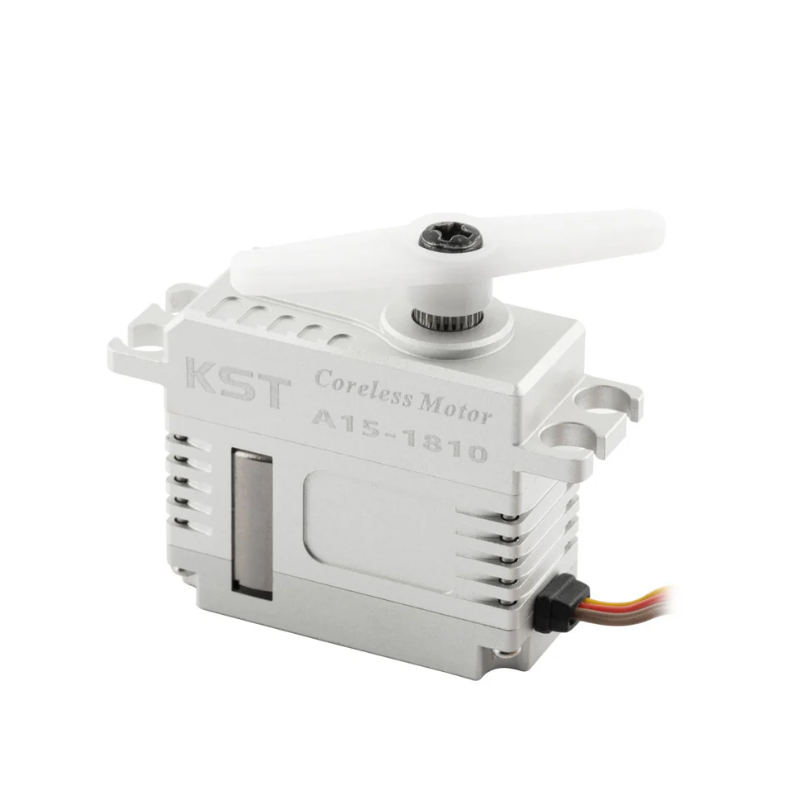

KST A15-1810 HV Phosphor Bronze & Hardened Steel Gear Standard Servo 20Kgf.cm 0.10sec/60°

KST A15-1810 HV servo is among other things, very well suited as a fuselage and wing servo. The servo is very interesting where an extremely strong, fast servo is required. The servo has a low thickness of 15 mm with extremely high positioning power and good positioning time.

The motor of the A15-1810 servo can be loaded with up to 20Kgf.cm. The A15-1810 Digital Servo features precise, backlash-free phosphor bronze and hardened steel gearing. It has a high reset accuracy. The high-quality, all-aluminum housing can be mounted precisely and ensures good heat dissipation.

Features

• Toque up to 20Kgf.cm
• Speeds down to 0.10sec/60deg
• CNC aluminum case
• Hardened steel gear
• Programmable

Specification

• Item: A15-1810 Coreless Mini Servo
• Rated Voltage: DC7.4V

• Voltage Range: DC6.0V-8.4V
• Torque: 15Kgf.cm@6.0V, 18Kgf.cm@7.4V, 20Kgf.cm@8.4V

• Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V

• Working Frequency: 1520μs/333Hz

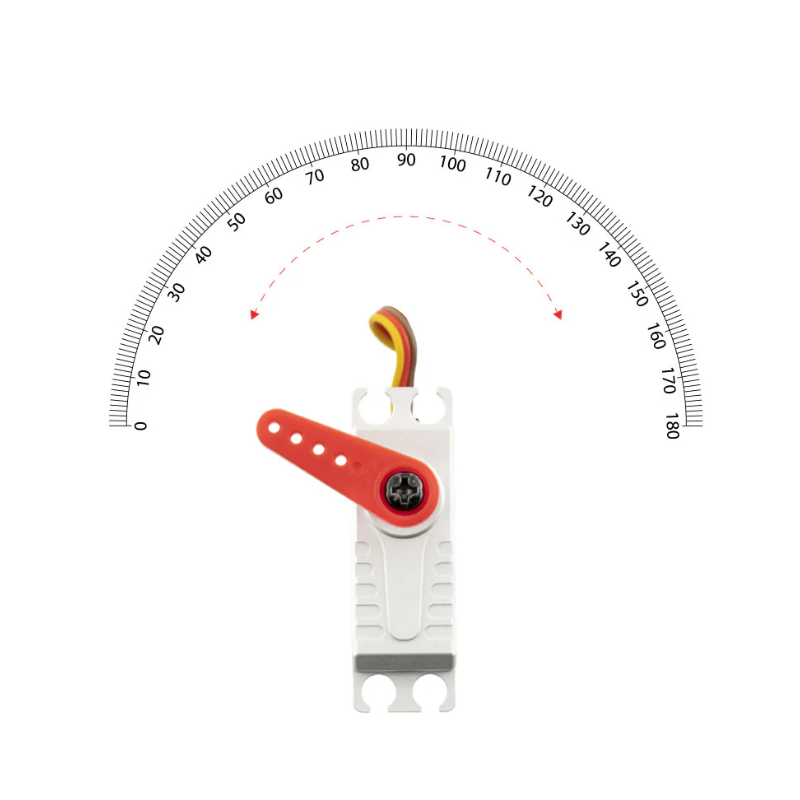

• Default Travel Angle: ±50° = 100° Total

• Operating Temperature Range: -10℃……+65℃
• Soft Start Programmable

• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: Coreless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
• Weight: 42g±10%

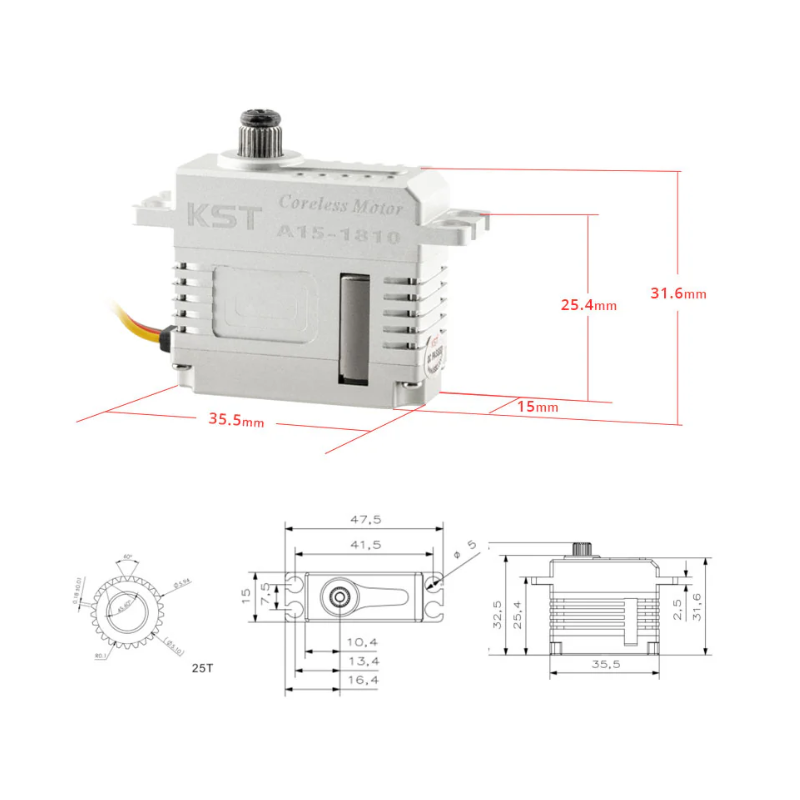

Size

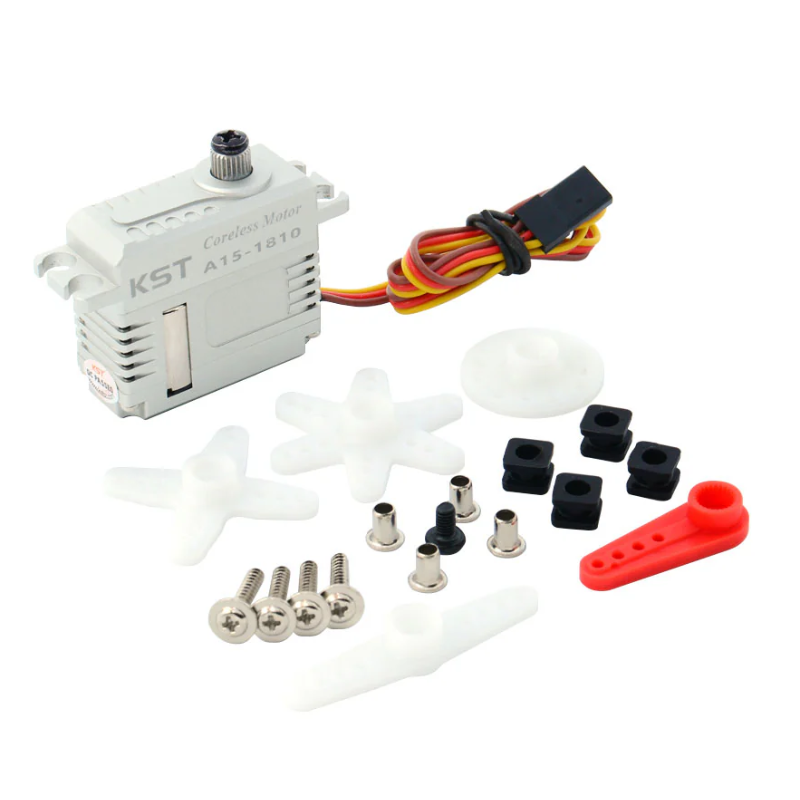

Package Includes

• 1 * A15-1810 Servo
• 5 * Plastic Servo Horn
• 1 * Servo Horn Screw
• 4 * Mounting Screw
• 4 * Rubber Grommet
• 4 * Eyelet
