PMU 2 Lite Feature:
- 220A Current Detection Overcurrent Warning Protection
- 16S Battery Input Wide Voltage, Flexible Adaptation.
- High-Performance Processor Runs M4C Architecture Software.
- CAN Bus Communication Multi-Platform Compatibility.
- 15V/5V Output Extensive Controller Compatibility.
- Aluminum Alloy Shell Excellent Heat Dissipation.
- Factory Pre-Calibrated Ready-to-Use.
| Weight | 0.222 kg |
|---|---|
| Dimensions | 5.73 × 3.23 × 1.75 cm |
| PMU 2 Lite Options |

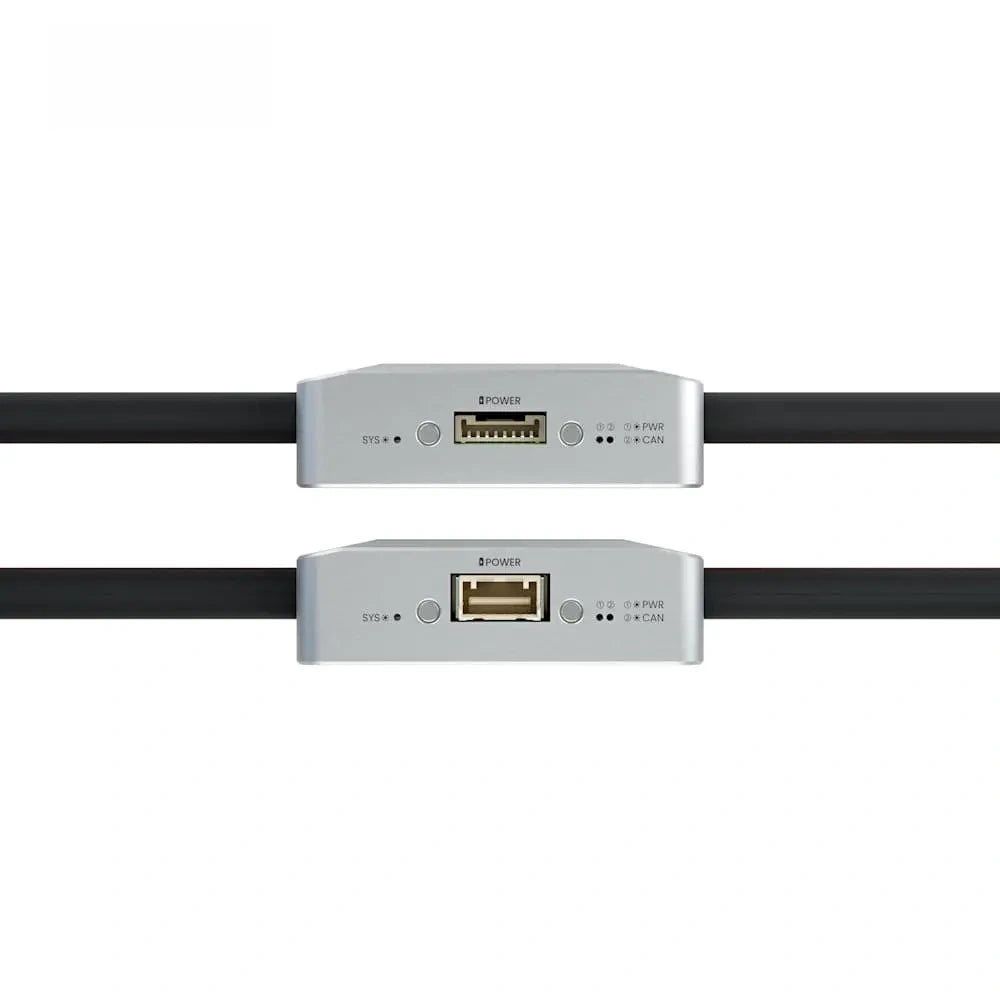

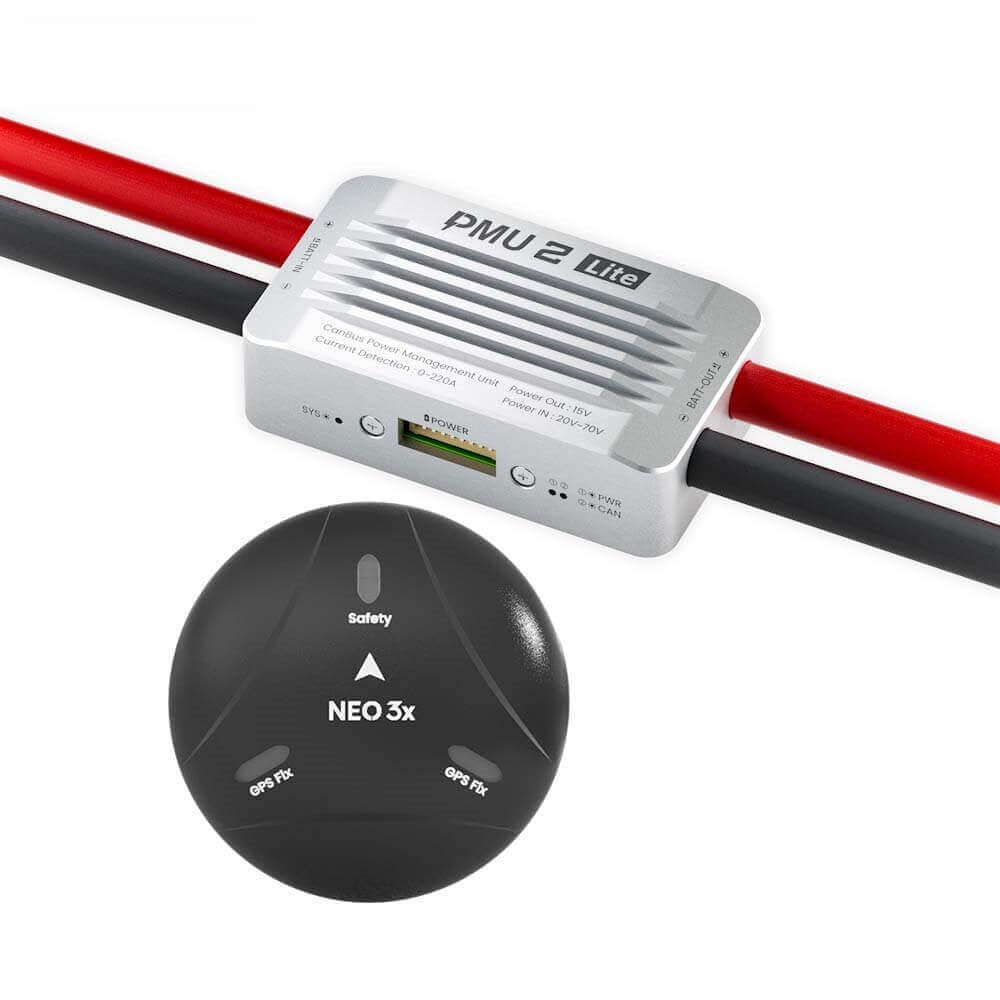

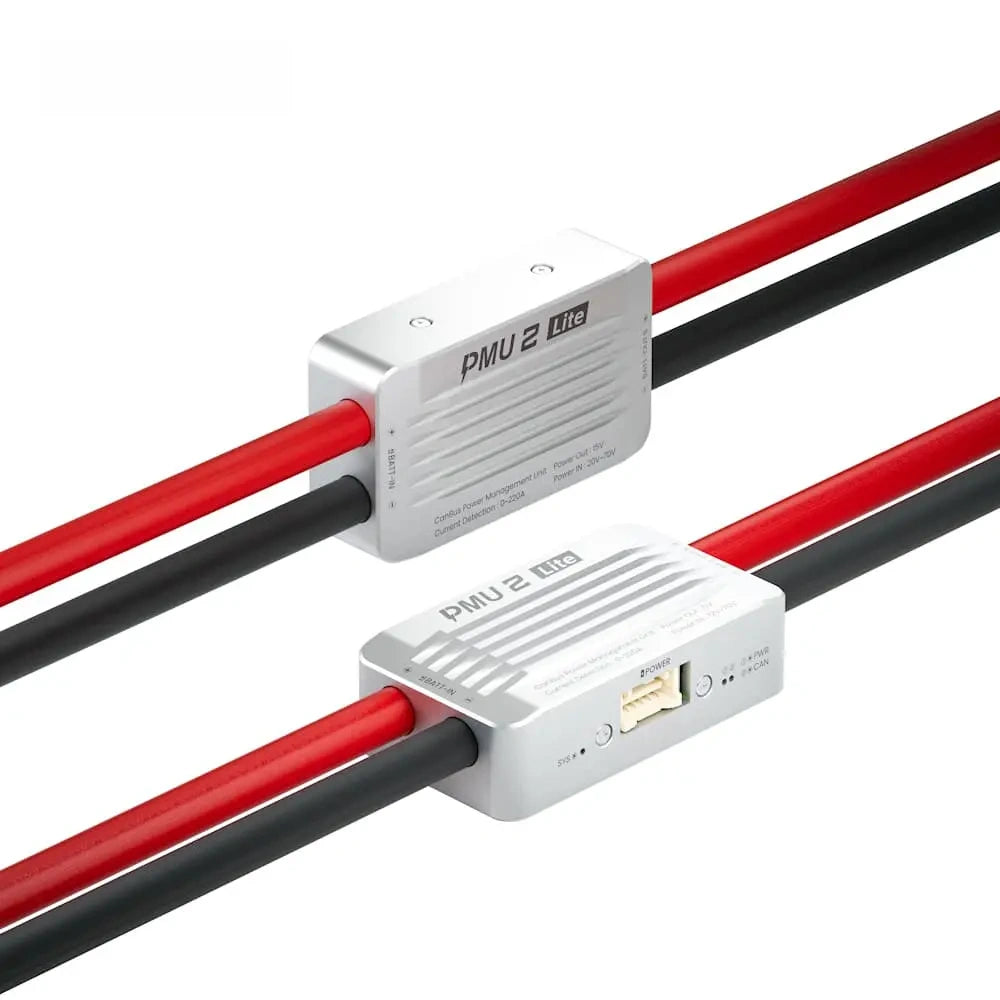

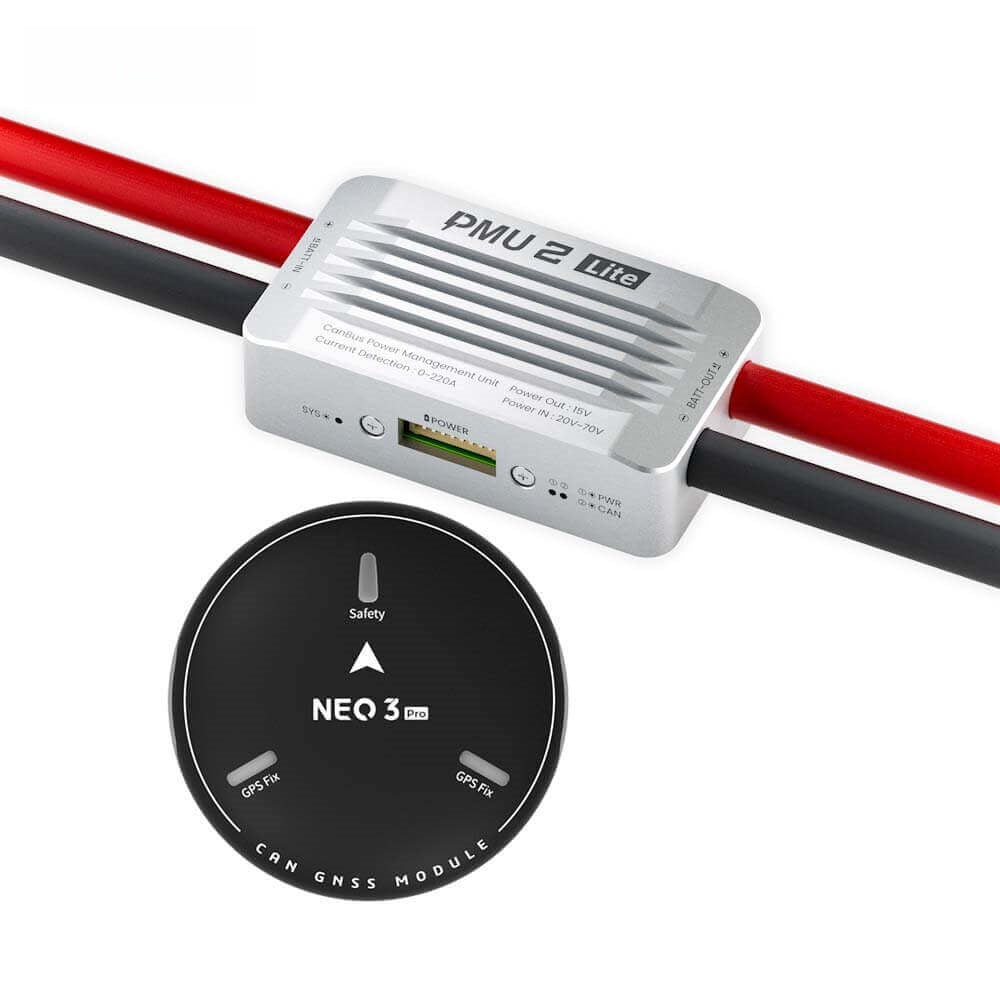

PMU 2 Lite Power Module * 2 Pcs, PMU 2 Lite & NEO 3 GPS / Set, PMU 2 Lite & NEO 3 Pro GPS / Set, PMU 2 Lite & NEO 3X GPS / Set |
| Version |
15V(for X25 EVO), 5V(for V5+), 5V(for X7 Series) |
| Processor |
STM32H5 Arm° Cortex°-M33 250 MHz |
| Input voltage |
15V version:20V~70V ; |
| Instantaneous Current |
220A@120Sec |
| Continuous Current |
130A(good heat dissipation environment) |
| Detection Current |
0A~220A |
| Voltage Accuracy |
±0.05V |
| Current Accuracy |
±0.1A |
| voltage output |
15V version: 15V/6A ; |
| Size |
57.25×32.25×17.5 mm(excluding cable) |
| weight |
222g(including cable) |

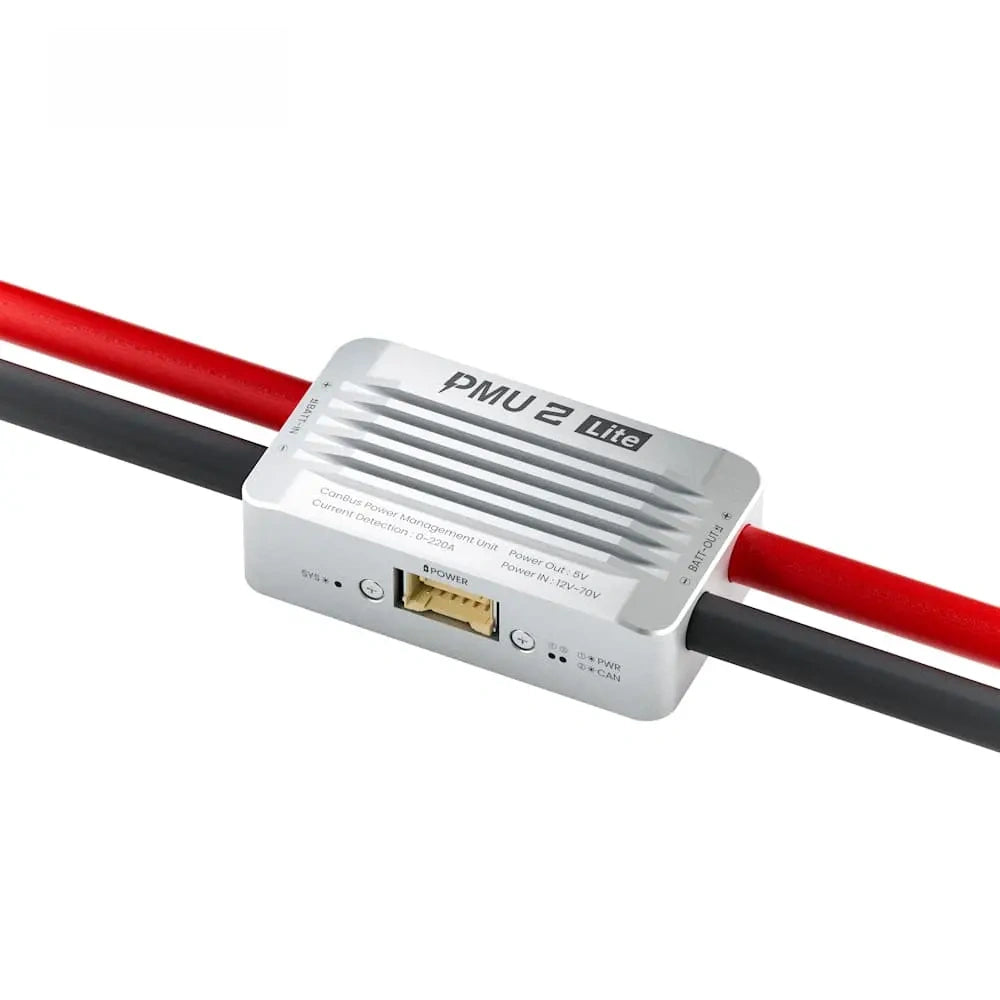

CUAV PMU 2 Lite Power Module Brief:
PMU 2 Lite is a power management unit module for unmanned system devices. It features built-in STM32H5 processor, runs self-developed M4C architecture software, and uses ITT3 temperature impedance tracking algorithm. It can accurately measure the voltage and current of unmanned systems in real time and supports 20V ~ 70V voltage and 220A current. It communicates via CAN bus. Each module has been factory pre-calibrated to ensure good consistency and accuracy
CUAV PMU 2 Lite Power Module Feature:
- ±0.1A / ±0.05V measurement accuracy
- 20V ~ 70V wide voltage input, 220A current detection
- Runs self-developed M4C architecture software
- Adopt the ITT3 temperature impedance tracking algorithm
- Support CAN bus communication protocol
CUAV PMU 2 Lite Power Module Specification:
Basic Parameters |
|
| Processor | STM32H7 Arm° Cortex°-M7 480 MHz |
| Version | x25Evo |
| Gyro&Acce | IIM-42653×2 Gyro Sensing Range:±4OOO°/s Accel Sensing Range: ±32g IIM-42652 Gyro Sensing Range:±2000°/s Accel Sensing Range: ±16g |
| Compass | RM31OO |
| Barometer | TDK IPC20100/Bosch BMP581 |
PortType |
|
| PWM OUT | 16 |
| Power IN (CAN) | 2(5055670871-5055650801) |
| GPS Ports | 2 |
| TELEM Ports | 2 |
| UART4 Ports | 1 |
| RC IN | 1(PPM/SBUS/DSM,etc.) |
| DEBUG Ports (DSU) | 1 |
| Ethernet (ETH) | 1 |
| CAN Bus | CAN1x3 CAN2x2 |
| SPl6 Expansion | 1 |
| ADC 3V3 | 1 |
| ADC 6V6 | 1 |
| USB Ports | 1(Type-C) |
| I2C Ports | 3 |
| RSSI Ports | 1 |
| Power Module | PMU 2 Lite |
Electrical and Mechanical Data |
|
| Input Voltage | USB:4.75v~5.25v PMU 2Lite: 20V～70V Power: 1OV~18V |
| Operating Temperature | -2OC～+85C |
| Size | 76.5× 45.45 ×32.2mm |
| Weight | 110g |
CUAV PMU 2 Lite Power Module Description:
