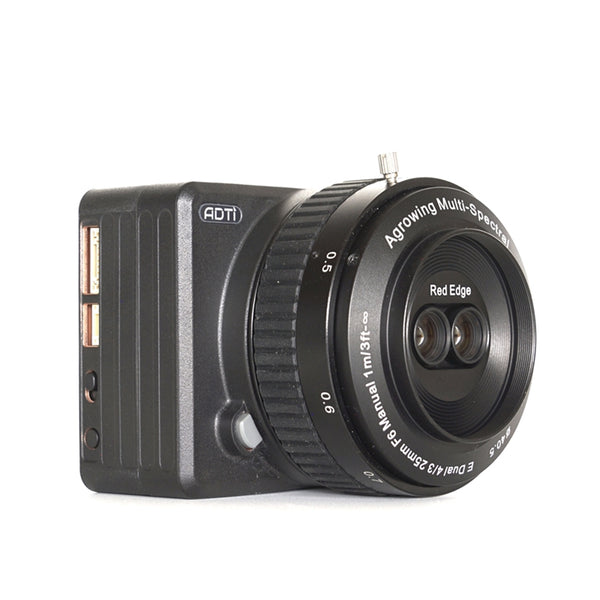

ADTi 24L V2 Dual Multispectral System (25mm NDVI 650-850 and Red-Edge 710-850 )

ADTi 24L V2 Dual Multispectral System consist of ADTi 24L V2 with Agrowing Dual Multispectral lens (25mm NDVI 650-850 and Red-Edge 710-850), as well as Agrowing software AwDemo.

 Click the link to download the Agrowing Multispectral AI-Enabling Technologies presentation to see the details of this multispectral technology.

Read the white paper and case study:

1. What is so special about Agrowing's sensor's technology?

2. ADTi +Agrowing Hight Resolution Multispectral Solution Review

3.Case study: Fertilizers_N-P-K_ratio_Nitrogen_potassium_phosphorus_microelements

Files download link:

1. Agrowing Multispectral Photos Charts

2. Processing Agrowing Imagery with Pix4D Fields

Image Sensor

Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:24.3
Sensor Format:APS-C
Sensor size:366.6mm2 (23.50mm x 15.60mm)
Approximate Pixel Pitch:3.92 microns
Focal Length Multiplier:1.5x
Aspect Ratio:3:2
Color Filter Type:filter-Cut, Multispectral
Anti Aliasing Filter:Fixed
Color Depth （bits):23.8
Maximum Effective ISO:1,347

Image Capture

Image Resolution:
6000 x 4000 (24.0 MP, 3:2),
Image File Format:JPEG, RAW, RAW+JPEG
Continuous-mode frames/second:4.0

Lens & Optics

Lens Mount:Agrowing Dual
Normal Focus Range:25 cm to Infinity
Auto Focus: Yes
Manual Focus: Yes

Shutter Type:Mechanical shutter
Speed:1/8000-30sec

Multispectral Features:

lens type: Dual lens single mount
Spectral Bands: 40nm wide, 450;550;650;850nm NDVI lens, 450;550;710;850nm Red-Edge lens
Effective focal length: 25mm
Effective resolution per channel: 12MP
Focus type: Manual
Focus range: 2m - infinity
Aperture: F6.0
Field of view: Diagonal 45.90 Horizontal 35.0 Vertical 26.60
Distortion:<1%
Relative Illumination: 68%
Iris: fixed F6
Lens dimension: (ØxLxW) 60x35.2 mm
Lens weight: (assessment)135 g

Screen Size: 2 inch mini touch screen

Camera Physical Features:

Camera Size:  77*62*38.4 mm
Camera Weight: 130 g (no lens) - 265 g (with dual lens)
Package Size: 300*200*150 mm
Package Weight: 500 g
Power: 10-25V DC Lipo or Liion
Operating Temperature: -10 to 40°C

Camera Options:

25mm NDVI includes: ADTi 24L V2 camera*1, Agrowing NDVI multispectral lens 25mm 650-850nm*1
25mm RedEdge includes: ADTi 24L V2 camera*1, Agrowing Red-Edge multispectral lens 25mm 710-850nm*1
25mm NDVI and RedEdge includes: ADTi 24L V2 camera*1, Agrowing NDVI multispectral lens 25mm 650-850nm*1 and Agrowing Red-Edge multispectral lens 25mm 710-850nm*1
25mm NDVI and RedEdge and RGB includes: ADTi 24L V2 camera*1, Agrowing NDVI multispectral lens 25mm 650-850nm*1 and Agrowing Red-Edge multispectral lens 25mm 710-850nm*1, and RGB filter*1. and 25mm APS-C lens*1
