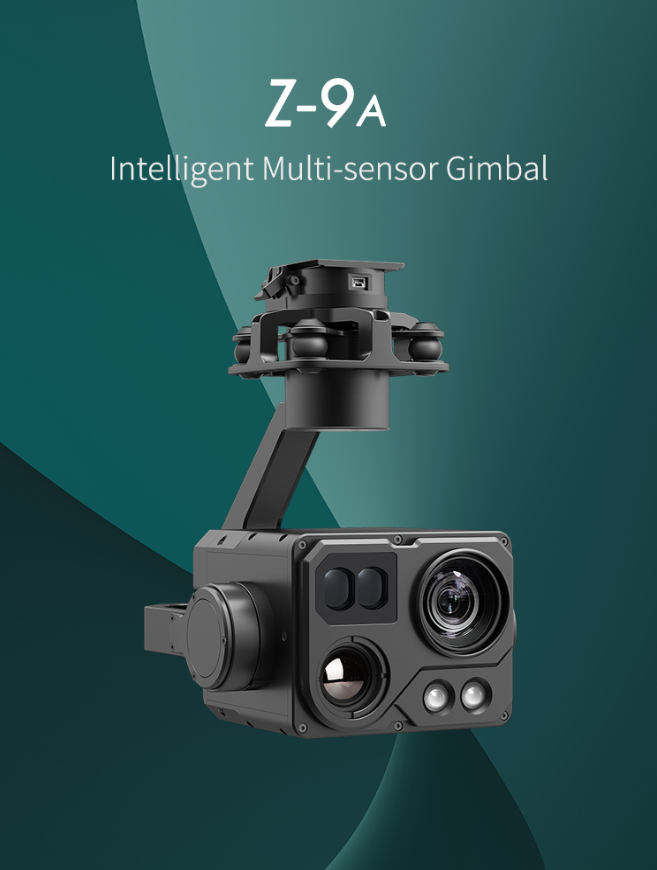

Z-9A Quad-light Multi-sensor Gimbal

The Z-9A equips with a high-accuracy 3-axis gimbal, a 2.07M pixels 120x hybrid zoom camera and a long-wave thermal camera, which can provide visual and infrared images simultaneously.

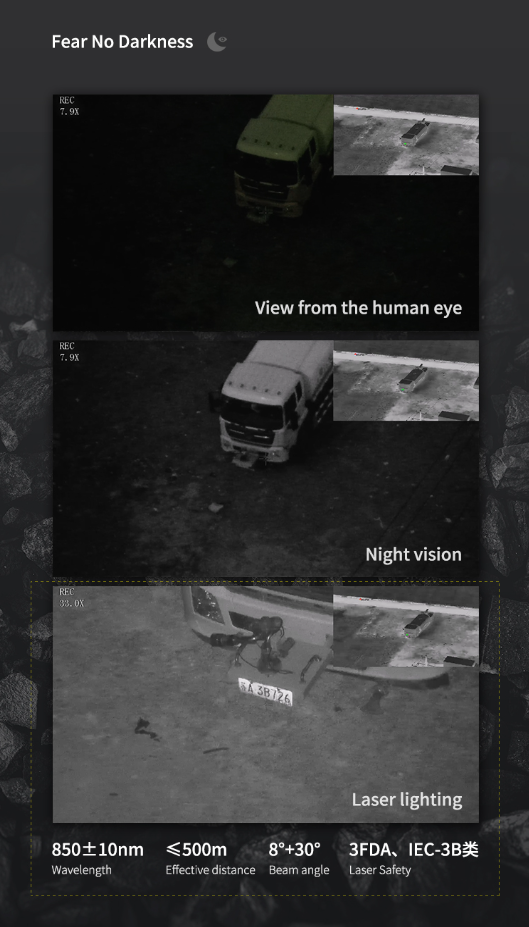

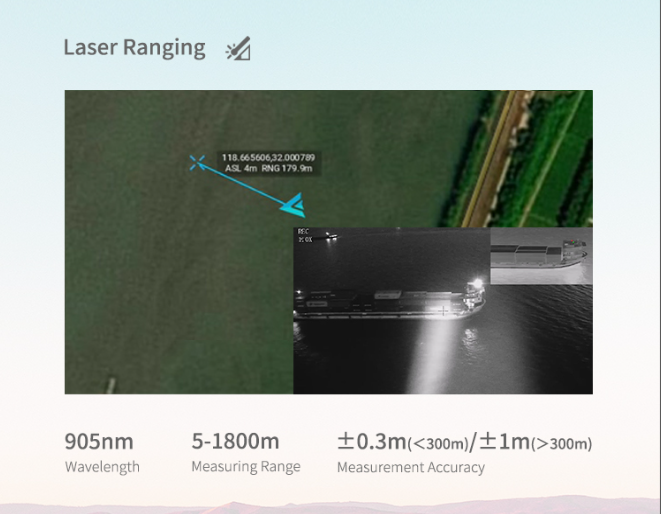

Combined with the laser lighting module and starlight level night vision function, the Z-9A can provide a clear visual light image even in complete dark environments. Thanks to the laser range finder, the Z-9A can provide the location of a target and the distance to it that improves working efficiency.
The Z-9A can be mounted tool-lessly onto unmanned aerial vehicles with its quick-release port.
It is able to be applied on multiple industries such as firefighting, forest police, public security, search & rescue and environment protection.

Characteristics

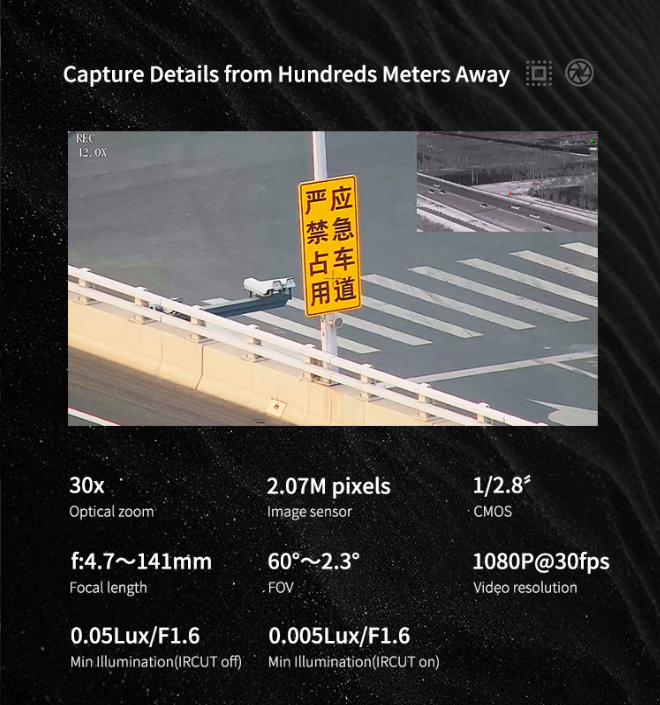

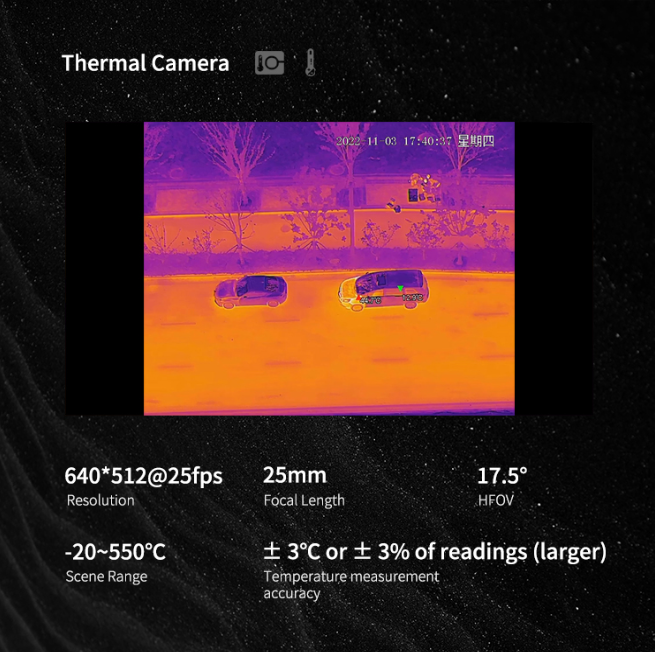

⚫ Carries a 120x hybrid zoom (30x optical zoom) camera, a 25mm focal length thermal camera, an 1800m laser range finder and 2 laser lighting modules.

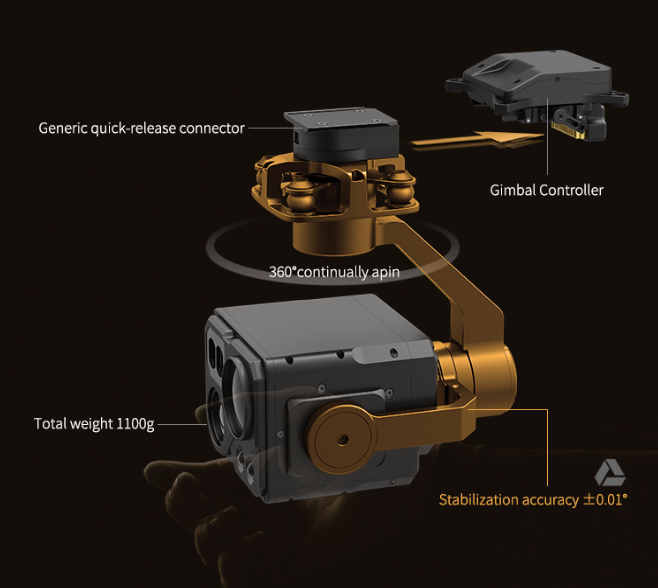

⚫ 3-axis mechanical stabilized structure which is able to spin continually around its yaw axis.
⚫ With the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the Z-9A provides a stabilization accuracy at ±0.01°.
⚫ Image supports shooting point coordinate EXIF save.

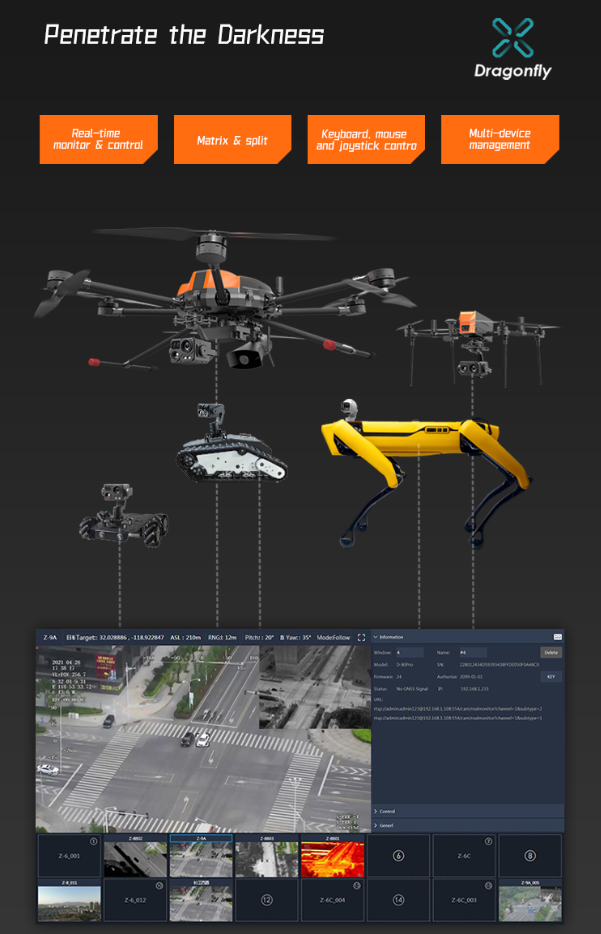

⚫ Support remote screen projection and docking command platform.
⚫ Can be mounted tool-lessly onto unmanned aerial vehicles with its quick-release port.
