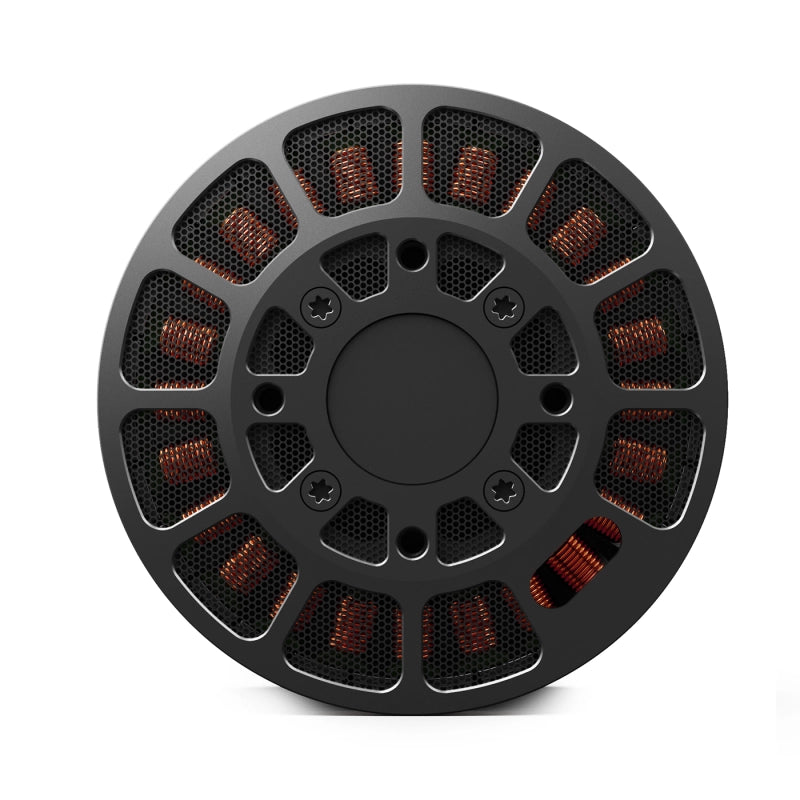

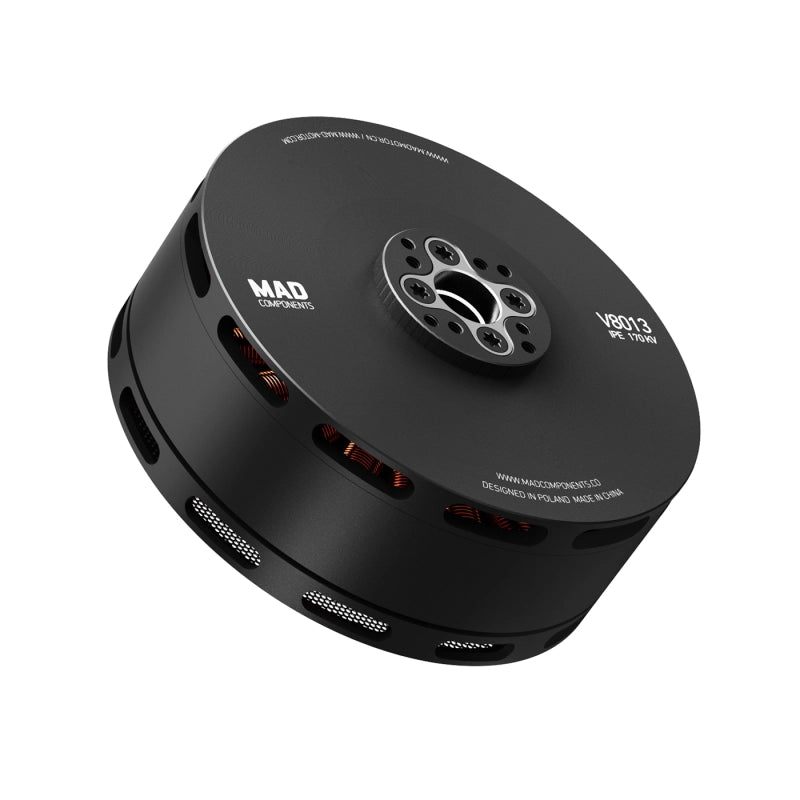

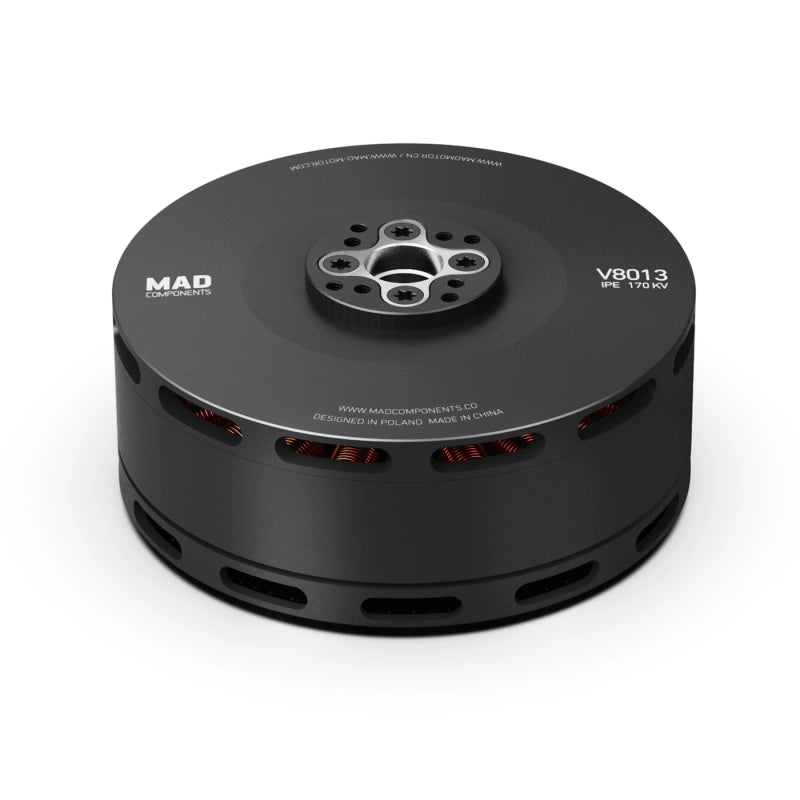

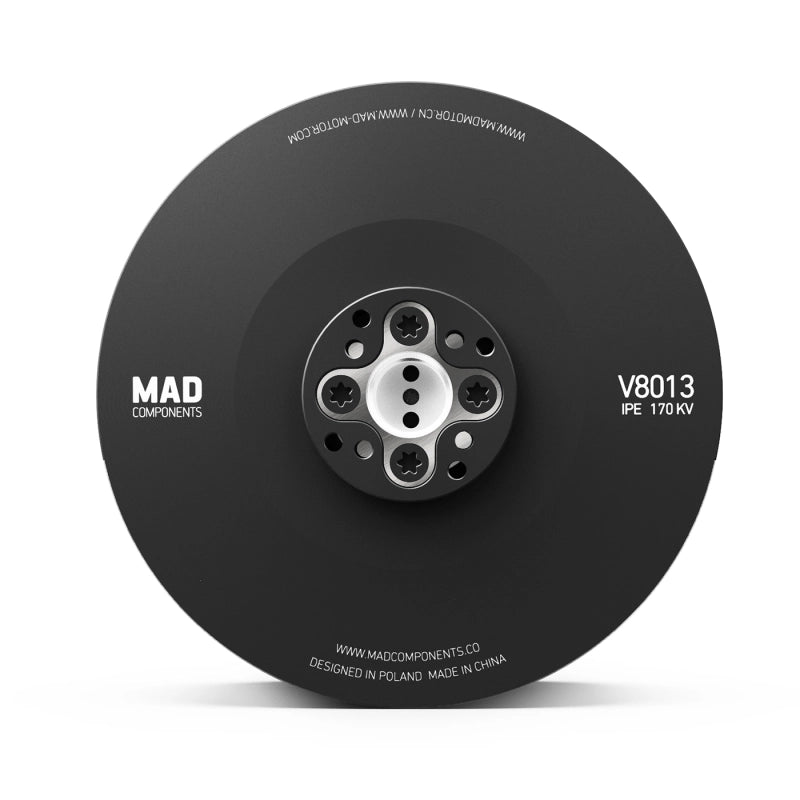

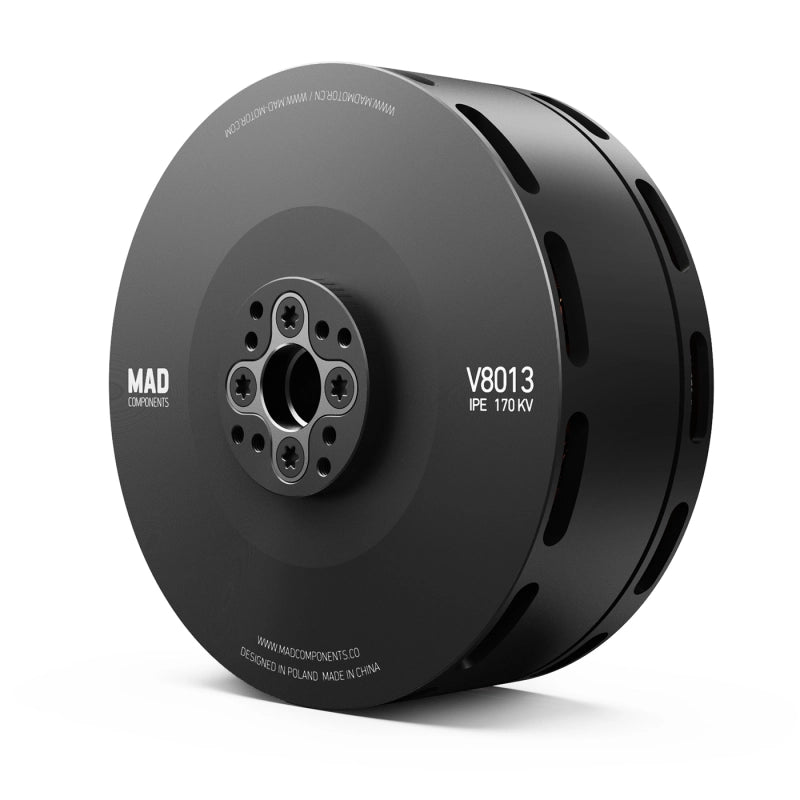

MAD V8013 IPE eVTOL Drone Motor
Usually ships within 24 hours
Regular price
$259.00
Couldn't load pickup availability
Designed to carry payloads of 4.5-6.5kg per rotor, with 28" carbon propeller. Max thrust is up to 14.5kg per rotor, unit motor weighs only 1910g. with large pitch eVOTL CF propellers, achieving large load, high efficiency and excellent reliability, providing reliable power support for various endurance flights of professional aerial UAVs.
-
Solution
| VTOL Motor/KV | VTOL Prop | VTOL ESC |
| V8013 130KV | Fluxer VTOL 26x7.8/27x8.1/28x8.4in | MAD AMPX 80A (5-14S) |
| VTOL Battery(Lipo)/Voltage | VTOL Thrust Per Motor(kg) | The recommended takeoff weight(4 rotors) |
| 12S(单节4.3V)/42-52V | 4.5kg ~ 6.5kg | 22kg |
| Note:For a coaxial configuration, a total thrust loss of 25% should be considered. | ||
| SOLUTION 2 | ||
| VTOL Motor/KV | VTOL Prop | VTOL ESC |
| V8013 150KV | Fluxer Vtol 26x7.8in | MAD AMPX 80A (5-14S) |
| VTOL Battery(Lipo)/Voltage | VTOL Thrust Per Motor(kg) | The recommended takeoff weight(4 rotors) |
| 12S(单节4.3V)/42-52V | 4.5kg ~ 6.5kg | 21kg |
| Note:For a coaxial configuration, a total thrust loss of 25% should be considered. | ||
| SOLUTION 3 | ||
| VTOL Motor/KV | VTOL Prop | VTOL ESC |
| V8013 170KV | Flxuer Vtol 26x7.8in | MAD AMPX 120A (5-14S) |
| VTOL Battery(Lipo)/Voltage | VTOL Thrust Per Motor(kg) | The recommended takeoff weight(4 axes) |
| 12S(单节4.3V)/42-52V | 6kg ~ 8kg | 28kg |
| Note:For a coaxial configuration, a total thrust loss of 25% should be considered. | ||
