UnmannedRC X90 is a lightweight 900mm size quadcopter that features MAX 52 mins flight time (no payload), and 24 mins with1.5kg payload, the MTOW (Max Takeoff Weight) is 11 kg.
It can carry gimbal camera for aerial inspection, also with SIYI UniRC 7PRO it can reach 15km data/video range, also it can carry ADTi mapping camera for photogrammetric mapping, with our adti 26MP Ultra lightweight camera, it can fly over 30 mins enduance.
UnmannedRC X90 works with Solid State Lipo Battery 6S 22000mAh.

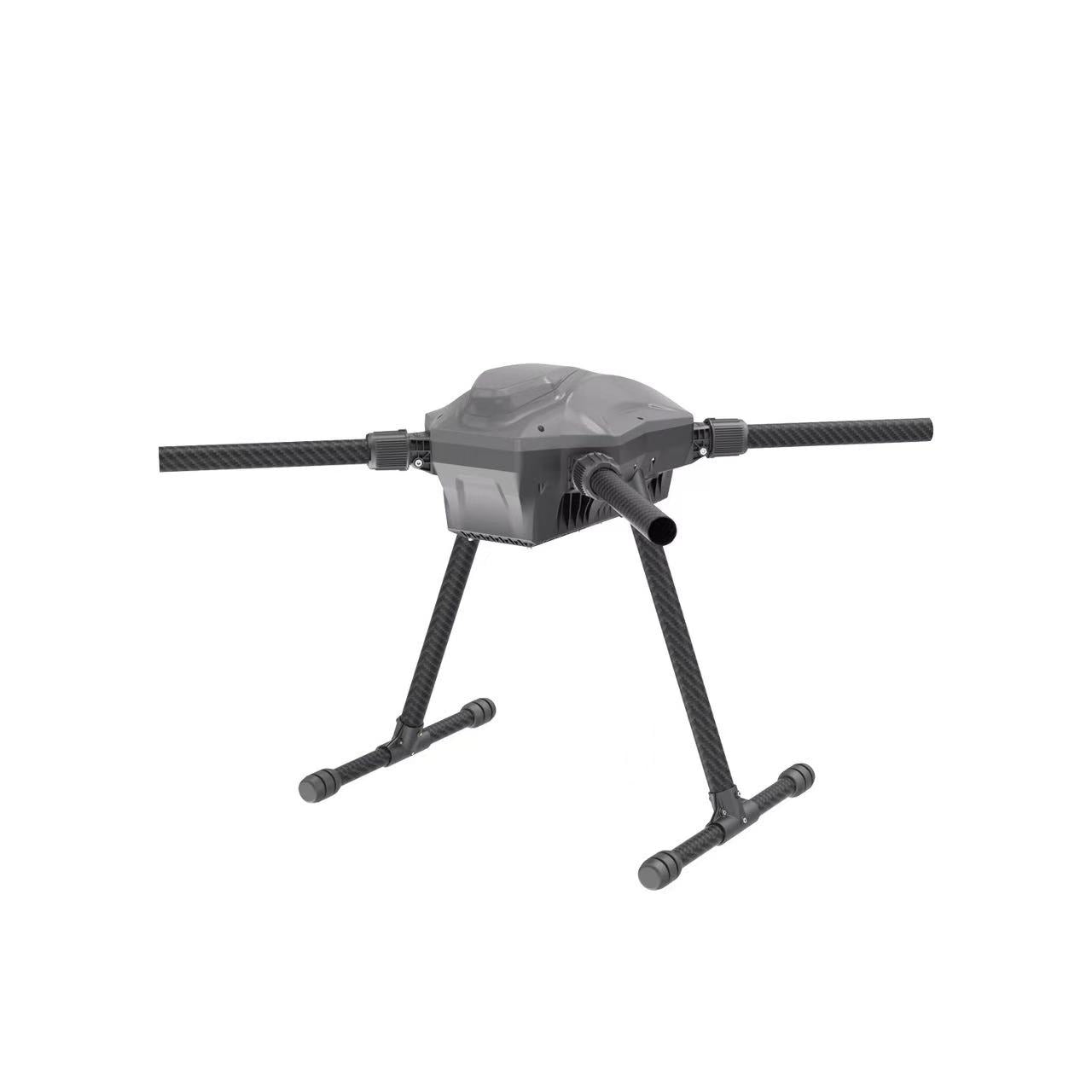

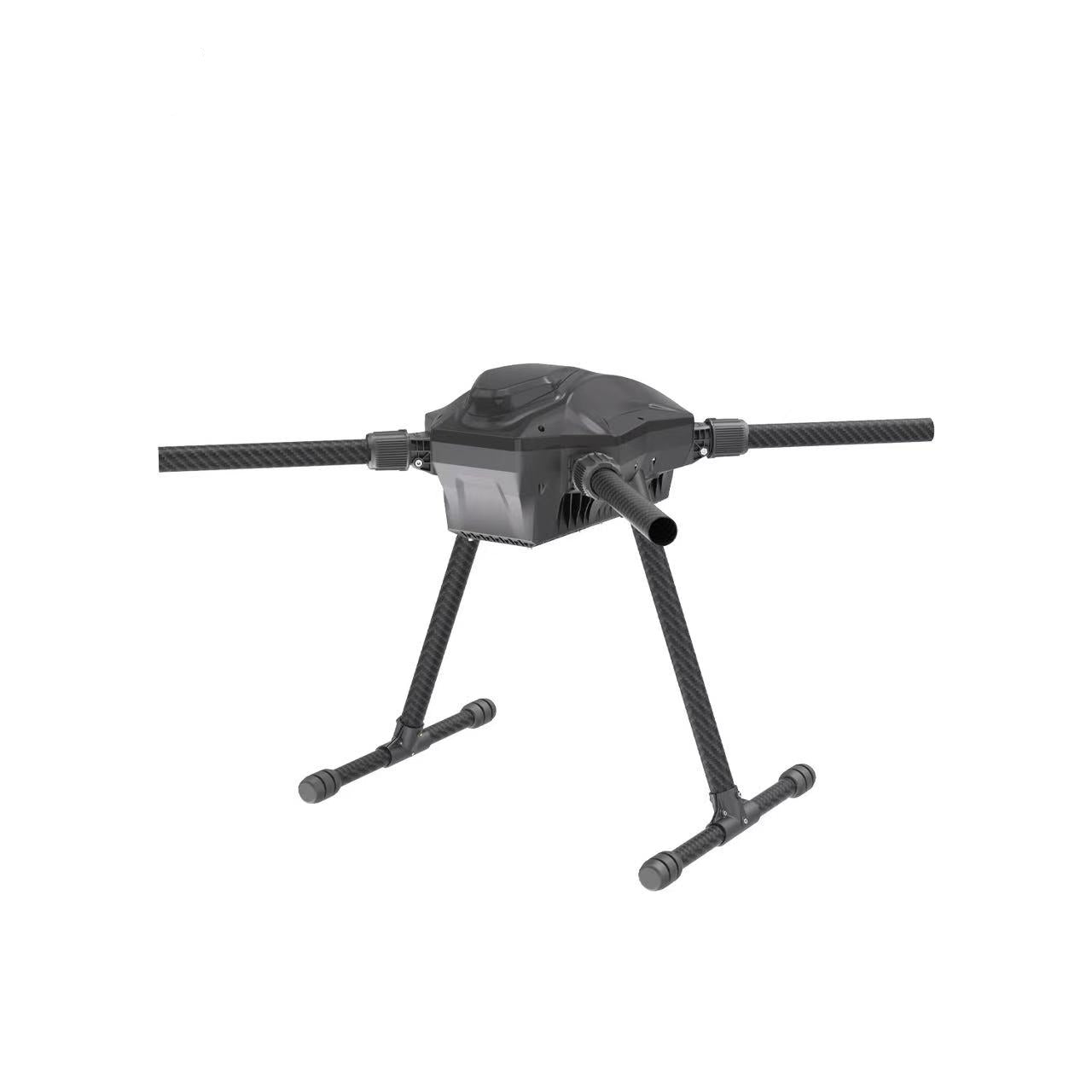

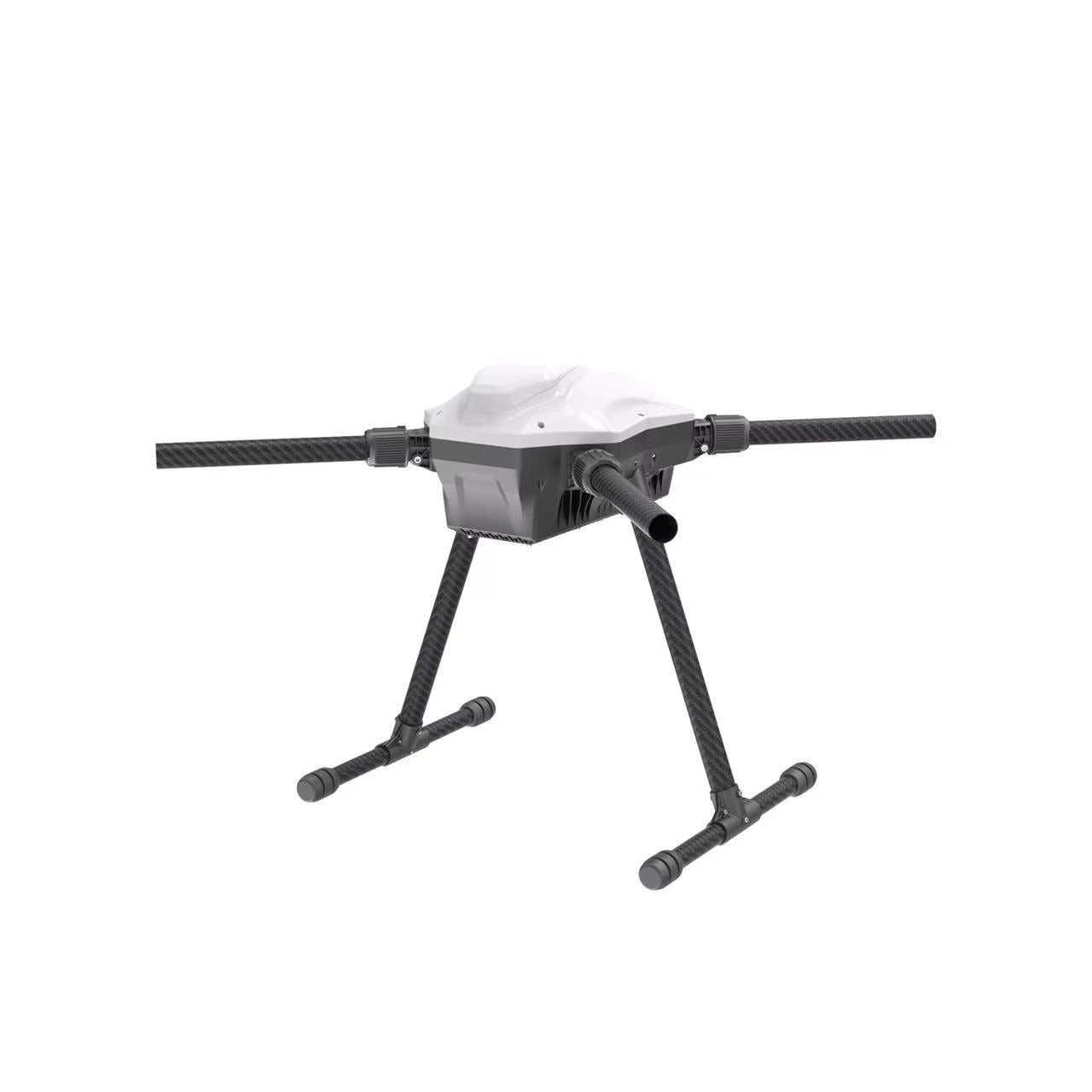

The X90 has different colours to choose:
The X90 adopts a split design, and the GPS can be installed on top of the case. The upper and lower covers of the entire fuselage are sealed to effectively achieve dustproof and waterproof.
The fuselage adopts one-piece injection molding process, and other parts can be quickly installed, making the installation simple and concise.
The fuselage has a built-in power distribution board and 8 XT30 power ports reserved for simple installation and wiring.
Integrated battery bay with a spring-pressed opening design, it is compatible with a variety of batteries, the internal space of the battery bay is 245*100*68mm.
A gimbal mounting plate is installed at the bottom, which is compatible with many common camera gimbals on the market, and also reserves other mounting positions for another payload.
The X90 adopts downward folding, plastic-coated arm structure, and 90-degree quick-turn buckle design.
The X90 PNP version includes 4 sets of X6-SE proplusion systems. The maximum thrust of each X6-SE proplusion system can reach 6.2 kg, and the weight of a single set is only 385g. It is compatible with 25MM carbon fiber tubes.
Frame version including as following:
PNP version including as following:
Specifications:
Dimension: Unfolded, propellers and landing gears included,710*710*550mm Folded, propellers and landing gears included,340*430*500mm
Diagonal Wheelbase: 900mm
Weight: 11kg with 22Ah 6S battery
Max takeoff weight: 11kg
Max Payload: 3kg
Operating Frequency: 2.4000-2.4835 GHz; 5.725-5.850 GHz
Hovering Accuracy (Loiter ): ± 0.5m
Max Angular Velocity: Pitch: 300°/s, Yaw: 120°/s
Max Pitch Angle: 40°
Max Ascent Speed: 16.4 ft/s (5 m/s)
Max Descent Speed (vertical): 9.8 ft/s (3 m/s)
Max Wind Resistance: 39.4 ft/s (12 m/s)
Max Service Ceiling Above Sea Level: 9842 feet (3000 m)
Max Flight Time: 52 min (no payload) 24 mins with 1.5kg payload.
Ingress Protection Rating: IP65
GNSS: GPS+GLONASS
Operational Temperature: -4° to 122° F (-20° to 50° C)
Package not includes:
