UnmannedRC X450 Quadcopter Frame Kit

In stock
Usually ships within 24 hours
Regular price $560.00
Version
Product details
  • Vendor Unmanned RC

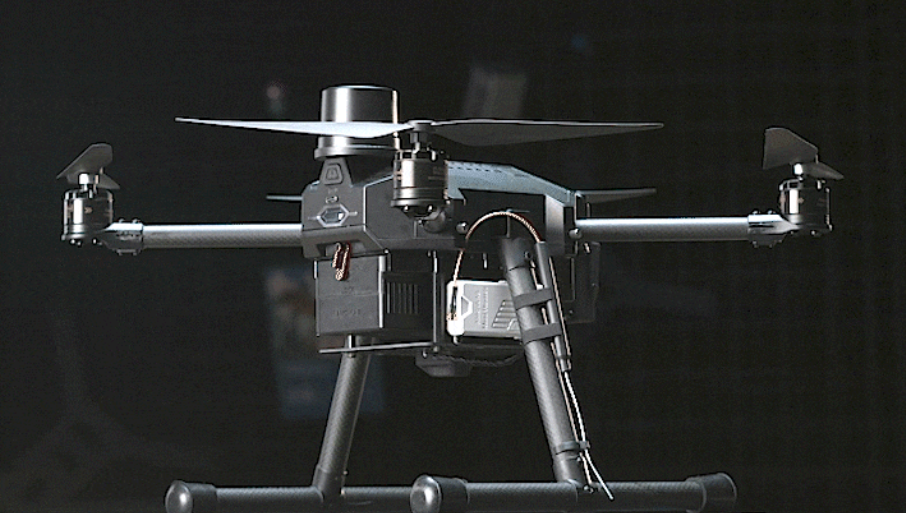

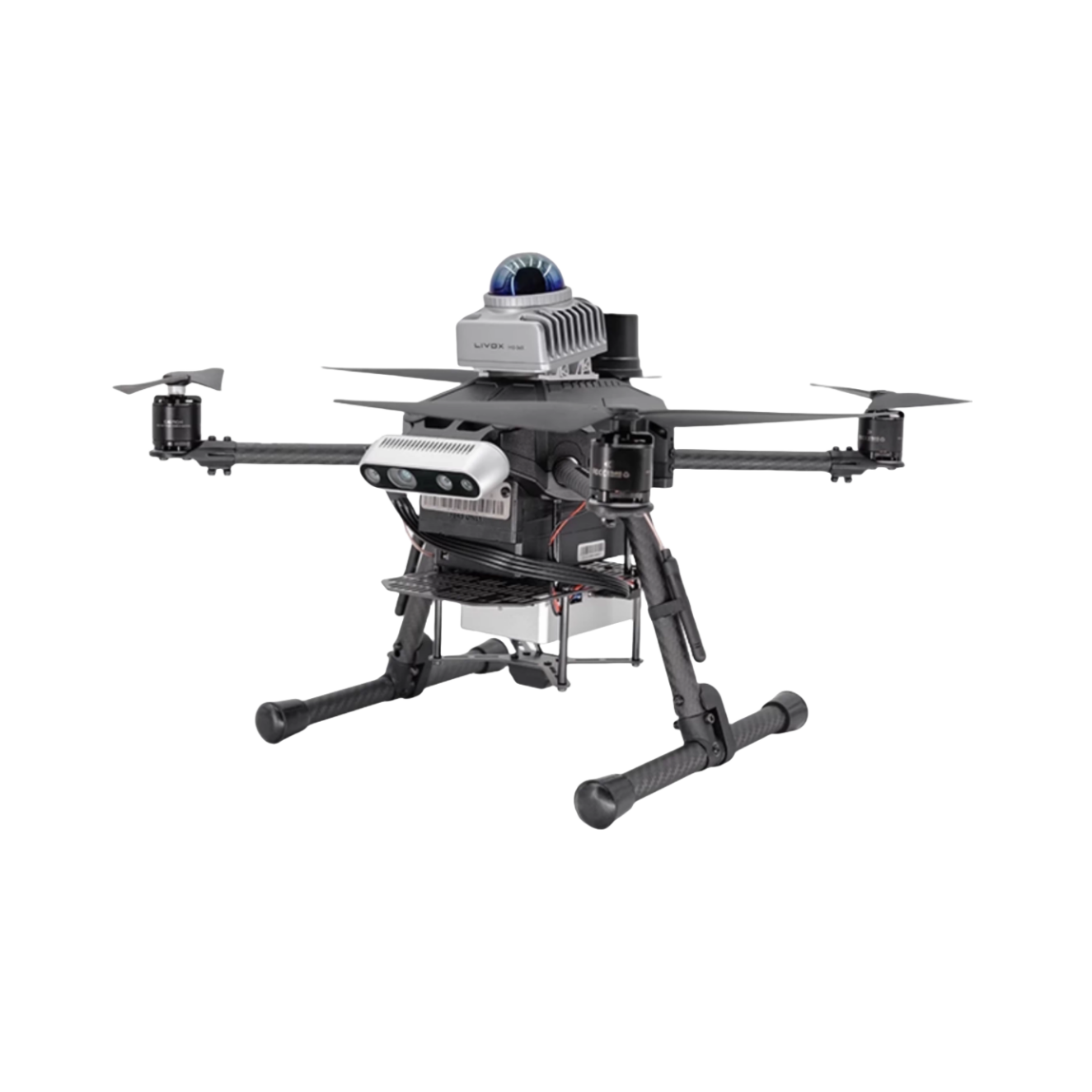

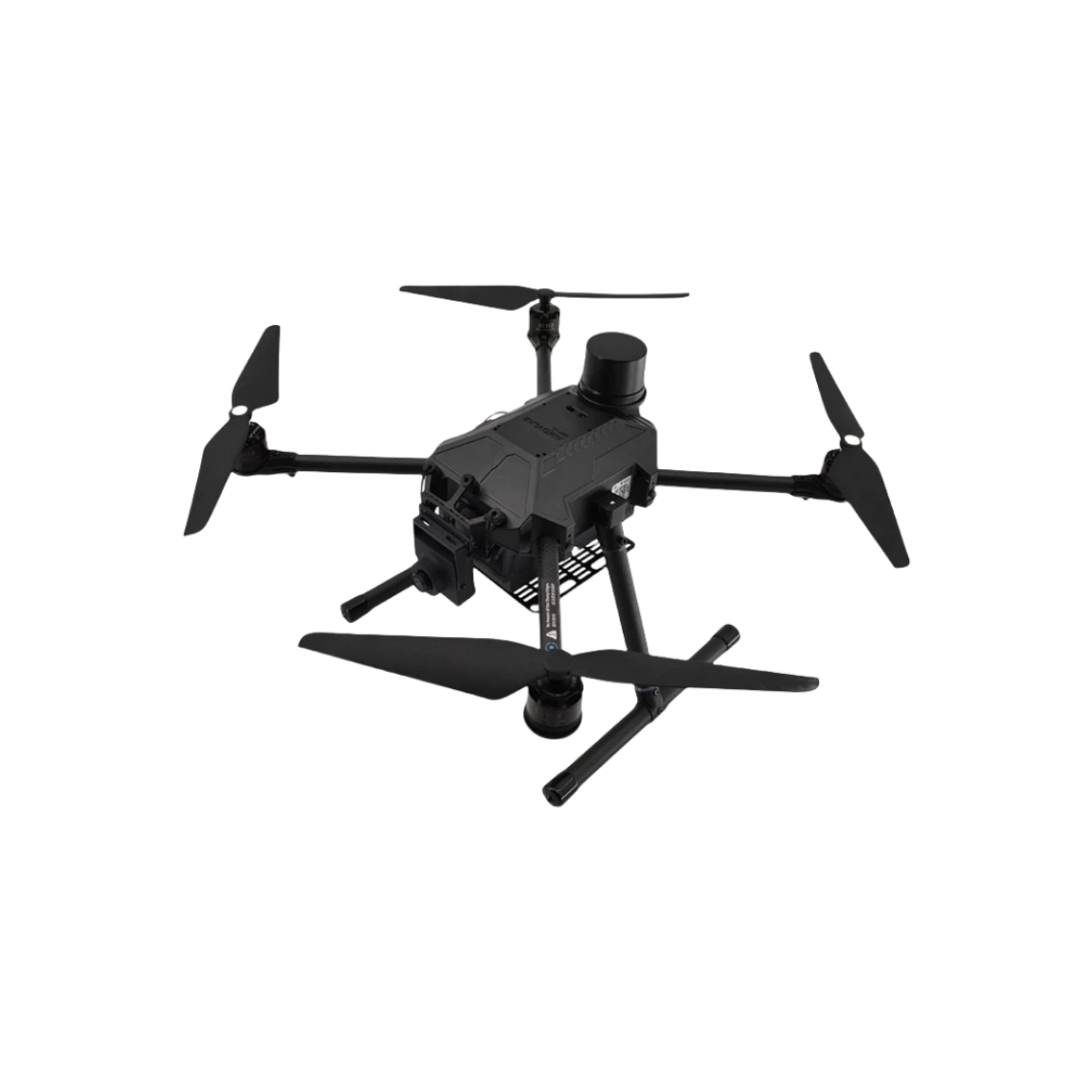

UnmannedRC X450 is an educational and training as well as Lab testing quadcopter. This drone features strong scalability, high load capacity, stable flight, supports multiple flight control systems, and waterproof.

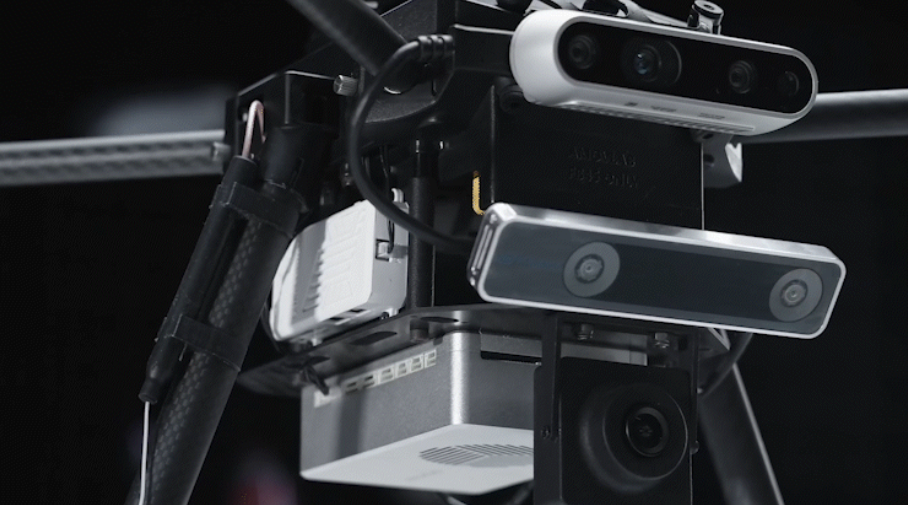

It can carry vary of sensors such as lidar, optical flow positioning sensor, and binocular vision AI camera as well as FPV camera for scientific research, academic verification purposes

UnmannedRC X459 works with custom made smart 4S battery.


Quadcopter Specifications:

Dimension: 290x290x240mm
Diagonal Wheelbase: 410mm
Max takeoff weight: 2200g
Max Payload: 500g
Operating Frequency: 2.4000-2.4835 GHz; 5.725-5.850 GHz
Hovering Accuracy (Loiter ): ± 0.5m
Max Pitch Angle: 30°
Max Ascent Speed: 1.5 m/s
Max Descent Speed (vertical): 0.7 m/s
Max flight speed: 10 m/s
Max Hovering Time: 21 min
Ingress Protection Rating: IP65
GNSS: GPS+GLONASS
Operational Temperature: 6° to 40° C

Battery Specifications:

Dimension: 130x65x40mm
Wight: 470g
charging voltage: 16.8V
Standard voltage: 14.6V
Capacity: 5000mAh
Power: 74Wh
Configuration: 4S1P

Package including:

quadcopter +power system (disassembled)

battery*1

Recommand to use following:

4S 5000mAh hardcase battery

4S smart battery charger

H12 Radio Controller
