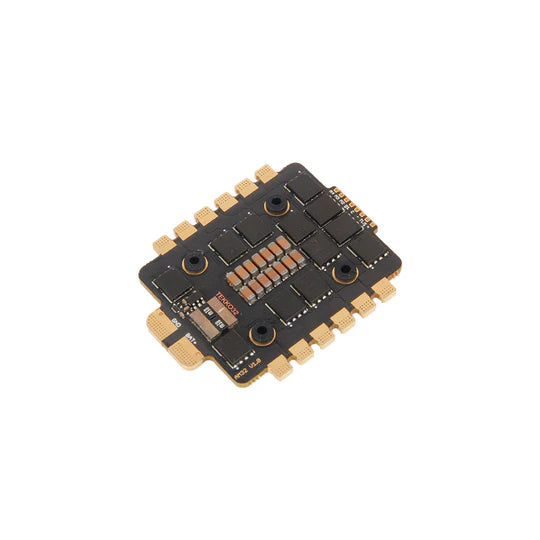

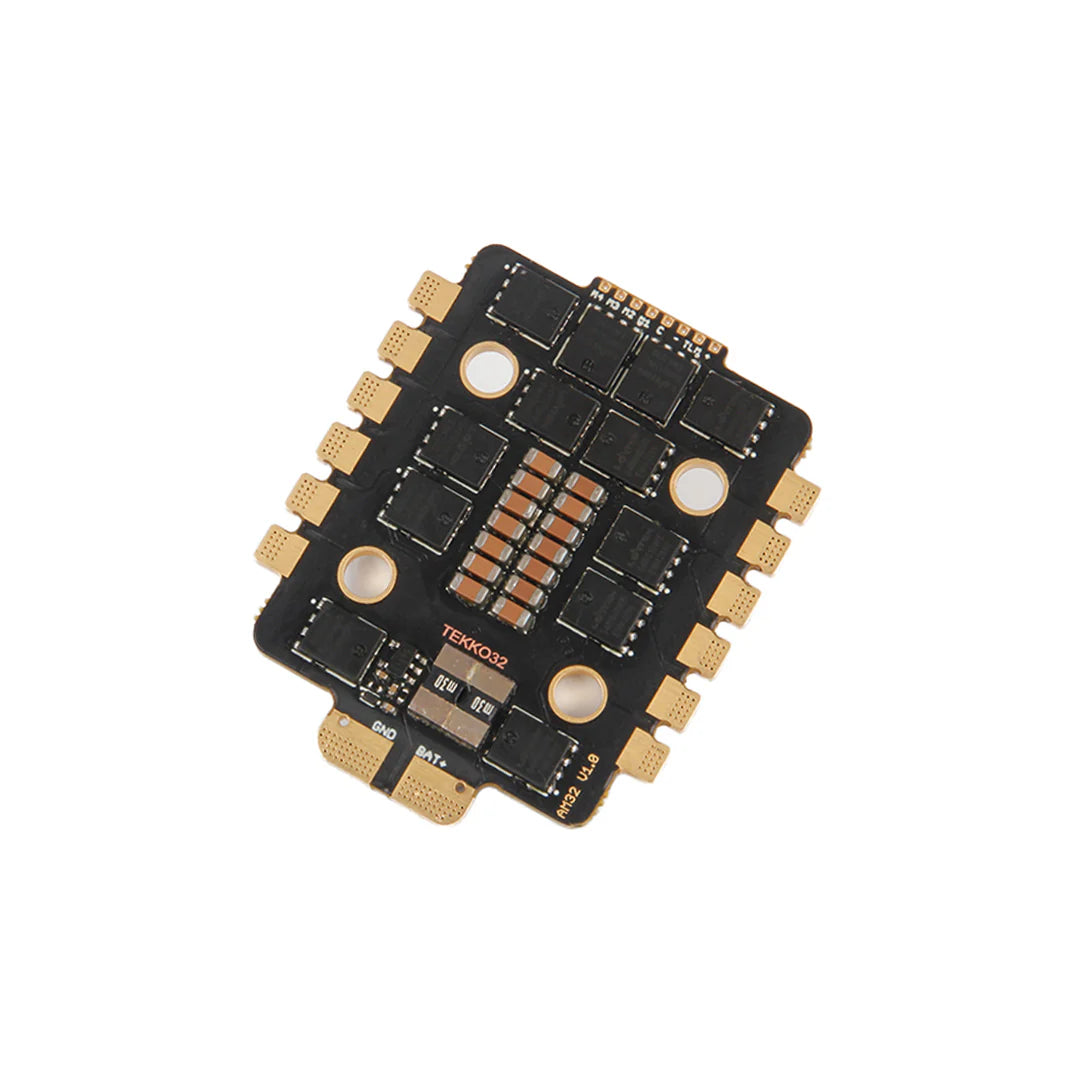

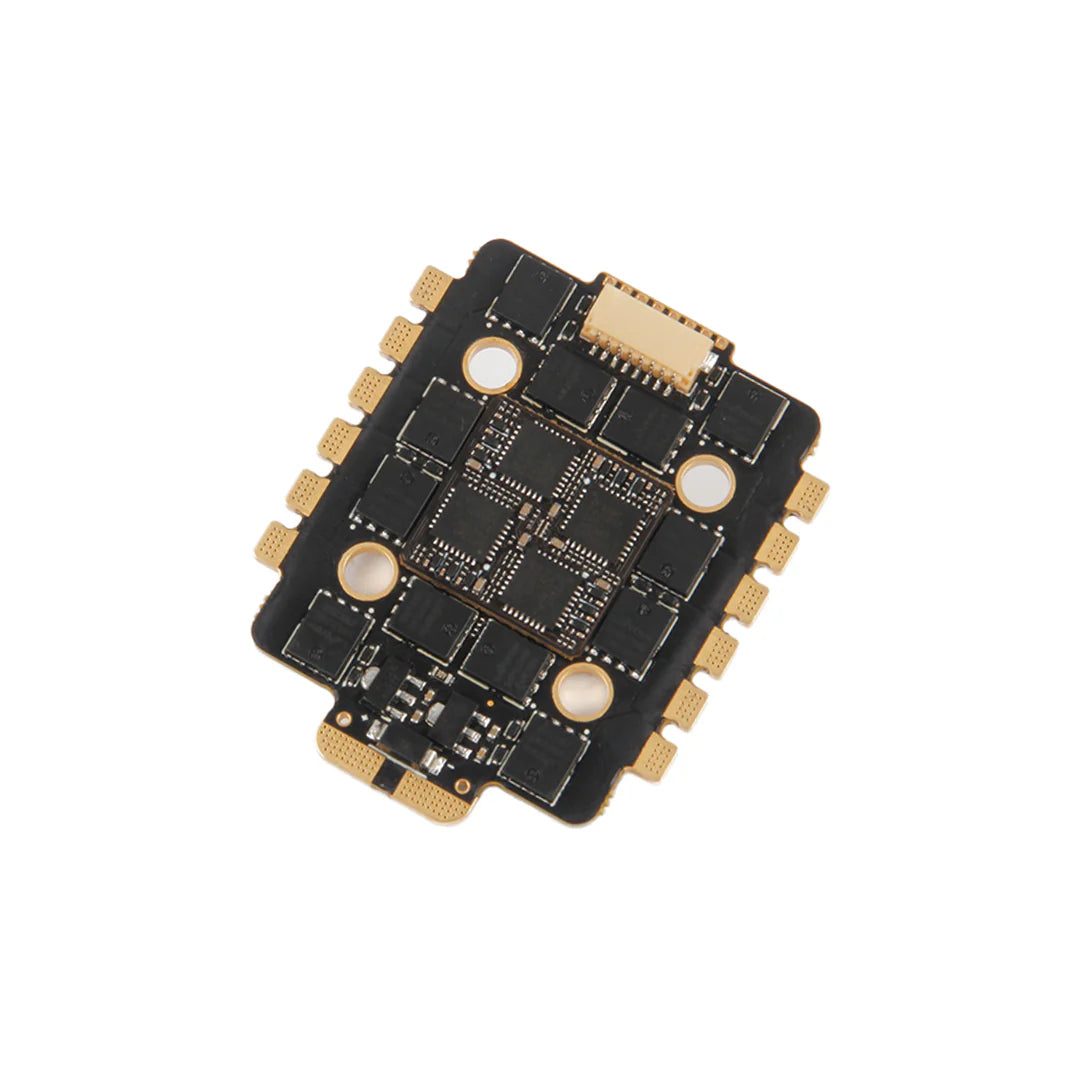

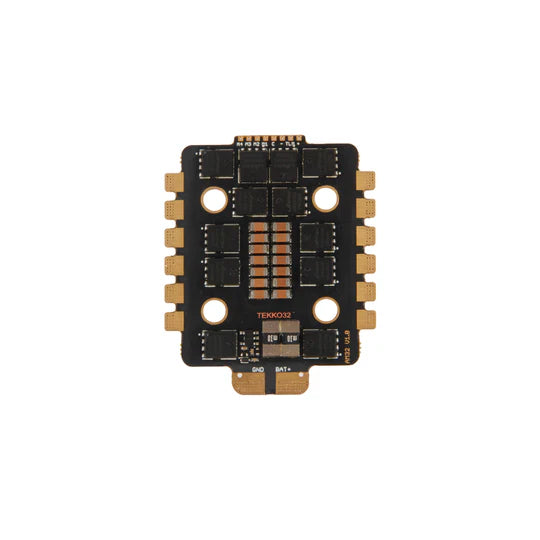

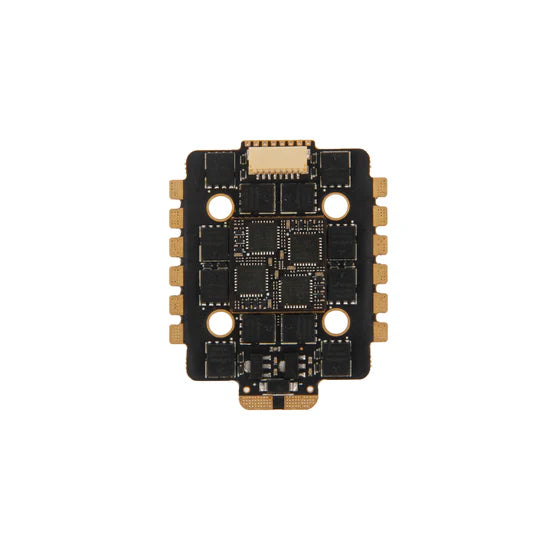

Tekko32 F4 4in1 Mini 50A ESC(AM32)

Name: Tekko32 F4 4in1 Mini 50A ESC(AM32)
Brand: Unmanned RC
Price: 80.00 USD
Availability: OutOfStock

Out of stock

No reviews

Usually ships within 24 hours

$80.00

Product details

Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Feature:

All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
Separate drive & control circuit, reducing the electrical interference to the control circuit

Specification:

Continuous current: 50A x4
Burst current: 60A x4
Battery support: 4-6S
PWM frequency: 8k to 96k
Support DShot 150/300/600/1200
Support MultiShot/OneShot/Proshot/PWM, etc.
ESC telemetry Support
Onboard analog current sensor
AM32 Firmware
1000uf 35v capacitor included
Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)

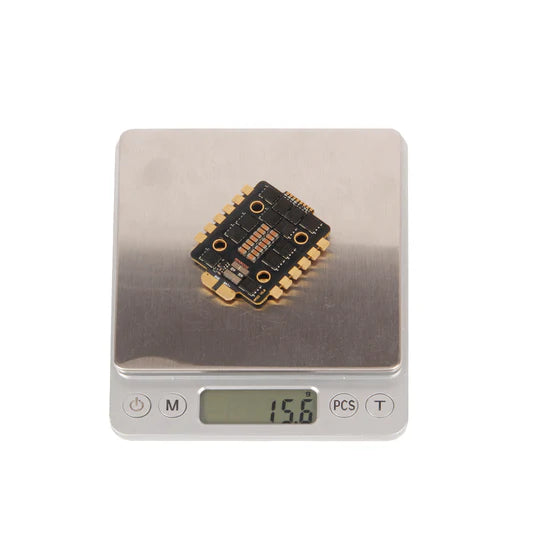

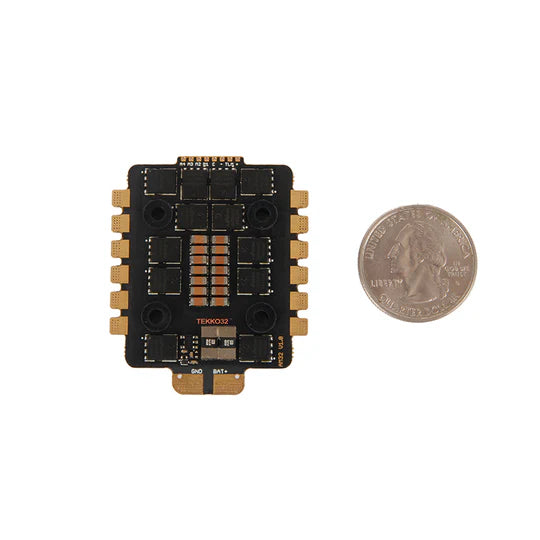

Dimensions: 46.6x38x6mm / Weight: 15.6g

Pin Diagram:

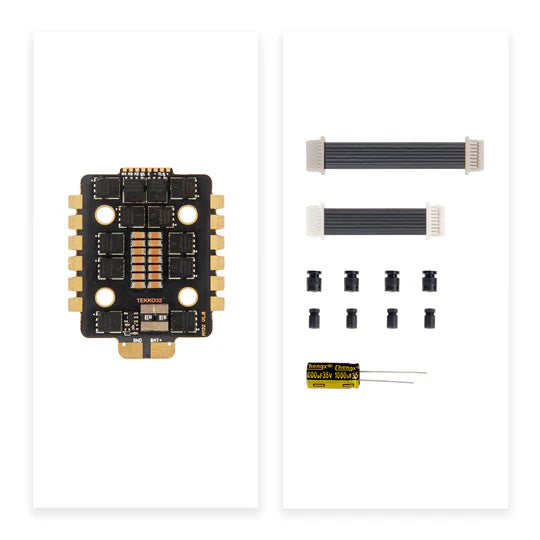

Package Included:

Tekko32 F4 4 in 1 mini 50A ESC *1

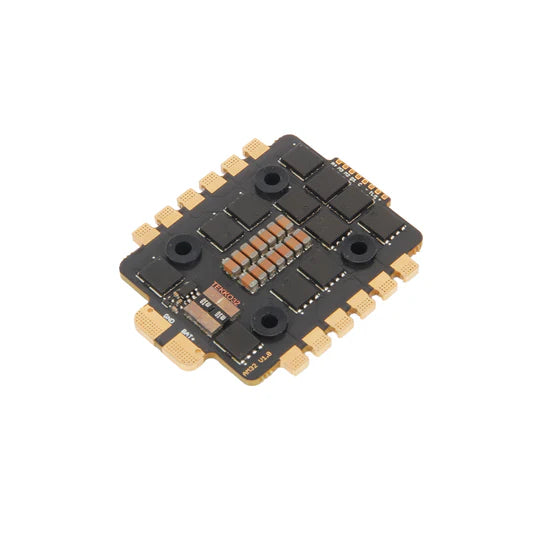

M2 Anti-Vibration Silicone Grommet Insert *4
M3 Anti-Vibration Silicone Grommet Insert *4
Electrolytic capacitor: 1000uF 35v *1
8pin to 8pin 1mm pitch 65mm cable*1
8pin to 8pin 1mm spacing 25mm cable*1
