Sony ILX-LR1 DJI M350&M400 X-port 3-Axis Gimbal Camera

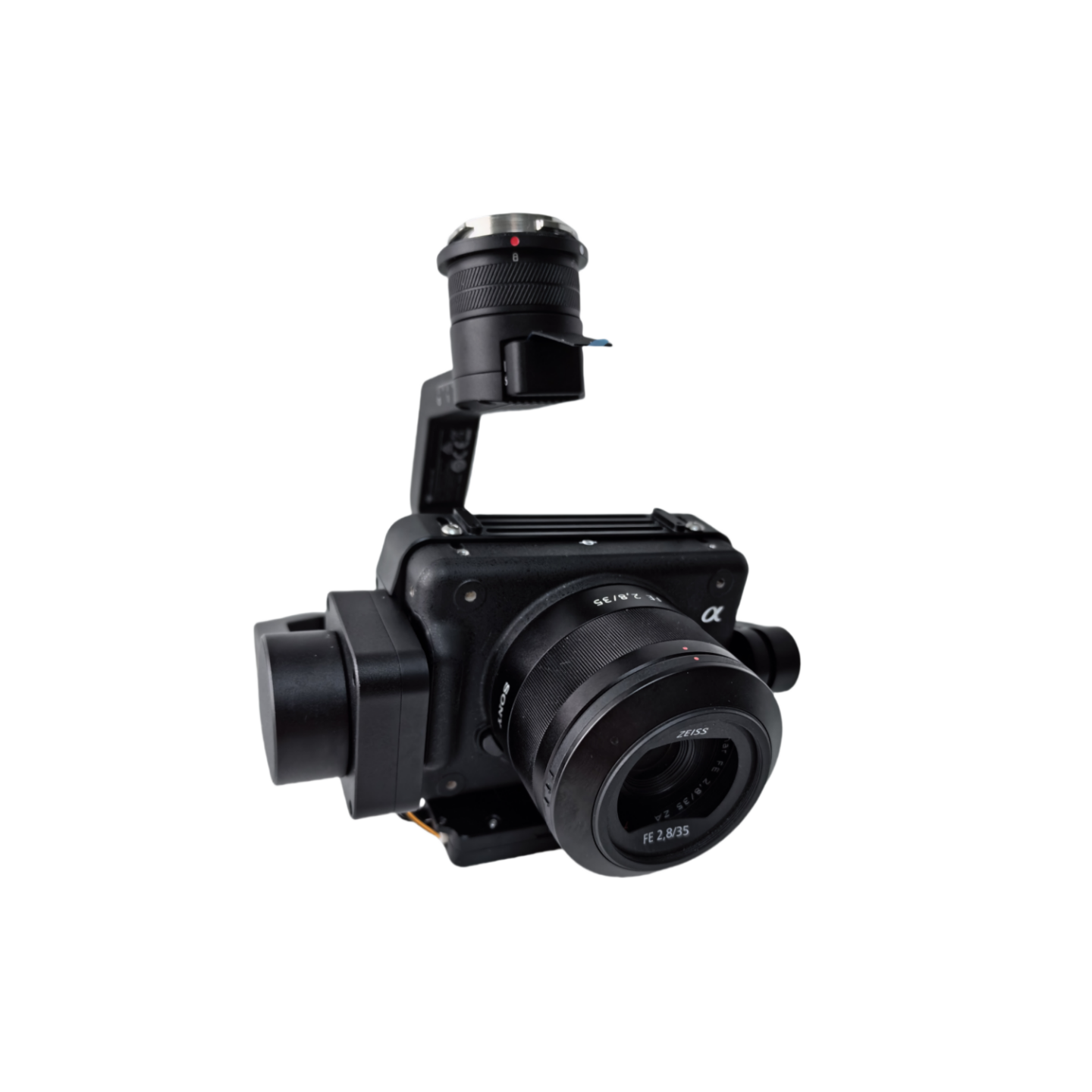

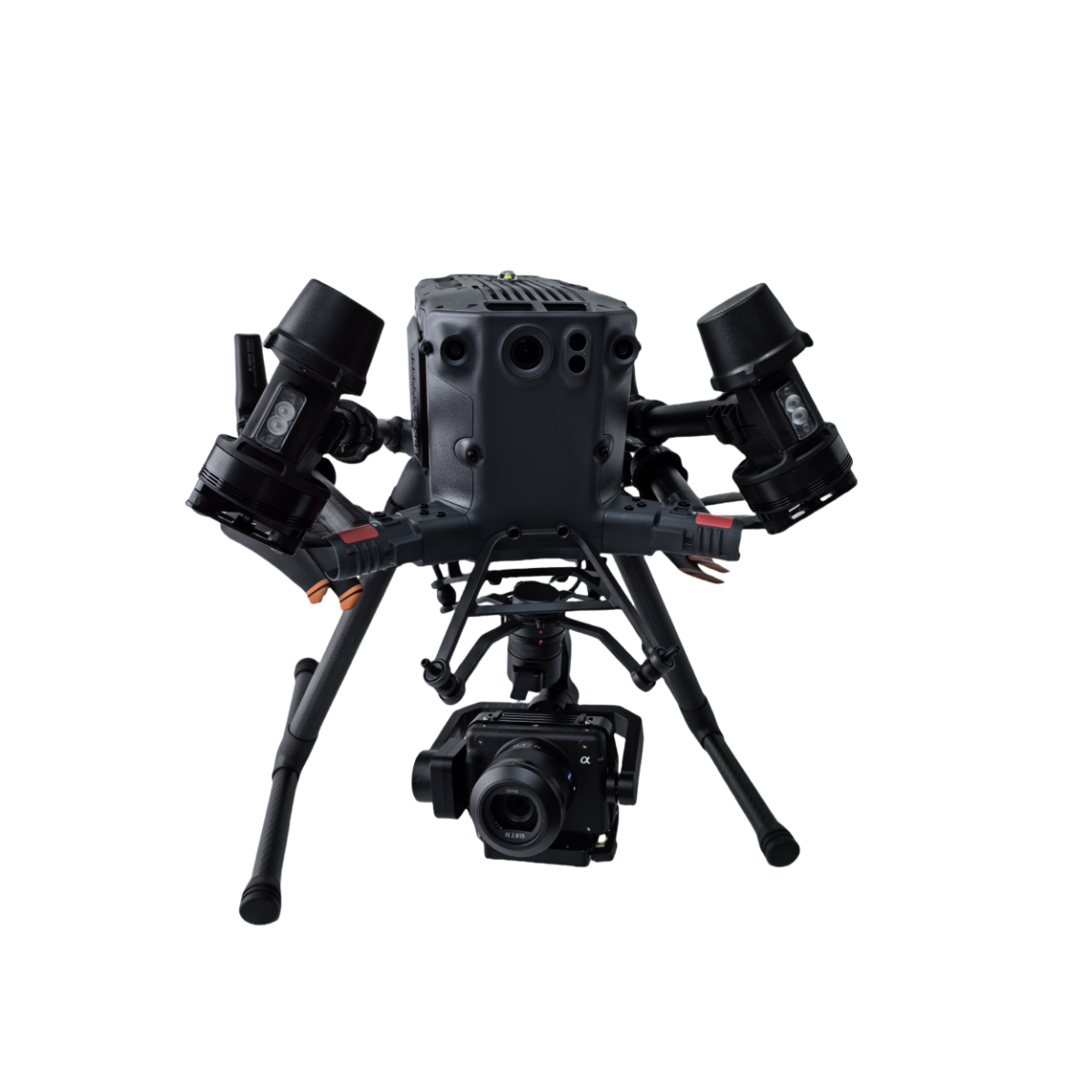

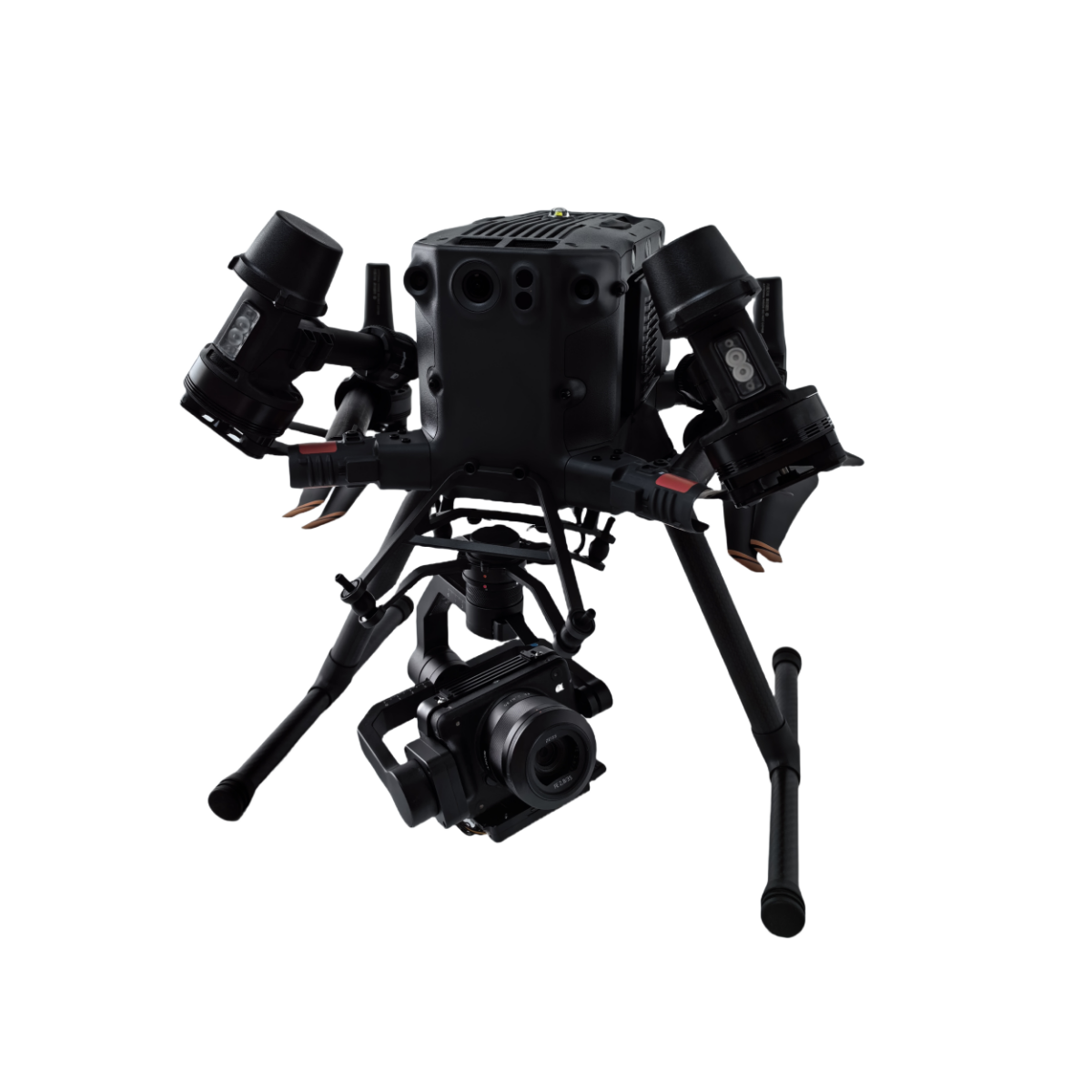

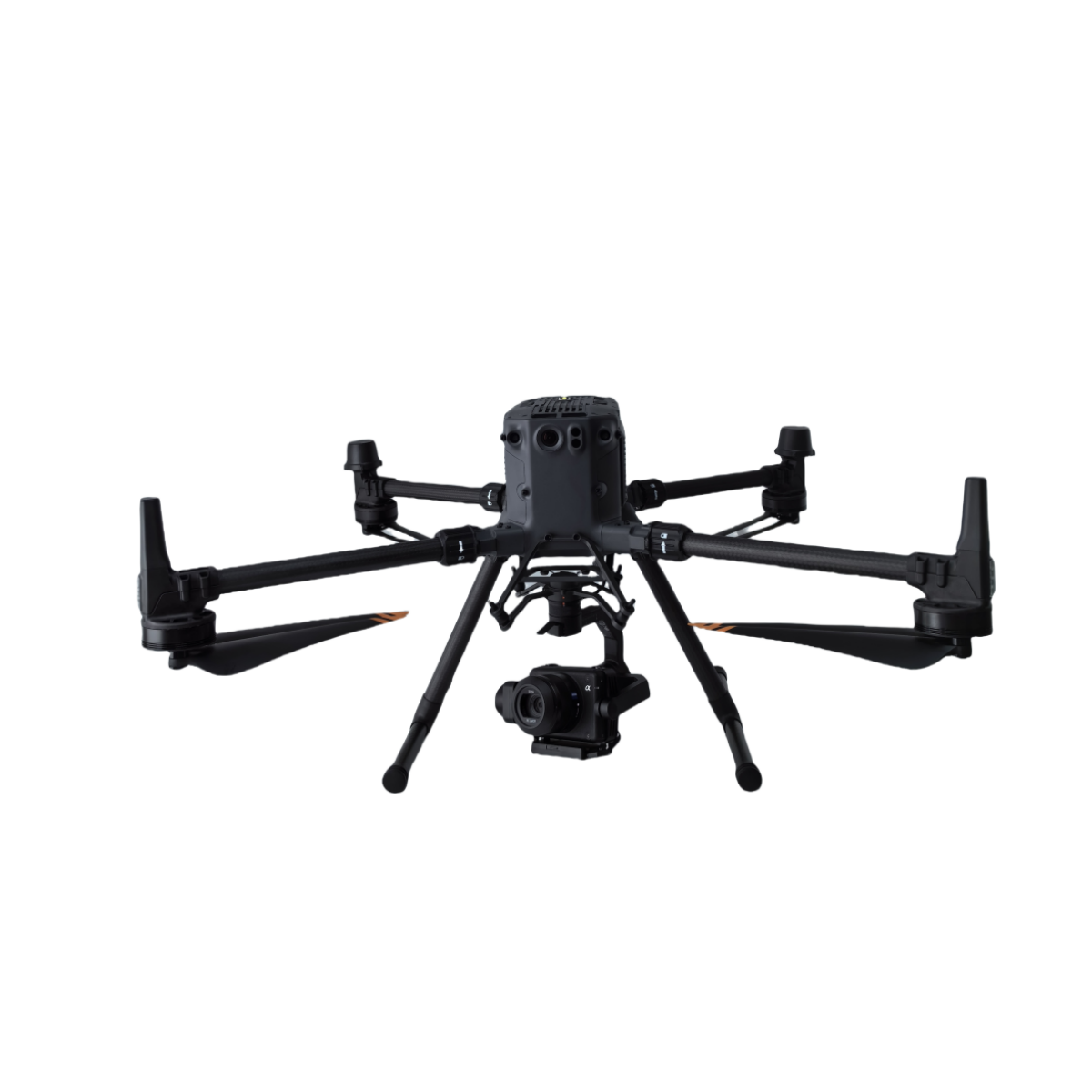

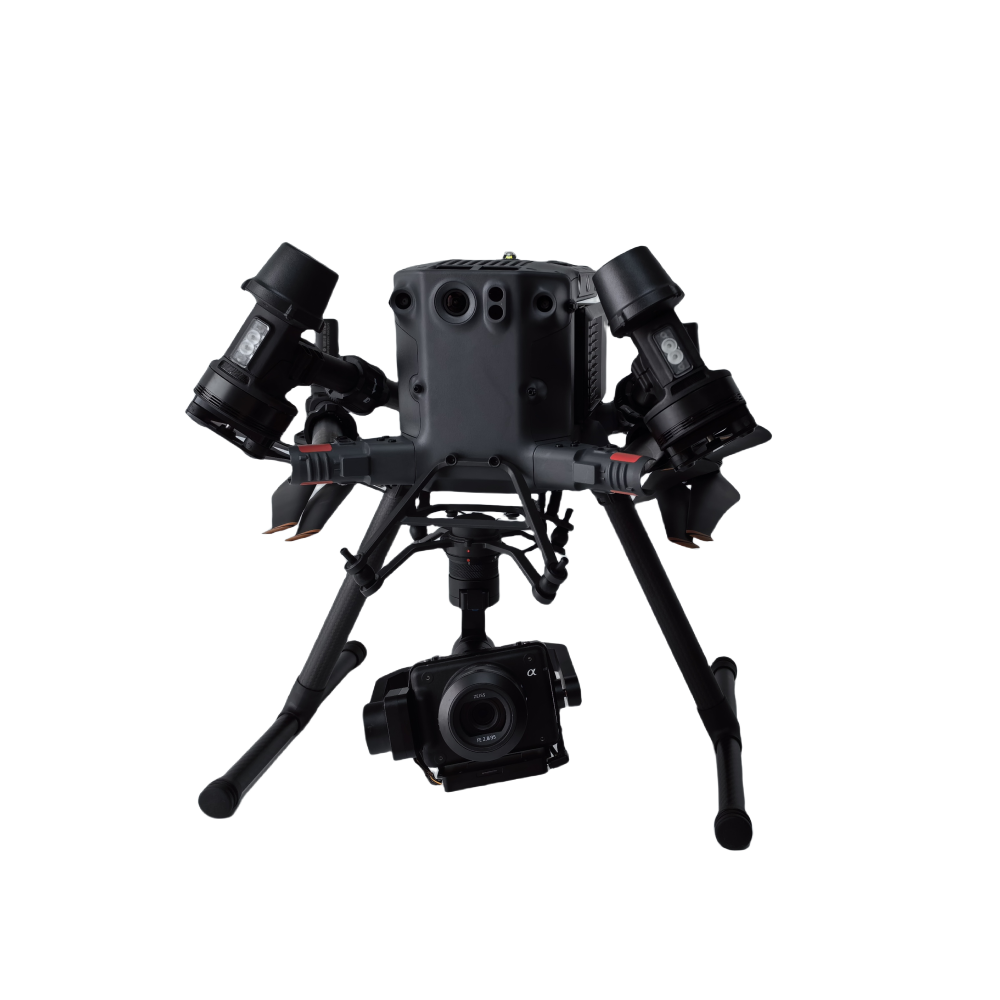

The 3-Axis DJI X-port ILX-LR1 Camera System consists of two components: 1. DJI X-port 3-Axis Gimbal (with PSDK system). 2. Sony ILX-LR1 camera (no lens). This camera system is designed specifically to be a "Plug-and-Play" gimbal camera solution for the DJI M350 RTK and DJI M400 it has:

• 61 megapixel Exmor full frame Sony CMOS sensor.
• Compatible with any Emount full frame lenses
• Bionz XR image processor.
• Mechanical shutter
• DJI PSDK system compatible with DJI M400 & M350 RTK
• Record M350 or M400 GPS and Pitch, Roll and Yaw each capture
• Quick attach-detach skyport adopter
• Reliable system for high quailty images
• total weight (camera body with gimbal) 678g (no lens)

Image Sensor

Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:62.5
Sensor Format:full frame
Sensor size:35mm full frame (35.7 x 23.8 mm)
Aspect Ratio:3:2
Color temperature range: 2500k -9900k
Color Depth （bits):23.8
Maximum Effective ISO:1,347

Image Capture

Image Resolution:
35mm full frame L: 9504 x 6336 (60 M), M: 6240 x 4160 (26 M), S: 4752 x 3168 (15 M)
Image File Format:JPEG, RAW, RAW+JPEG

Video Capture

Video Resolution:
Movies: Approx. 50.8 megapixels max.
Video File Format:XAVC S: MPEG-4 AVC/H.264 XAVC HS: MPEG-H HEVC/H.265

Lens & Optics

Lens Mount:Sony E
Auto Focus: Yes
Manual Focus: Yes

Shutter Type:Mechanical shutter

Still images (Mechanical shutter): 1/4000 to 30 s, Bulb
Still images (Electronic shutter): 1/8000 to 30 s
Movies: 1/8000 to 1 s

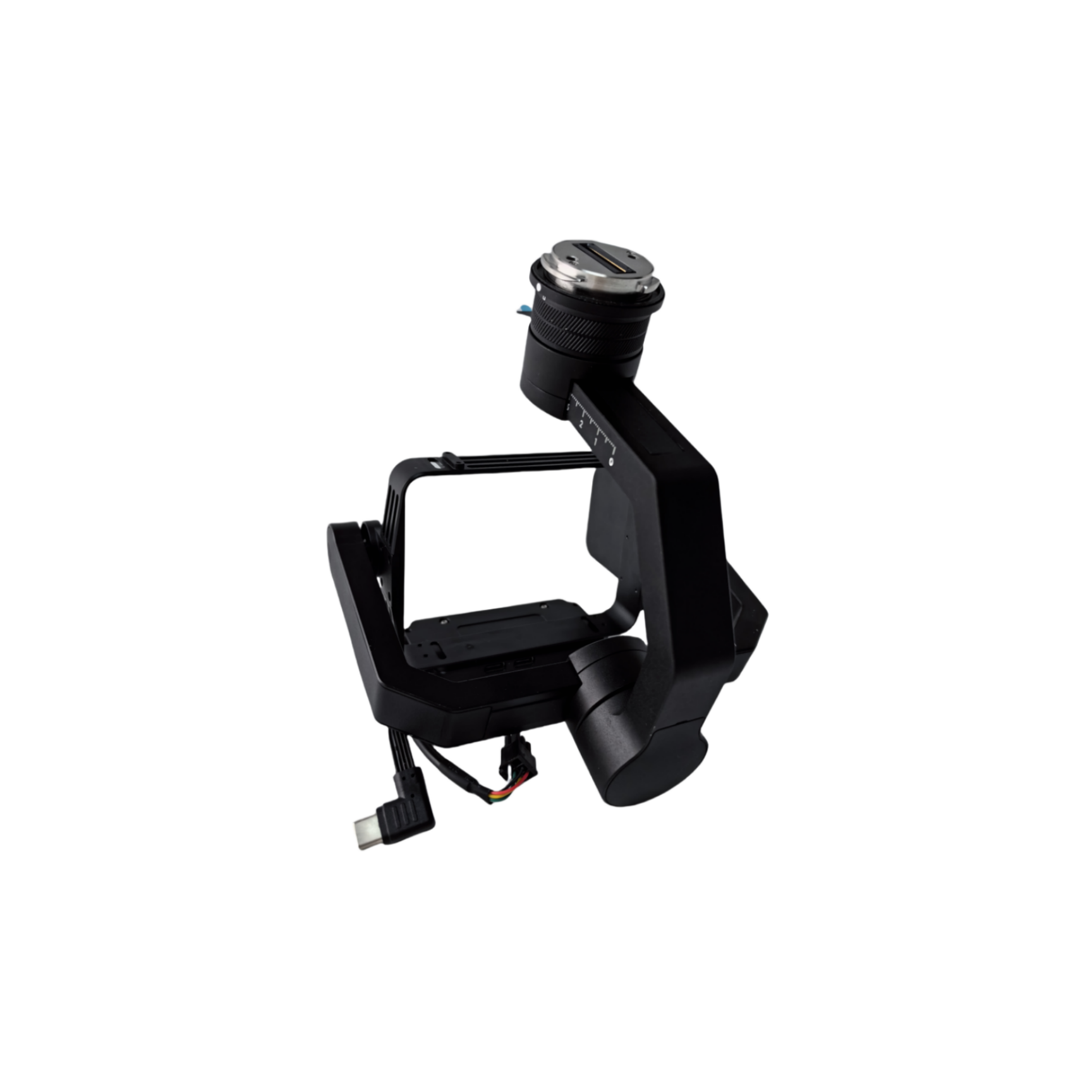

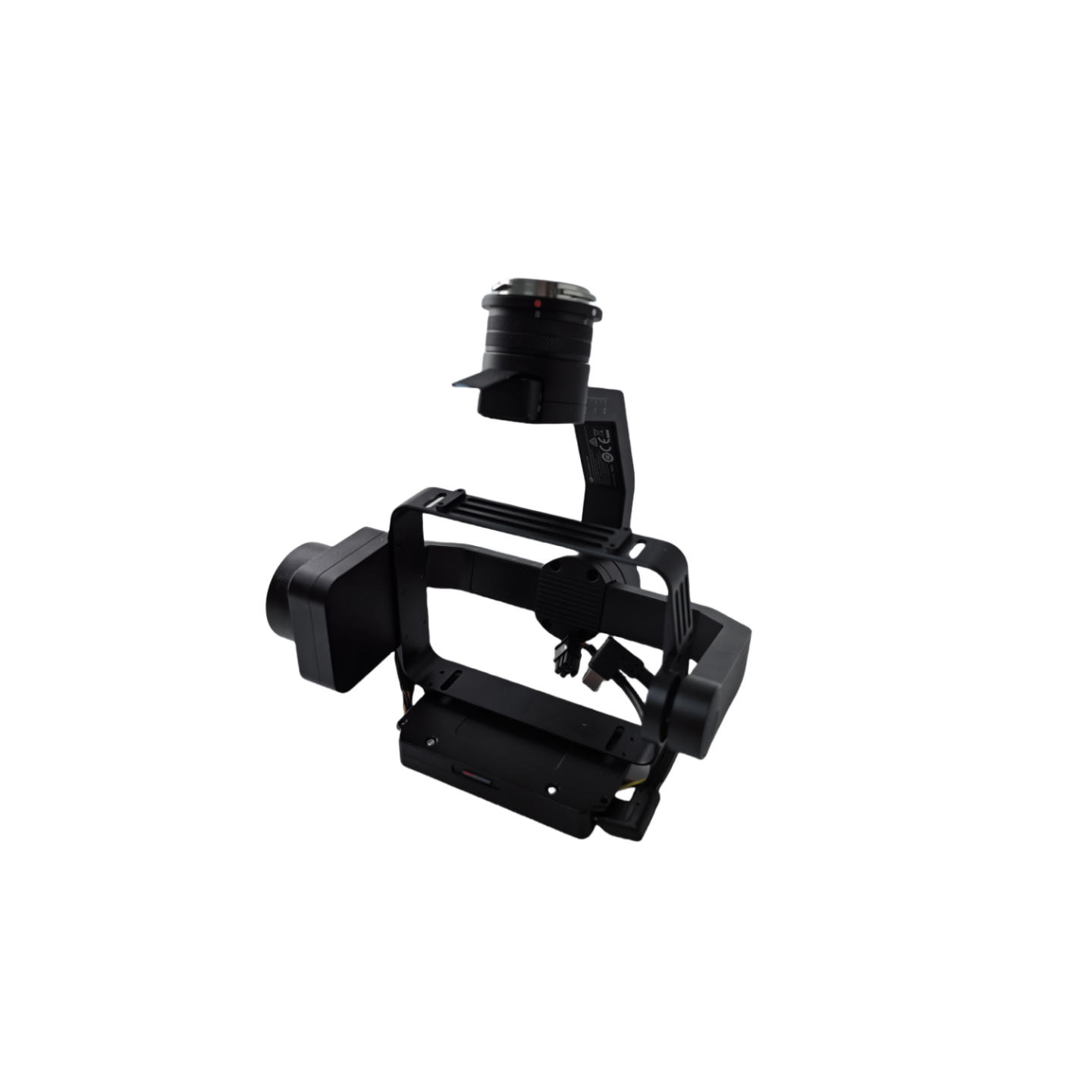

X-port Gimbal System:

• High-precision 3-axis gimbal
• Integrates all functions of PSDK 2.0
• Customizable gimbal parameters
• Supports Mounting in the Upward-facing Gimbal Slot
• Customizable channels for remote controller buttons
• Can be controlled directly through DJI Pilot app, MSDK and OSDK
• the Csutom X-port gimbal with camera mount =430 g (without camera)

Please select your lens type, the price will NOT include the lens you selected, we use the lens option for balance and tune the gimbal before shipping, so it will be plug and use.

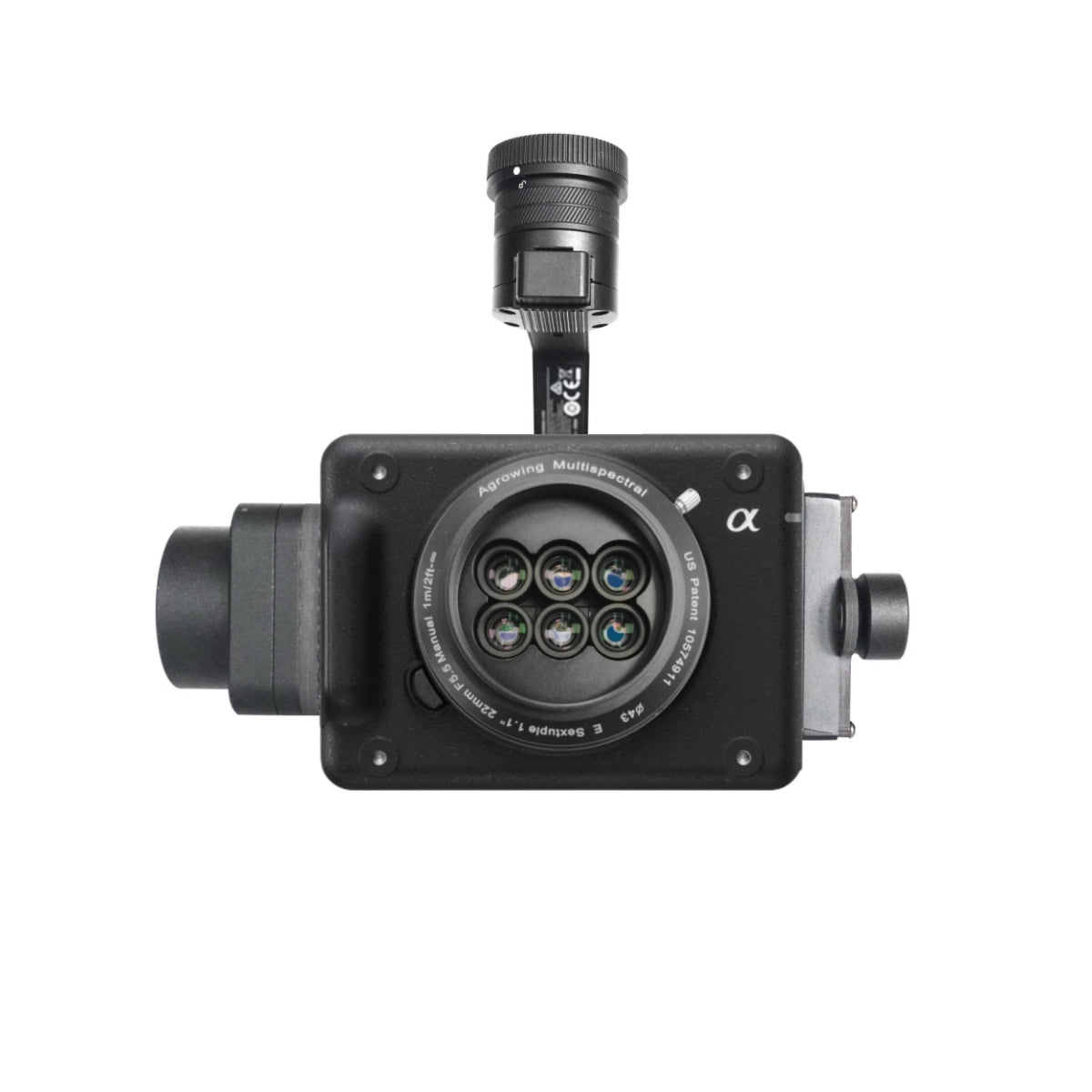

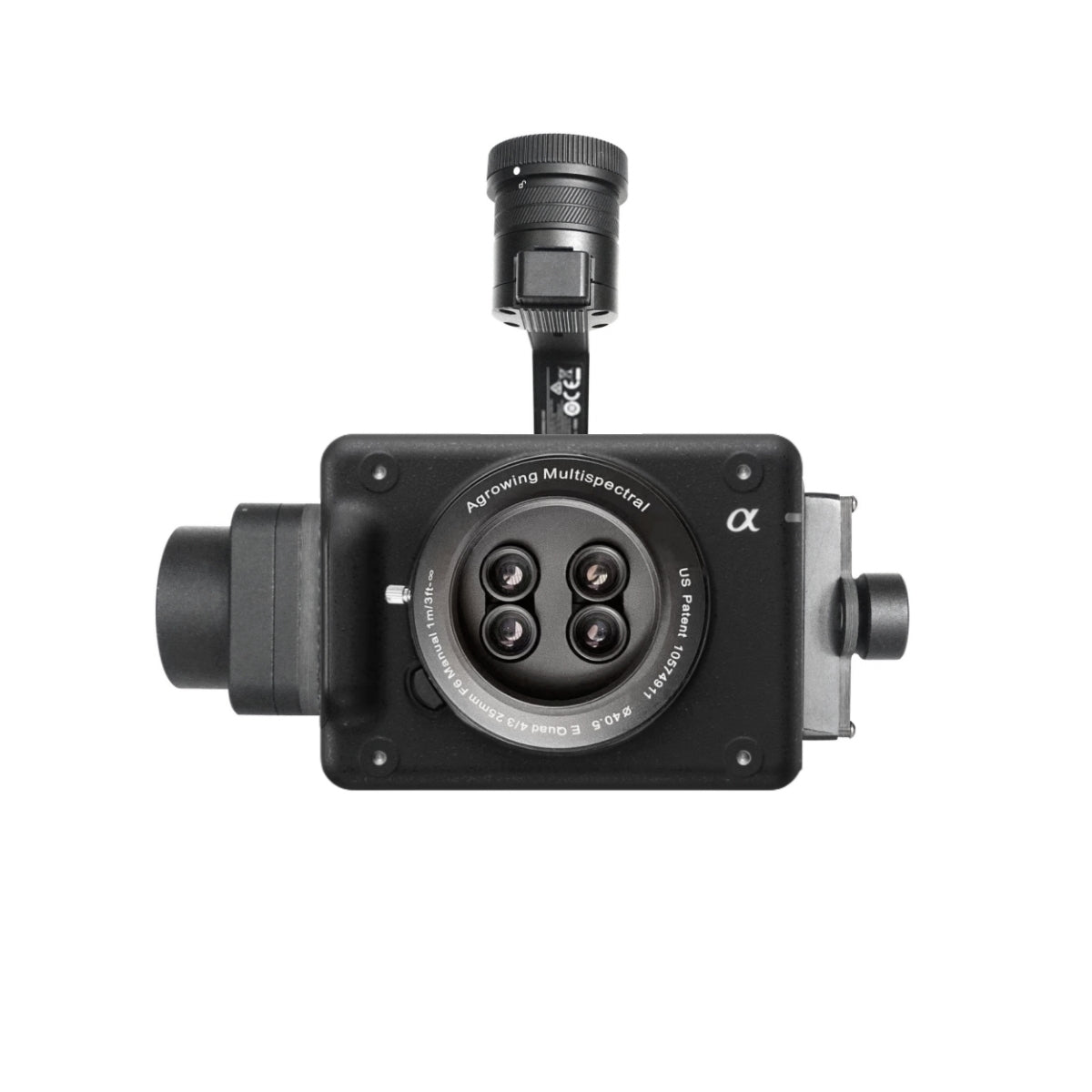

Sony ILX-LR1 DJI PSDK Gimbal Camera is also compatible with agrowing multispectral NDVI lenses:

If you purchase this gimbal and LR1 camera for Agrowing lens, after you pay for the set, we need to modfity the camera and remove the filter, as well as balance the gimbal and test in DJI M400/M350 before ship it out

to read the X-port Gimbal User Manual please click HERE

to download the sample video and photos from m350RTK with Sony ILX-LR1 DJI M400&M350 X-port 3-Axis Gimbal Camera click HERE
