U.S. Assembled. and Shipped from U.S.

High-Speed APS-C Mapping Camera for Fixed-Wing UAVs.

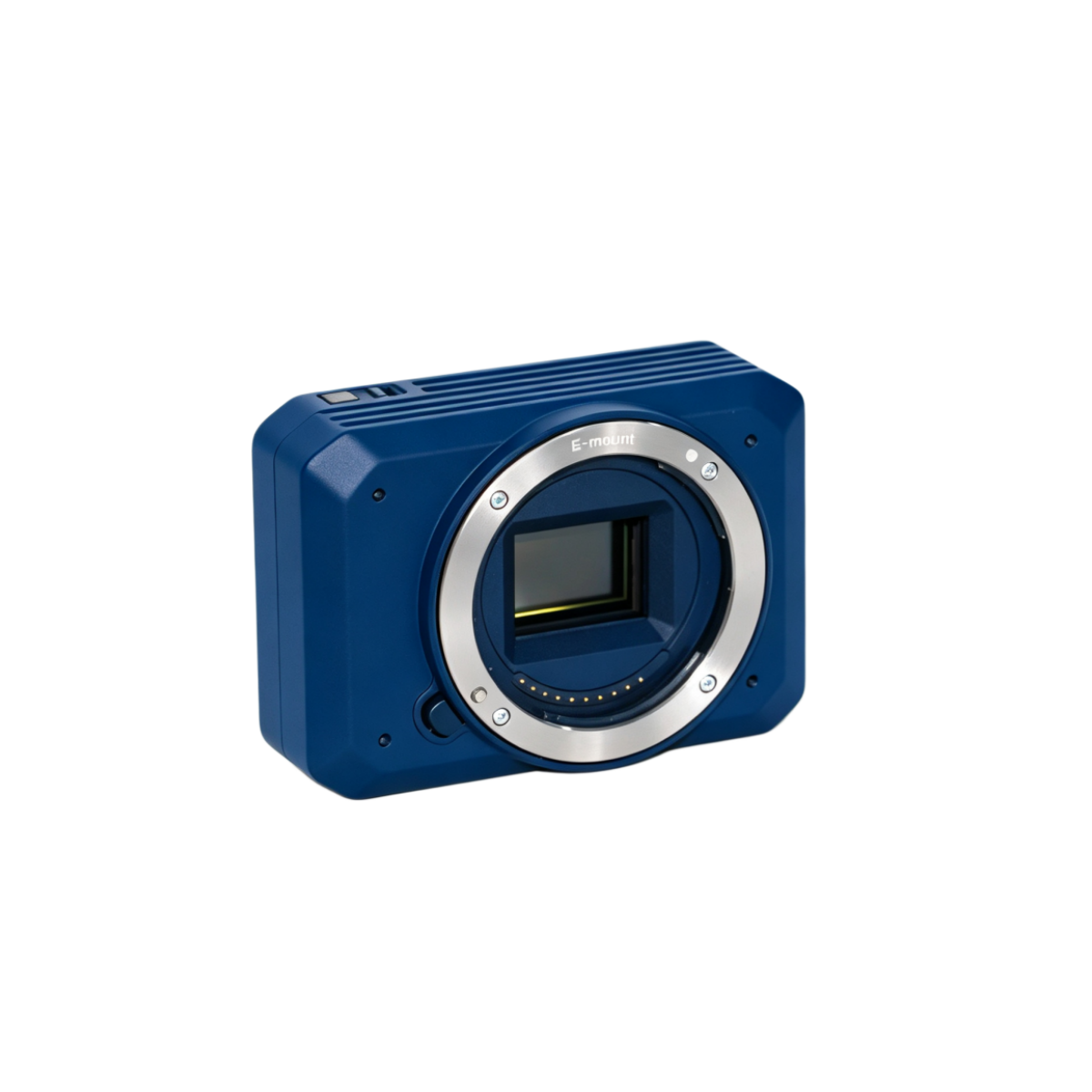

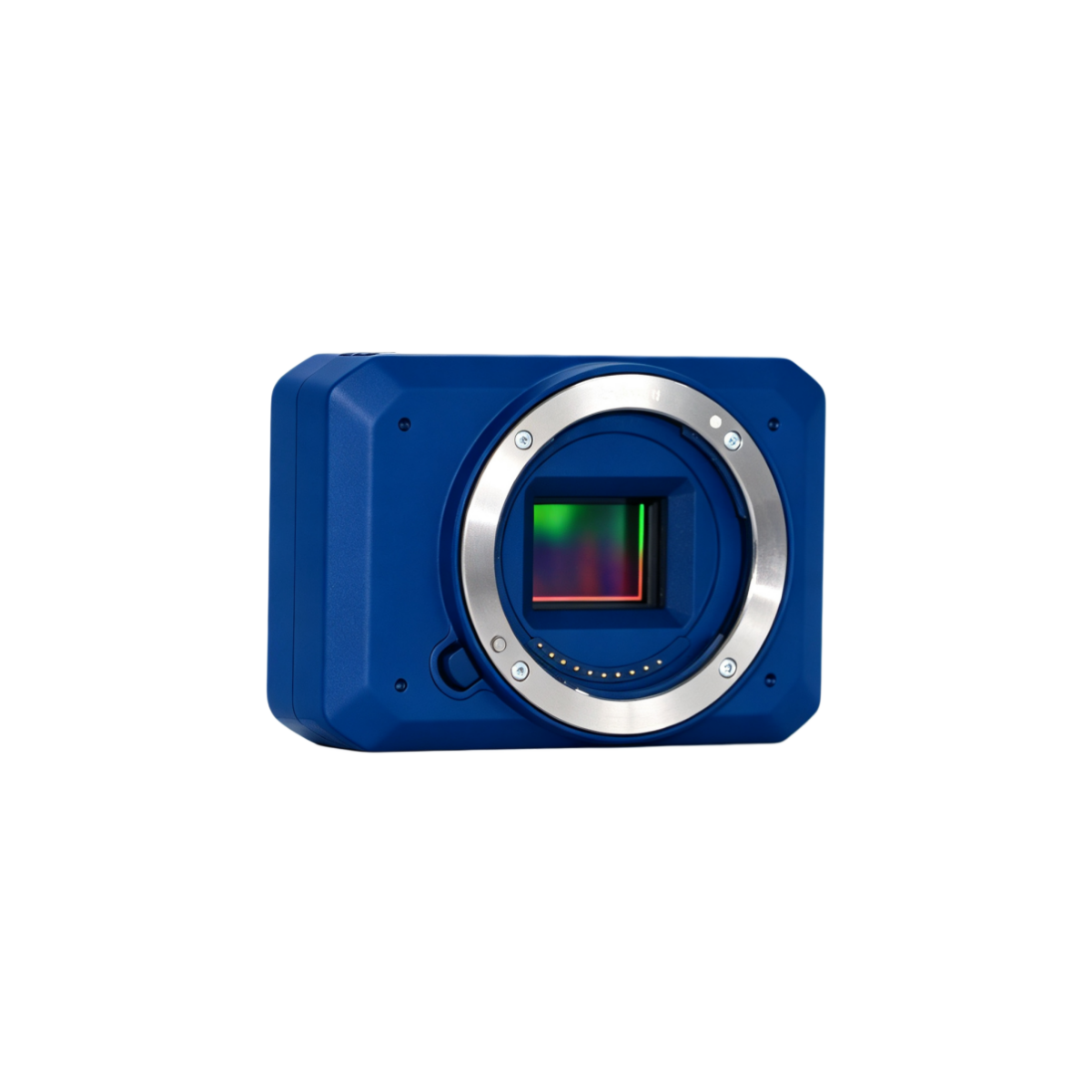

The Mapper 24Pro designed for professional aerial mapping, surveying, photogrammetry, and fixed-wing UAV applications, also assembled in the USA by UnmannedRC USA, the Mapper 24Pro combines a lightweight and compact aluminum camera body with a high-resolution 24MP APS-C Sony CMOS sensor, high-speed continuous shooting, advanced camera control capabilities, and flexible triggering options.

Mapper 24Pro features a stable and fast shutter speed, making it particularly well suited for fixed-wing UAV mapping, where higher flight speeds and image capture timing can be critical to maintaining consistent mapping coverage.

Assembled in the USA

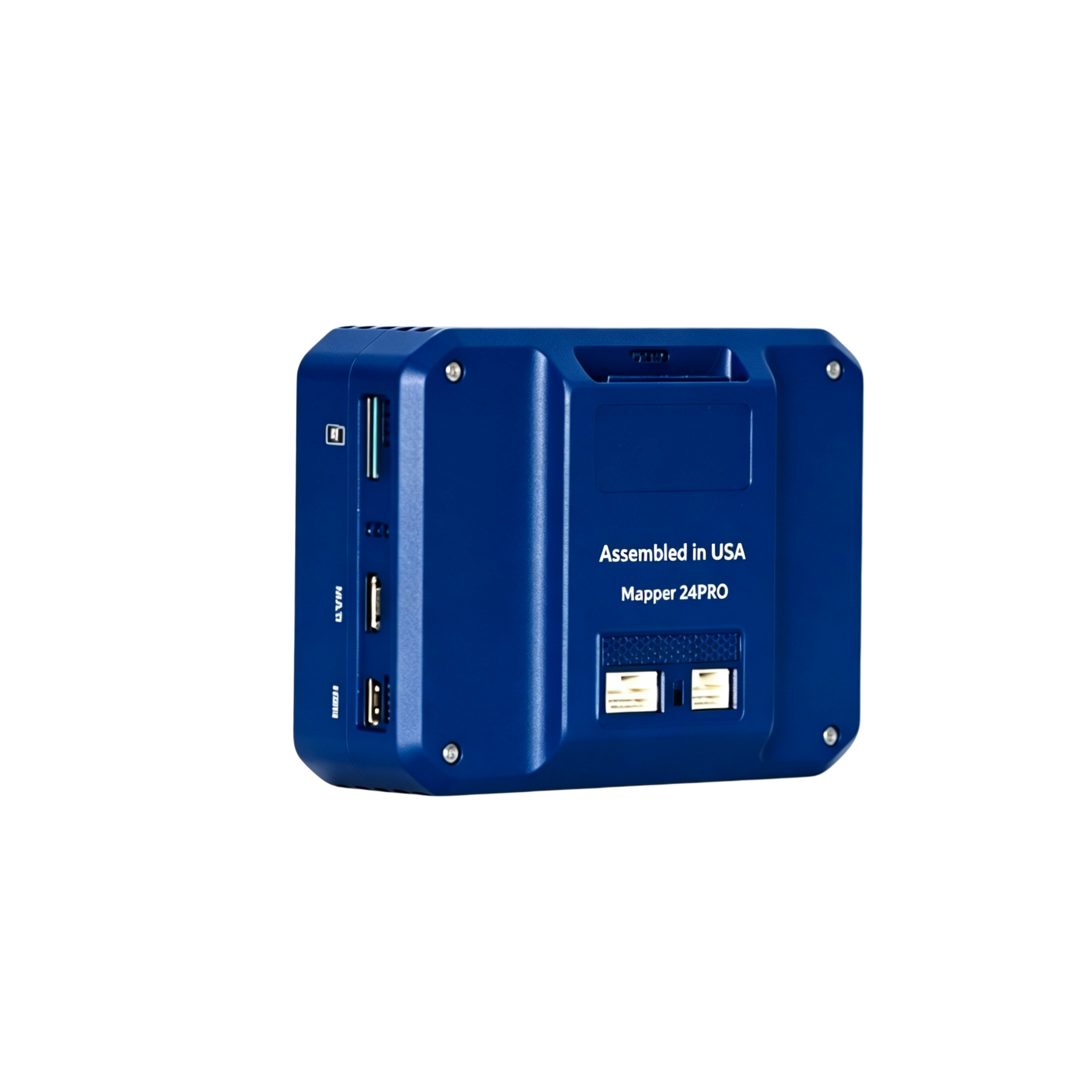

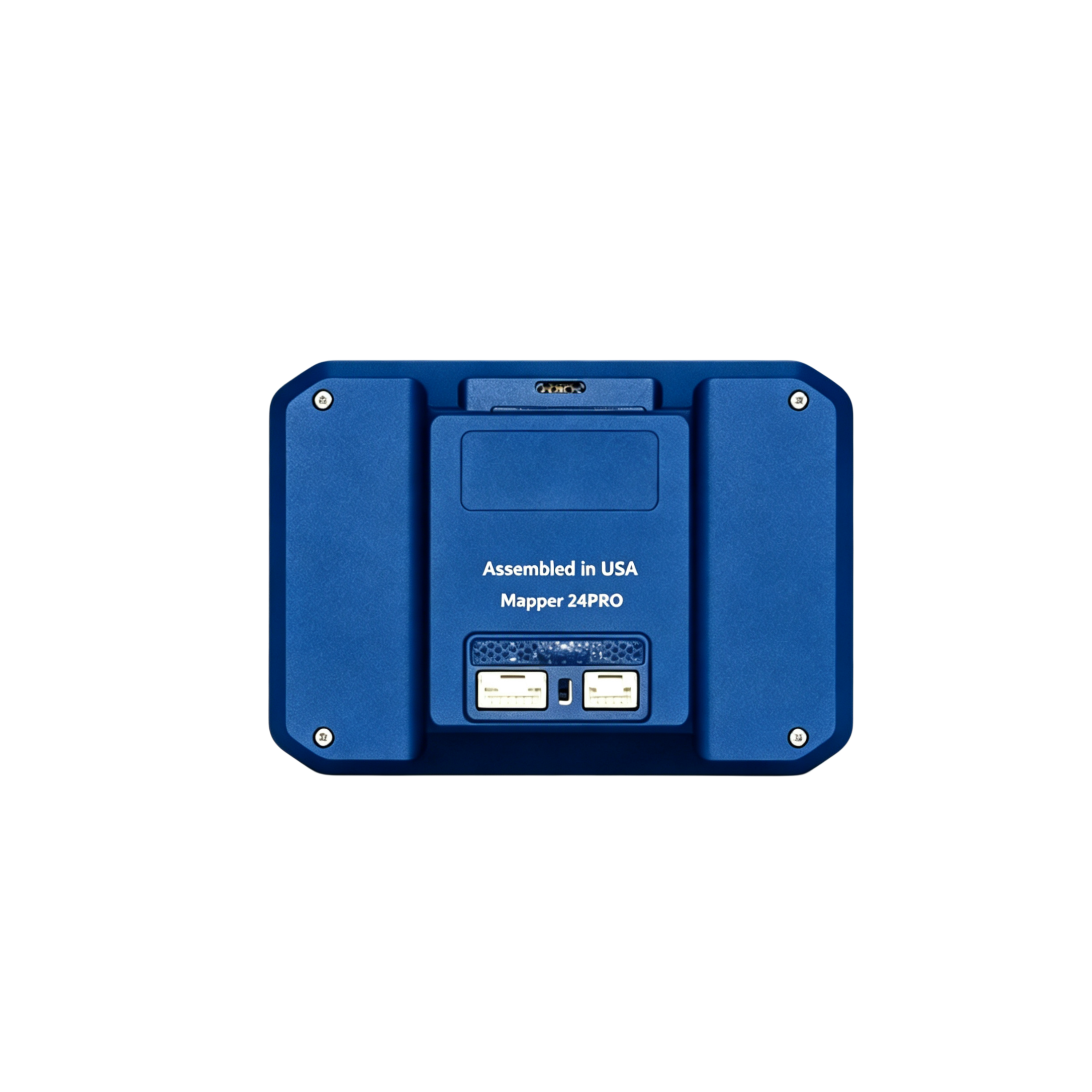

The Mapper 24Pro is assembled in the United States by UnmannedRC USA.

 UnmannedRC USA to perform local assembly, inspection, configuration, and quality-control processes before the camera is delivered to customers.

It also provides U.S. customers with a direct local source for technical support, integration assistance, and product service.

U.S. Assembled • Local Quality Control • U.S. Support

A faster shutter can help reduce motion-related image blur during aerial image capture, supporting sharper imagery for photogrammetry and mapping workflows.

With continuous shooting of up to 4 frames per second, the Mapper 24Pro is designed to capture imagery rapidly while the aircraft moves along its mapping flight path.

Ideal for:

• Fixed-wing UAV mapping

• High-speed aerial surveying

• Photogrammetry

• Orthomosaic generation

• 3D reconstruction

• Land surveying

• Infrastructure mapping

• Large-area mapping

• LiDAR + camera payloads

• Professional UAV research and development

Airpixel & MAVLink Compatibility

The Mapper 24Pro is compatible with the Airpixel R3 system for geotagging and MAVLink integration.

This allows the camera to become part of a more complete aerial mapping payload, connecting camera capture with UAV flight and positioning data.

For users building automated mapping systems, the combination of the 24Pro, Airpixel R3, and compatible flight-control systems provides a flexible foundation for professional UAV mapping operations.

Mini Touchscreen Camera Control

The Mapper 24Pro includes a detachable 2-inch mini touchscreen, providing a convenient way to configure and monitor camera settings.

The touchscreen is powered separately by 5V DC and gives operators a simple interface for camera setup without requiring a traditional full-size camera display.

For UAV payload integration, the compact display can be positioned where it is convenient for system setup and pre-flight configuration.

HDMI Camera Monitoring

The  Mapper 24Pro provides HDMI video output, allowing the camera to connect to an external HDMI capture device.

With an HDMI video capture card, users can connect the camera to compatible Android devices to view the camera interface and monitor settings.

This provides additional flexibility for UAV operators and integrators who want a portable setup solution without adding a large dedicated monitor to the aircraft.

TTL & PWM Triggering

The 24Pro includes a dedicated trigger-mode switch that allows users to select between:

TTL Triggering
or
PWM Triggering

This gives UAV system integrators greater flexibility when connecting the camera to different flight controllers, payload controllers, and triggering systems.

The selectable trigger interface makes the camera easier to integrate into a variety of fixed-wing and multirotor UAV architectures.

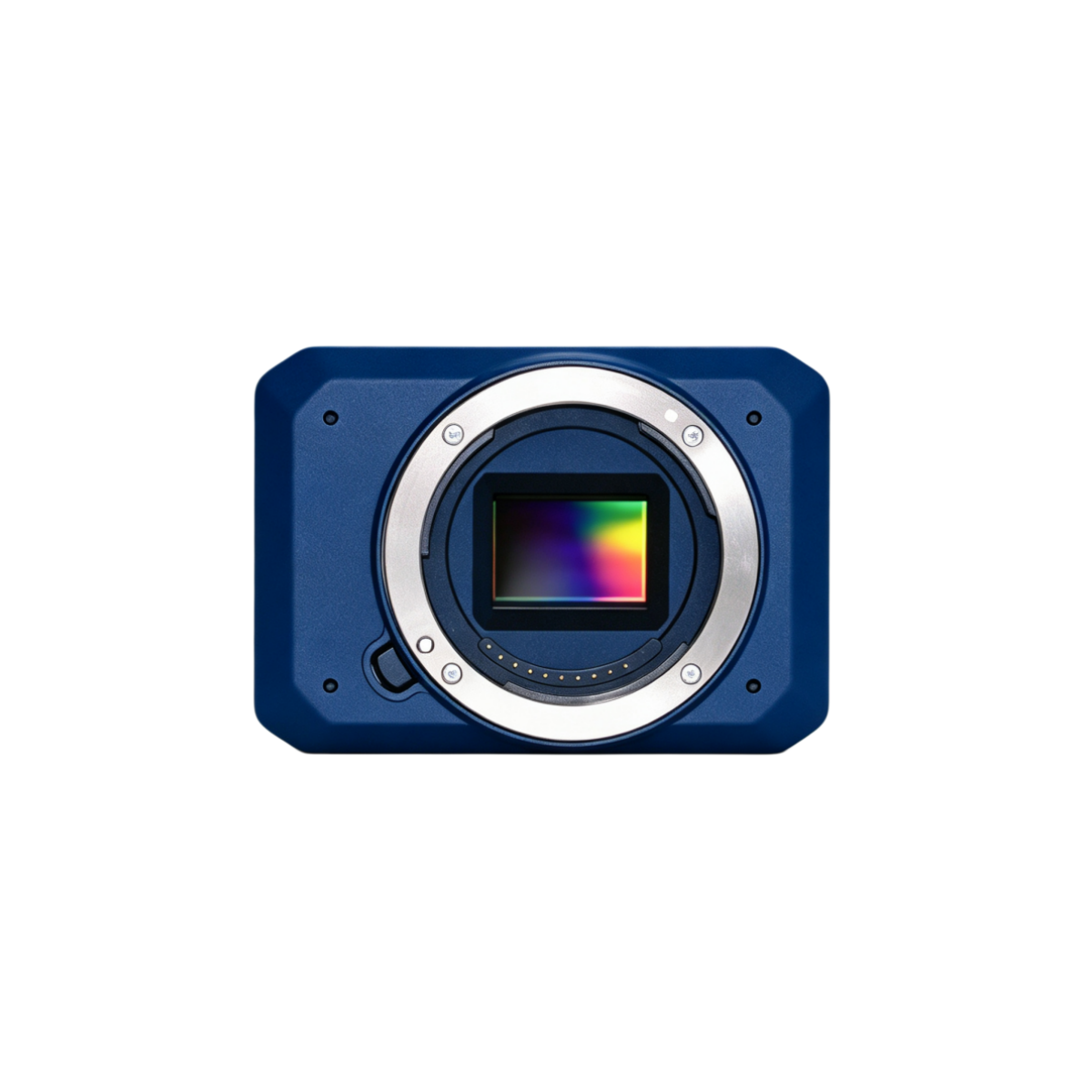

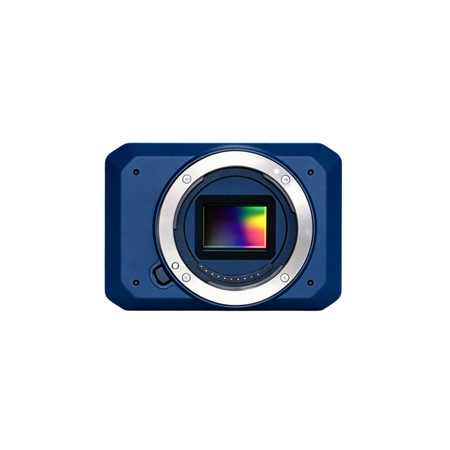

24MP APS-C Sony Sensor

The Mapper 24Pro features a 24.3MP Sony APS-C CMOS sensor with a 23.50 × 15.60 mm sensor area.

The APS-C format provides a balance between image resolution, sensor performance, camera size, and payload weight, making it well suited for professional aerial mapping applications.

Sensor Highlights

• 24.3MP effective resolution

• Sony CMOS sensor

• APS-C format

• 23.50 × 15.60 mm sensor size

• 3.92 μm approximate pixel pitch

• 3:2 native aspect ratio

• RGBG color filter

• 24.1-bit color depth

• Maximum effective ISO: 1,347

Multiple Image Resolution Options

The 24Pro supports a wide range of image resolutions for different mapping, inspection, and imaging requirements.

Available Image Resolutions

• 6000 × 4000 — 24.0 MP, 3:2

• 6000 × 3376 — 20.3 MP, 16:9

• 4240 × 2832 — 12.0 MP, 3:2

• 4240 × 2400 — 10.2 MP

• 3008 × 2000 — 6.0 MP, 3:2

• 3008 × 1688 — 5.1 MP, 16:9

• 12416 × 1856 — 23.0 MP

• 8192 × 1856 — 15.2 MP

• 2160 × 5536 — 12.0 MP

• 2160 × 3872 — 8.4 MP

The camera supports:

JPEG • RAW • RAW + JPEG

Up to 4 FPS Continuous Shooting

Supports continuous image capture at up to 4 frames per second, providing rapid image acquisition during UAV flight.

Combined with its high-speed shutter capability, the camera is particularly well suited for mapping missions where the aircraft needs to maintain higher airspeed while capturing overlapping imagery.

Video & HDMI Output

Although designed primarily as a professional mapping camera, the 24Pro also provides video recording and HDMI output.

Video Resolutions

• 1920 × 1080 — 60p / 60i / 30p / 24p

• 1440 × 1080 — 30p

• 640 × 480 — 30p

Video Formats

• XAVC S

• AVCHD 2.0

• MP4

HD Video Output

HDMI: Yes

Sony E-Mount Lens System

The 24Pro uses a Sony E lens mount, giving users access to a flexible selection of lightweight lenses for different aerial mapping applications.

The camera supports both:

• Autofocus

• Manual focus

Normal focus range:

25 cm to Infinity

Gimbal Compatibility

Compatible with the Gremsy Mio 2-Axis and Mio 3-Axis camera gimbals, providing flexible stabilization options for UAV mapping and imaging platforms.

Lightweight & Compact

Despite its APS-C sensor and professional mapping capabilities, the 24Pro maintains a compact payload footprint.

Camera Dimensions

89.8 × 63 × 36.2 mm

Camera Weight

133 g

Housing

Aluminum

The lightweight aluminum camera body makes the 24Pro suitable for UAV platforms where payload weight and available installation space are important considerations.

Power & Operating Conditions

Power Input

10–25V DC

Compatible with typical LiPo or Li-ion UAV power systems.

Operating Temperature

-10°C to 40°C

The camera is designed for integration into professional UAV payload systems and aerial mapping applications.

Key Features

🇺🇸 U.S. Assembled

Assembled in the USA by UnmannedRC USA, with local assembly and quality-control processes.

⚡ Approximately 2× Faster Shutter

Higher-speed shutter performance compared with the ADTi 24L V1, V2, and 24S V2, making the V3 particularly attractive for fixed-wing UAV mapping.

📷 24MP APS-C

Sony 24.3MP APS-C CMOS sensor for high-resolution aerial imagery.

🚀 4 FPS Continuous Shooting

Rapid image capture for mapping missions and high-speed UAV flight.

🛰️ ADTi SDK

Advanced camera-control interface for UAV system integration.

🔗 Airpixel & MAVLink

Compatible with Airpixel R3 for geotagging and MAVLink integration.

🎮 TTL / PWM Triggering

Selectable TTL or PWM triggering for flexible UAV integration.

🖥️ Mini Touchscreen

Detachable 2-inch touchscreen for convenient camera configuration.

📺 HDMI Output

Connect to an HDMI capture card and compatible Android devices for camera monitoring and setup.

🔩 Aluminum Housing

Lightweight and durable aluminum camera case.

🔭 Sony E-Mount

Compatible with a range of ADTi lightweight APS-C and full-frame mapping lenses.

⚖️ Only 133 g

Compact and lightweight for fixed-wing and multirotor UAV payload applications.

Technical Specifications

Image Sensor

Sensor Type:CMOS
Sensor Manufacturer:Sony
Effective Megapixels:24.3
Sensor Format:APS-C
Sensor size:366.6mm2 (23.50mm x 15.60mm)
Approximate Pixel Pitch:3.92 microns
Focal Length Multiplier:3.13x
Aspect Ratio:3:2
Color Filter Type:RGBG
Anti Aliasing Filter:Fixed
Color Depth （bits):24.1
Maximum Effective ISO:1,347

Image Capture

Image Resolution:
6000 x 4000 (24.0 MP, 3:2),
6000 x 3376 (20.3 MP, 16:9),
4240 x 2832 (12.0 MP, 3:2),
4240 x 2400 (10.2 MP, Other),
3008 x 2000 (6.0 MP, 3:2),
3008 x 1688 (5.1 MP, 16:9),
12416 x 1856 (23.0 MP, Other),
8192 x 1856 (15.2 MP, Other),
2160 x 5536 (12.0 MP, Other),
2160 x 3872 (8.4 MP, Other)
Image File Format:JPEG, RAW, RAW+JPEG
Continuous-mode frames/second: 11.1

Video Capture

Video Resolution:
1920x1080 (60p/60i/30p/24p)
1440x1080 (30p)
640x480 (30p)
Video File Format:XAVC S/AVCHD 2.0 / MP4
HD Video Out:Yes
HD Video Connection:HDMI

Lens & Optics

Lens Mount:Sony E
Normal Focus Range:25 cm to Infinity
Auto Focus: Yes
Manual Focus: Yes

Display (detached)

Power: 5V DC
Buttons: No
Screen Size: 2 inch mini touch screen

Camera

Camera Size:  8.9* 6.3*3.6 cm
Camera Weight: 133 g
Package Size: 30*20*15 cm
Package Weight: 500 g
Power: 10-25V DC Lipo or Liion
Operating Temperature: -10 to 40°C

It is currently in the pre-sale phase, and they will begin shipping in batches after September 30, 2026.

You can also check the UnmannedRC USA website for Buying Now
