This Pakage inculdes: 1x MAD8318 IPE Heavy Lift Brushless Motor
- Designed for rigorous conditions, for heavy lift agriculture applications
- Over-sized durable bearings for increased life, durability
- Water and dust resistant. IP35 degree of protection
- Motor mounting holes standarization

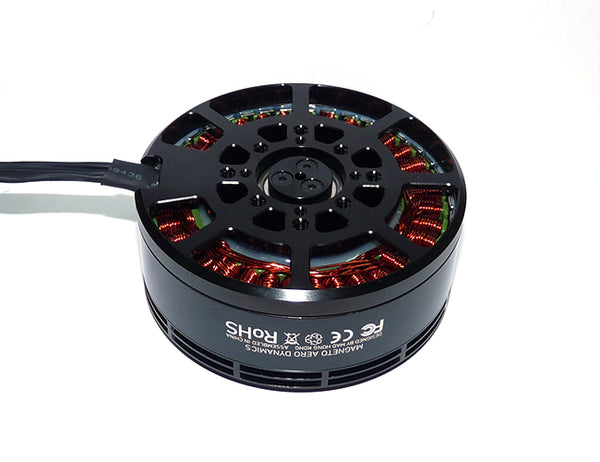

MAD8318 IPE HEAVY LIFT BRUSHLESS MOTOR
INDUSTRY PRO EDITION UAV motor is designed to achieve waterproof and dustproof IP35 degree of protection. Design compatibility of mounting holes for propeller and setup installation. High performance and low power consumption at high voltage applications.

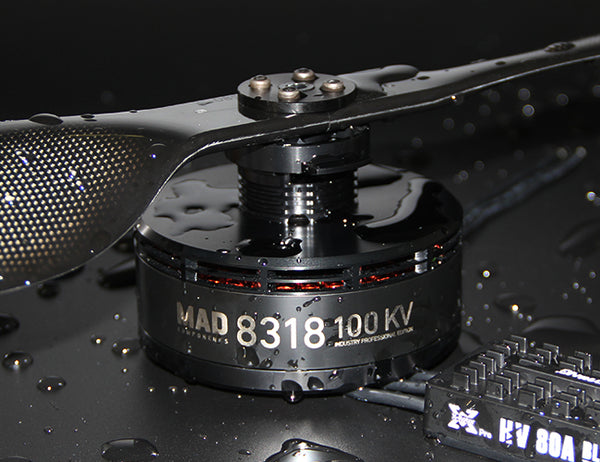

DESIGNED FOR RIGOROUS CONDITIONS
- Water and dust resistant
- IP35 degree of protection
- Internal fan for active heat dissipation
OVER-SIZED DURABLE BEARINGS
- For increased life, durability
- withstand the damage while occasionally hard Landing
PROPELLER INSTALLATION COMPATIBILITY
multiple propeller mounting options
4x M3 Ø20mm
DESIGNED FOR 12S VOLTAGE
- High performance and low power consumption at high voltage applications.
MOTOR SETUP COMPATIBILITY
- Mounting holes standardization
- 4*M3 Ø30mm
4*M4 Ø32mm
4*M4 Ø40mm
SPECIFICATION
| MAD8318 | IPE | IPE |
|---|---|---|
| Configuration | 36N42p | 36N42p |
| RPM/V | 100KV | 120KV |
| Stator Size | 83 x 18 mm | 83 x 18 mm |
| Motor Dimensions | 91.5 x 41 mm | 91.5 x 41 mm |
| Shaft Diameter | 15 mm | 15 mm |
| Maximum Power (180 secs) | - | - |
| Maximum Current (180 secs) | - | - |
| Idle Current at 160V | - | - |
| Internal Resistance | 45 mΩ | 45 mΩ |
| Rotor Balanced | YES | YES |
| Heavy Duty Design | YES | YES |
| Degree of Protection | IP35 | IP35 |
| Motor Weight | 590 g | 590 g |
| Product Boxed Weight | 865 g | 865 g |
| Maximum Thrust | 17280 g (12S) | 19490 g (12S) |
| Propeller Mounting Holes | 4x M3 Ø20mm | 4x M3 Ø20mm |
| Motor Mounting Holes | 4*M3 Ø30mm 4*M4 Ø32mm 4*M4 Ø40mm |
4*M3 Ø30mm 4*M4 Ø32mm 4*M4 Ø40mm |
| Wire | Winding Extended 150 mm | Winding Extended 150 mm |
| Propeller Adapter | NO | NO |
| Additional Accessories | 3x Bullet Connector Set | |
| 3x Heat Shrink Tubes | ||
| 2x M3 10mm | ||
| 2x Carbon Prop Cover | ||
| 1x MAD Stickers | ||
| 2x Black Foam with Hole |
RECOMMENDATIONS
| KV100 | Propeller size 27" - 30" | 12S | Takeoff Weight 6000 - 10000 g/rotor 12S |
| KV120 | Propeller size 27" - 30" | 12S | Takeoff Weight 8800 - 12120 g/rotor 12S |
