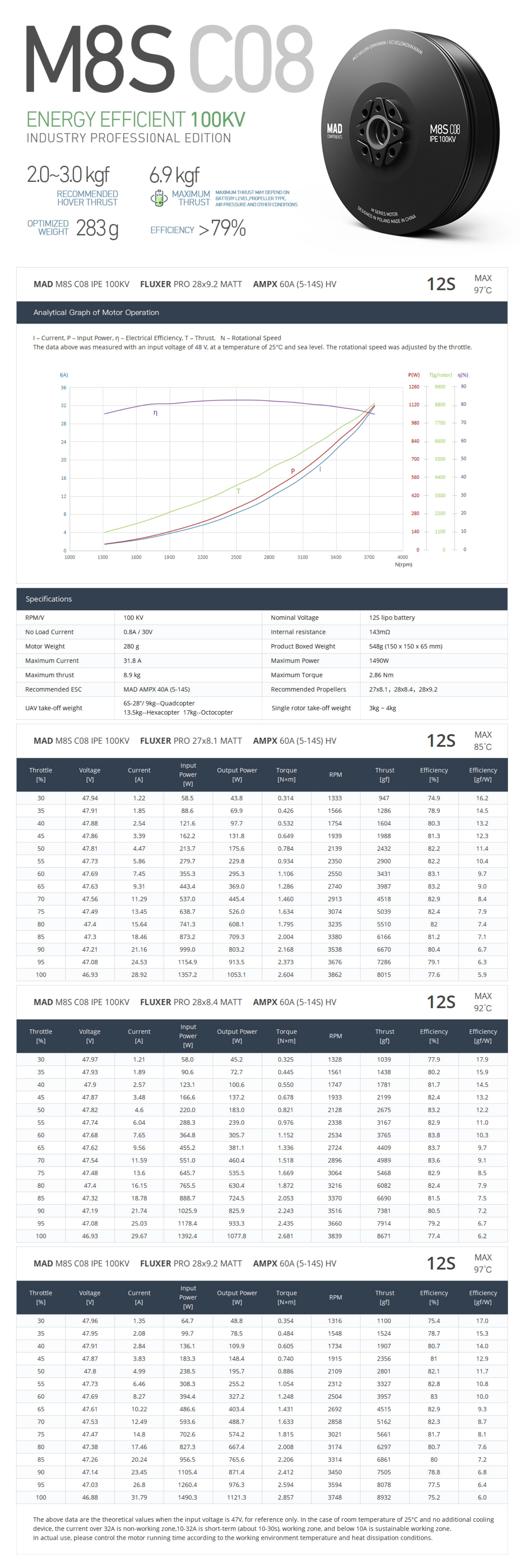

MAD M8S C08 (8108) IPE V1.0 brushless drone motor
Usually ships within 24 hours
Regular price
$269.00
Couldn't load pickup availability
| Sustained thrust: | 2~3kg |
| Max thrust: | 8.9kg |
| Support voltage: | 100KV/12S |
| Weight: | 283g |
About M8S C08
Positioning:
• Optimized for 3–4 kg single-axis payloads with 27–28 inch carbon fiber propellers
• Suitable for multirotor drones requiring stable thrust in mid-weight applications
Key Features:
✔ Delivers up to 8.9 kg maximum thrust per axis
✔ Motor weight: 285g
✔ Balanced performance for efficient and reliable flight
Perfect for:
• Drones requiring consistent lift in the 3–4 kg payload range
Motor Data |
|||
| Motor Model | MAD M8S C08 IPE V1.0 | Number of pole pairs | 21 |
| Stator | Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:87.3 × 28.15 mm | Magnet Degree | 150°C |
| Degree of Protection | IP45 | Cable Length | 80 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4, D:23 M4×4 | Motor Balance | ≤10 mg |
| Shaft Diameter | IN: 12 mm | Motor Mounting Holes | D:36 M4×4 |
| Bearing | EZO 6901ZZ*2 | Disruptive test | 1000 V |
