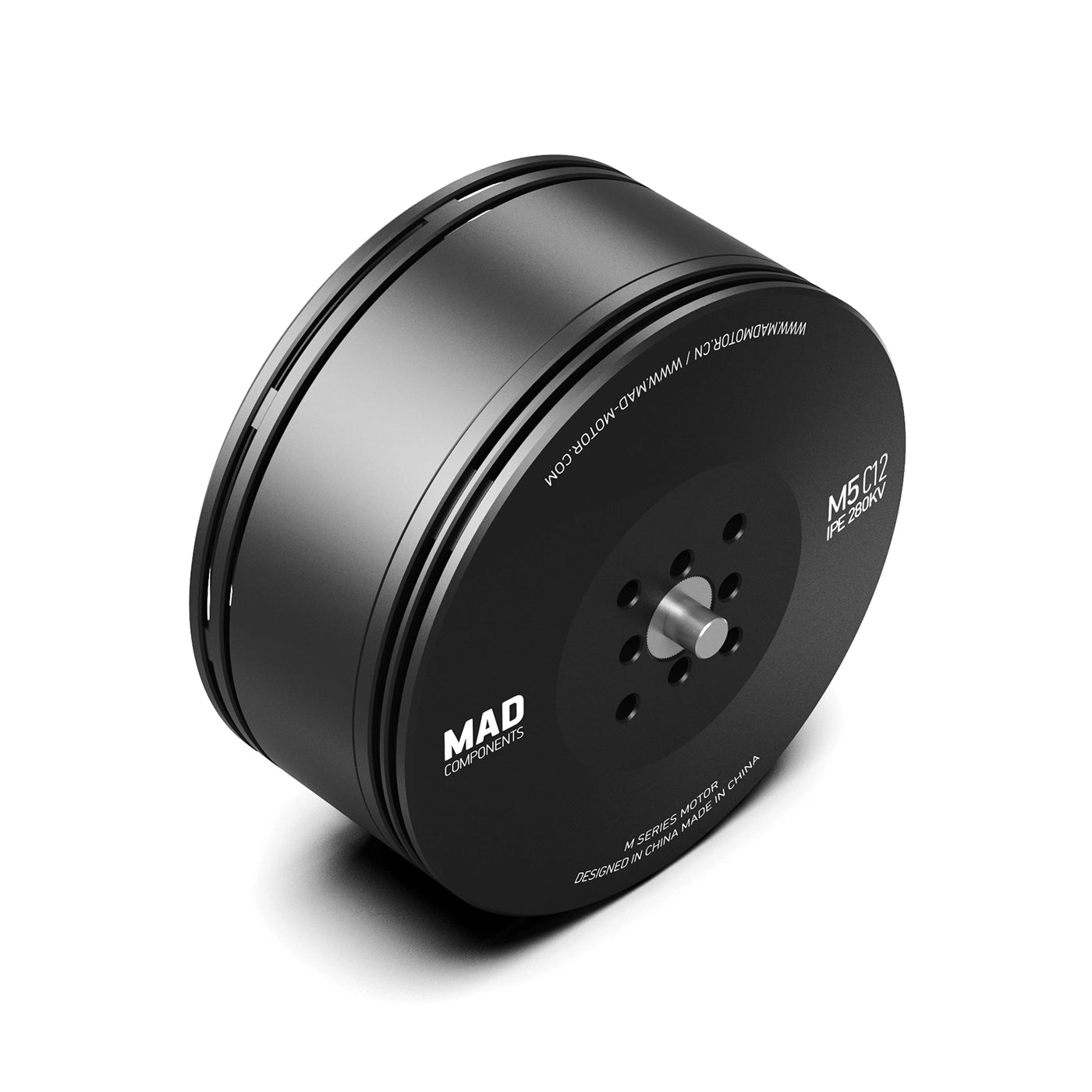

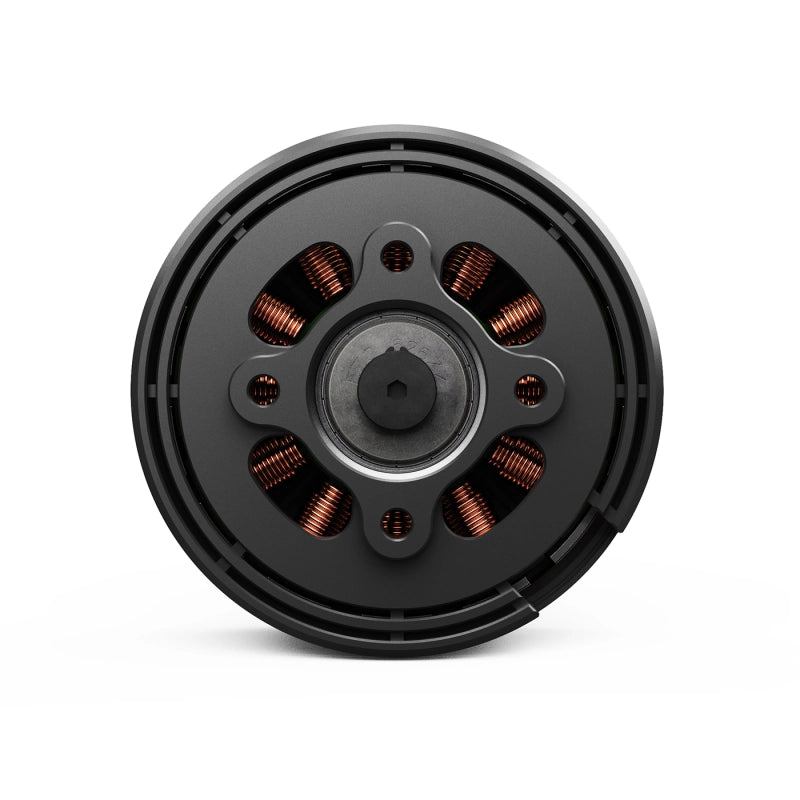

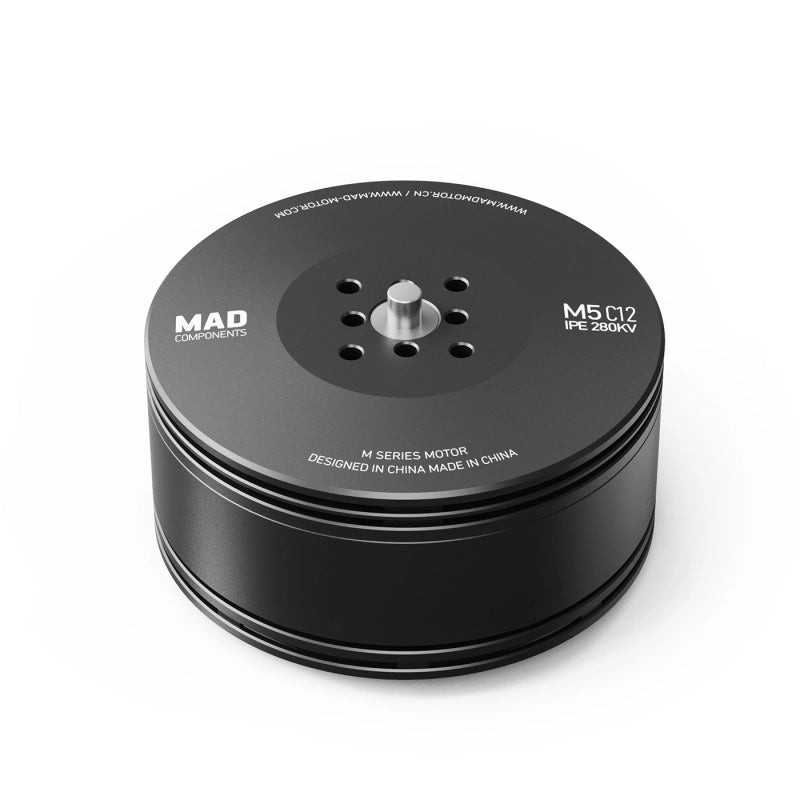

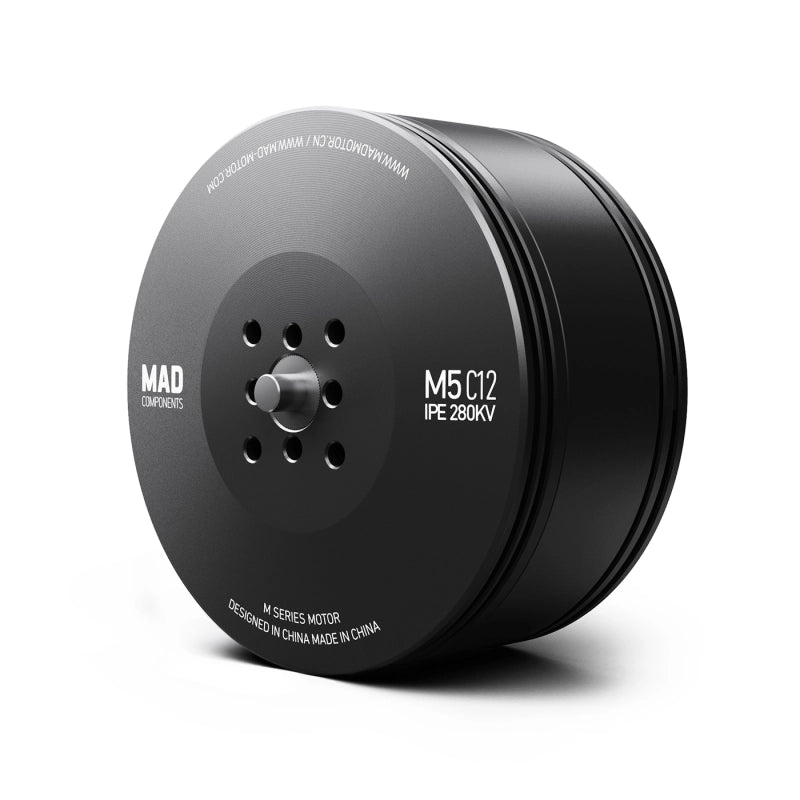

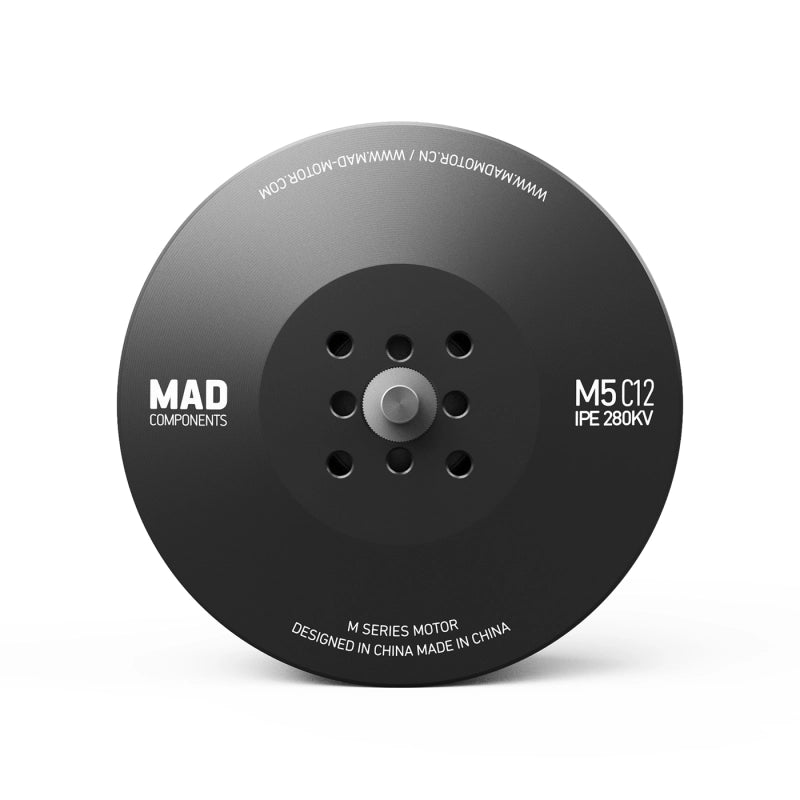

MAD M5C12 IPE Drone Motor
Usually ships within 24 hours
Regular price
$125.00
Couldn't load pickup availability
| Sustained thrust: | 1.5~3kg |
| Max thrust: | 7kg |
| Support voltage: | 280KV/6S,420KV/6S,490KV/6S |
| Weight: | 245g/259g/263g |
About M5C12 IPE
Positioning:
• Designed for 1.5–3 kg single-axis payloads with 15–22 inch carbon fiber propellers
• Suitable for environments requiring water and dust resistance
Key Features:
✔ Maximum thrust: 6.9 kg per axis
✔ Motor weight: 263g
Perfect for:
• Multirotor drones operating in variable outdoor conditions
• Builders seeking reliable and weather-resistant propulsion systems
Specification |
|||
| Motor Model | MAD M5C12 IPE | Polar Number | 7P |
| Stator core | Anti-rust treatment | Varnished wire tolerate temp | 180 ℃ |
| Motor Size | D:61 × 36.5 mm | Magnet tolerate temp | 150 ℃ |
| IP rating | IP45 | Power Cable | 150 mm 18Awg(Black)silicone weld |
| Cooling method | YES | Roto balance | ≤5mg |
| Propeller Mount Holes | D:12 M3×4, D:18 M3×4 | Motor balance | ≤10mg |
| Shaft Diameter | IN: 4 mm | Mounting Holes | D:30 M3×4 |
| Bearing | EZO 626ZZ*2 | Winding Withstand voltage test | 500V |
