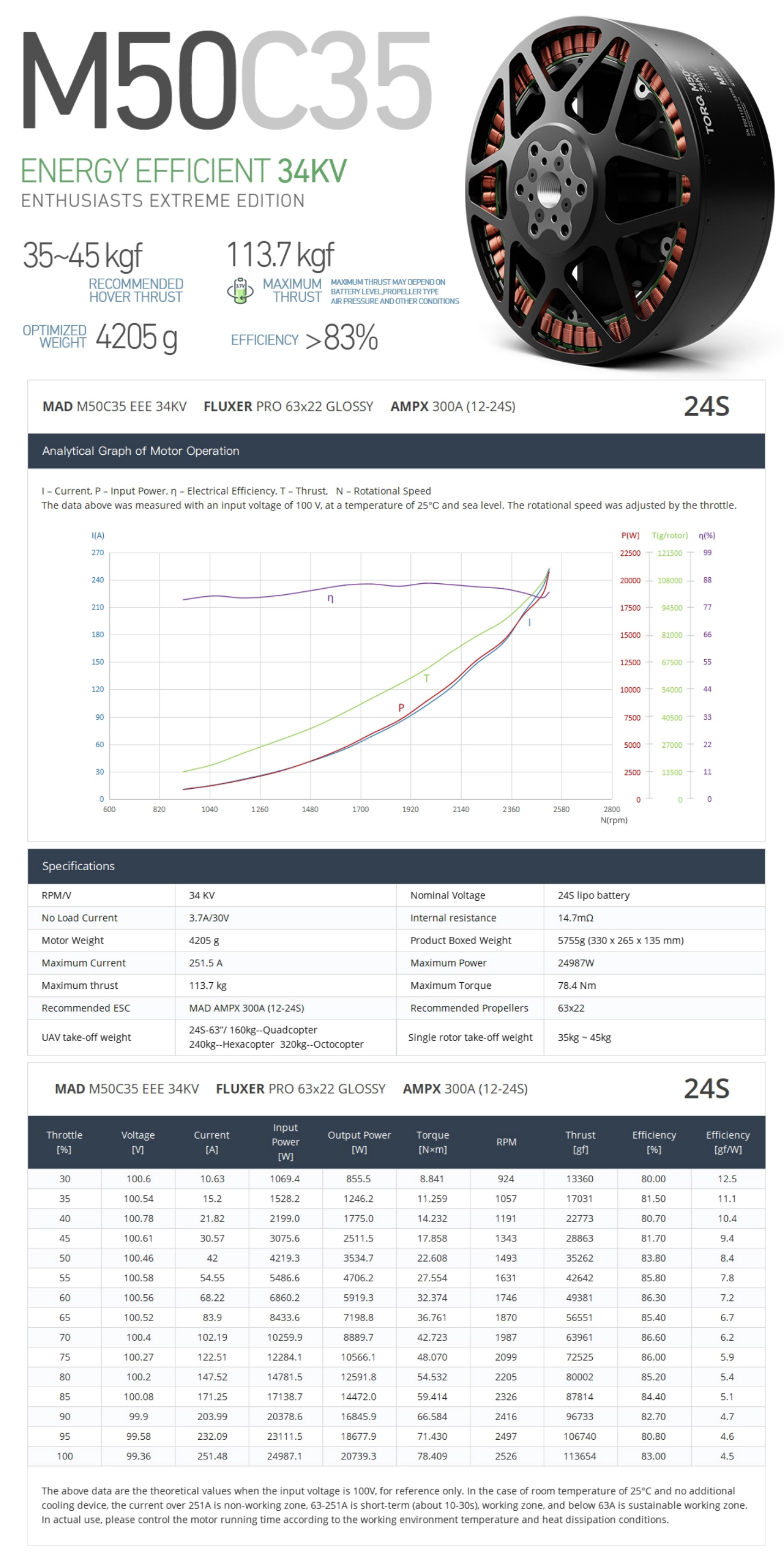

MAD M50C35 PRO EEE Manned Drone Motor
Couldn't load pickup availability
| Sustained thrust: | 30~45kg |
| Max thrust: | 113.7kg |
| Support voltage: | 24S,100S |
| Weight: | 4200g |
It is for large maned multi-rotor, electric para-glider, large E-VTOL, UAV. para-motor, para-trike. This type of motor is made with industrial grade components.
Positioning:
• High-power manned drone motor designed for 30–40 kg single- axis payloads
• Ideal for large VTOL aircraft, electric air taxis, and heavy-lift PAV platforms
• Supports 57–63 inch carbon fiber propellers, delivering extreme thrust with maximum reliability
Key Features:
✔ Peak thrust: 92.6 kgf
✔ Power output: 25 kW
✔ Motor weight: 4205g
✔ Suitable for 12–24S voltage systems
Recommended Configurations:
• 34KV
– ESC: AMPX 300A(12-24S), Propeller: CB2 63X22"
• 40KV
– ESC: AMPX 300A(12-24S), Prop: CB2 57X19 or AMPX 200A(12-24S), Prop: fluxer pro 60X20

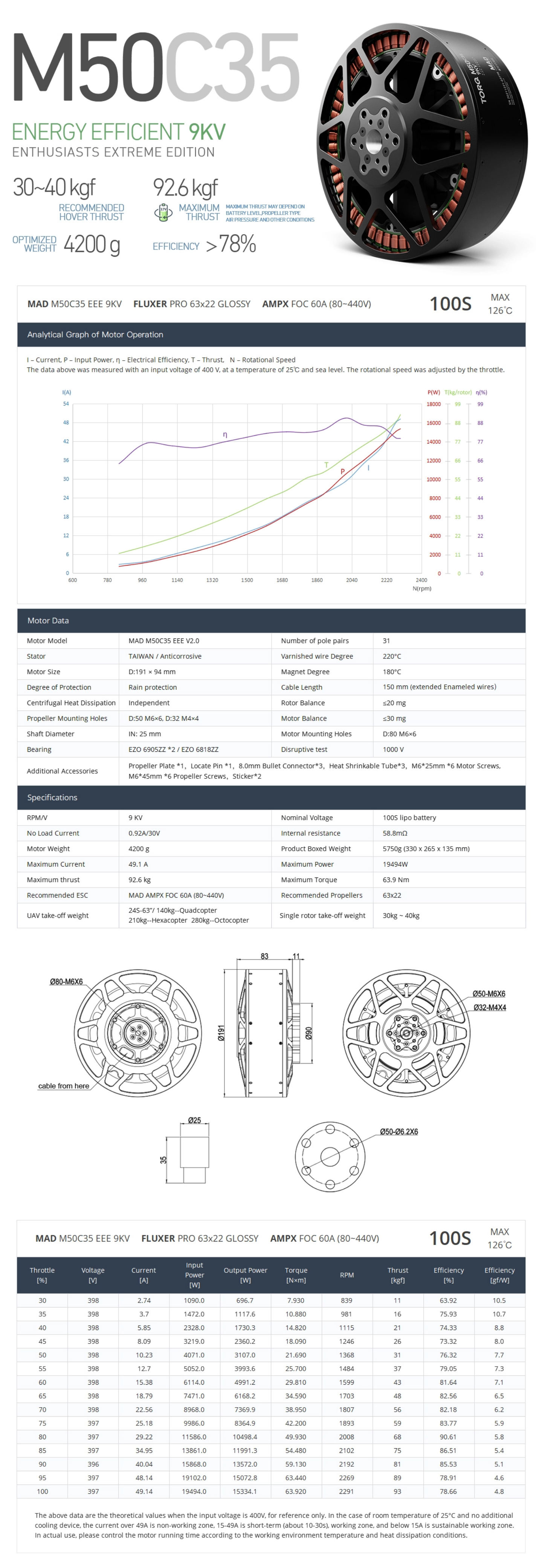

• 9KV
– FOC Combo: HB40 Drone Arm Set
Perfect for:
• Manned drones and hybrid VTOL platforms
• Electric air mobility (EAM) applications
• Developers seeking maximum propulsion power for ultra-heavy configurations

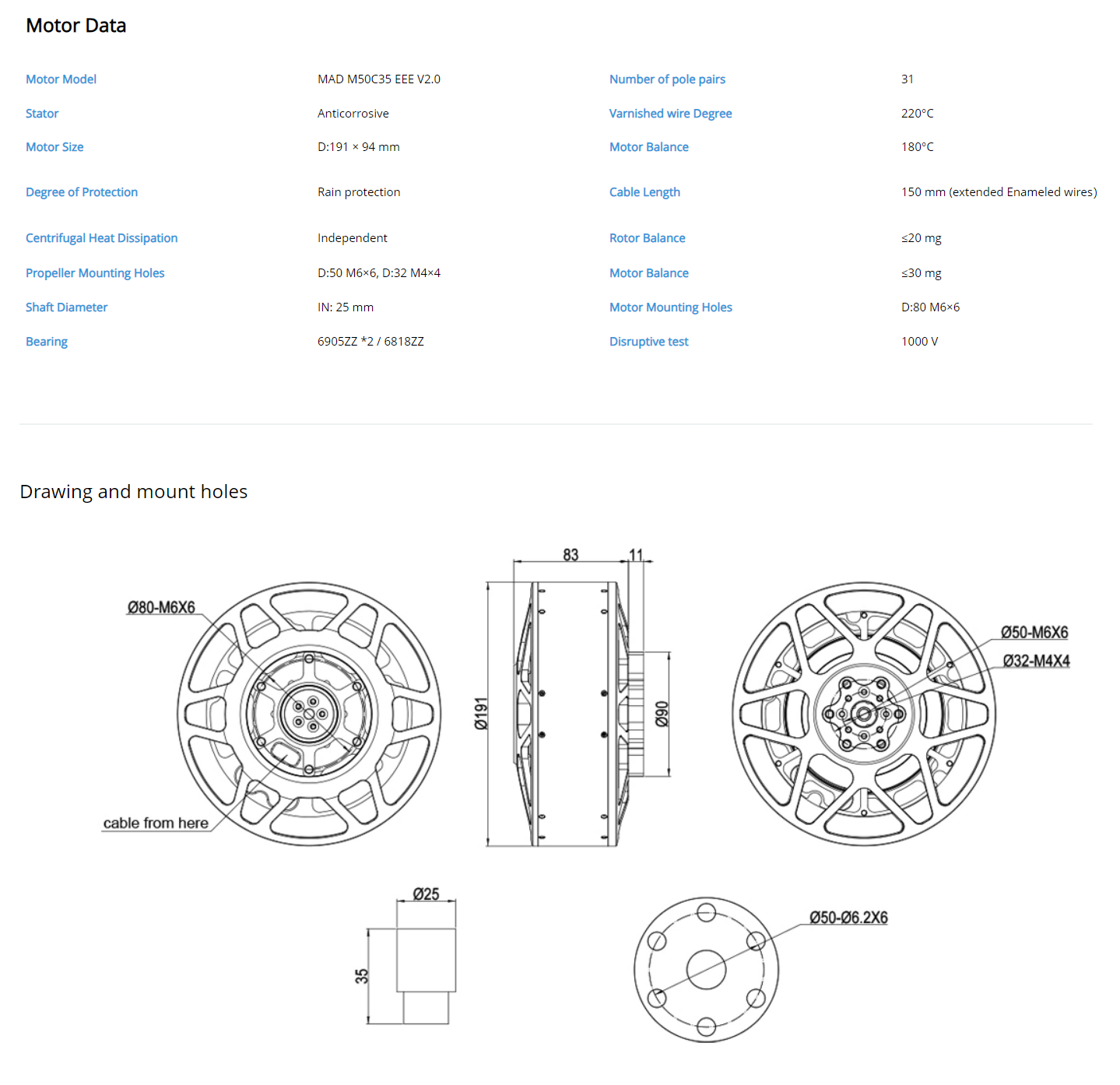

Motor Data |
|||
| Motor Model | MAD M50C35 EEE V2.0 | Number of pole pairs | 31 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:191 × 94 mm | Magnet Degree | 180°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤20 mg |
| Propeller Mounting Holes | D:50 M6×6, D:32 M4×4 | Motor Balance | ≤30 mg |
| Shaft Diameter | IN: 25 mm | Motor Mounting Holes | D:80 M6×6 |
| Bearing | NSK 6818ZZCM | Disruptive test | 1000 V |
