| Sustained thrust: | 8~10kg |
| Max thrust: | 31.2kg |
| Support voltage: | 12S |
| Weight: | 1031g |

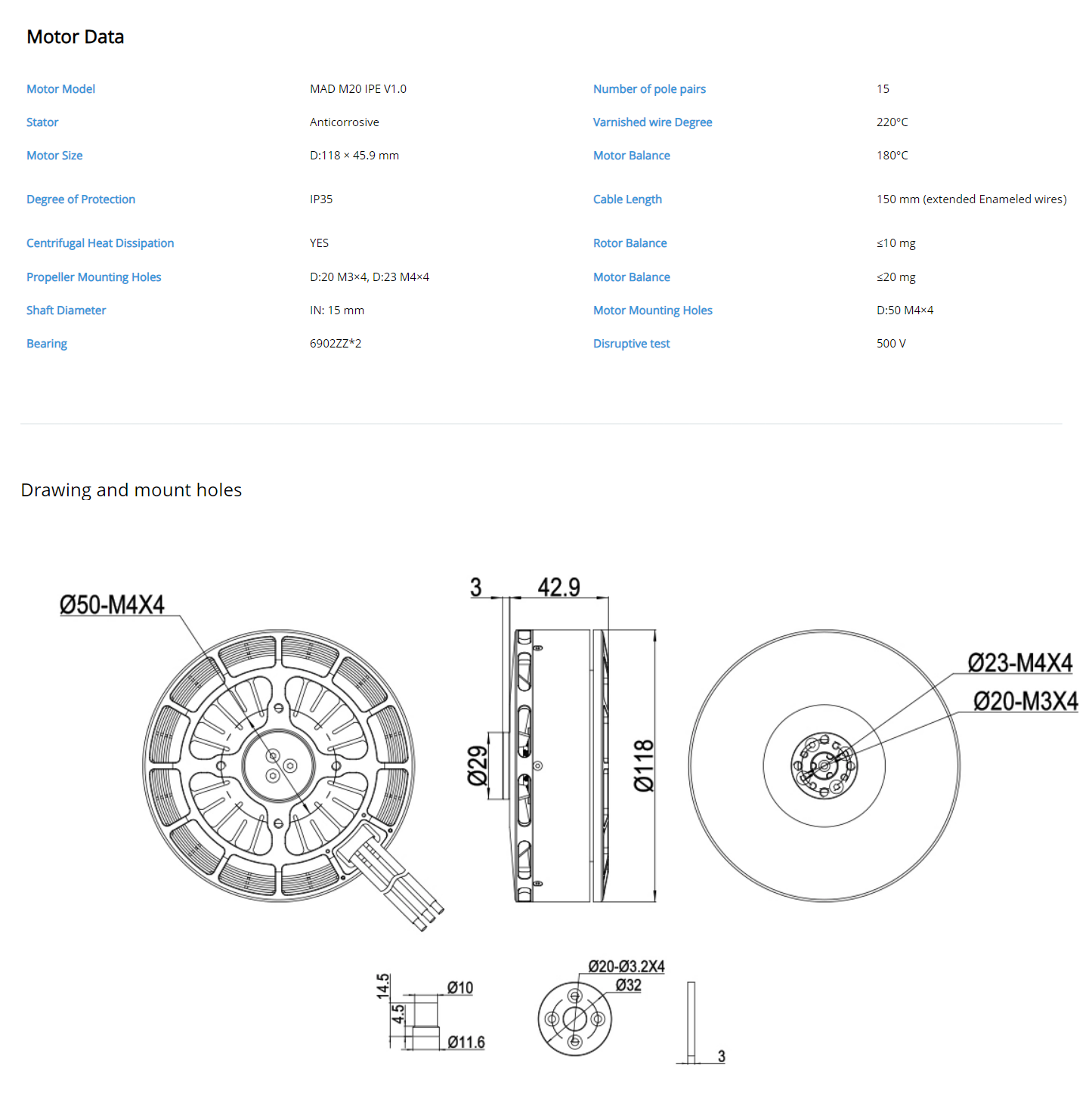

Motor Data |
|||
| Motor Model | MAD M20 IPE V1.0 | Number of pole pairs | 15 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:118 × 45.9 mm | Magnet Degree | 180°C |
| Degree of Protection | IP35 | Cable Length | 150 mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤10 mg |
| Propeller Mounting Holes | D:20 M3x4,D:23 D4x4, D:24 M4×4 (with adapter) |
Motor Balance | ≤20 mg |
| Shaft Diameter | IN: 15 mm | Motor Mounting Holes | D:50 M4×4 |
| Bearing | 6902ZZ*2 | Disruptive test | 500 V |
