UnmannedRC Luna 980 Fully Autonomous Aerial Mapping Drone

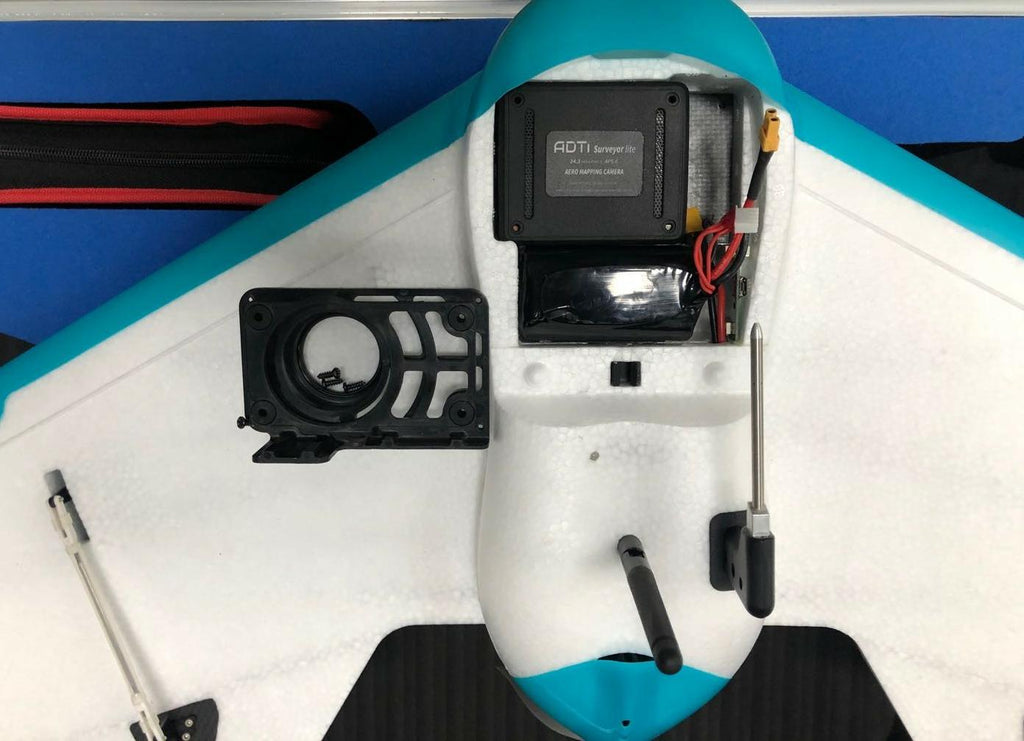

UnmannedRC Luna 980 is fully autonomous aerial mapping fixed wing UAV, which is superior light in weight with payload (980g), the standard Luna 980 version has equipped ADTi 24MP 24L V1 Surveyor Lite Drone Mapping Camera and ADTi 25 mm APS-C Professional Mapping Camera Lens

Luna 980 is hand-launching fixed wing, pilots can simply throw into the air and it will  take off by itself, also Luna 980 has one button RTL-Return To Launch.

 Payloads:

20MP APS-C Mapping Camera 20L with 25MM Lens

Luna 980 with ADTi 24MP 24L V1 Surveyor Lite, 25mm F5.6 Lens, can achieve 690-850 Acres (2.8-3.4 square KM) cover area with 55 mins flight time single battery.

24MP APS-C Mapping Camera 24L V1with 25MM Lens

Luna 980 with ADTi 24MP 24L V1 Surveyor Lite, 25mm F5.6 Lens, can achieve 690-850 Acres (2.8-3.4 square KM) cover area with 55 mins flight time single battery.

Parrot Sequoia Multispectral camera with Sunlight sensor

Luna 980 with parrot sequoia camera, can achieve 690-850 Acres (2.8-3.4 square KM) cover area with 55 mins flight time single battery.

Easy to setup in the filed:

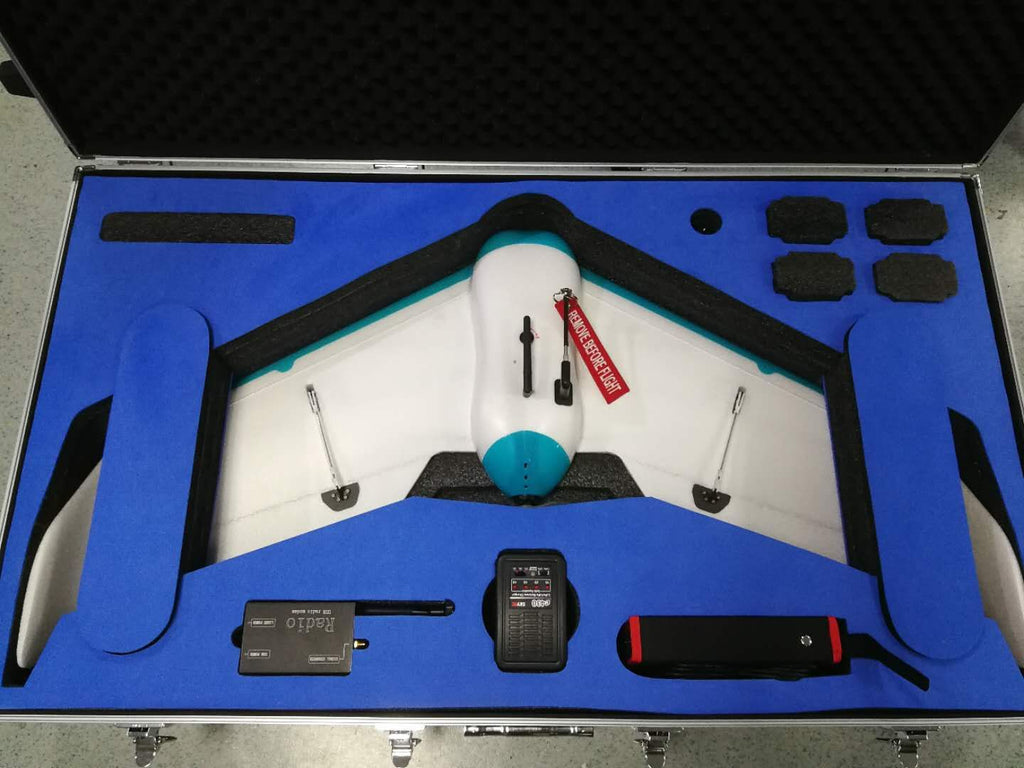

we have designed a hard case for Luna 980, so it is fully protected to travel anywhere.

Takeoff and Landing:

Luna 980 can be easily takeoff by hand lunching, always take-off in the direction opposite to the direction of the windflow.

Specifications:

Weight: 988g
Wingspan: 920mm
Material: EPO foam, one-take moulding
Propulsion: Electric pusher propeller
Battery: 11.1V, 6400mAh/7000mAh
Endurance: 55 minutes
Cruising speed: 14m/s
Radio link range: 3-5km (optional for upgrade)
Take-off: Throw and fly
Software: custom-made GCS ( logo design available ! make it as your own company GCS)
Landing: Circle down, Against the wind, Belly landing
Image processing: Pix4Dmapper, metashape or Trimble Inpho
Navigation: GPS+INS+ RTK/PPK

Package includes:
