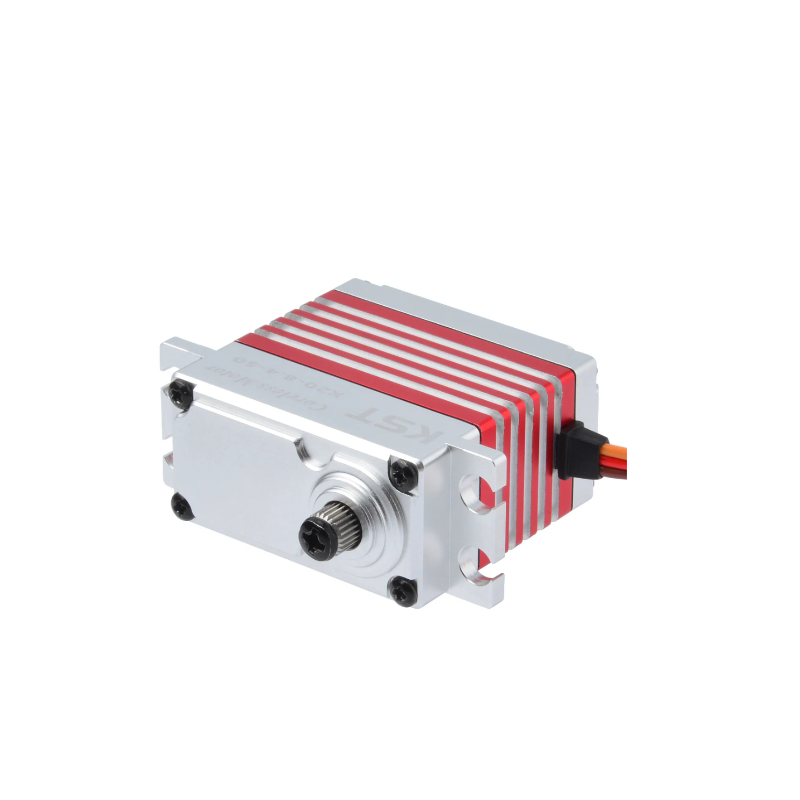

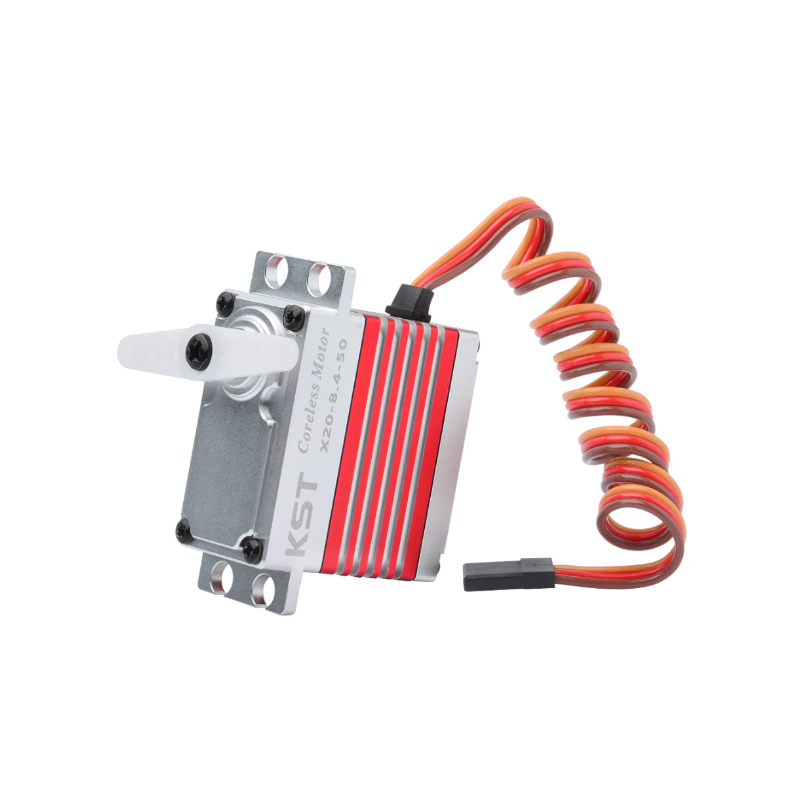

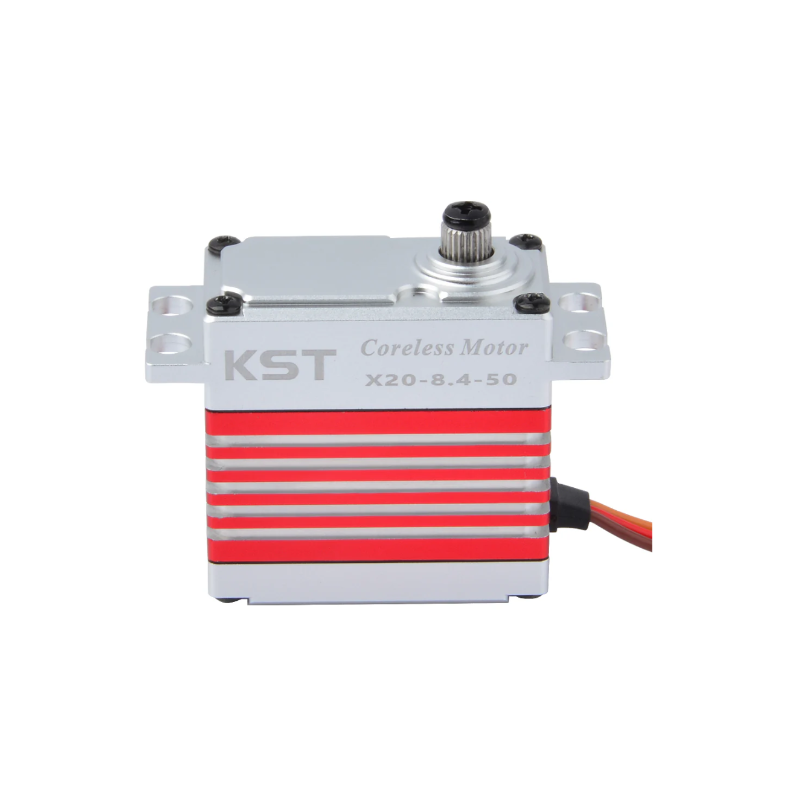

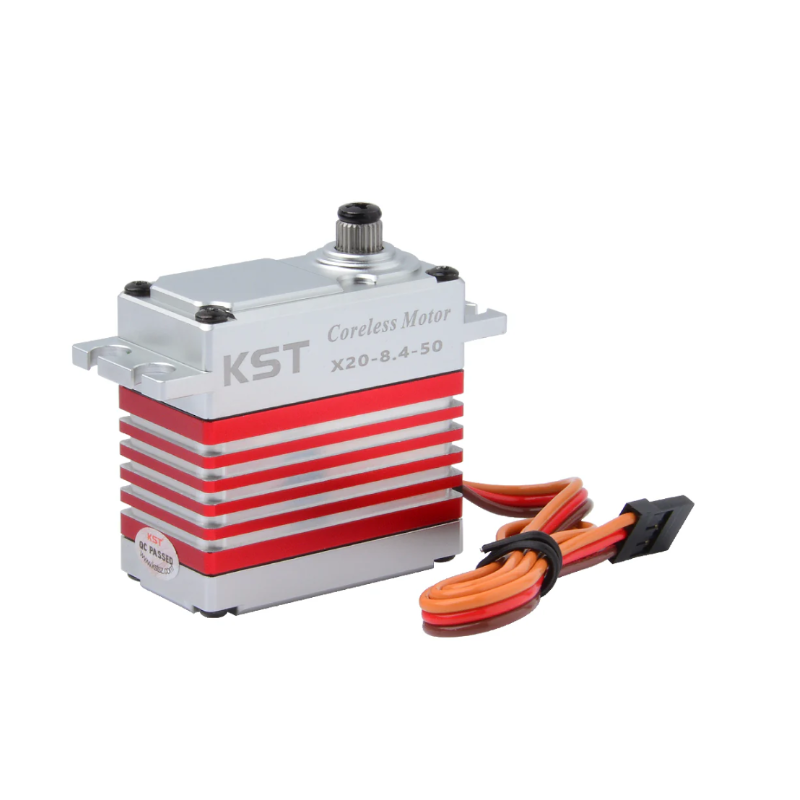

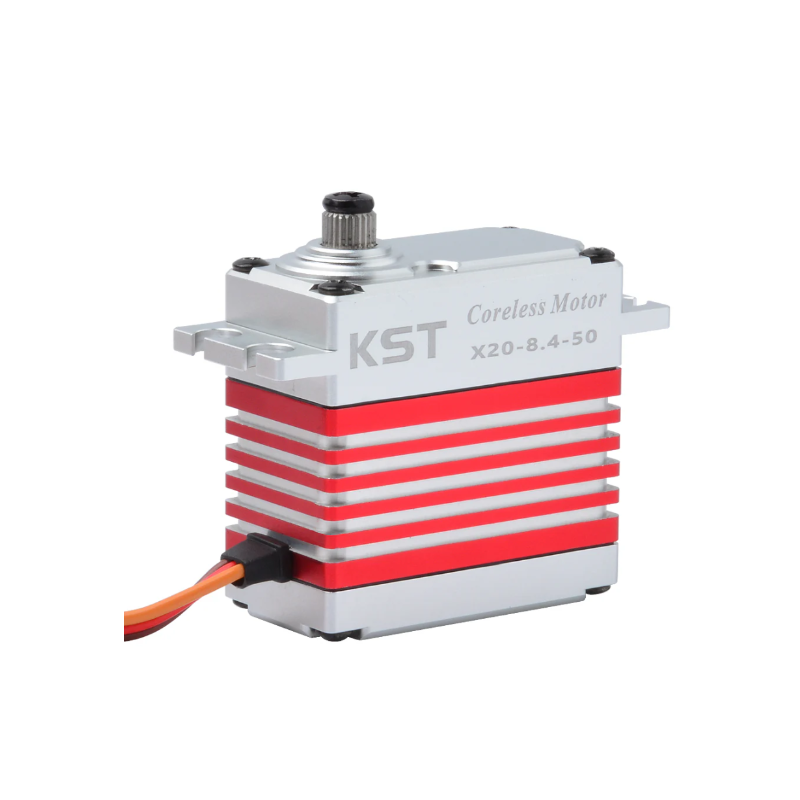

X20-8.4-50 is an incredibly powerful servo that features a full CNC aluminum case, high power coreless motor, and metal gears throughout. Boasting an incredible 45Kgf.cm of torque at 8.4V. The X20-8.4-50 will suit a wide variety of RC applications from giant scale aircraft, 1/8 scale nitro and electric off-road or on-road vehicles, crawlers, and much more!
Features
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- Two Ball Bearings
- Programmable

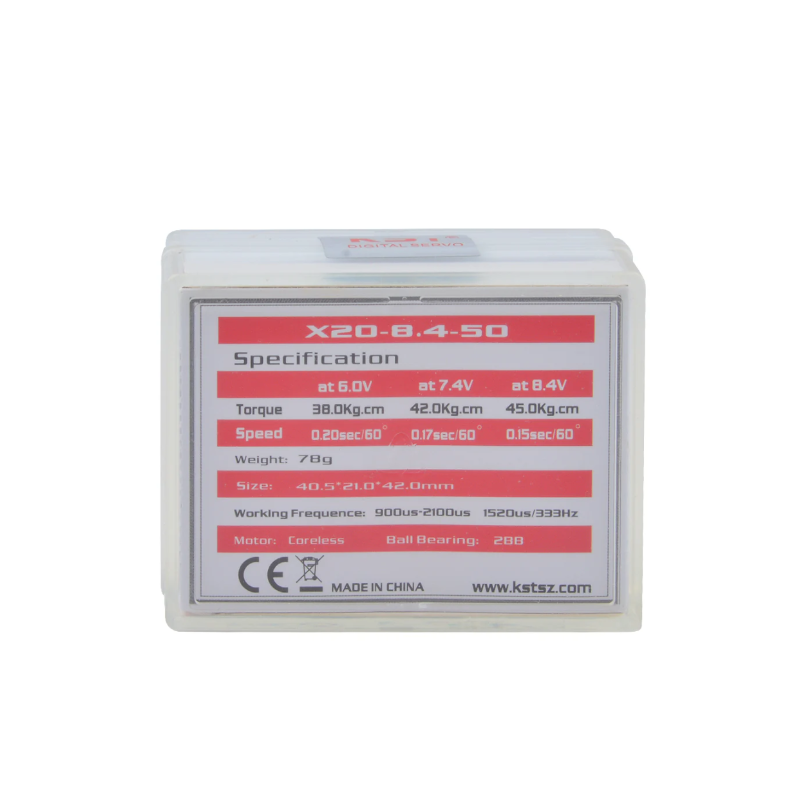

Specification
- Item: X20-8.4-50 Brushless Standard Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque:
38Kgf.cm@6.0V
42Kgf.cm@7.4V
45Kgf.cm@8.4V
- Speed:
0.20sec/60°@6.0V
0.17sec/60°@7.4V
0.15sec/60°@8.4V
- Working Frequency: 1520us/333Hz
- Default Travel Angle: ±50° = 100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Programable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB

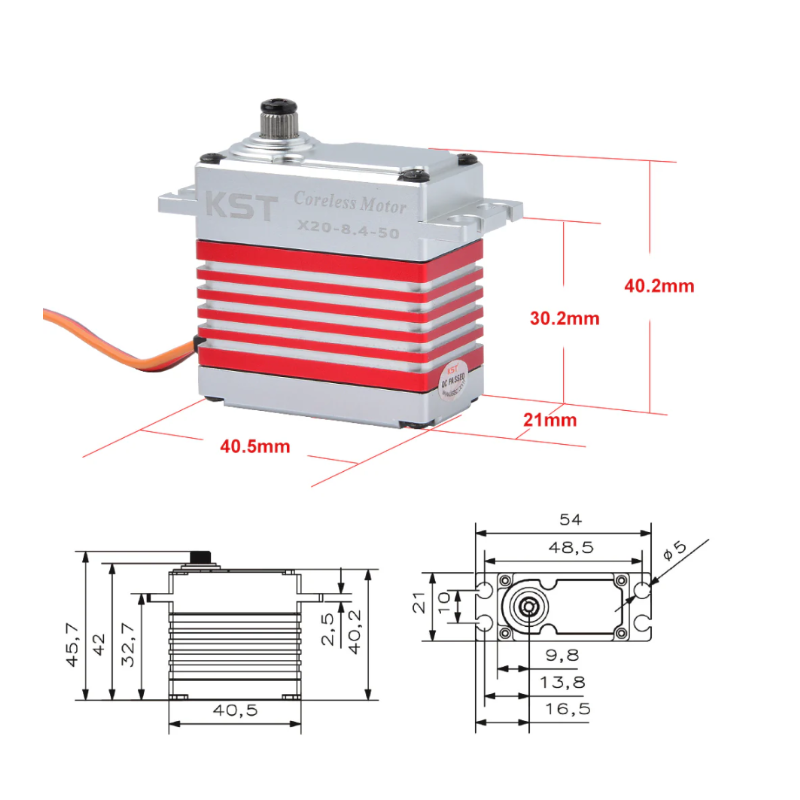

- Case Dimensions: 40.5mm*21mm*42mm±0.2mm
- Weight: 78g±10%
