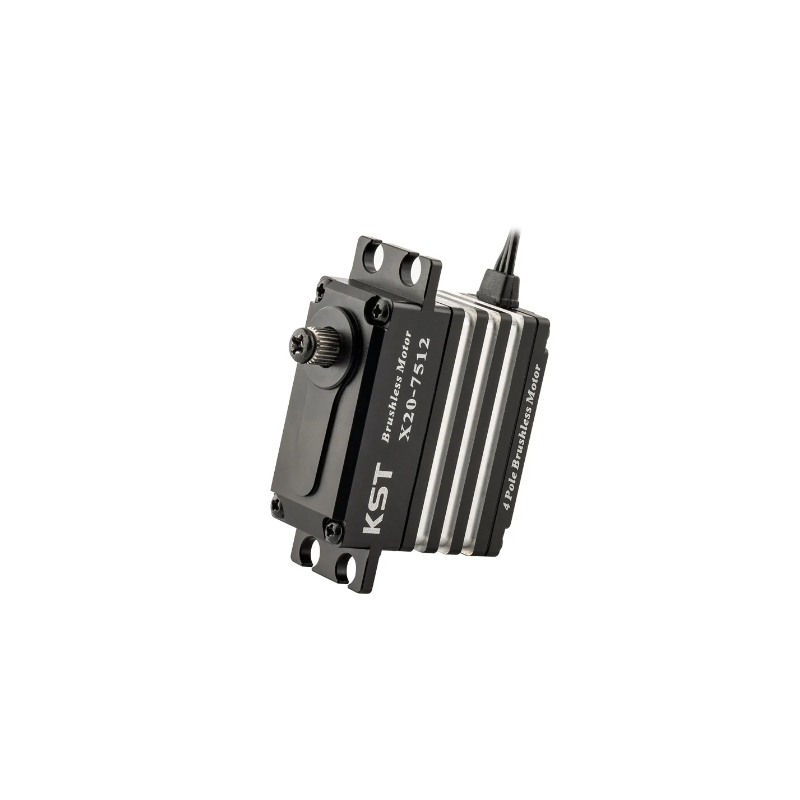

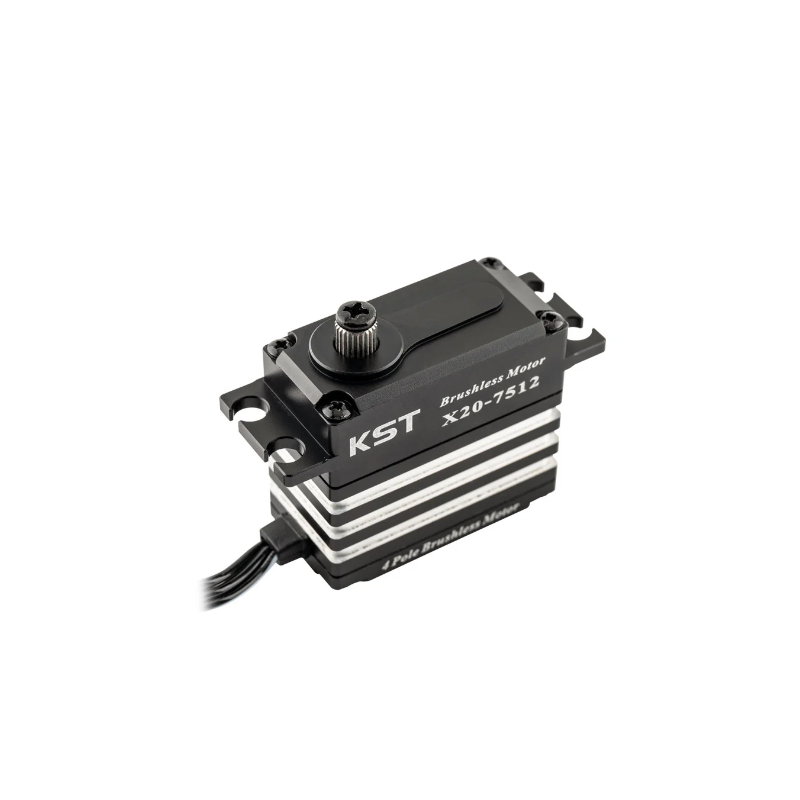

KST X20-7512 Brushless High Power Servo 82Kgf.cm 0.11sec for Large Scale RC Model Industrial

The X20-7512 brushless standard size servo is specifically engineered for giant scale RC planes and industrial applications. It boasts an impressive torque of 82Kgf.cm, ensuring exceptional power for demanding tasks. The high-quality, all-aluminum housing not only allows for precise mounting but also facilitates efficient heat dissipation, promoting optimal performance. Additionally, the servo is equipped with hardened steel gears to significantly enhance durability and precision. These features make it an ideal choice for serious aeromodellers and builders alike, providing unparalleled control and reliable operation in any environmental conditions.

Features

• 4 Pole Brushless DC Motor
• 2 Ball Bearings
• Ultra High Torque & Excellent Speed
• Hardened Steel Gear
• CNC Aluminium Case
• IP65 Waterproof
• Ideal for Giant Scale RC Planes and Industrial Applications

Specification

• Item: X20-7512 High Power Servo
• Rated Voltage: DC7.4V
• Voltage Range: DC6.0V-8.4V
• Torque: 65Kgf.cm@6.0V/ 75Kgf.cm@7.4V/ 82Kgf.cm@8.4V
• Speed: 0.14sec/60°@6.0V / 0.12sec/60°@7.4V / 0.11sec/60°@8.4V
• Stalling Current: 8.80A@6.0V / 10.8A@7.4V / 12.3A@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±50°=100° Total
• Temperature Range: -20℃.......+65℃
• Programmable: Yes
• Case Material: Aluminum Alloy
• Motor Type: 4 Pole Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB
• Waterproof: IP65
• Case Dimensions: 40.5mm*20mm* 38mm±0.2mm
• Weight: 70g±10%
