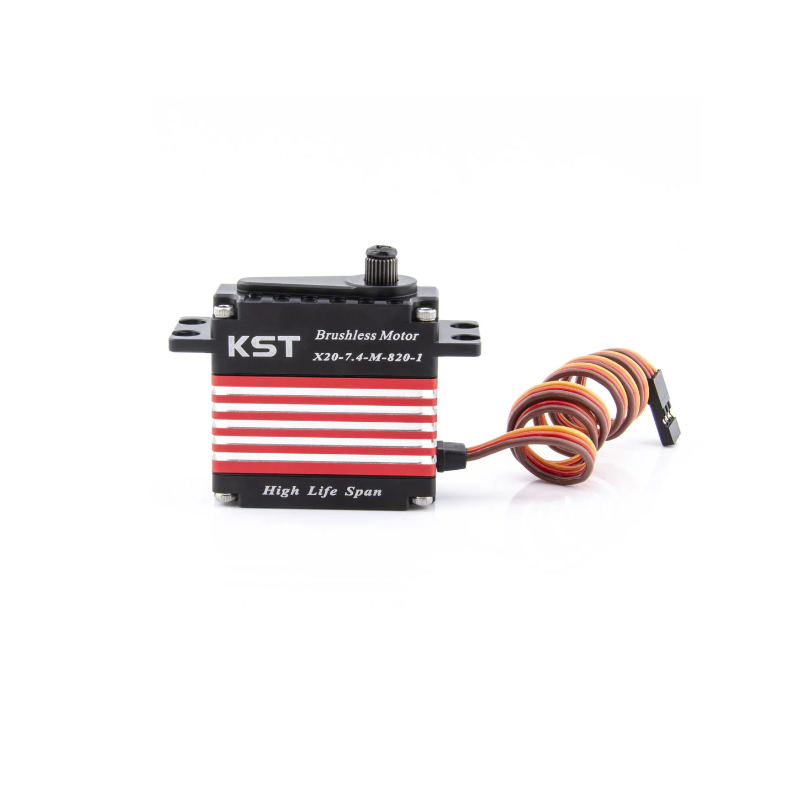

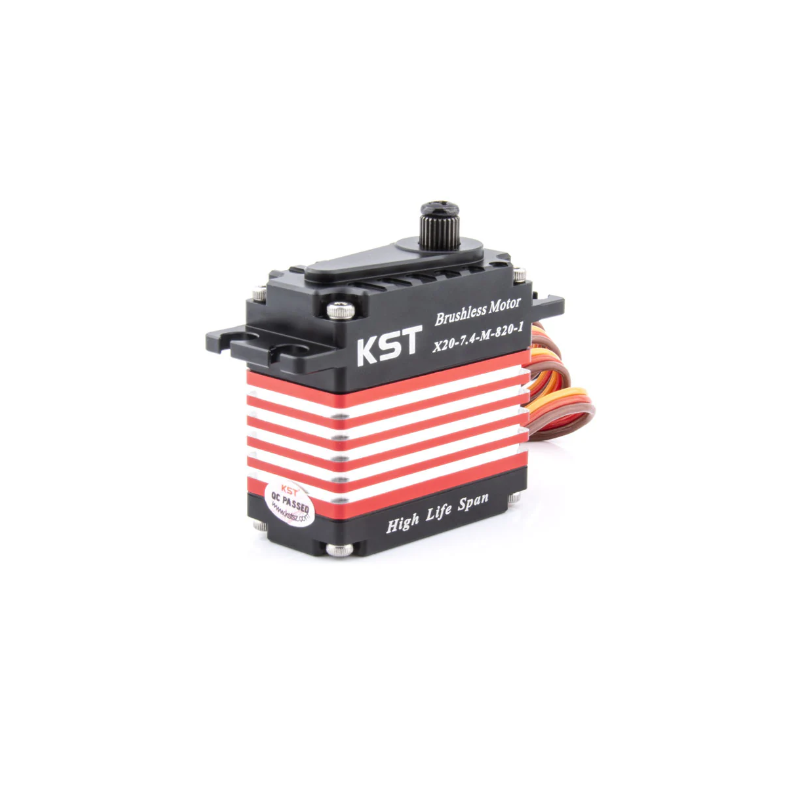

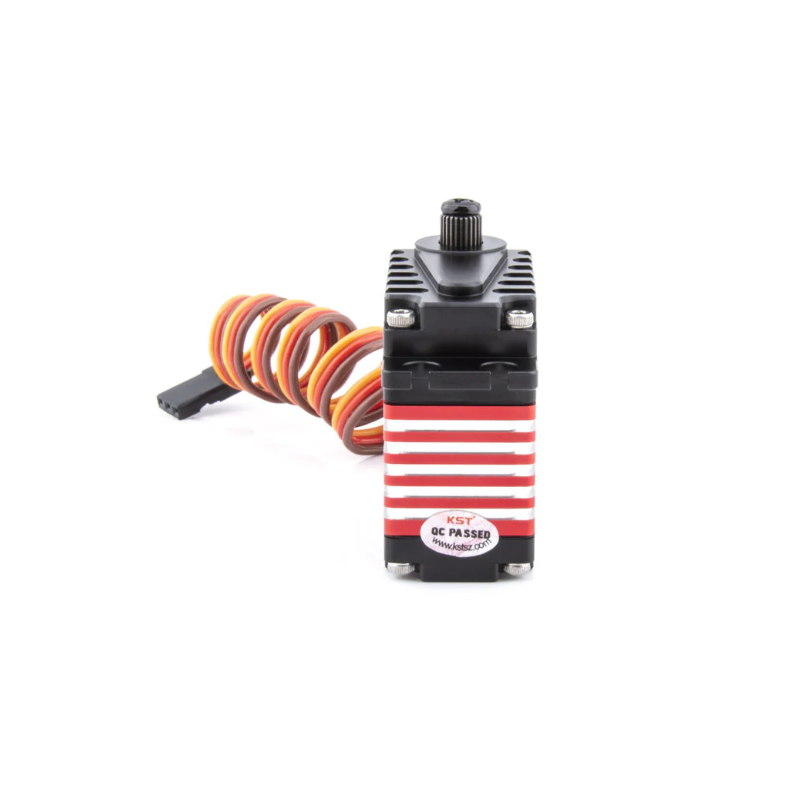

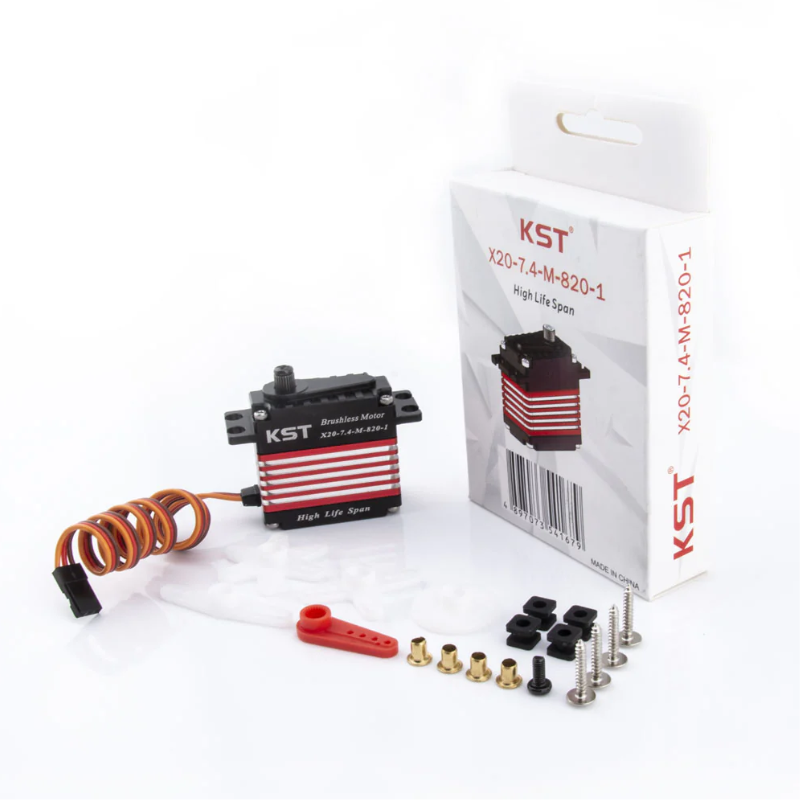

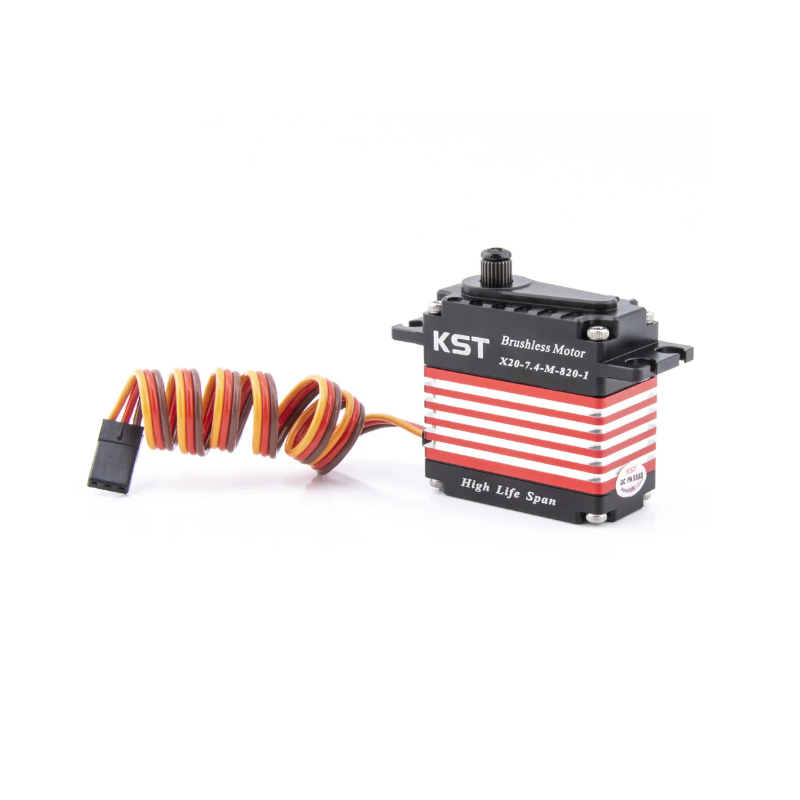

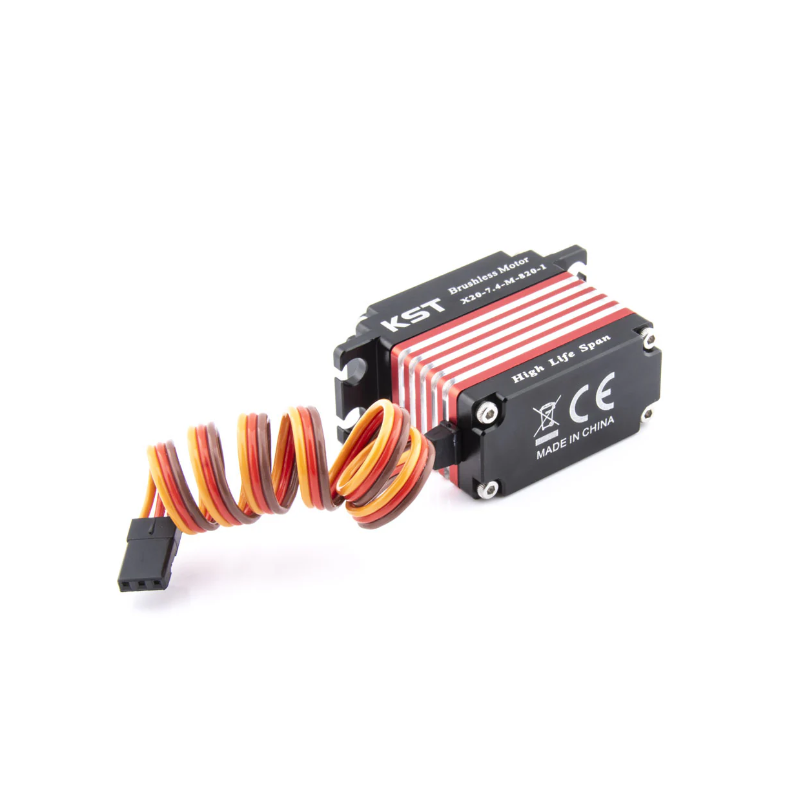

The X20-7.4-M-820 servo features a brushless motor, a full CNC aluminum case, and a complete set of hardened steel gears throughout each servo. The servo boasts an incredible 30Kgf.cm of torque at 7.4V, and a crisp 0.09 second speed.
Features
- Brushless DC Motor
- Hardened Steel Gears
- Contactless Sensor
- Extreme Torque and Excellent Speed
- CNC Aluminium Case
- 6 Ball Bearings
Specification
- Item: X20-7.4-M-820 HV Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Stalling Torque: 30Kgf.cm@7.4V
- Rated Torque: 7Kgf.cm@7.4V
- Stalling Current: 4.95A
- Rated Current: 1.25A
-
No-load Speed: 0.09sec/60°@7.4V
- Rated Speed: 0.17sec/60°@7.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ± 100°=200° Total When 500μs-2500μs
- Temperature Range: -10℃……+65℃
- Case Material: Aluminium Alloy
- Motor Type: Brushless DC Motor
- Gear Set Material: Hardened Steel (HLS)
- Position Sensor: Contactless
- Case Dimensions: 40mm*20mm*40mm±0.2mm
- Weight: 75g±10%
- Ball Bearing: 6 BB
