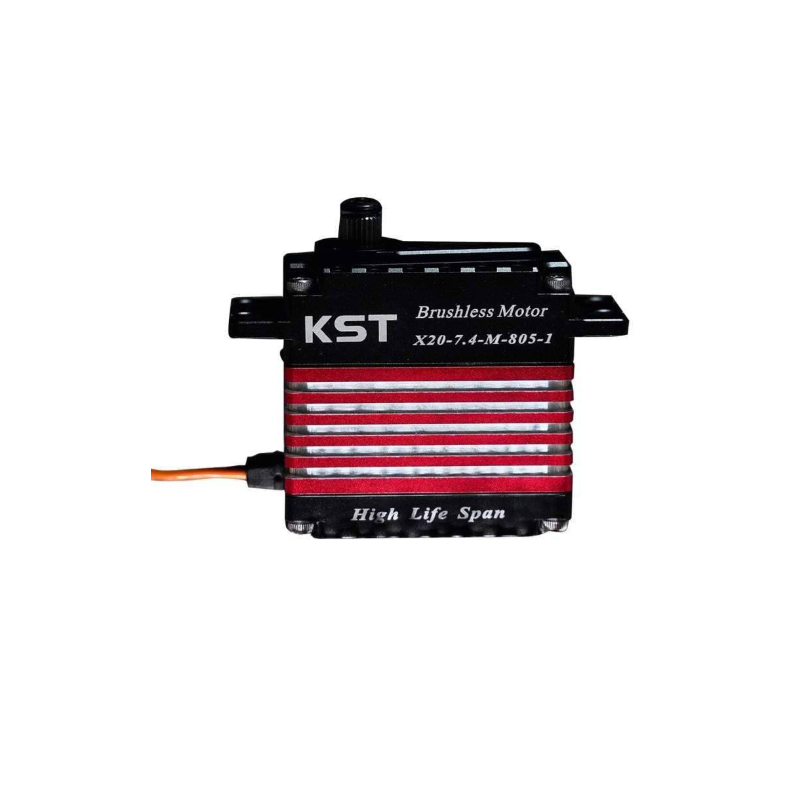

KST X20-7.4-M-805 HV Brushless HLS Tail Servo 12Kgf.cm 0.030sec for 700-800 Class RC Helicopters

In stock
No reviews
Usually ships within 24 hours
$220.00
Product details
  • Vendor Unmanned RC

Do you have questions about this product?

Ask an expert!

Description Shipping information Reviews (0)

The X20-7.4-M-805 tail servo boasts an amazing 12Kgf.cm of torque at 8.4V, and an incredible 0.030sec/60° speed for 700-800 class RC helicopters. This servo features a brushless motor, a full CNC aluminum case, and a complete set of HLS (High Life Span) hardened steel gearbox throughout each servo. The X20-7.4-M-805 is equipped with 6 ball bearings to maintain a slop-free gear train. With excellent torque and amazing speed, you can make a brilliant flight easily.

Features

  • Ultra High Torque & Excellent Speed
  • Brushless DC Motor
  • Contactless Hall Sensor
  • Hardened Steel Gears
  • 6 Ball Bearings
  • CNC Aluminium Case
  • HLS (High Life Span) Hardened Steel Gearbox
  • Ideal for 700-800 Class RC Helicopters

Specification

  • Item: X20-7.4-M-805 HLS Brushless Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 9Kgf.cm@6.0V / 11Kgf.cm@7.4V / 12Kgf.cm@8.4V
  • Speed: 0.040sec/60°@6.0V / 0.035sec/60°@7.4V / 0.030sec/60°@8.4V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃.......+65℃
  • Case Material: Aluminium Alloy
  • Motor Type: Brushless DC Motor
  • Gear Set Material: HLS Hardened Steel
  • Position Sensor: Contactless
  • Case Dimensions: 40mm*20mm* 40mm±0.2mm
  • Weight: 75g±10%
  • Ball Bearing: 6BB
