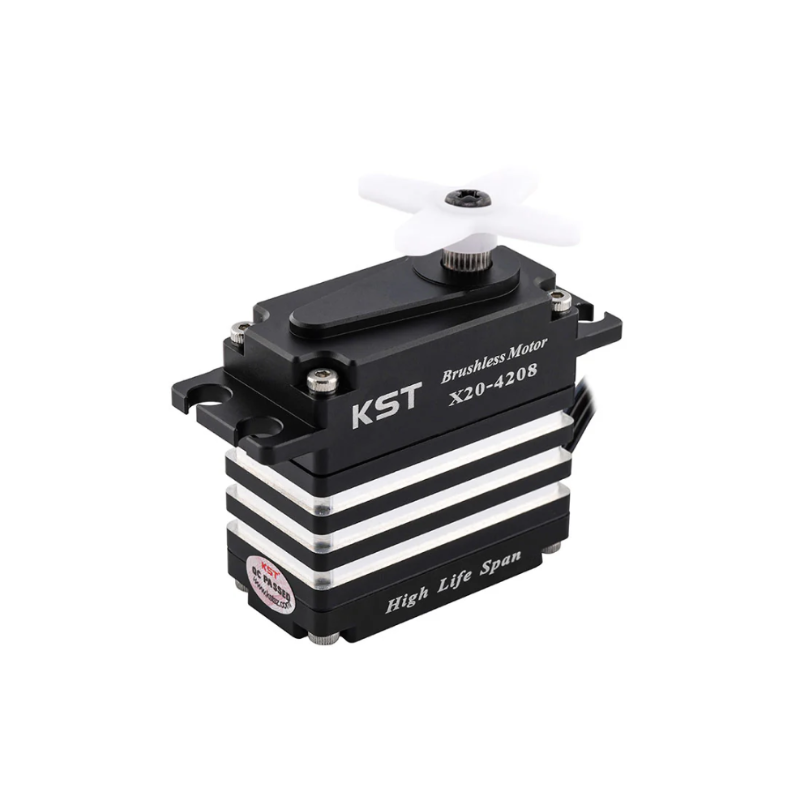

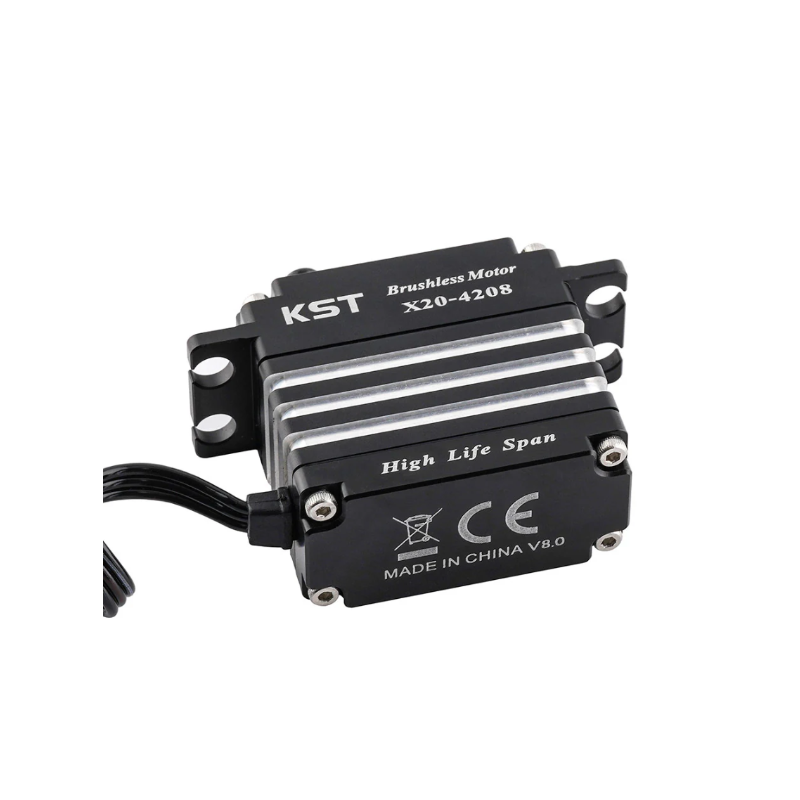

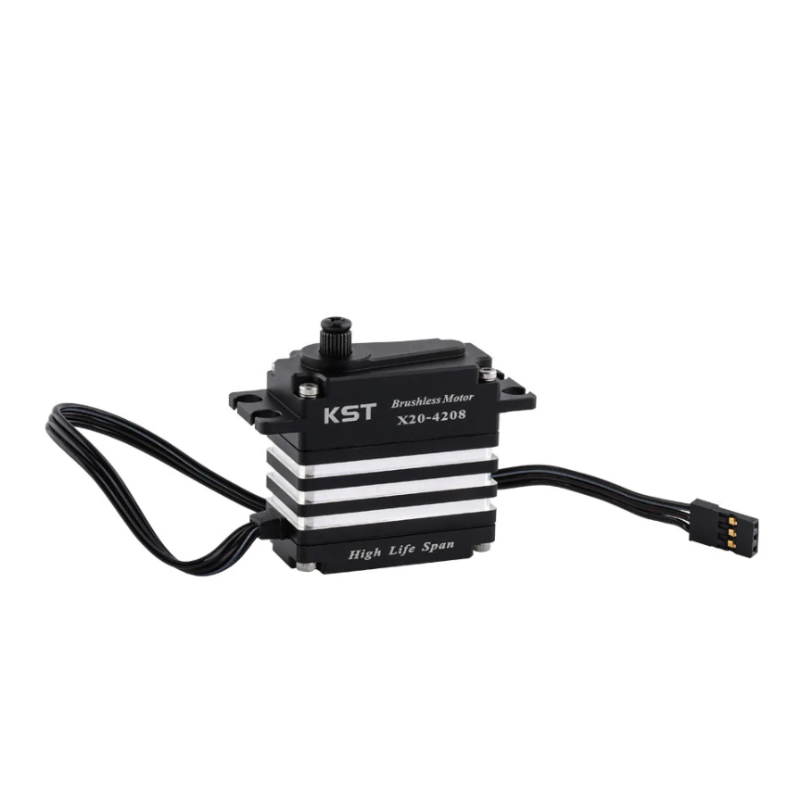

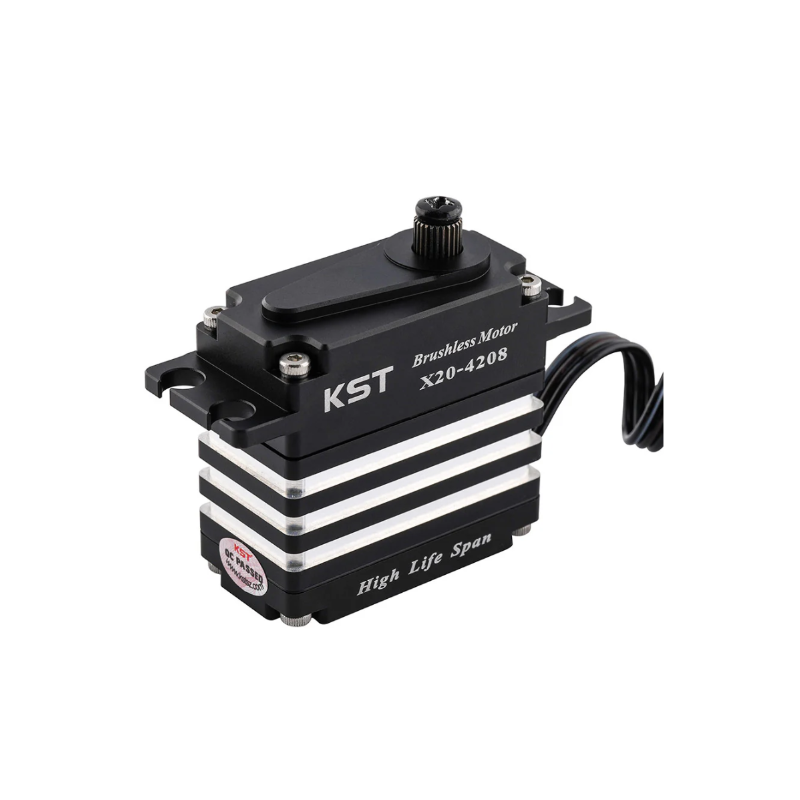

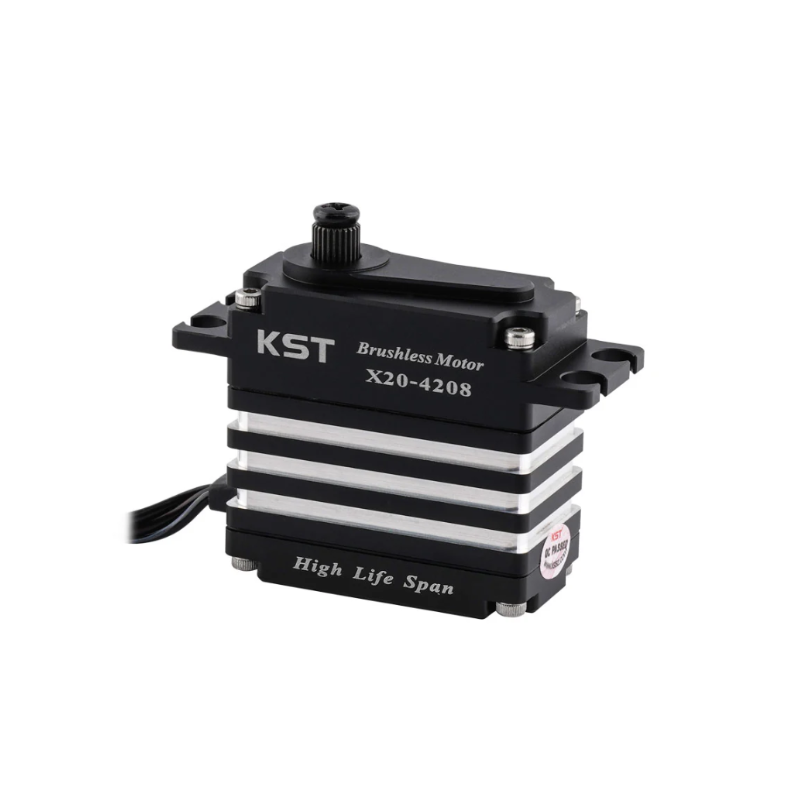

X20-4208 brushless servo is the first servo with a 4 pole brushless DC motor, high life span gear set and 6 ball bearing. The X20-4208 is a high torque and super fast servo for all uses such as 1:7 & 1:8 scale on-road or off-road class RC car racing.
Features
- 4 Pole Brushless DC Motor, with fast response and high efficiency
- Extreme torque & Excellent speed
- Hardened steel gear & CNC aluminum case
- 6 Ball Bearings
- IP65 splash-proof
- Working Frequency is up to 1520us/333Hz
- Programing box/USB link compatible
- Designed for 1:7 & 1:8 scale on-road or off-road RC Race cars (racing, buggy, truggy). Also suitable for high performance aerobatic airplanes, jets, scale models and more.
*Please note never plug the servo into a live system
Specification
- Item: X20-4208 Brushless Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC6.0V-8.4V
- Torque: 38Kgf.cm@6.0V, 42Kgf.cm@7.4V, 46Kgf.cm@8.4V
- Speed: 0.10sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
- Stalling Current: 8.80A@6.0V, 10.8A@7.4V, 12.3A@8.4V
- Working Frequency: 1520us/333Hz

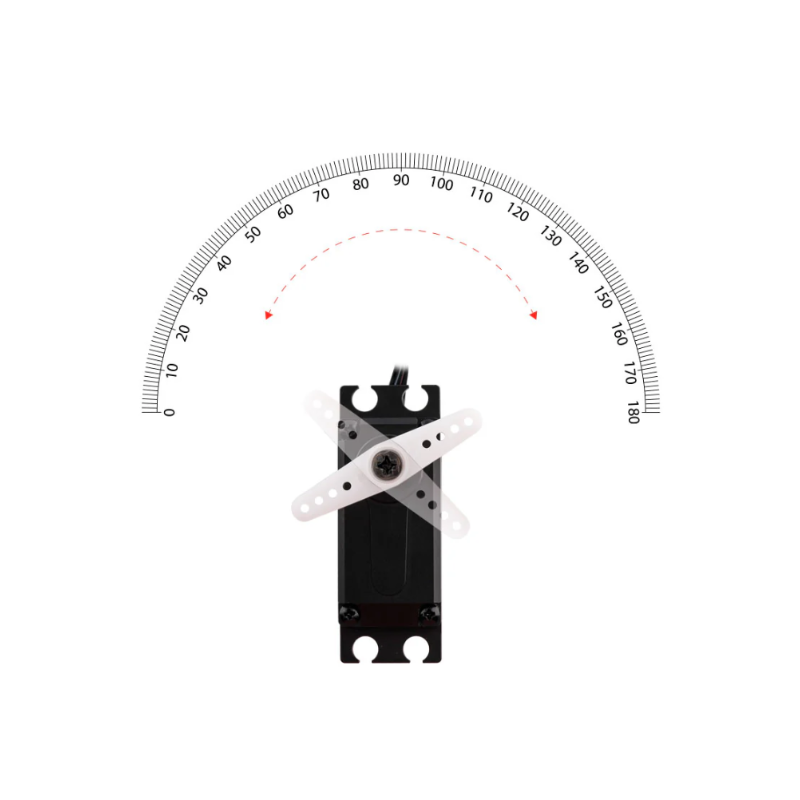

- Default Travel Angle: ±100° =200° Total
- Total Temperature Range: -20℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: 4 Pole Brushless DC Motor
- Gear Set Material: Hardened Steel/ HLS
- Position Sensor: Contactless
- Ball Bearing: 6BB
- Waterproof: IP65

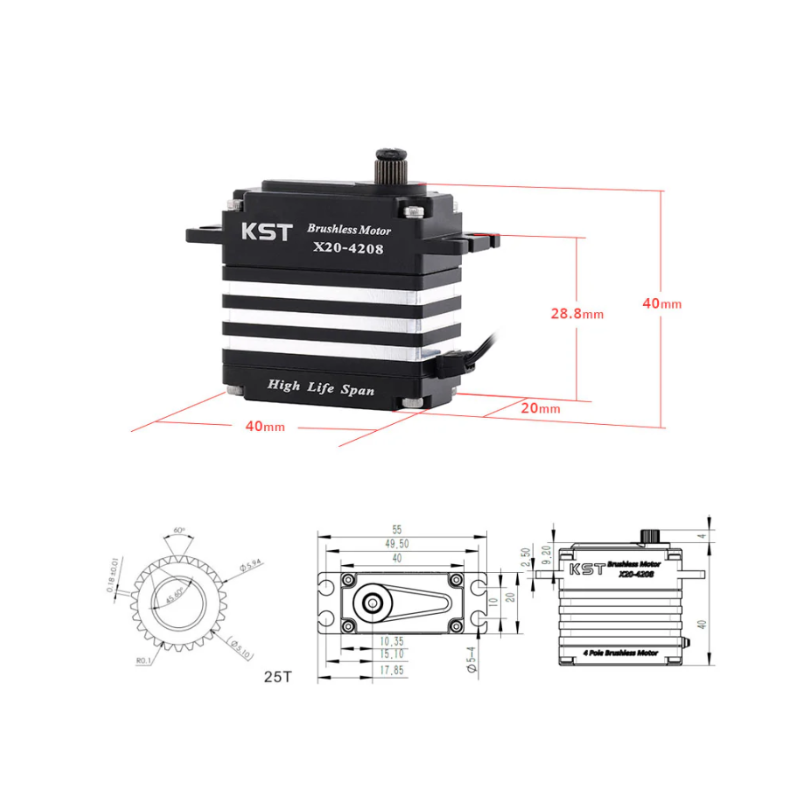

- Case Dimensions: 40mm*20mm*40mm±0.2mm
- Weight: 80g±10%
