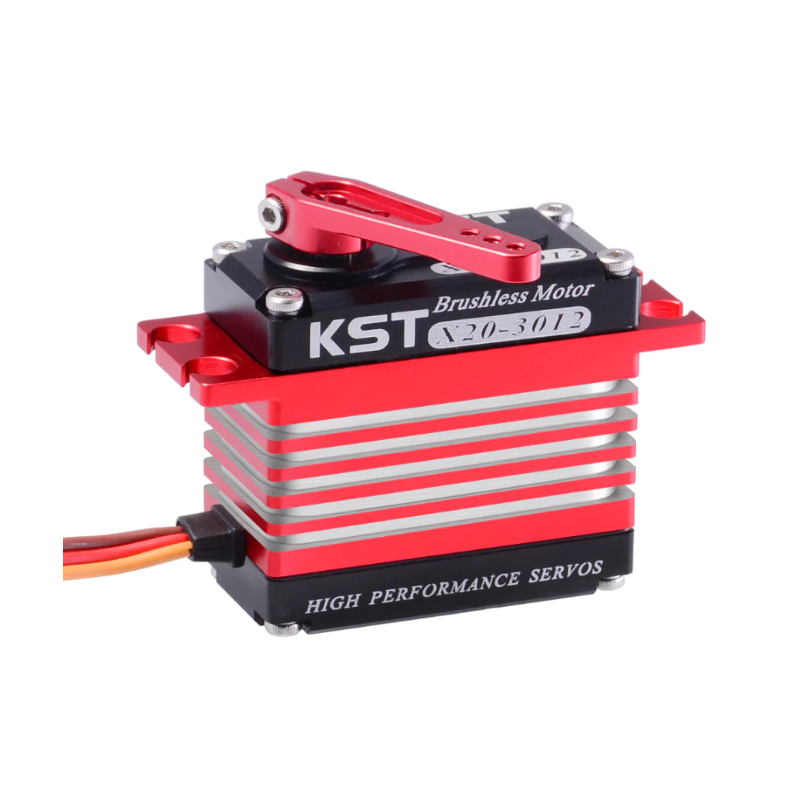

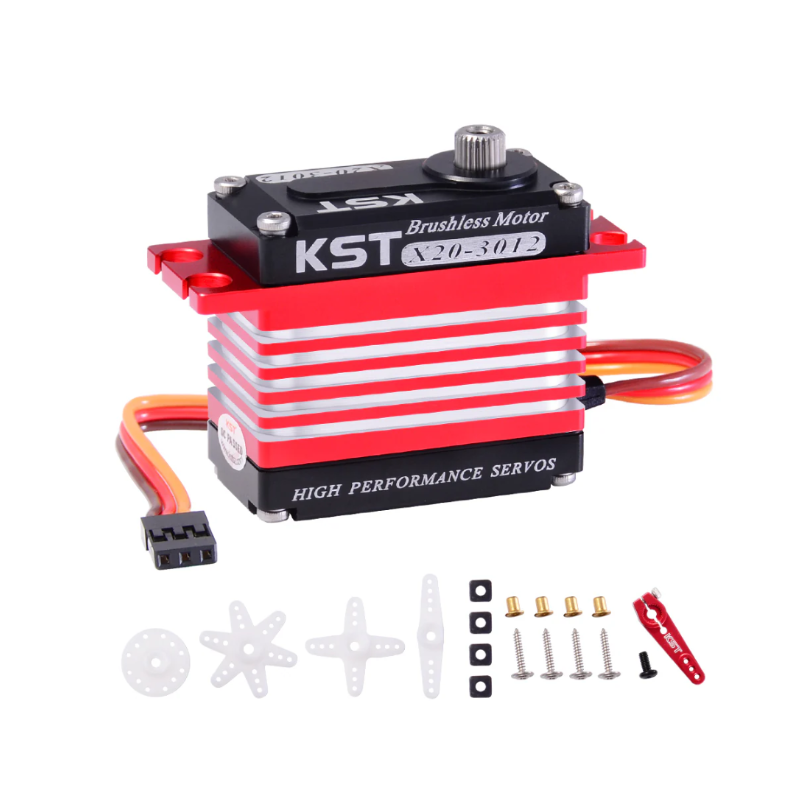

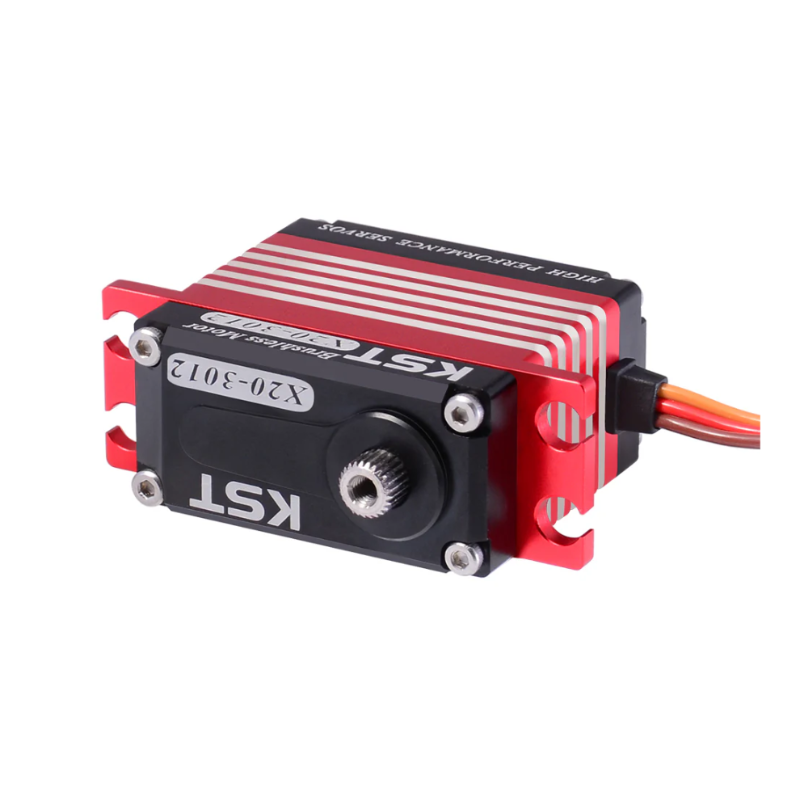

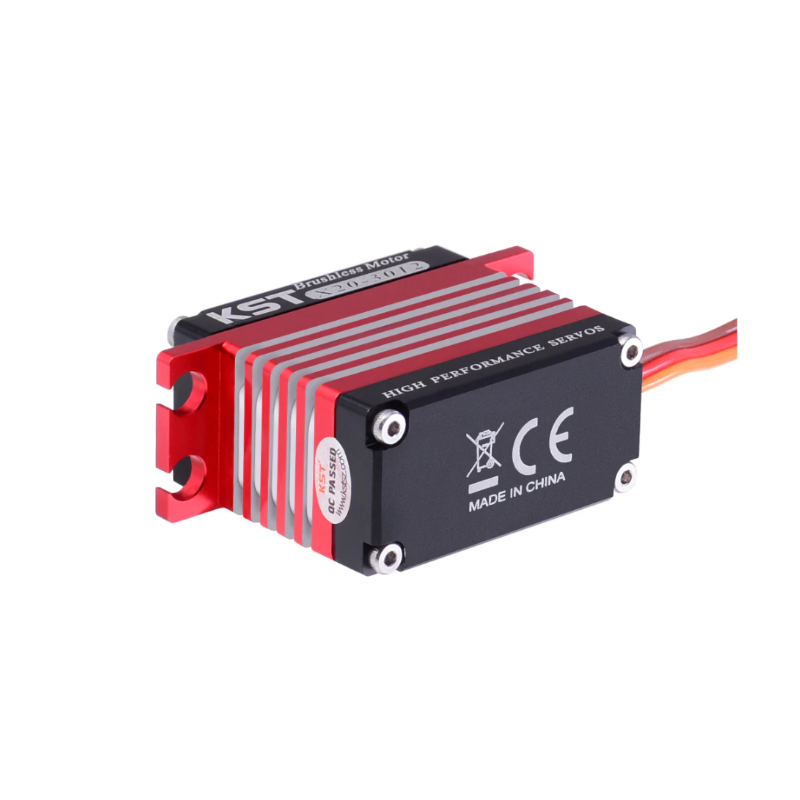

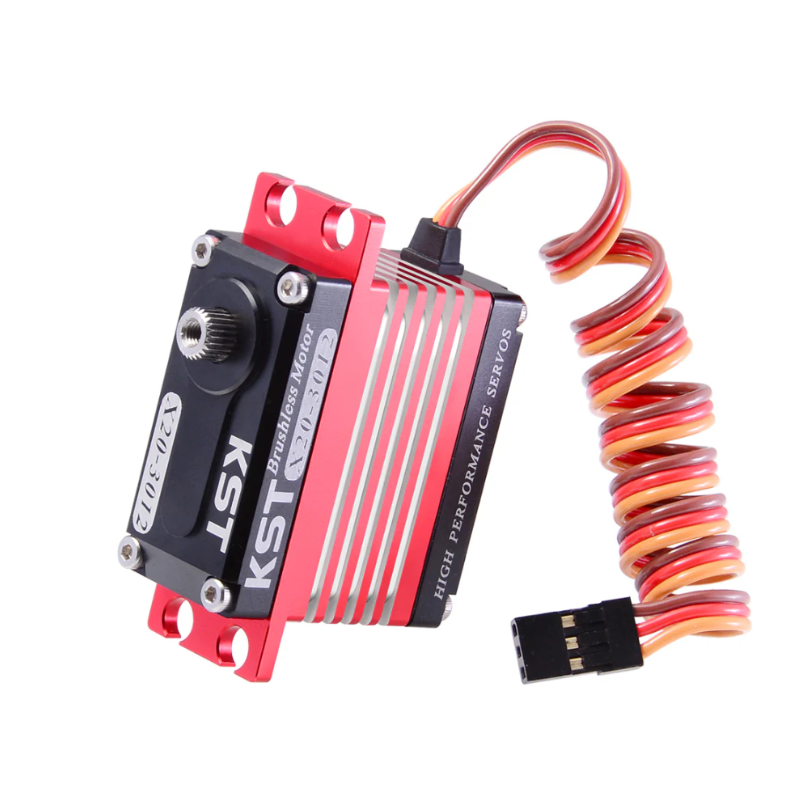

KST X20-3012 HV brushless servo features with ultra high torque of 35Kgf.cm and an amazing 0.11sec fast speed. It is one of the most perfect choice for RC cars, aerobatic airplanes, and jets.
Features
- Ultra High Torque & Excellent Speed
- Brushless DC Motor
- Dual Ball Bearings
- CNC aluminium case
- Ideal for RC cars, aerobatic airplanes and jets
Specification
- Item: X20-3012 HV Brushless Servo
- Rated Voltage: DC7.4V
-
Operating Voltage: DC6.0V-8.4V
-
Torque: 35Kgf.cm@8.4V / 30Kgf.cm@7.4V / 25Kgf.cm@6.0V
- Speed: 0.11sec/60°@8.4V / 0.12sec/60°@7.4V / 0.15sec/60°@6.0V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃.......+65℃
- Case Material: Aluminum Alloy
- Position Sensor: Potentiometer
- Motor: Brushless DC Motor
- Gear Set Material: Hardened Steel

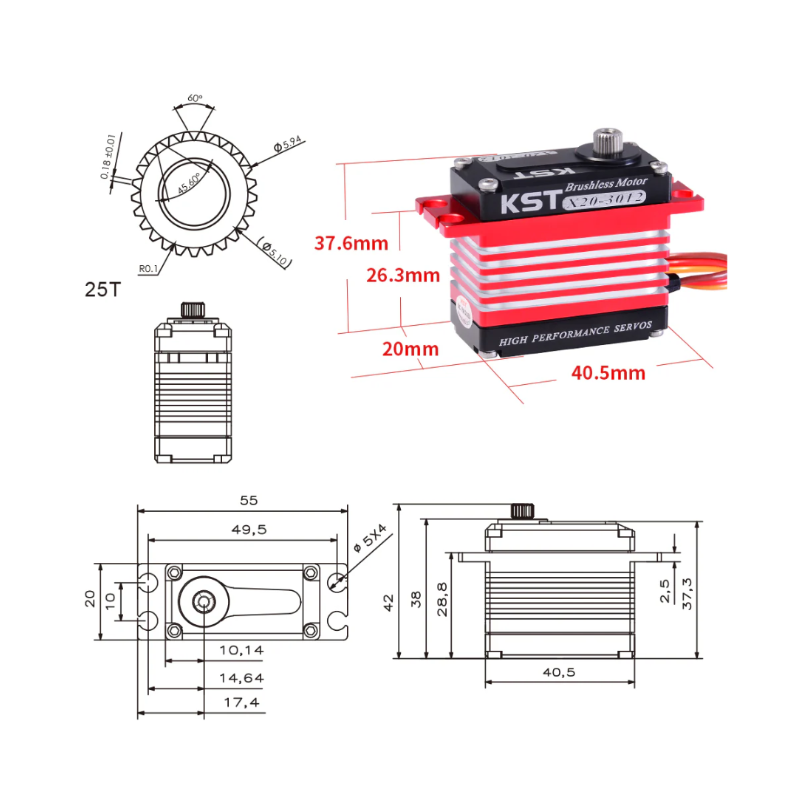

- Size: 40.5mm*20mm*38mm±0.2mm
- Weight: 72g±10%
- Ball Bearing: 2BB
